Door Hinge, Lock & Latch Installation Kit, 6063 Aluminum, 2.5-5" Hinges

Key features

• ALL-IN-ONE DOOR HARDWARE SYSTEM: Covers hinge mortising, lock hole drilling, and latch recessing in a single kit, so you don't need to buy three separate tools for one door installation project.
• DEDICATED LATCH MORTISING TOOL: A separate reinforced nylon latch mortising tool helps you cut a clean, flush recess for the strike plate, a detail that's difficult to get right with a chisel alone.

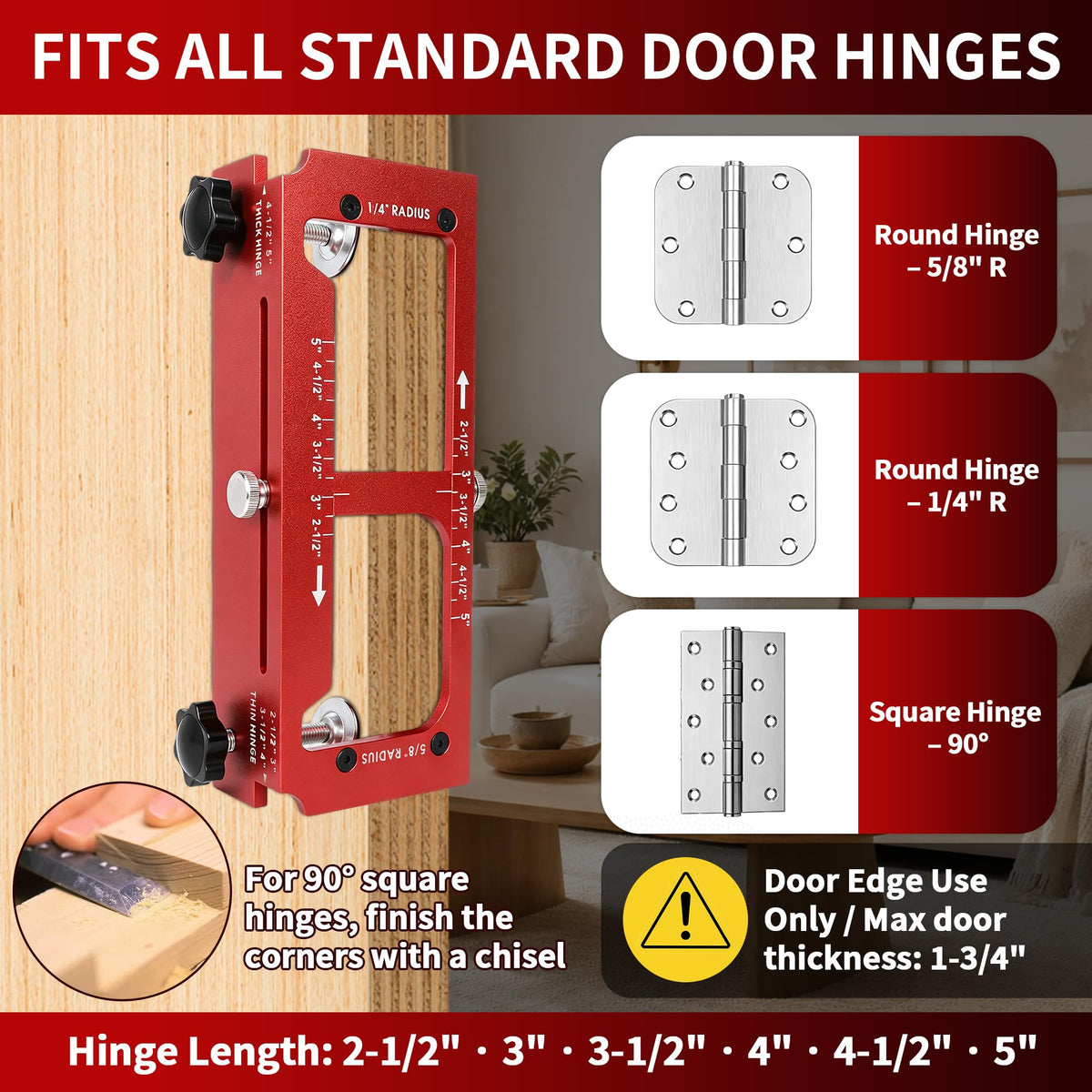

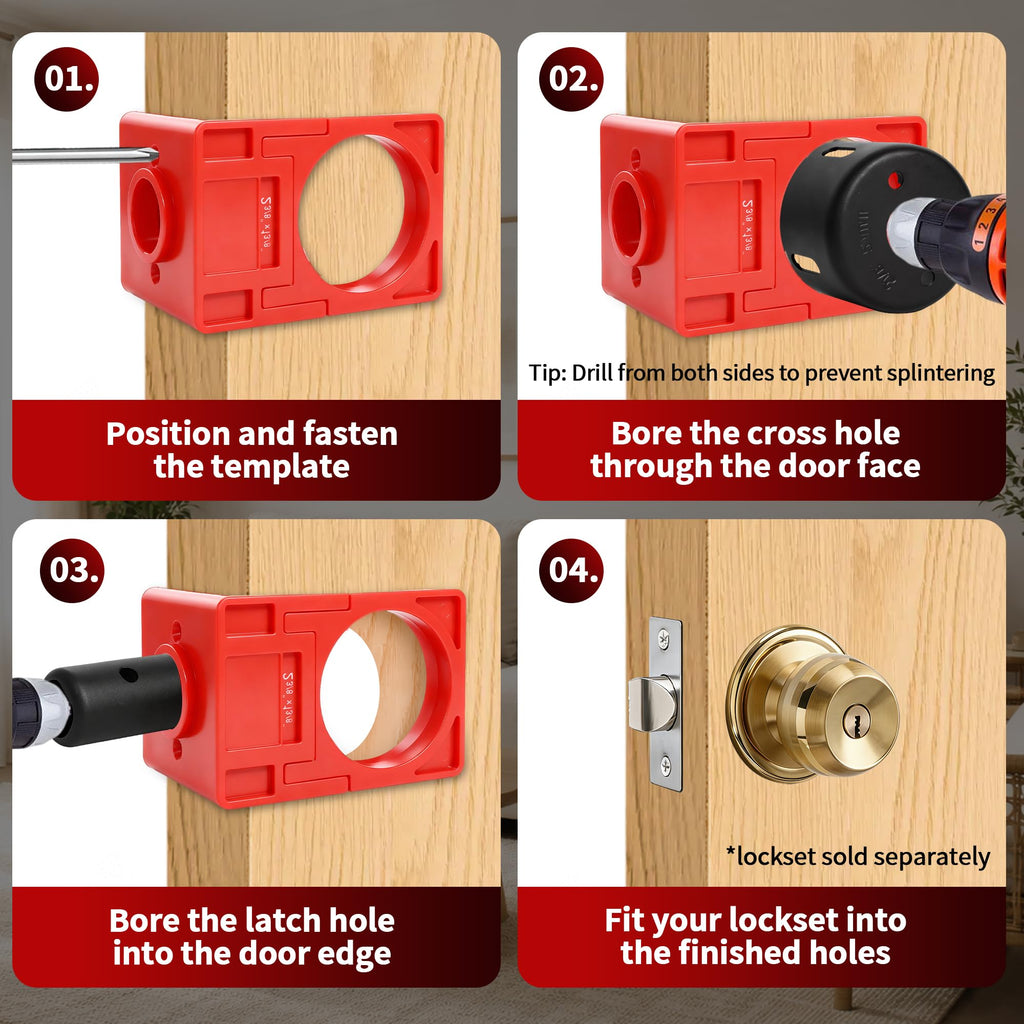

• ADJUSTABLE FOR MOST STANDARD HINGES AND LOCKS: The 6063 aluminum hinge jig fits 2.5" to 5" hinges (1/4" and 5/8" radius, plus square corners); the ABS lock template fits 1-3/8" and 1-3/4" doors with 2-3/8" or 2-3/4" backsets. For best results, secure the lock template with wood screws before drilling.
• BUILT FOR REPEATED USE ON MULTIPLE DOORS: The 6063 aluminum hinge jig holds its shape under regular router use, making this kit a practical choice for contractors and homeowners handling more than one door.

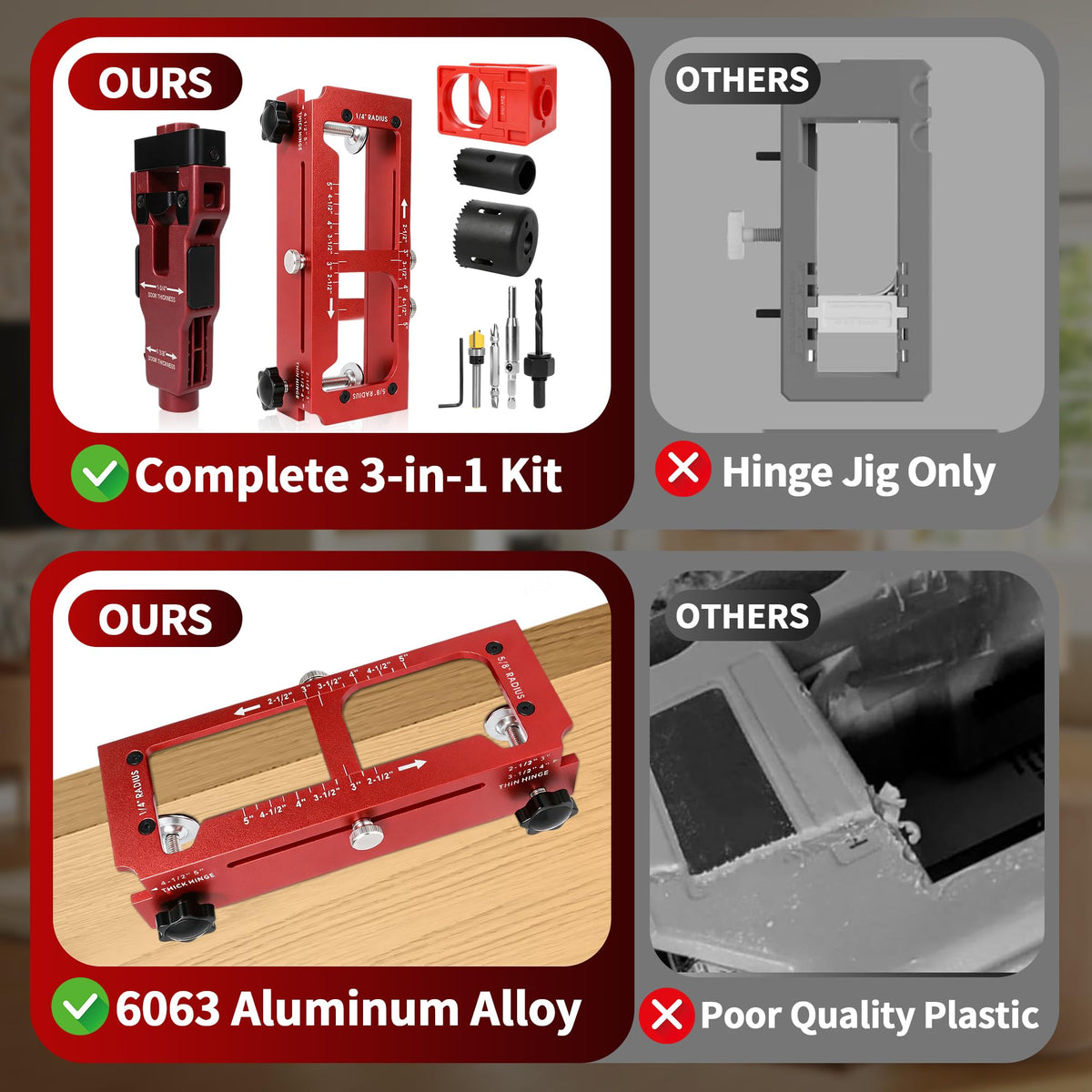

• COMPLETE KIT WITH STEP-BY-STEP INSTRUCTIONS: Includes hinge jig, ABS lock template, reinforced nylon latch mortising tool, router bit, self-centering hinge bit, screwdriver bit, heat-treated carbon steel hole saws with arbor, and a clear illustrated manual.
