Dorhea 4Pcs HC-SR501 Pir Motion Infrared Human Body Sensor Module Pyroelectric Infrared Motion Detector Module for Raspberry Pi Microcontrollers Projects

Key features

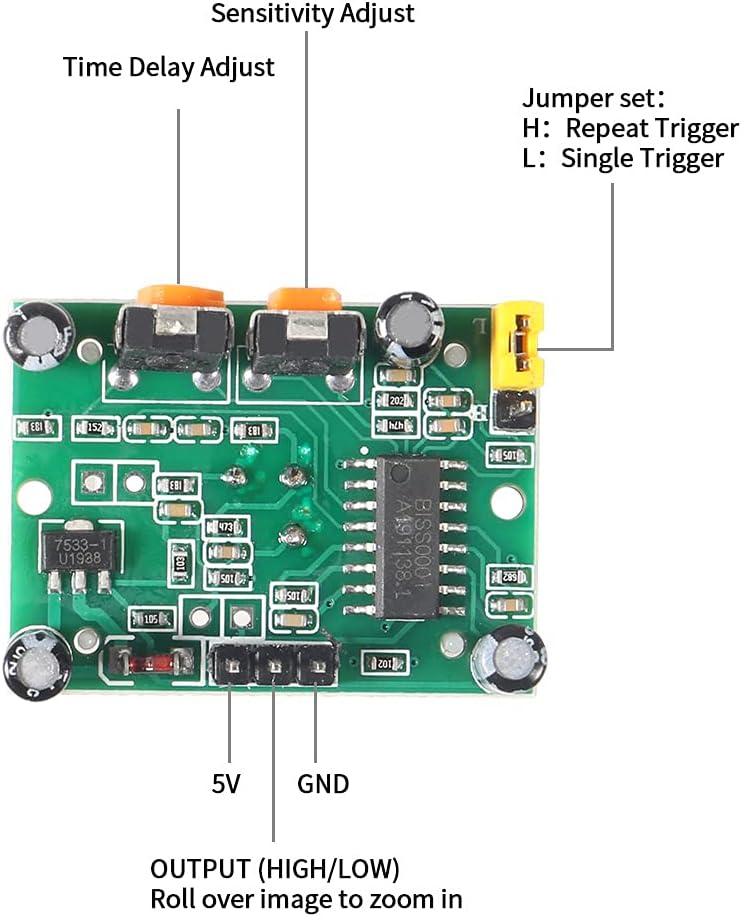

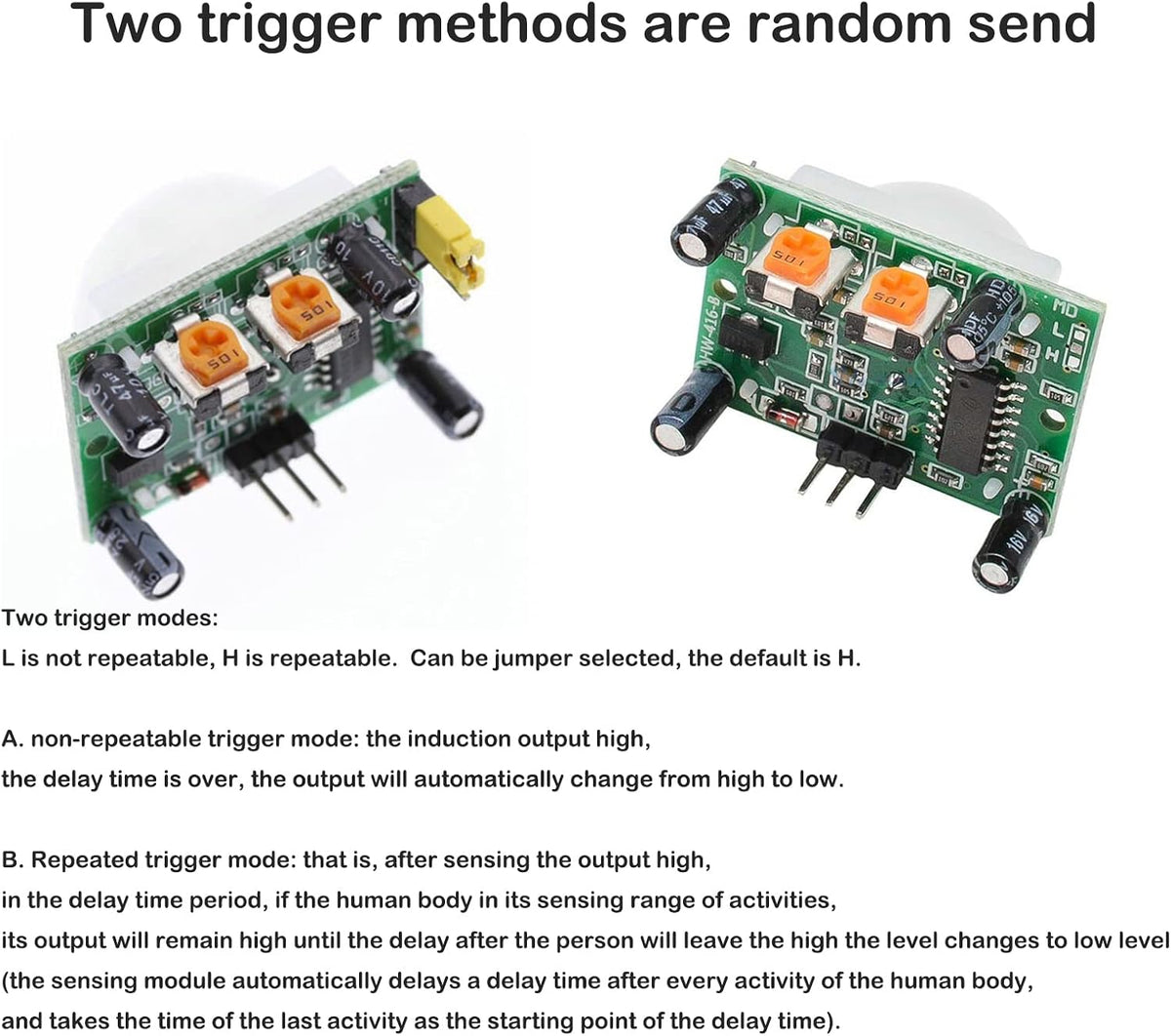

• Operating voltage range: DC 4.5-20V; Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger); Angle Sensor: <100 ° cone angle; Operating temperature: -15 to +70 degrees
• HC-SR501 using potentiometer 105, output timing is from 0.5S to 200S. Operating voltage range: DC 4.5-20V; Quiescent Current: <50uA; Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger
• The automatic sensor: to enter the sensor output range is high, people leave the sensor range of the automatic delay off high, output low
• HC-SR501 PIR motion sensor can turn on devices by detected motion. Automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices.
• HC-SR501 human body sensor lighting industrial automation and control, etc. Suitable for companies, hotels, shopping malls, warehouses and family aisles, corridors. Or use for the security zone automatic lighting, lighting and alarm systems

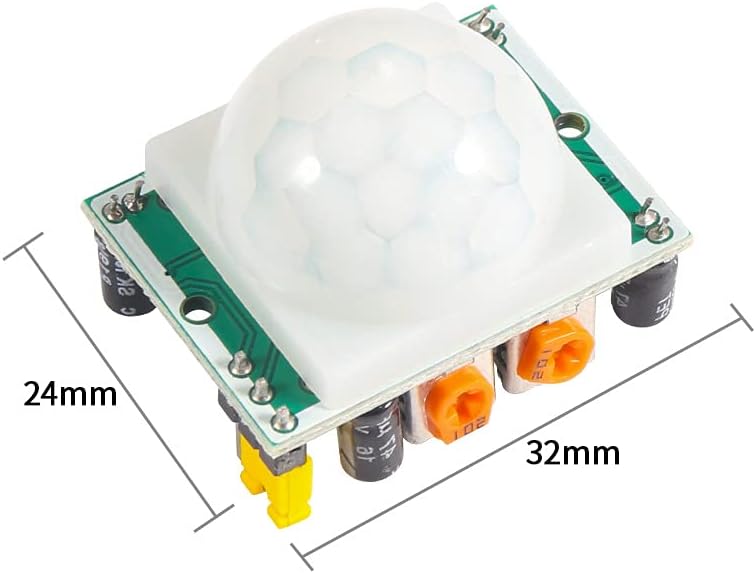

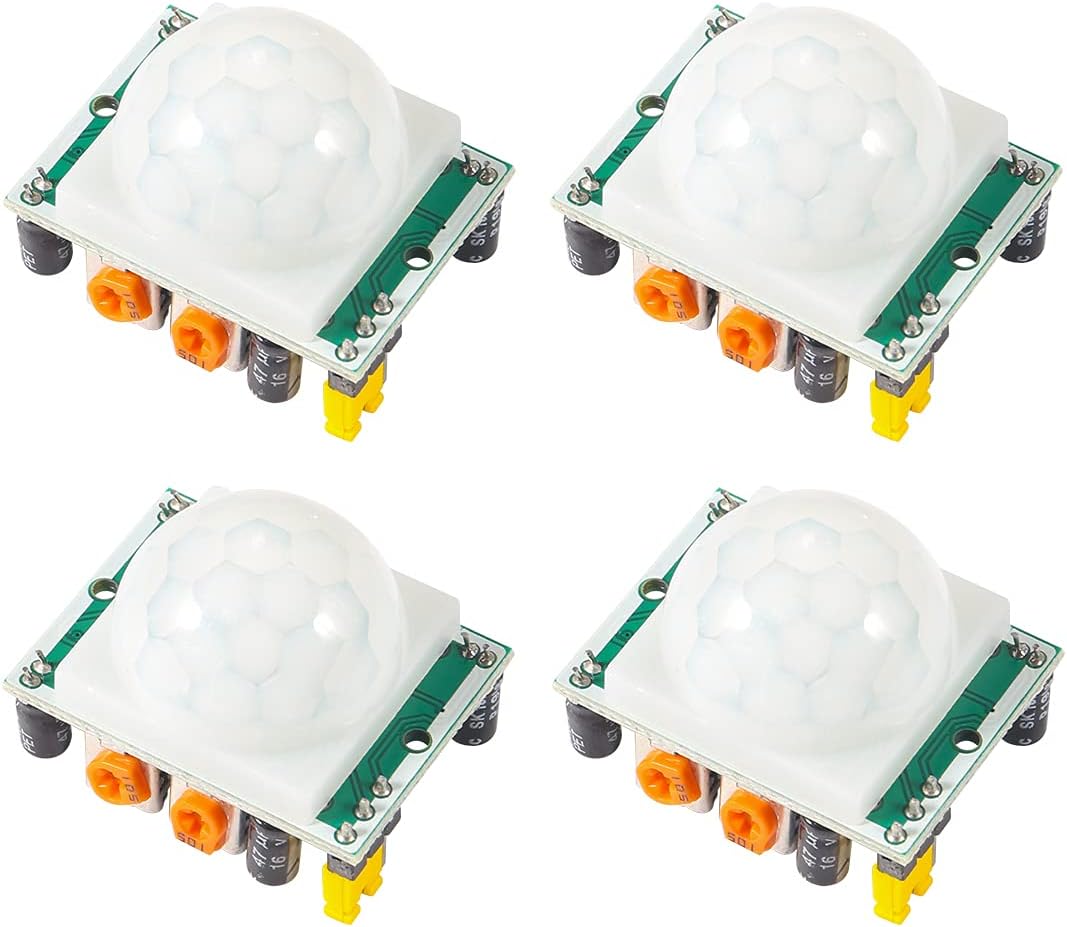

Product type: HC SR501 body sensor module Operating voltage range: DC 4.5-20V Quiescent current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time: 5-18S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds Board dimensions: 32mm*24mm Angle sensor: <100 ° cone angle Lens size Sensor diameter: 23mm(Default) Applications: Security products the human body sensors toys the human body sensor lighting industrial automation and control, etc Use:It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans,automatic washing machine and dryer machines and other devices,is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems Package include: 4 x HC-SR501 IR pyroelectric Infrared module
