DTGN Split Taper Bushing 13/16" Bore C45 Steel Locking Bushings

Key features

• Precision Locking Fit: Designed with an H style split taper structure, this H Bushing tightens uniformly around the shaft as bolts are driven in, eliminating backlash and radial runout. Reducing vibration and low-noise high-speed power transmission, ensuring smooth operation for industrial conveyor lines and machinery
• Heavy Duty Durability: Forged from SAE1045/ISO C45 carbon steel, this Shaft Locking Taper Bushing features high tensile strength and structural density. It resists cracking and deformation even under continuous heavy torque loads, providing a reliable power transmission solution for drive shafts, motor outputs, and agricultural machinery
• Corrosion Resistance: Treated with a black oxide finish, this Taper Lock Bushing for Pulleys provides basic rust prevention and wear resistance. It lowers maintenance frequency and prevents stubborn rust bonding, making future shaft disassemble and replacements fast and effortless
• Tool-Free Installation: Featuring a user-friendly split flange design (flange OD 2-1/2 inch, flange thickness 1/4 inch), simply insert the taper bushing into the pulley hub, align the smooth hole with the threaded hole, and tighten the cap screws. Allows technicians to achieve a secure shaft clamp, minimizing operational downtime

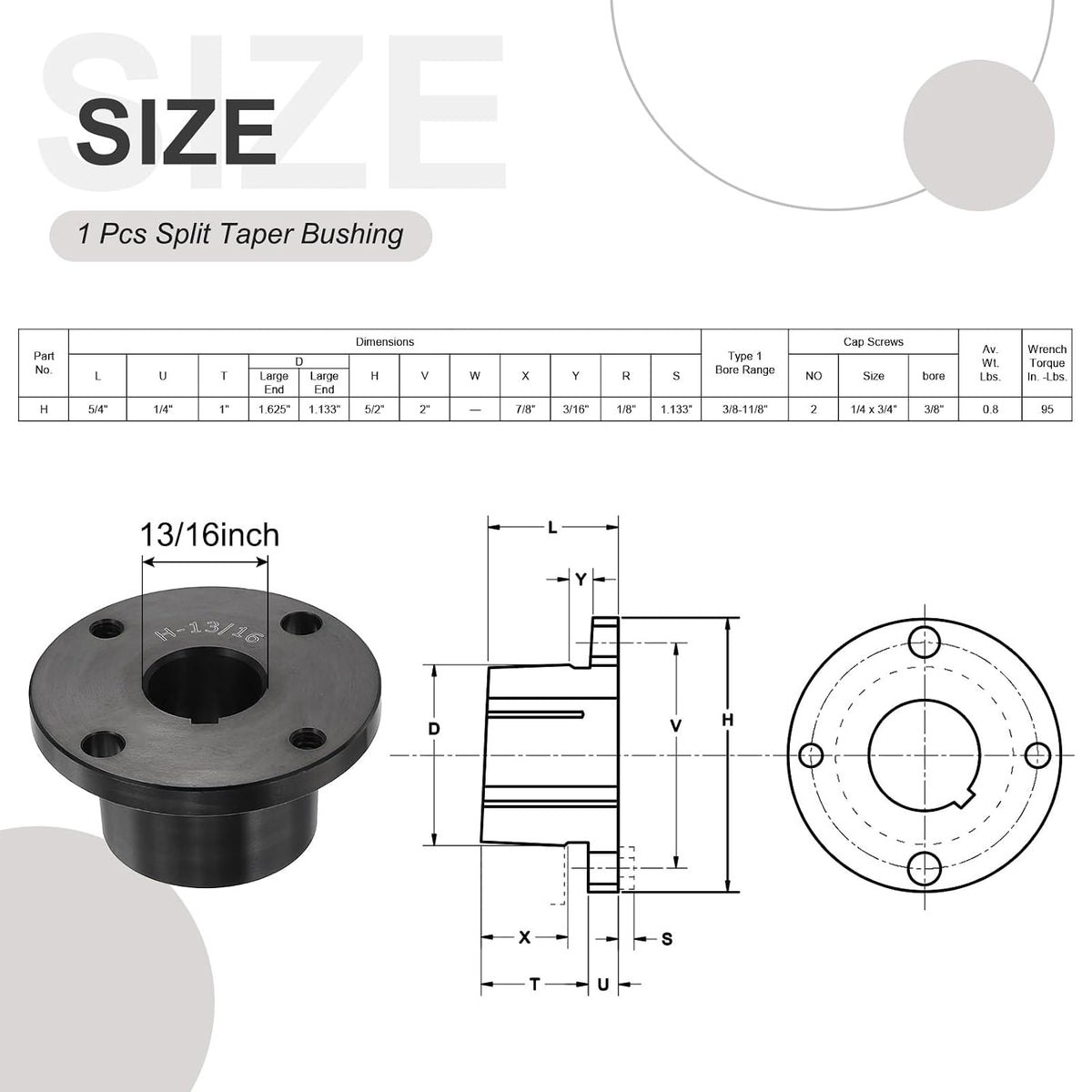

• Precision Machined Fit: CNC machined to exact specification with a 13/16 inch bore, 3/16x3/32 inch keyway size, and 1-1/4 inch height, featuring a 1.625 inch large end diameter and 1.57 inch small end diameter, this Tapered Bushing works seamlessly with V-belt pulleys, timing belt wheels, sprockets, and gears. Suitable for automation equipment, woodworking machines, and industrial drives

Precision Locking Fit: Designed with an H style split taper structure, this H Bushing tightens uniformly around the shaft as bolts are driven in, eliminating backlash and radial runout. Reducing vibration and low-noise high-speed power transmission, ensuring smooth operation for industrial conveyor lines and machinery.Heavy Duty Durability: Forged from SAE1045/ISO C45 carbon steel, this Shaft Locking Taper Bushing features high tensile strength and structural density. It resists cracking and deformation even under continuous heavy torque loads, providing a reliable power transmission solution for drive shafts, motor outputs, and agricultural machinery.Corrosion Resistance: Treated with a black oxide finish, this Taper Lock Bushing for Pulleys provides basic rust prevention and wear resistance. It lowers maintenance frequency and prevents stubborn rust bonding, making future shaft disassemble and replacements fast and effortless.Tool-Free Installation: Featuring a user-friendly split flange design (flange OD 2-1/2 inch, flange thickness 1/4 inch), simply insert the taper bushing into the pulley hub, align the smooth hole with the threaded hole, and tighten the cap screws. Allows tec

Free shipping included. 30-day hassle-free returns.
