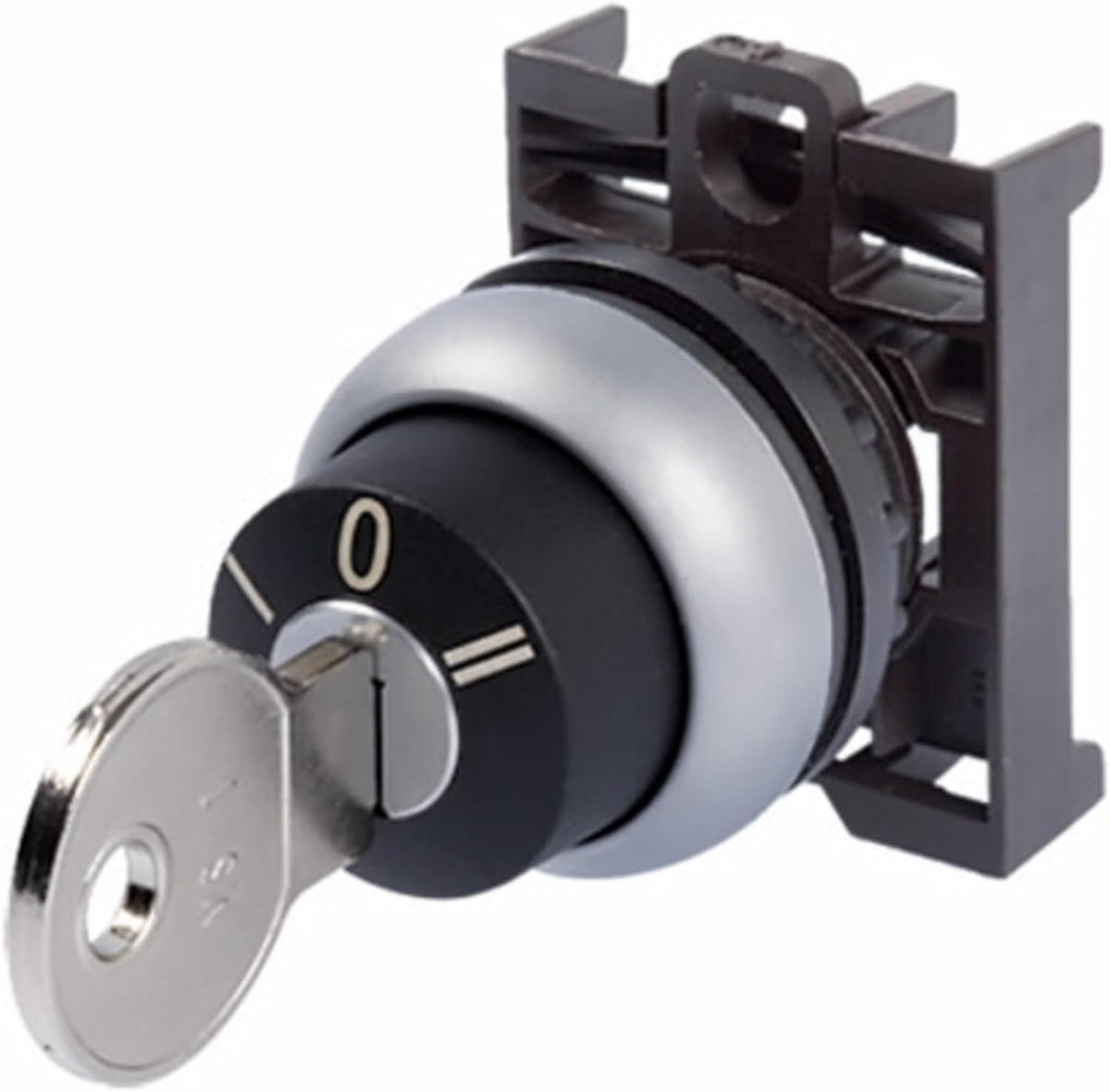

Eaton M22-WRS3 22mm Selector Switch, Key Operated, M22
Eaton M22-WRS3 22mm Selector Switch, Key Operated, M22
Key features
- 22
- 5 mm, Non-Metallic, Selector Switch Operator, M22 Series, Silver Bezel, Key Type, Non-Illuminated, 3-Position, 45 Degree Throw, Operating Mode: Maintained
- Left and Right Key Removal
- NEMA 4X, 13
- Pushbuttons and selector switches are designed with a simple slide lever that allows for field conversion from maintained to momentary or vice versa
22.5 mm, Non-Metallic, Selector Switch Operator, M22 Series, Silver Bezel, Key Type, Non-Illuminated, 3-Position, 45 Degree Throw, Operating Mode: Maintained. Left and Right Key Removal. NEMA 4X, 13. Pushbuttons and selector switches are designed with a simple slide lever that allows for field conversion from maintained to momentary or vice versa. A simple lever or coding adapter can change the status of your device, giving you more flexibility in the field and less inventory costs at the warehouse. The entire line mounts in astandard 22 mm notched hole, which is the best assuranceagainst rotation duringinstallation and long-term anti-rotation tab and centralnut mounting on each operatorfacilitates installation, evenwhen the front and back ofthe panel are not accessiblesimultaneously. Also known as: 786685279589, M22-WRS3, CUTM22WRS3 This listing is for Each.
Free shipping included. 30-day hassle-free returns.
