EBF64375202 3W40025C Dishwasher Micro Switch Compatible with LG Kenmore

Fits models: LDF5545, LDF5678, LDP5676, LDP6797, LDP6809, LDP6810, LDP7708, LDP7808, LDT5665, LDT5678, LDT6809, LDT7797, LDT7808. Check your model number before ordering.

Key features

• Diverter Switch：3W40025C EBF64375202 dishwasher micro switch is compatible with LG Kenmore dishwasher, normally closed (NC) diverter position detection switch. Related issues may include diverter position detection errors, nE error codes, interrupted wash cycles, or uneven cleaning caused by incorrect diverter position feedback. Replace AP6989906 and PS16219431
• Compatible Dishwasher：EBF64375202 dishwasher diverter switch is compatible with LG LDB4548, LDF5545, LDF5678, LDP5676, LDP6797, LDP6809, LDP6810, LDP7708, LDP7808, LDT5665, LDT5678, LDT6809, LDT7797, LDT7808 series dishwasher; compatible with Kenmore 722 series models 72214305910, 72214307910, 72214355910

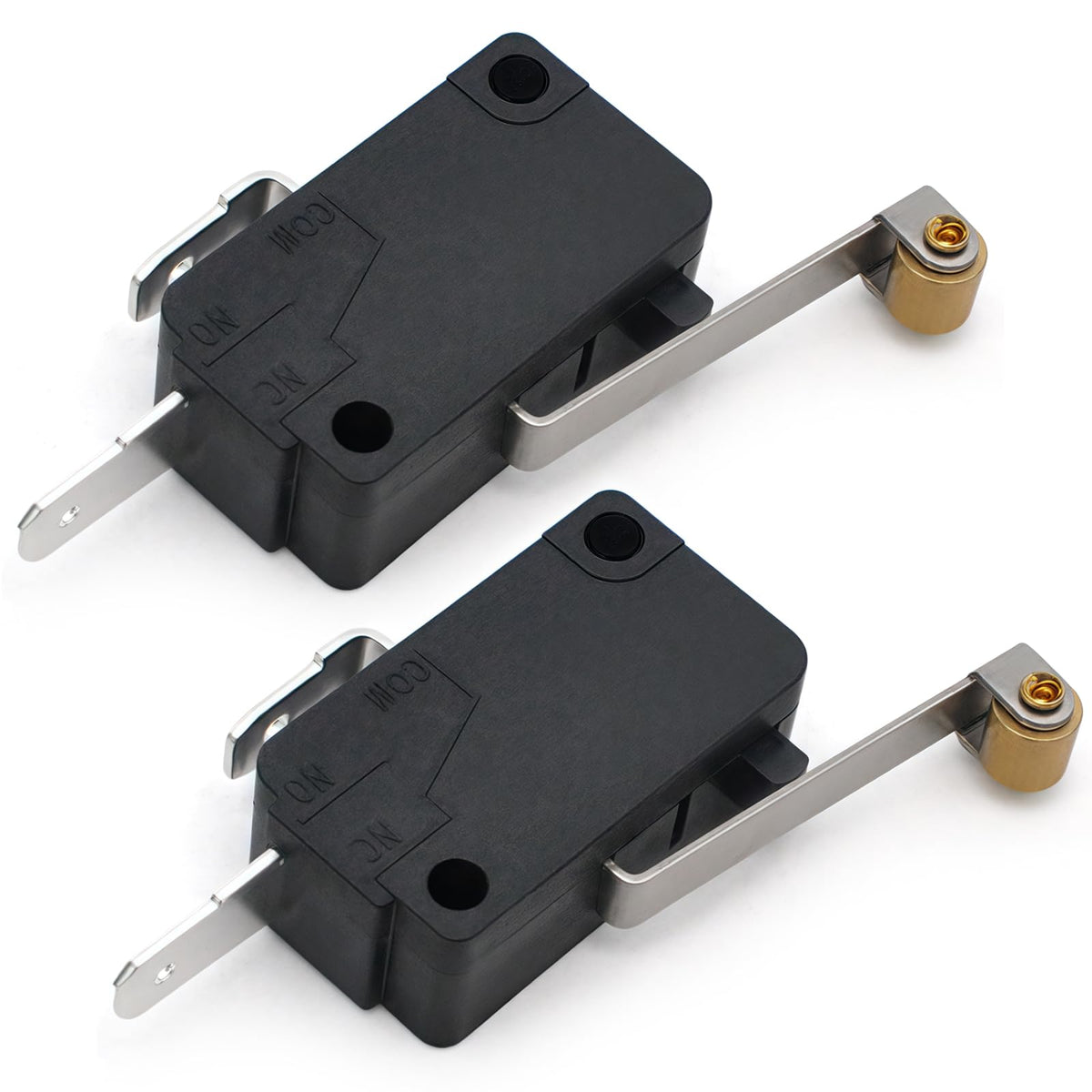

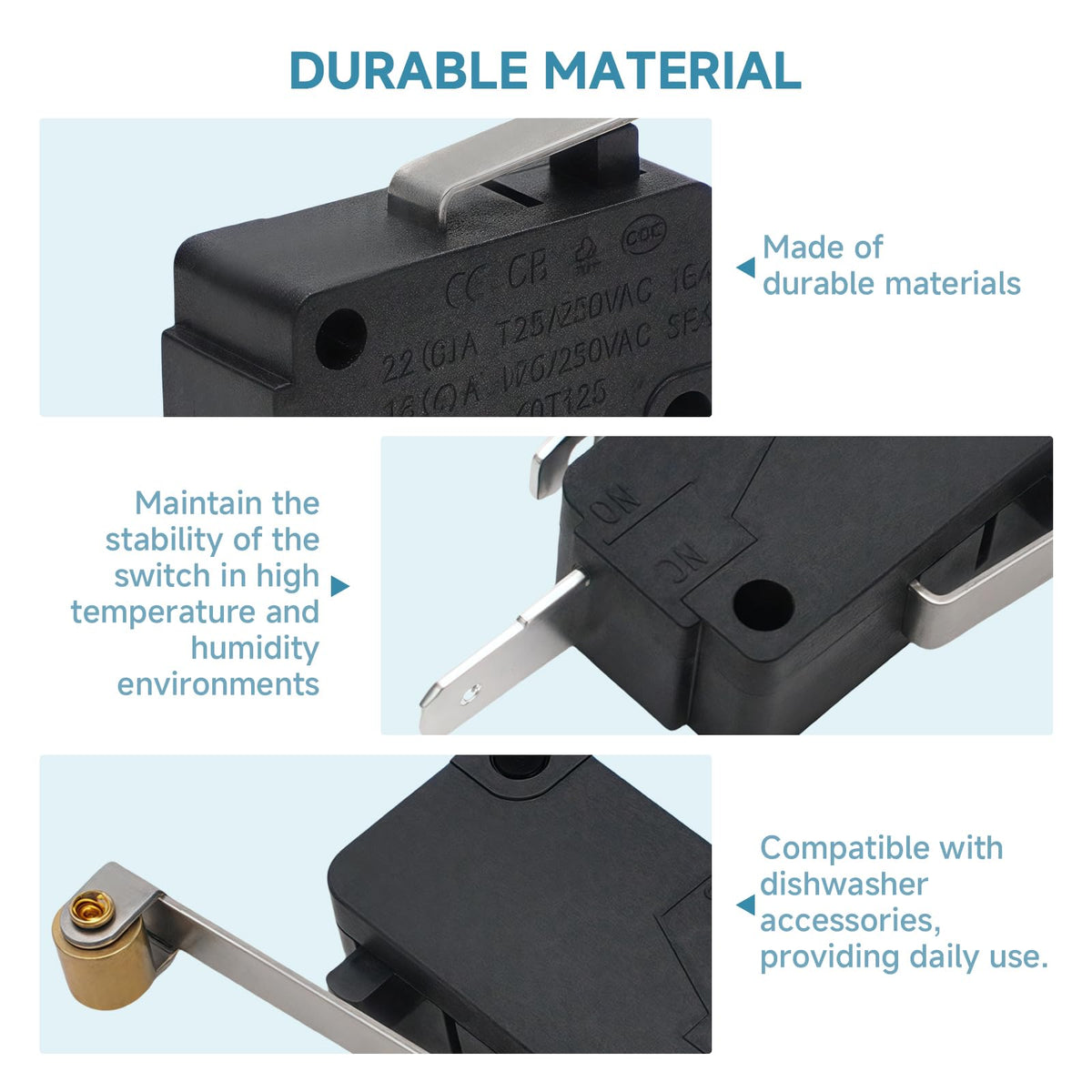

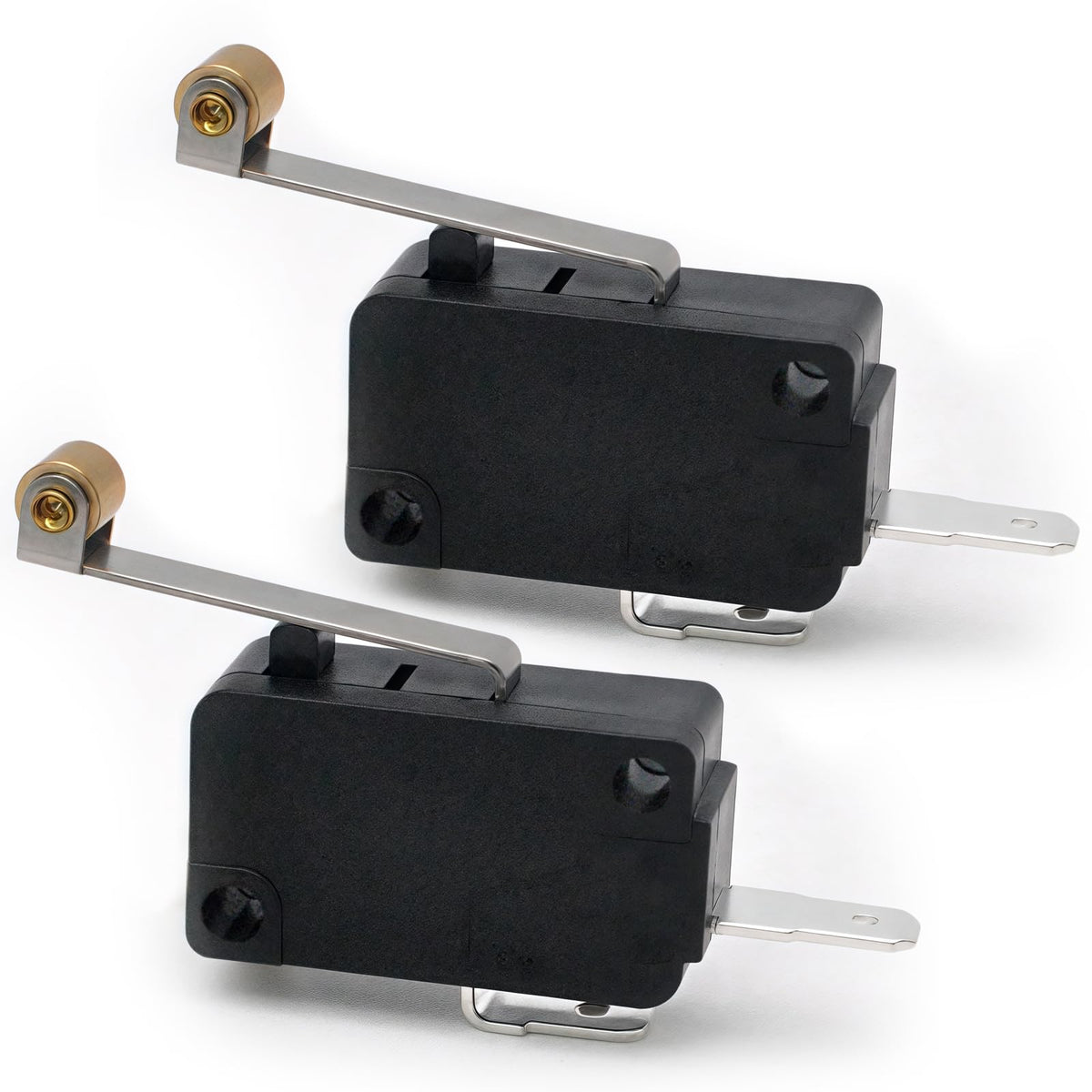

• Electrical Rating：Features a black plastic housing, a metal roller lever and 2 metal terminals. The normally closed (NC) contacts remain closed when the lever is released and open when pressed. Under the corresponding rated test conditions, 16(4)A at 125/250VAC is rated for 50,000 operating cycles, while 22(8)A at 125/250VAC is rated for 10,000 operating cycles. Temperature classification: T125
• Micro Switch：The EBF64375202 micro switch detects the position of the dishwasher diverter and provides switching signals to the control board, helping monitor water distribution during wash cycles
• Diverter Position Detection：dishwasher diverter directs water to different spray zones during wash cycles. As the diverter moves into position, its actuator presses the micro switch lever, changing the contact state and signaling the diverter position to the control board. The control board uses this switching signal to identify the diverter position

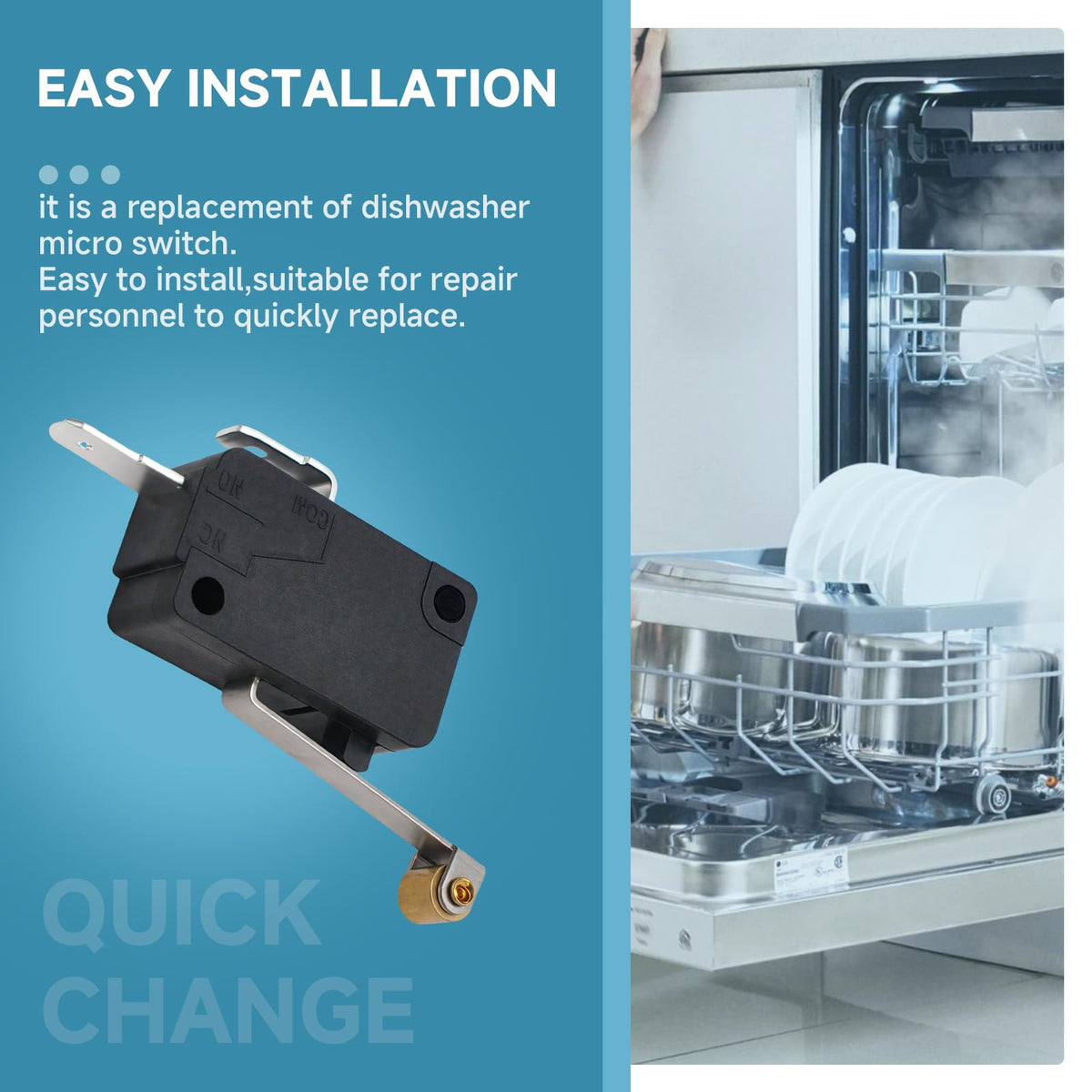

• Installation ：Installs near the diverter motor in the lower sump assembly of the dishwasher. Before replacement, disconnect the power supply and shut off the water supply. Access the service area, remove the old switch, install the replacement in the corresponding mounting position and reconnect the wiring. Before ordering, verify the normally closed (NC), roller lever, terminal
