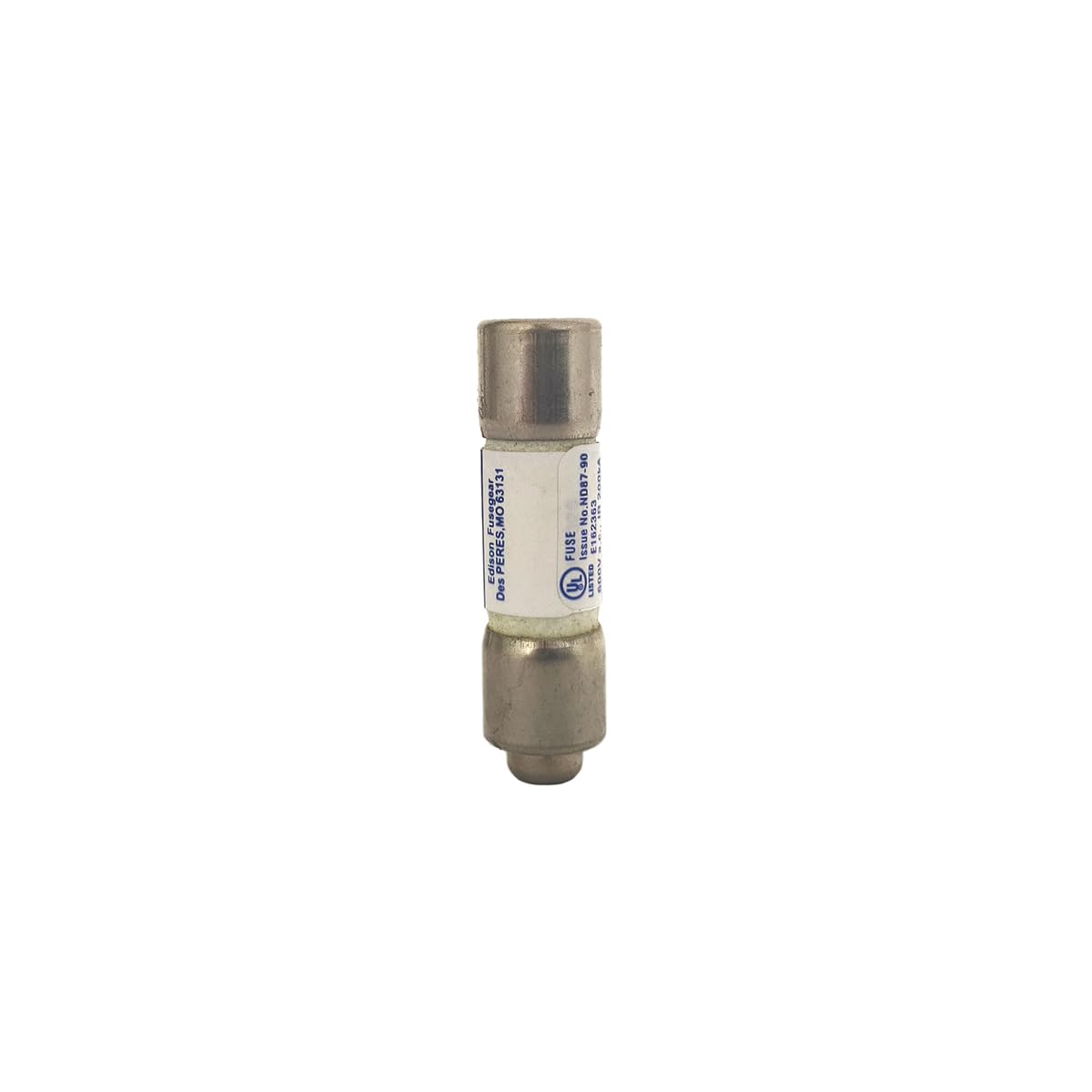

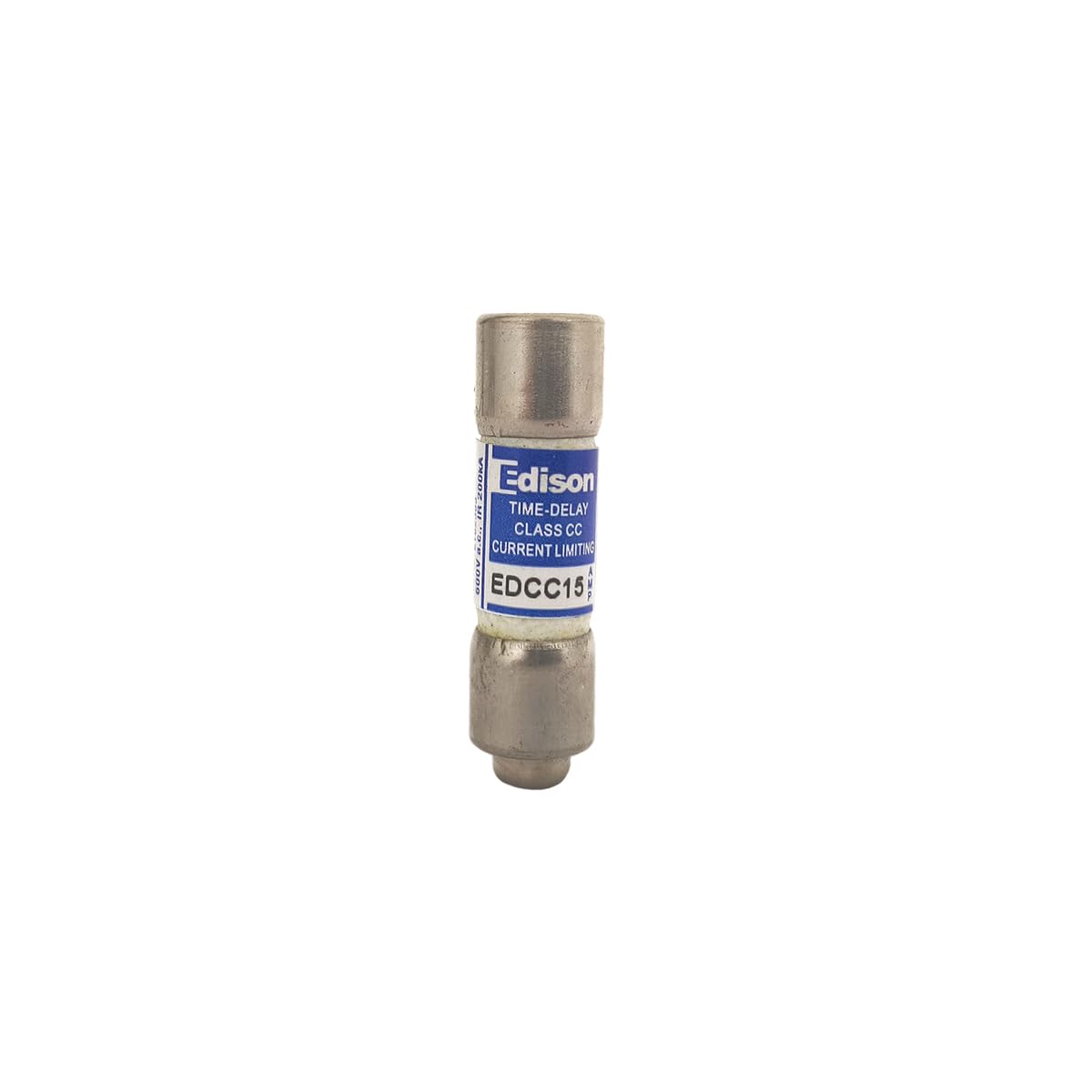

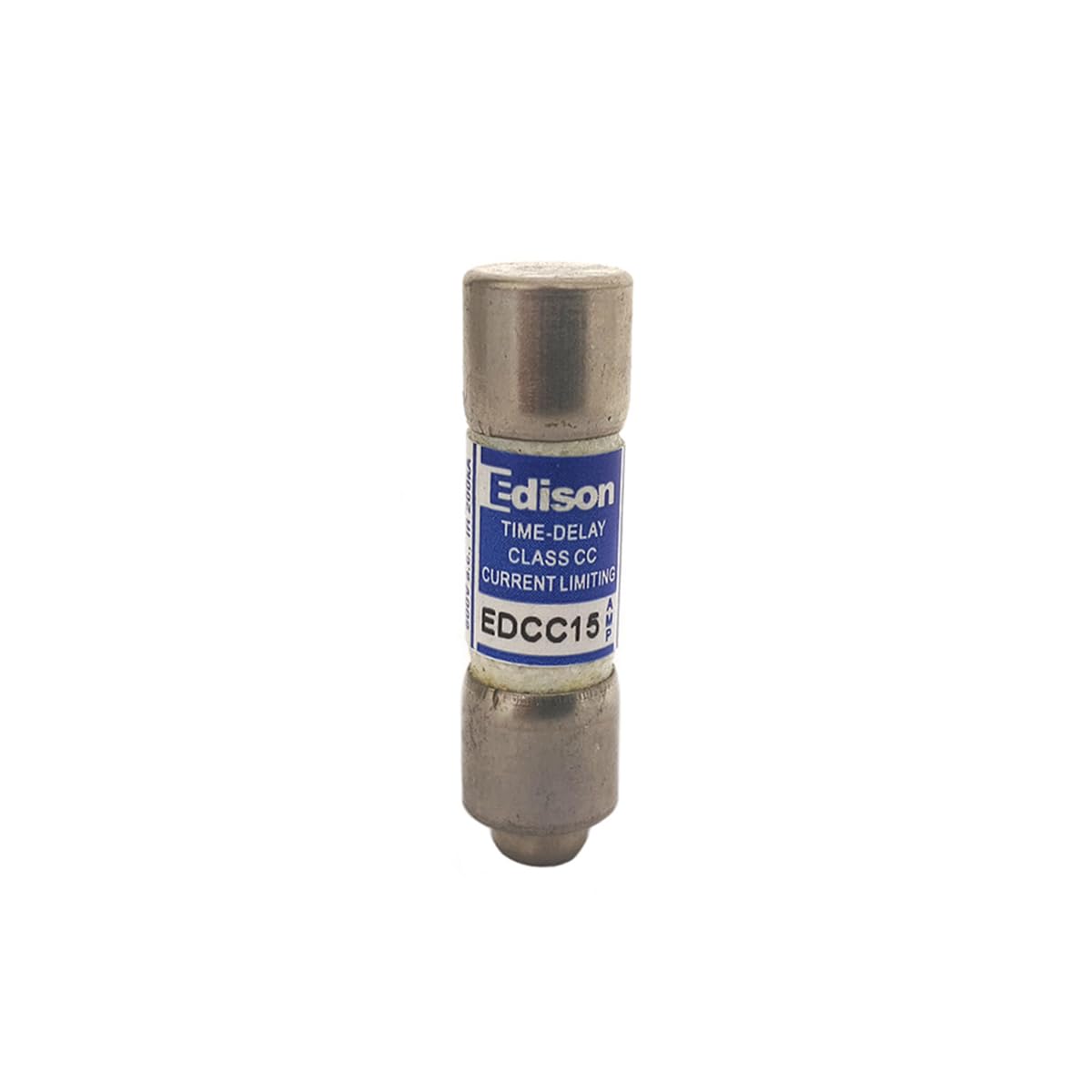

EDCC-15 (EDCC15) 15A Time-Delay Fuse Class CC 600 V Compatible with Edison

Key features

• A superior all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30 amps.
• Very compact; physical size is only 13⁄32" x 1 1/2"(10.3 x 38.1mm) with rejection tip.
• Faster response to damaging short-circuit currents and higher interrupting rating than mechanical overcurrent protective devices.
• Time-delay to avoid unwanted fuse openings from surge currents.
• Motors receive maximum protection against burnout from overloads and single phasing.

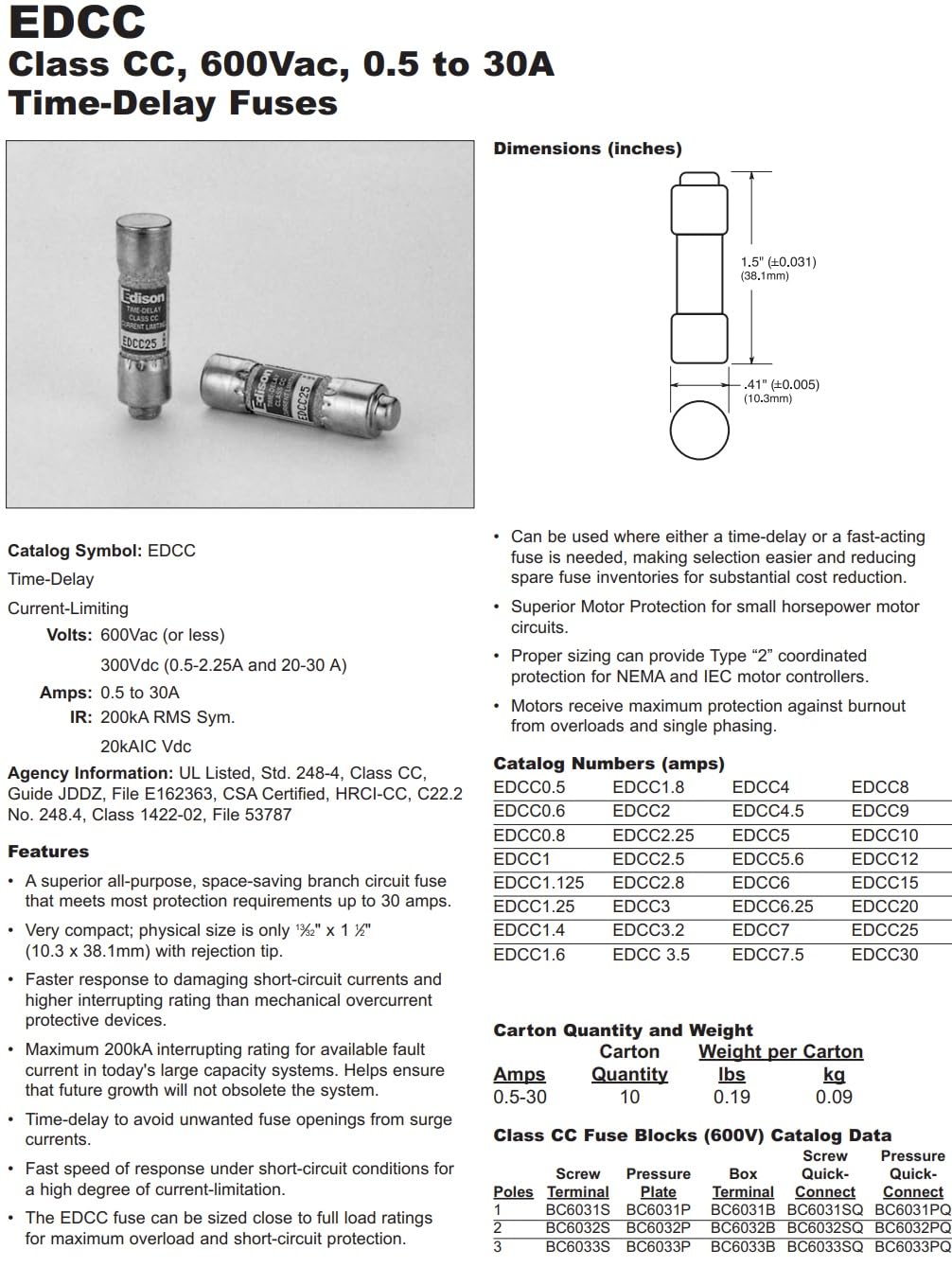

EDCC fuse, Non-indicating, 15 A, Class CC, 20 kAIC, Standard, 600 V, 300 VdcFeatures Maximum 200kA interrupting rating for available fault current in today's large capacity systems. Helps ensure that future growth will not obsolete the system. Fast speed of response under short-circuit conditions for a high degree of current-limitation. The EDCC fuse can be sized close to full load ratings for maximum overload and short-circuit protection. Can be used where either a time-delay or a fast-acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction. Superior Motor Protection for small horsepower motor circuits. Proper sizing can provide Type “2” coordinated protection for NEMA and IEC motor controllers.Catalog Number:EDCC15Product Length/Depth:1.5 inProduct Height:0.41 inProduct Width:0.41 inProduct Weight:0.19 lb
