EE-SX672WRP Optical Sensor Transmission Switch

Key features

• PNP OUTPUT TYPE: The UX672-WR optical slot sensor features an NPN output, making it compatible with a wide range of linear track guide actuator applications
• PRECISE DETECTION: Capable of detecting opaque objects as small as 1.2x2.0mm within a 5mm groove width, with a repeatability of less than 0.03mm for highly accurate sensing
• FAST RESPONSE & DUAL OUTPUT: Operates at a 2KHz response frequency with two independent simultaneous outputs, triggering ON when shading and ON when entering the slot
• RELIABLE PROTECTION: Built-in surge protection circuit and polarity reverse protection safeguard the sensor, with a red action indicator light for easy status monitoring
• WIDE VOLTAGE RANGE & EASY WIRING: Supports DC 12-24V supply voltage with a GaAs infrared LED light source at 940nm, and comes with a standard 2-meter wire extraction type connection
• DURABLE OPERATING CONDITIONS: Rated for ambient operating temperatures ranging from -25 to +70 degrees Celsius, ensuring reliable performance in various industrial environments
• COMPLETE PACKAGE: This pack includes 2 optical sensors, providing a cost-effective solution for multiple installation points or backup requirements in your automation system

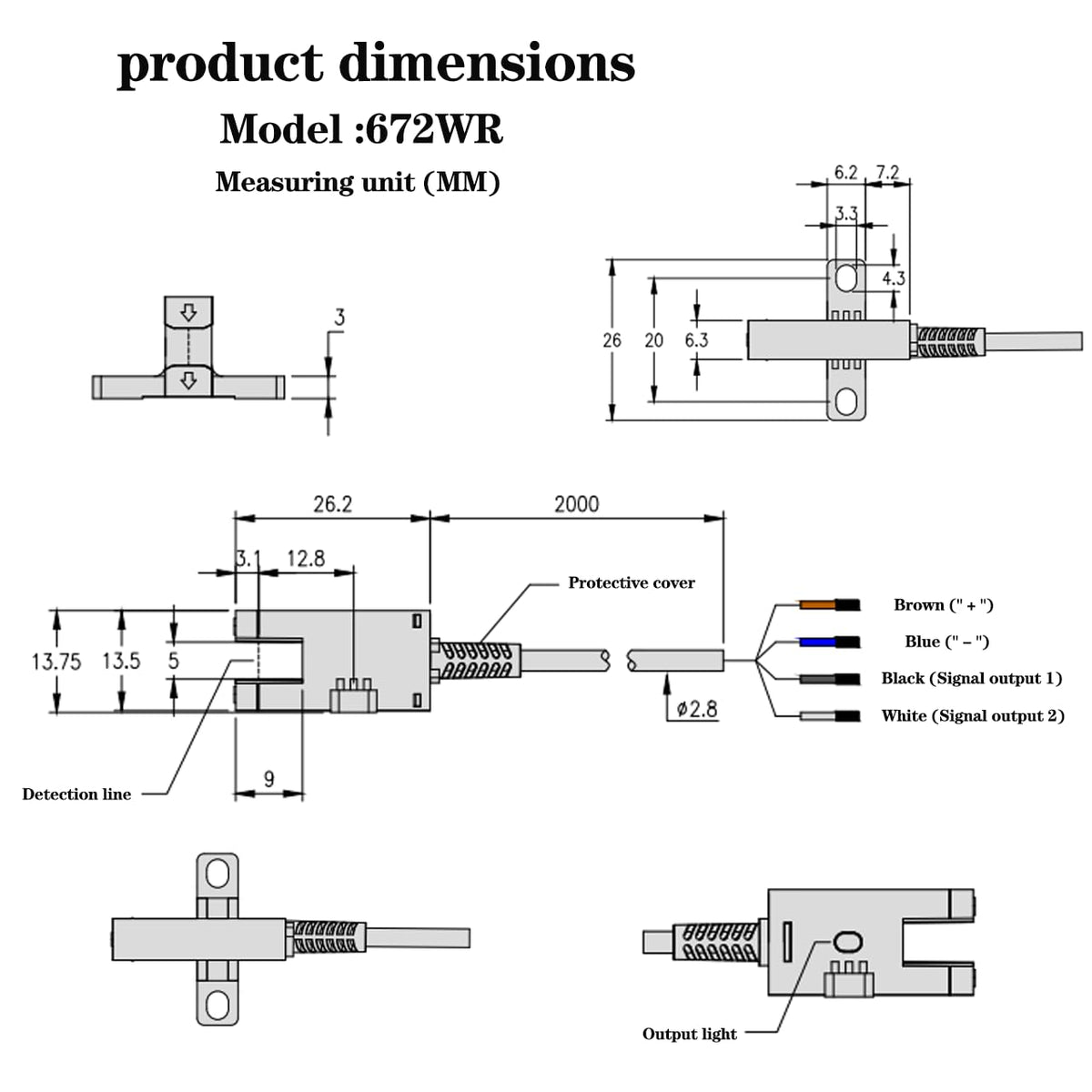

The UX672-WR is a high-precision optical groove sensor designed for use with linear track guided actuators, making it an ideal limit switch solution for automated systems. This slot-type photoelectric sensor features an NPN output and is capable of detecting opaque objects as small as 1.2x2.0mm within a 5mm groove width. With a rapid response frequency of 2KHz and exceptional repeatability of less than 0.03mm, this sensor delivers reliable and consistent performance in demanding applications. The built-in red action pilot lamp provides clear visual feedback during operation. Safety is ensured through its surge protection circuit and polarity reverse protection. The sensor operates on a supply voltage of DC12-24V and utilizes a GaAs Infrared Light Emitting Diode (940nm) as its light source. It supports two independent simultaneous outputs, activating both when shading and when entering. Rated for ambient operating temperatures from -25 to +70 degrees C, it connects via a standard 2-meter wire extraction cable. This pack includes 2 sensors.
