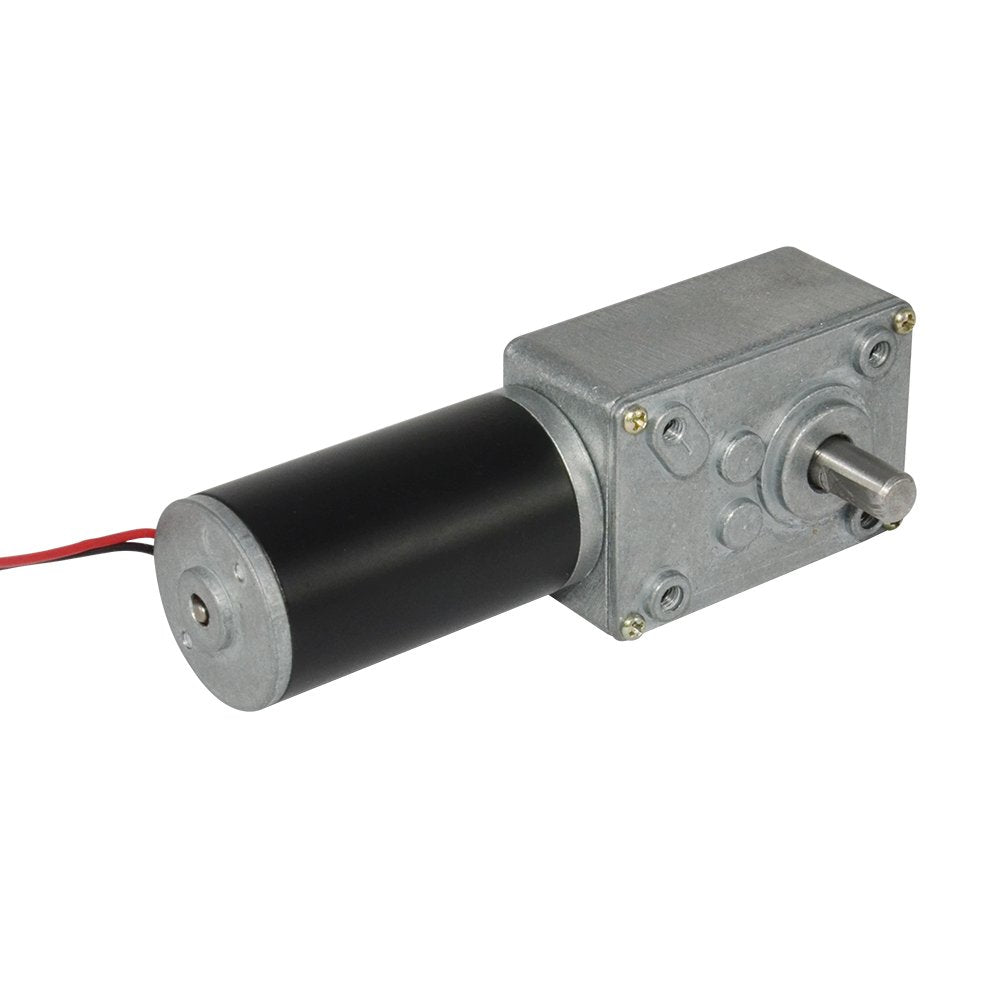

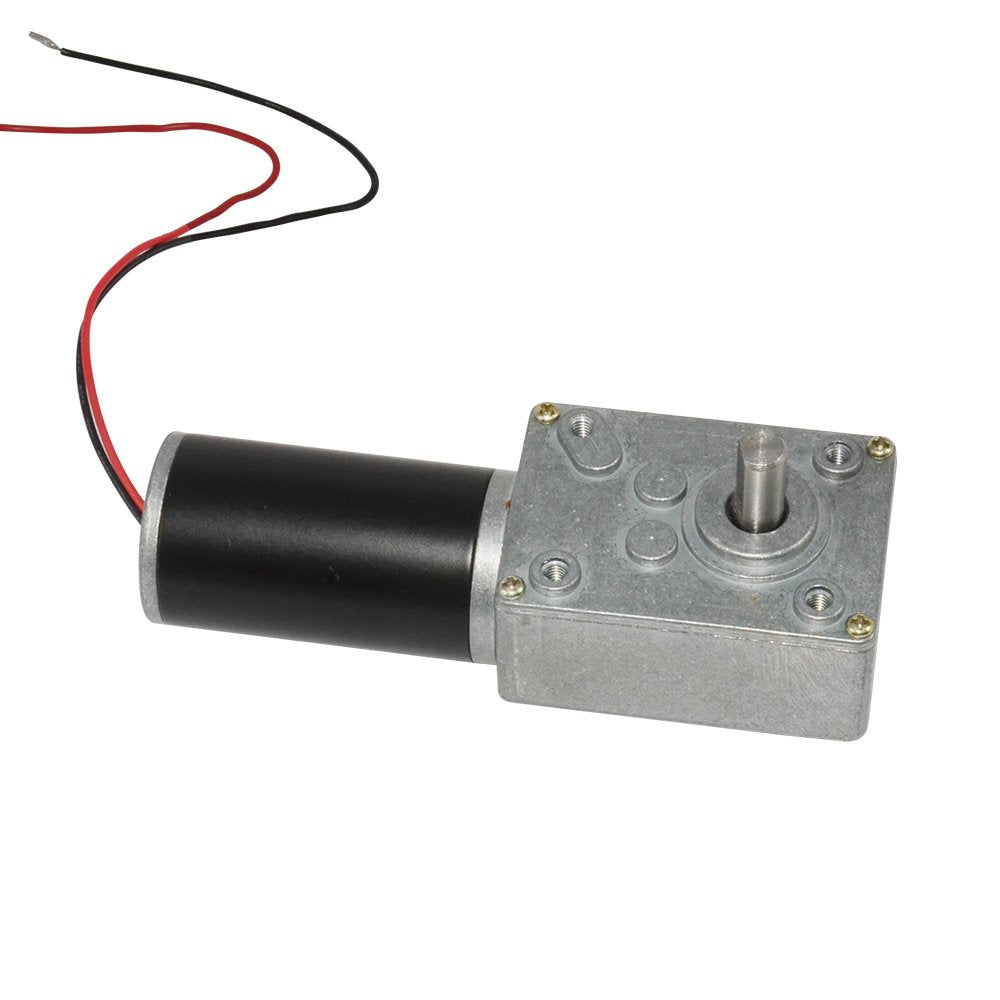

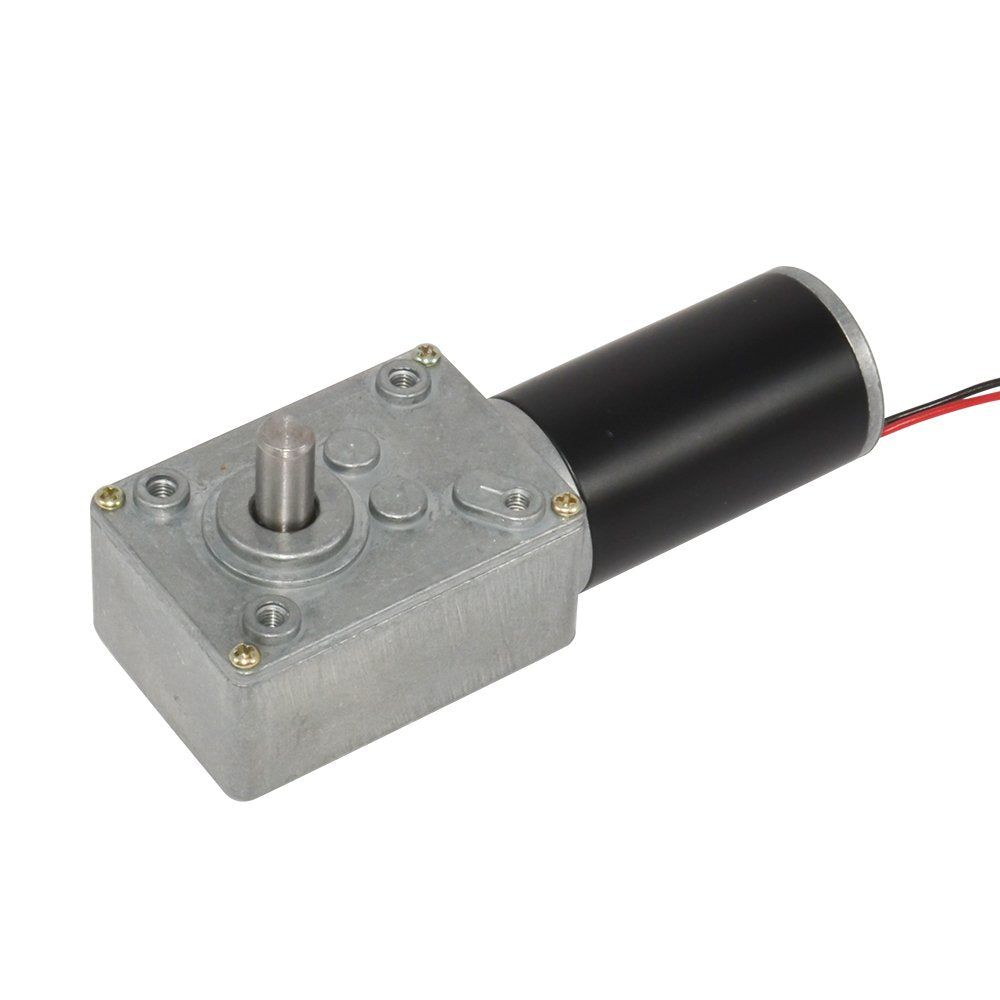

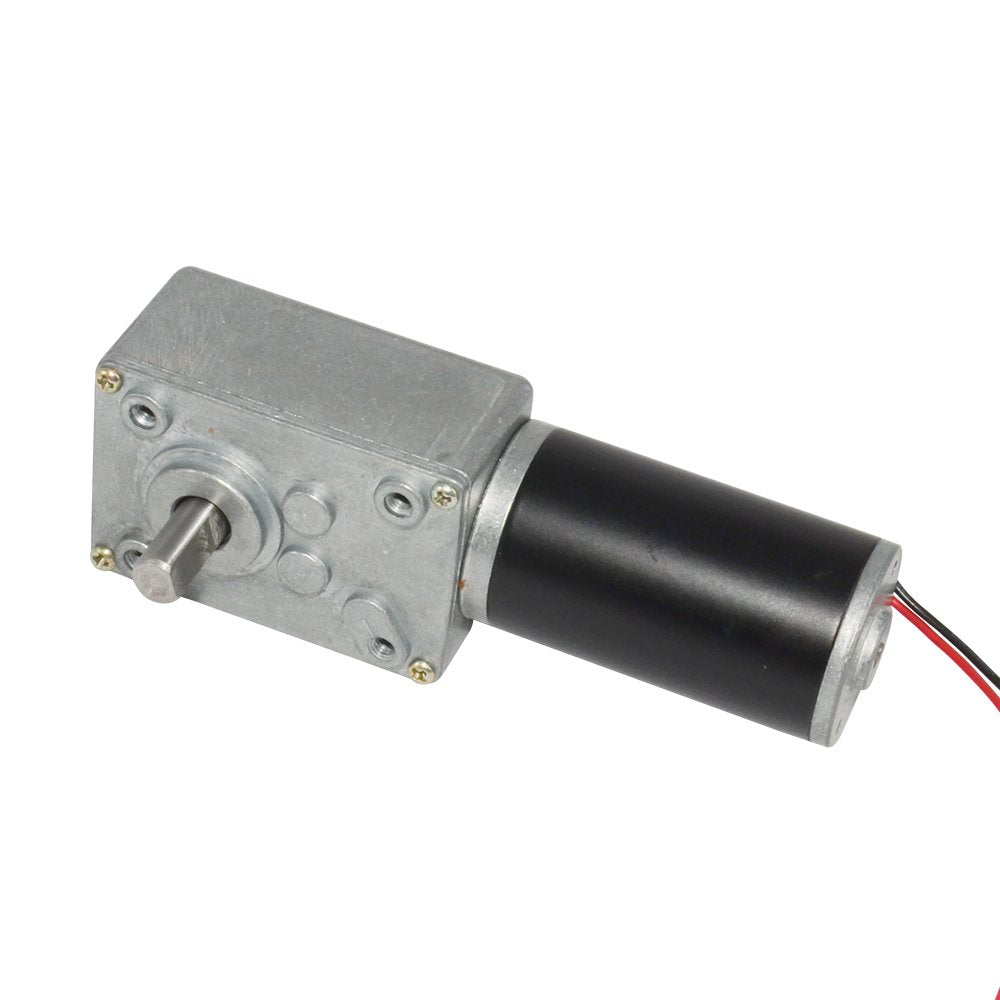

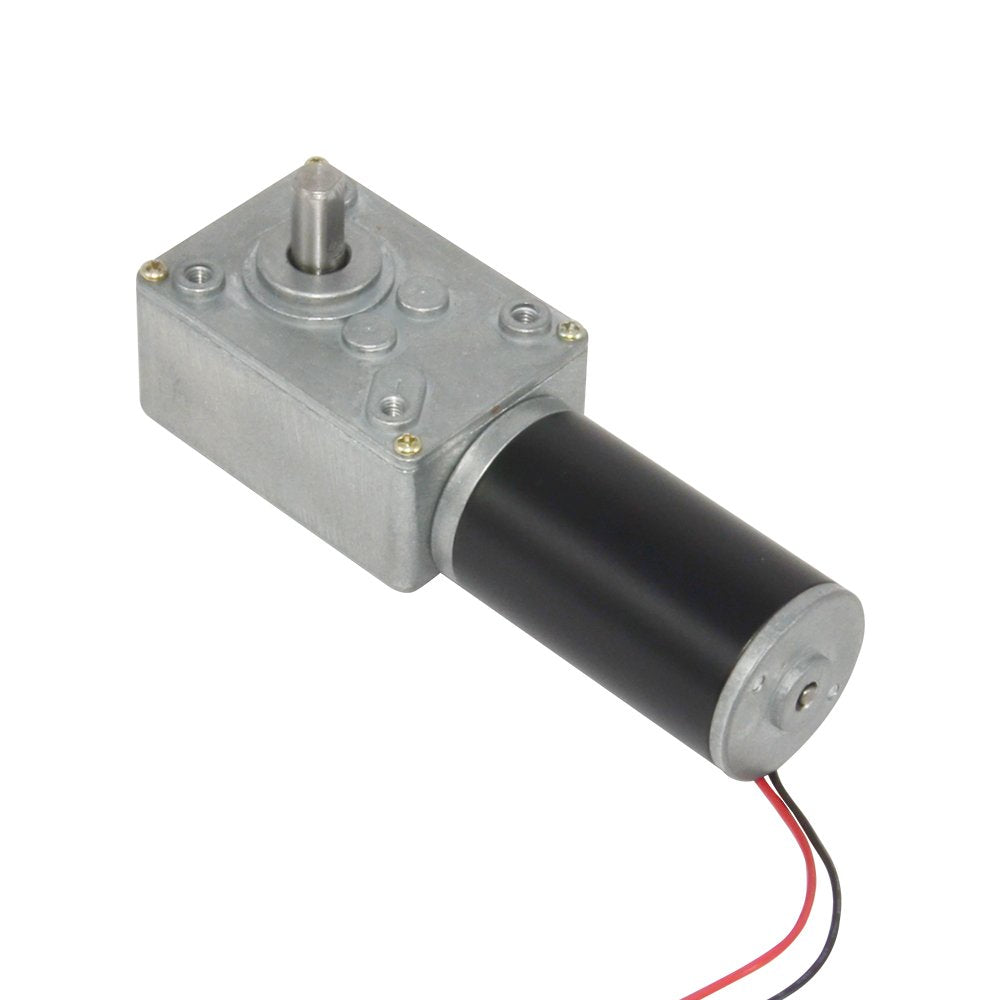

Electric DC Worm Gear Motor 12V High Speed 60 RPM Reversible with Metal Geared Box Reducer for Robot & Toys

Key features

• ✔Rated Voltage: DC12V; No-load speed: 60RPM; Rated torque:7kg.cm; Reduction ratio: 1/101;Mounting Screw Size: M4 (not included); Low noise: db<45 (A);
• ✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H),✔Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length : 19mm/7.4"; is_customized: Yes;
• ✔The motor is miniature DC Worm Gear Motor, you can change the wiring-connection to change shaft rotation direction,with self-locking, the output shaft can't rotation when power-off, that is self-locking.
• ✔The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
• ✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics: (1)With self-locking, the output shaft can't rotation when switch off, that is self-locking. (2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size. Applications:Windows, Doors opening and Household electrical appliances, Car model, Boat model, Robot model, DIY engine, Industry application, house application, home automation ,mini winch and other occasions.
