Name: Electronics-Salon D-SUB DB50 Female DIN Rail Mount Interface Module, Breakout Board.
Brand: Belmont Warehouse
SKU: BW-B00ST8O78Q
Price: 59.99 USD
Availability: InStock

Electronics-Salon D-SUB DB50 Female DIN Rail Mount Interface Module, Breakout Board.

$59.99

$59.99 $79.99

FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

D-SUB DB50 female header connector.
Pitch 3.81mm/0.15" screw terminal block.
Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use.
High quality PCB housing/carrier. FR-4 fiber glass PCB, dual copper layers.

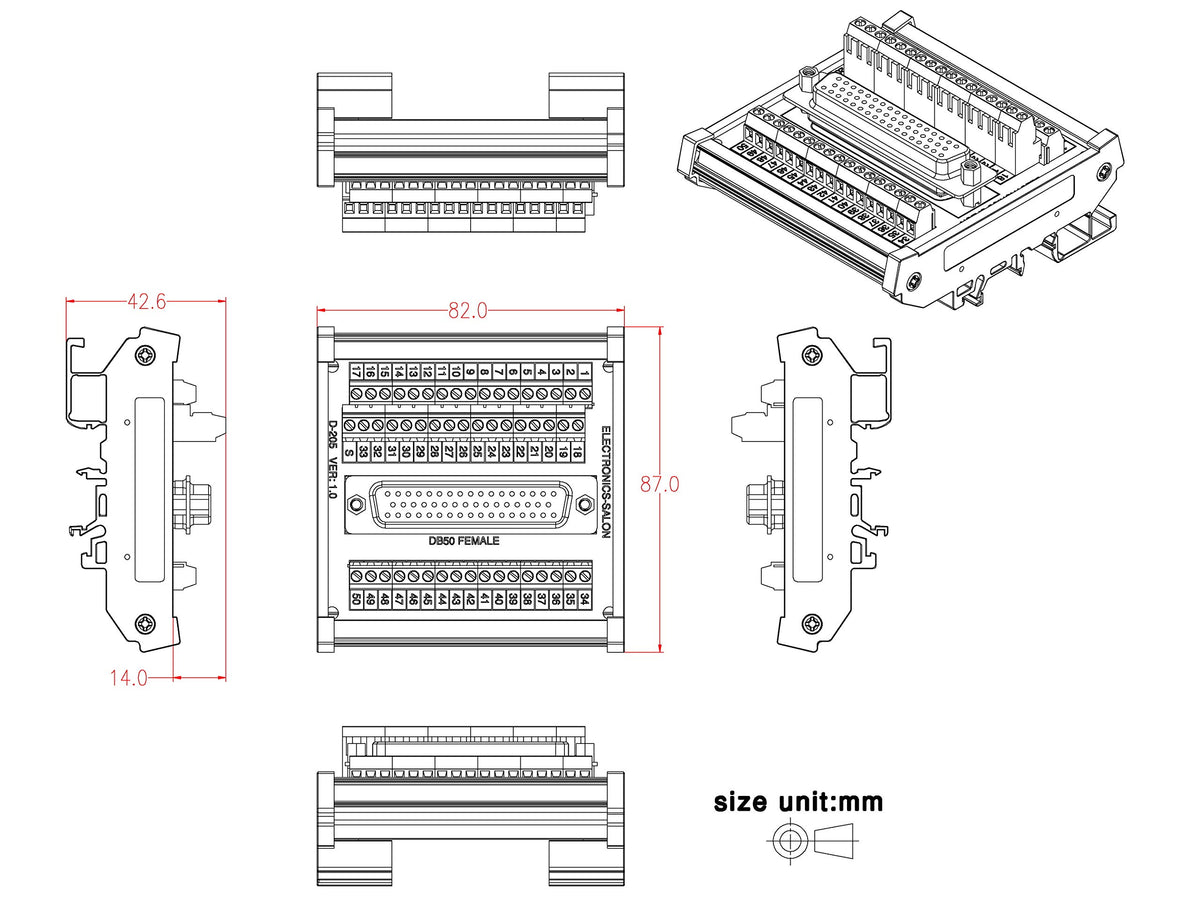

External dimensions: 87 x 82.5 x 43mm(W x L x H). PCB dimensions: 72 x 80mm(W x L).

Din Rail Mount DB50 Female Interface Module. D-SUB DB50 female header connector. Pitch 3.81mm/0.15" screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. High quality PCB housing/carrier. FR-4 fiber glass PCB, dual copper layers. External dimensions: 87 x 82.5 x 43mm(W x L x H). PCB dimensions: 72 x 80mm(W x L). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC Terminal block specifications: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
