Name: Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.
Brand: Belmont Warehouse
SKU: BW-B00SQ2Q1IE
Price: 41.99 USD
Availability: InStock

Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.

$41.99

$41.99 $60.99

FREE shipping on orders $50+· add $8.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

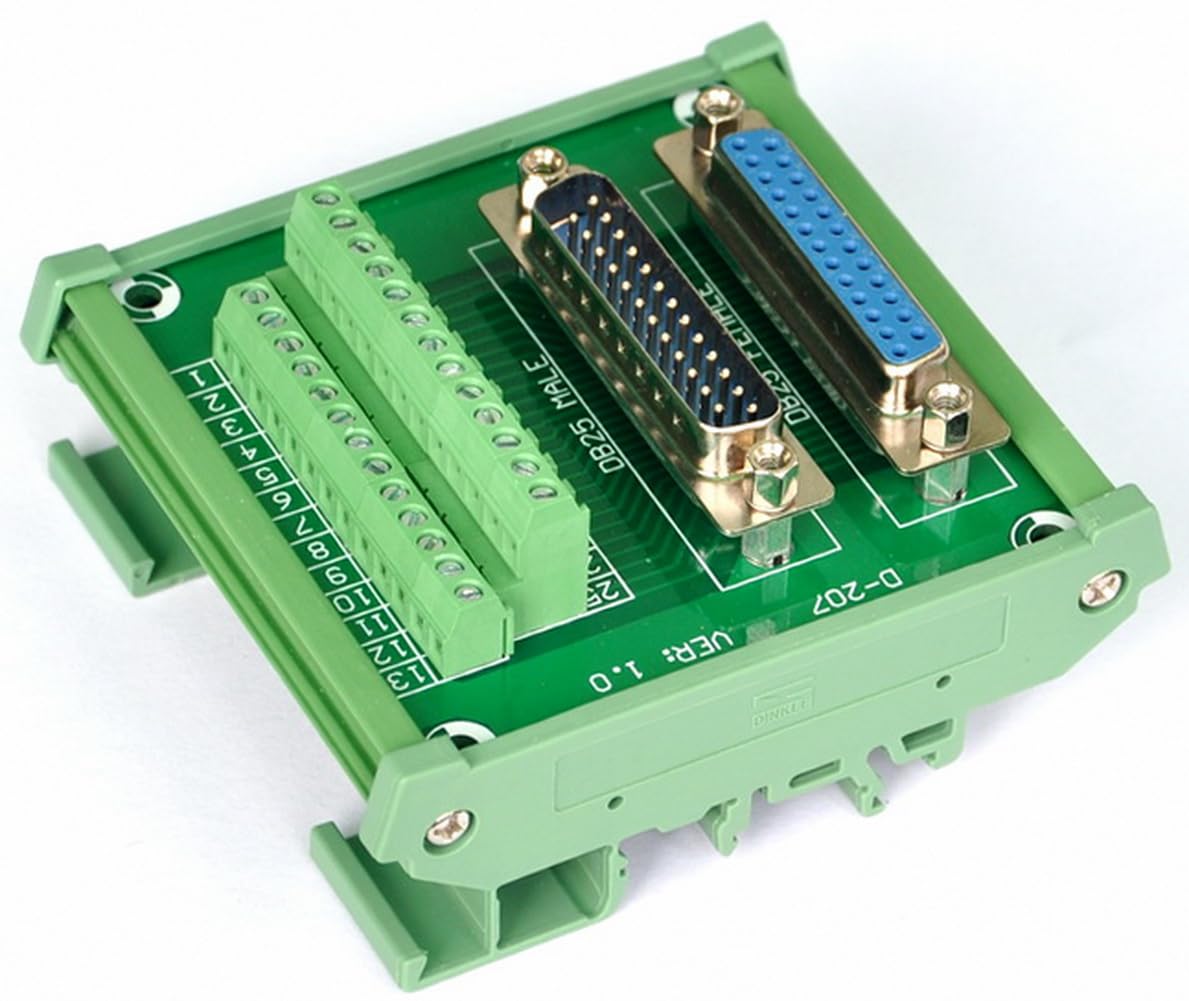

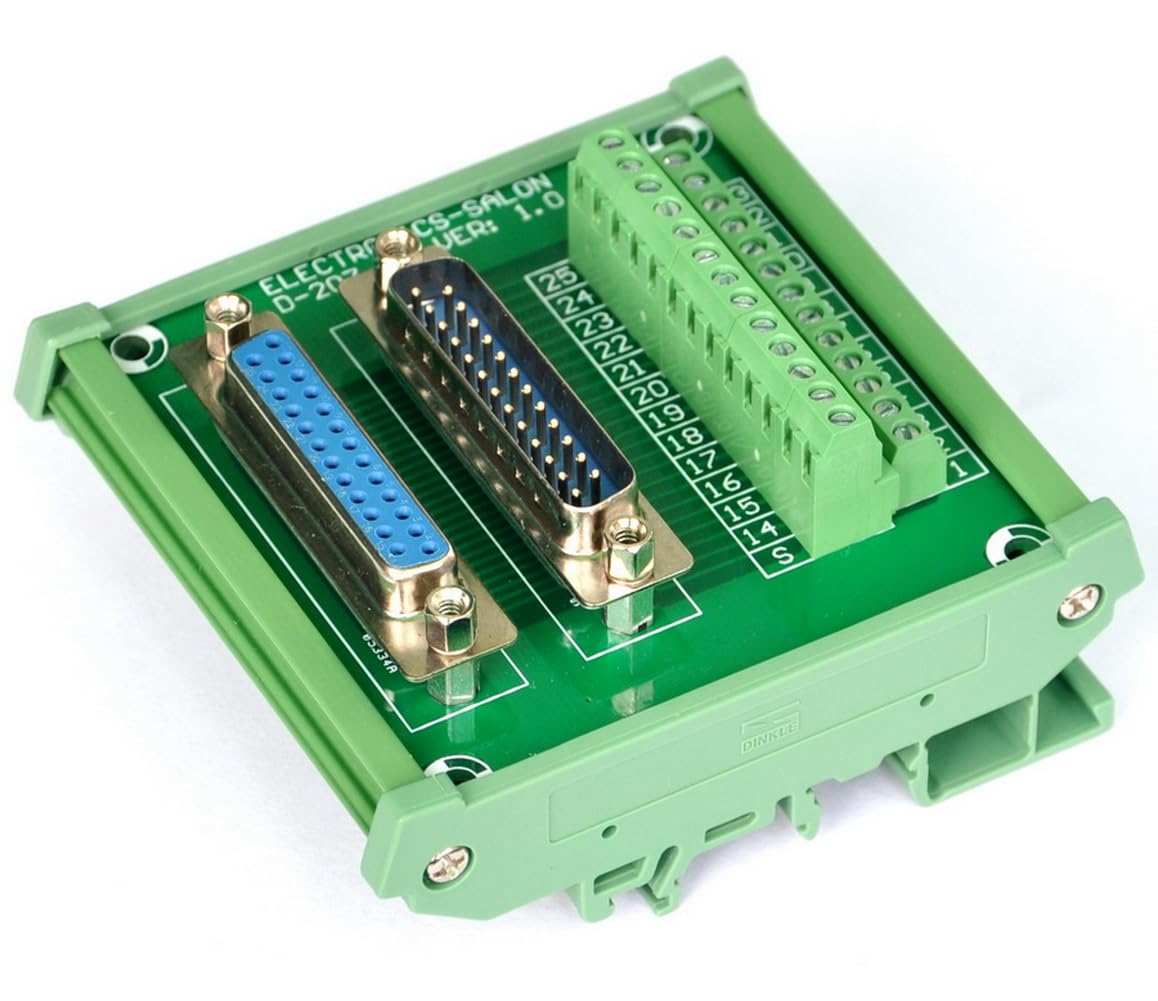

Male and Female DB25 connectors, Screw terminal block.

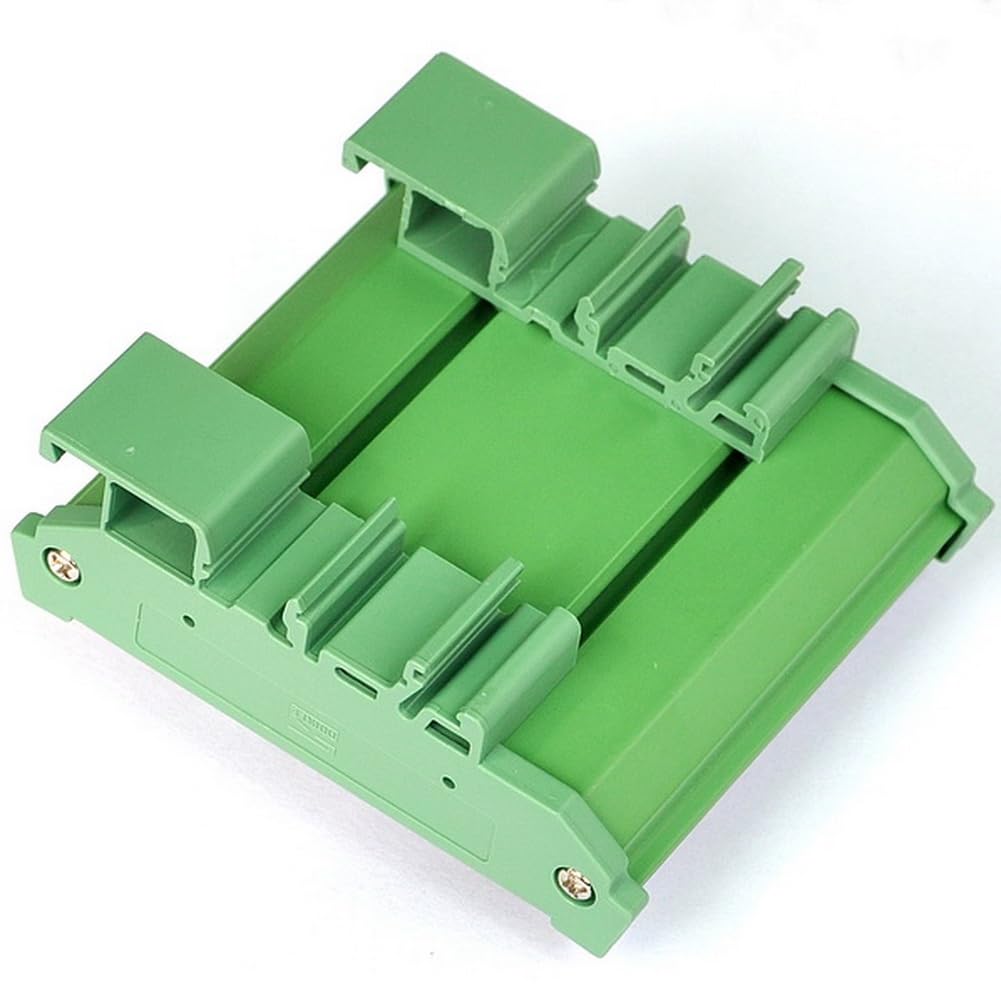

Din rail mountable - for width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.

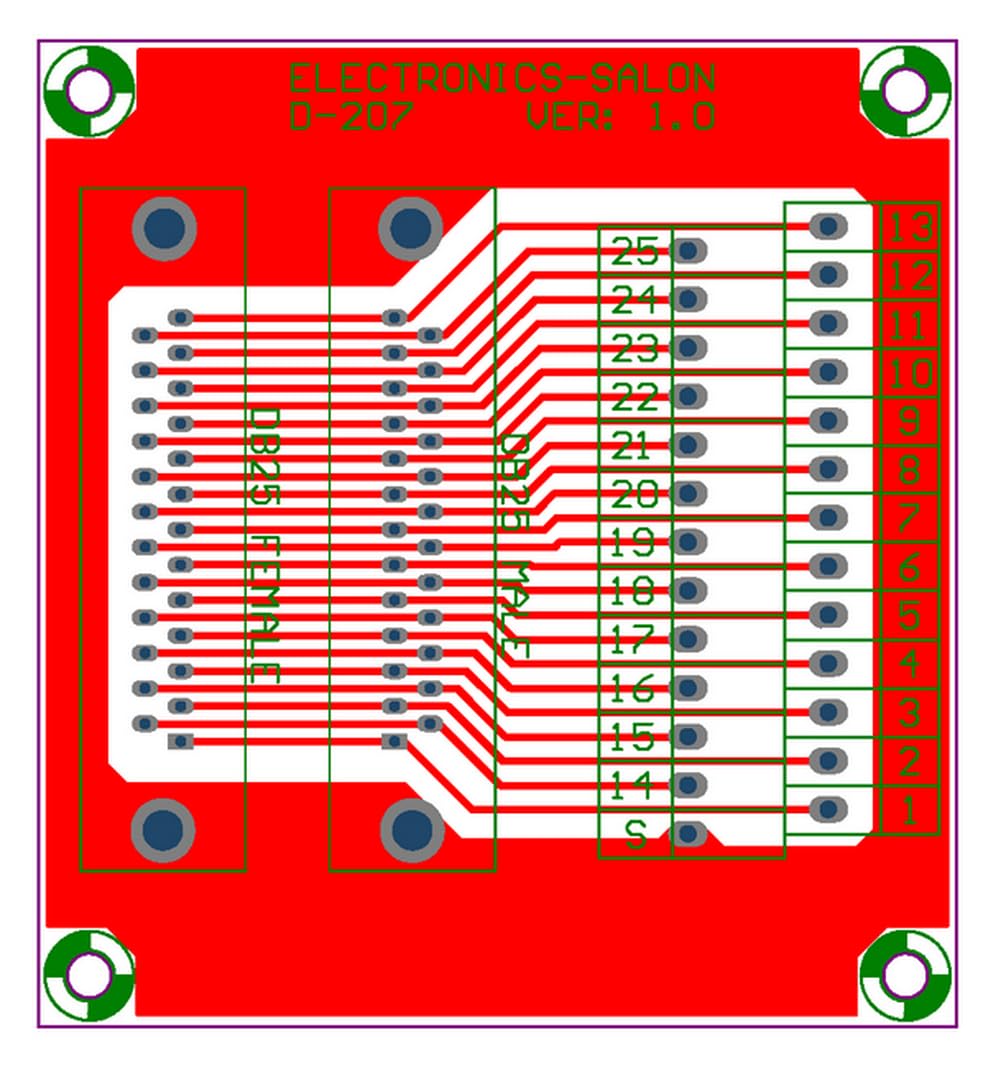

FR-4 fiber glass PCB.

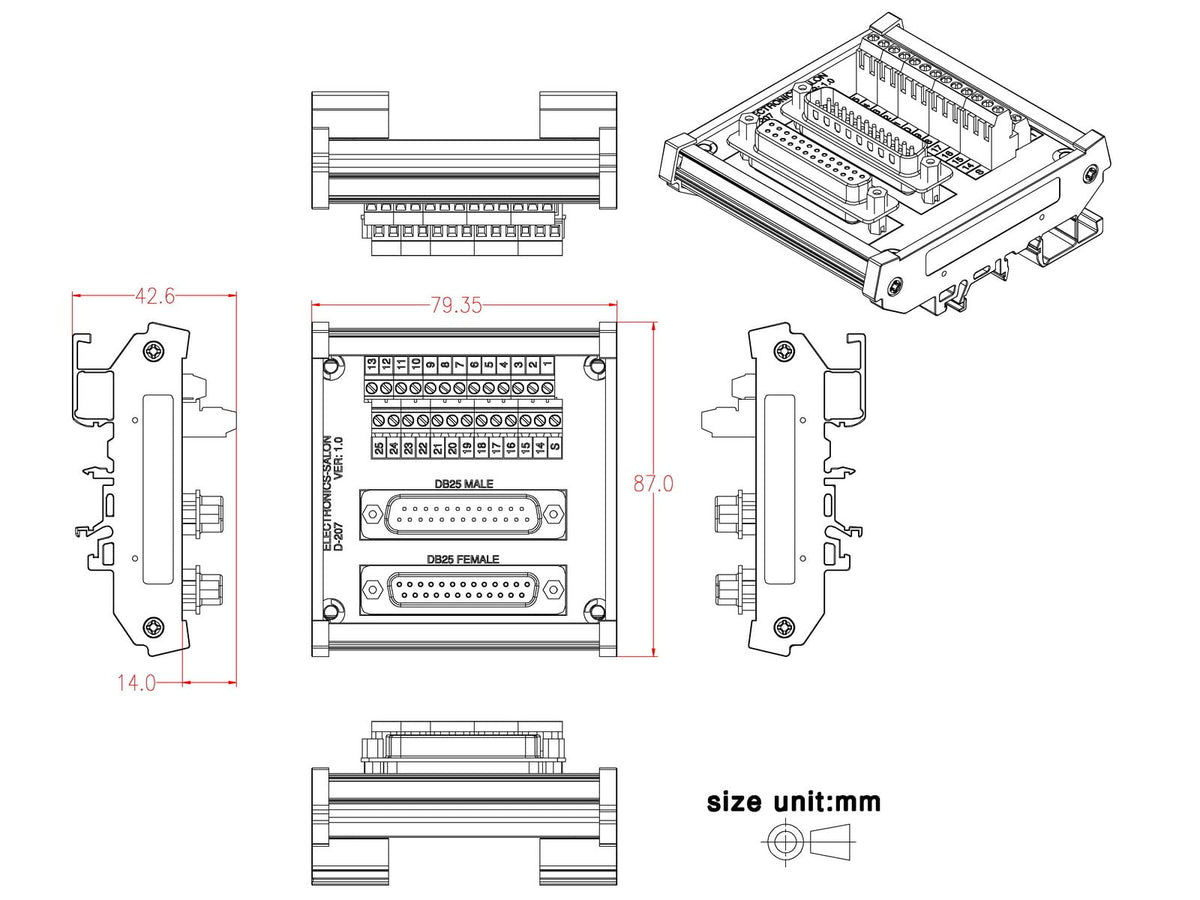

External dimensions: 87 x 80 x 43mm(W x L x H).
PCB dimensions: 72 x 77.35mm(W x L).

DIN Rail Mount DB25 Interface Module. Male and Female DB25 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 80 x 43mm(W x L x H). PCB dimensions: 72 x 77.35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3.81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
