Electronics-Salon DIN Rail Mount AC/DC Current Sensor Module, Based on ACS712 (+/-20Amp)

Key features

• Load Maximum Current: +/-5Amp, +/-20Amp and +/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).
• The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.

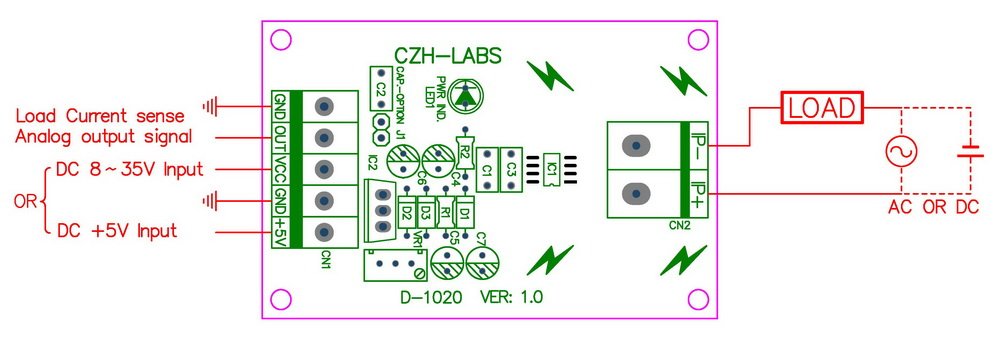

• Output voltage proportional to AC or DC currents.

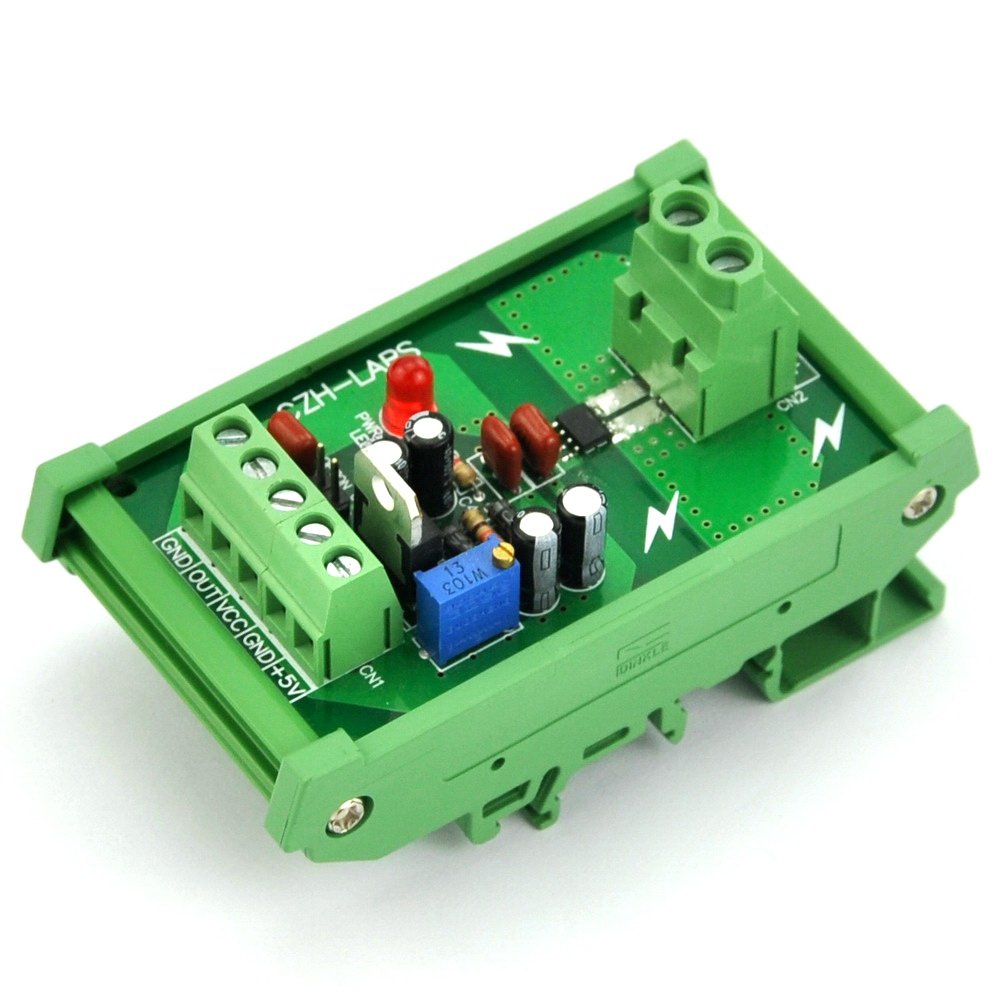

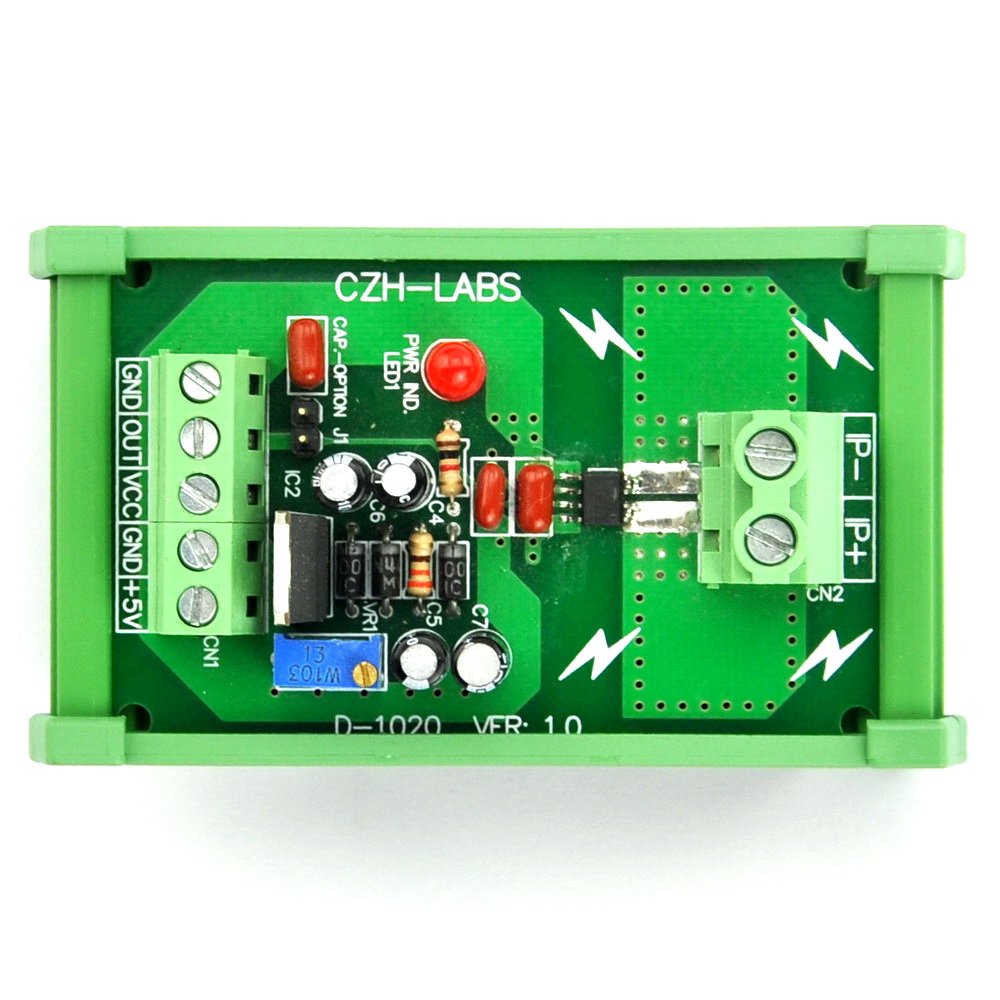

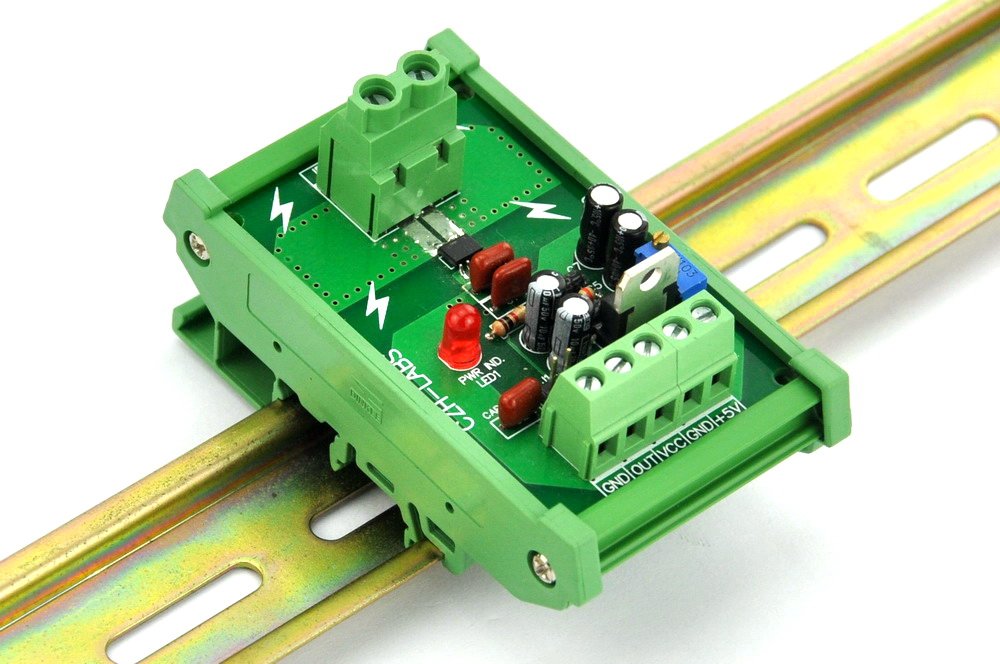

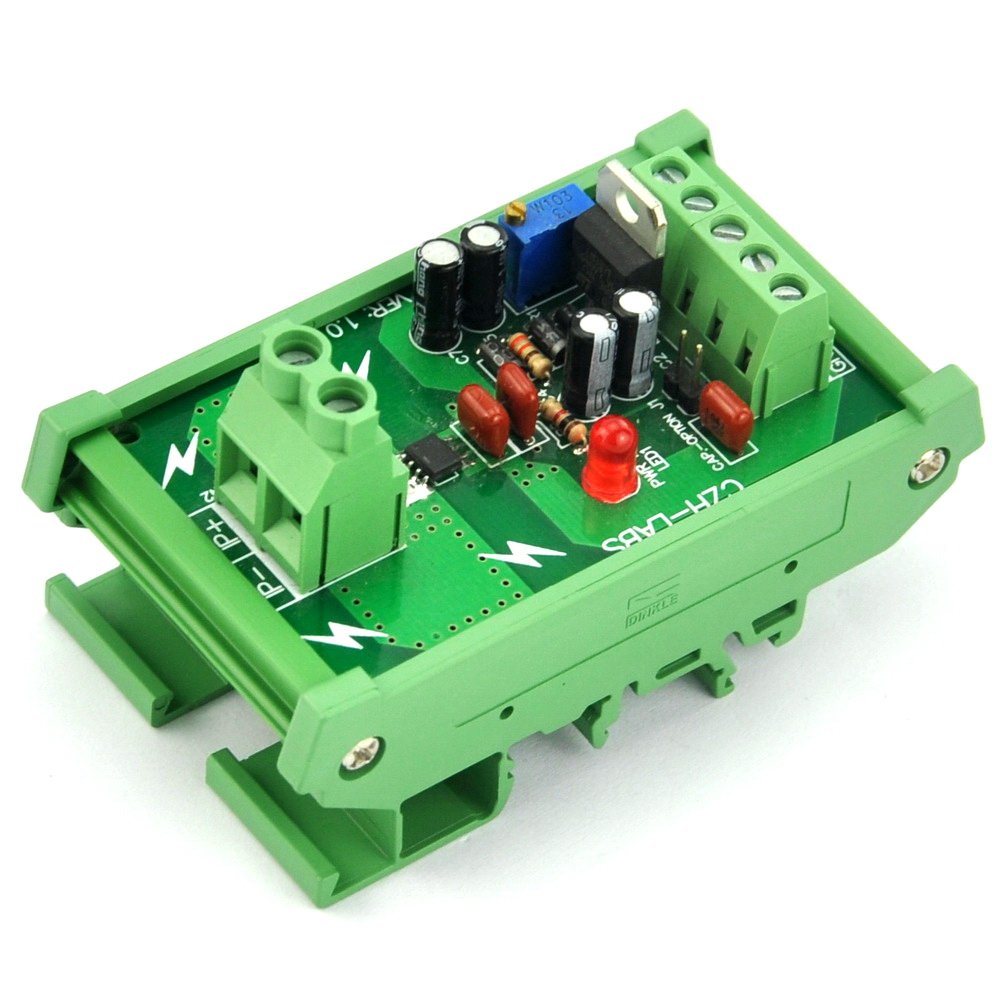

• High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.

Datasheet: https://images-na.ssl-images-amazon.com/images/I/81CRdUi0xWL.pdfThe item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The device is not intended for automotive applications. Output voltage proportional to AC or DC currents. High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails. DIN mount case can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers.Electrical Parameters: Load Maximum Current: +/-5Amp, +/-20Amp and +/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).
