Name: Electronics-Salon Slim DIN Rail Mount RJ45 8P8C Breakout Board Interface Module.
Brand: Belmont Warehouse
SKU: BW-B07R46239P
Price: 32.99 USD
Availability: InStock

Electronics-Salon Slim DIN Rail Mount RJ45 8P8C Breakout Board Interface Module.

$32.99

$32.99 $52.99

FREE shipping on orders $50+· add $17.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

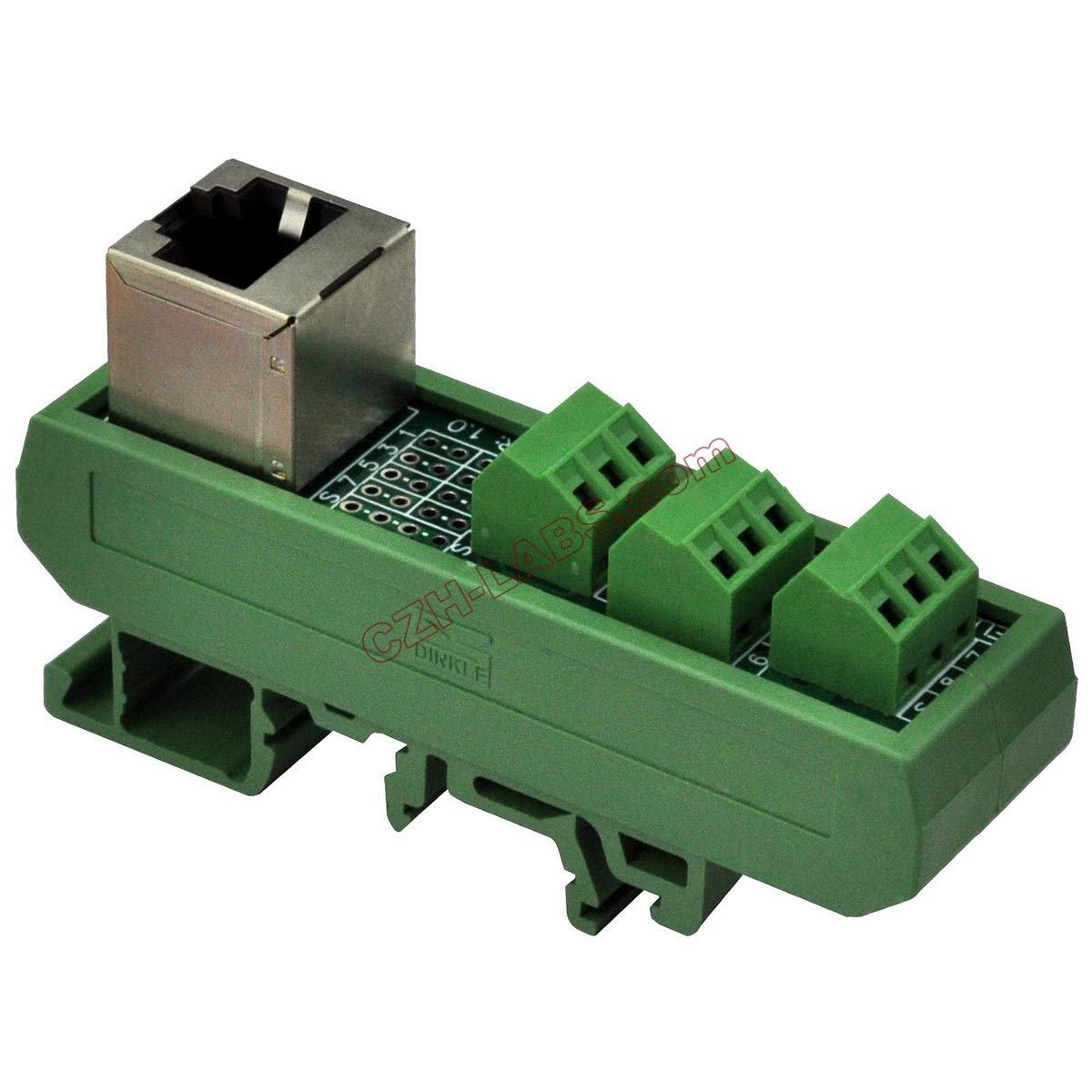

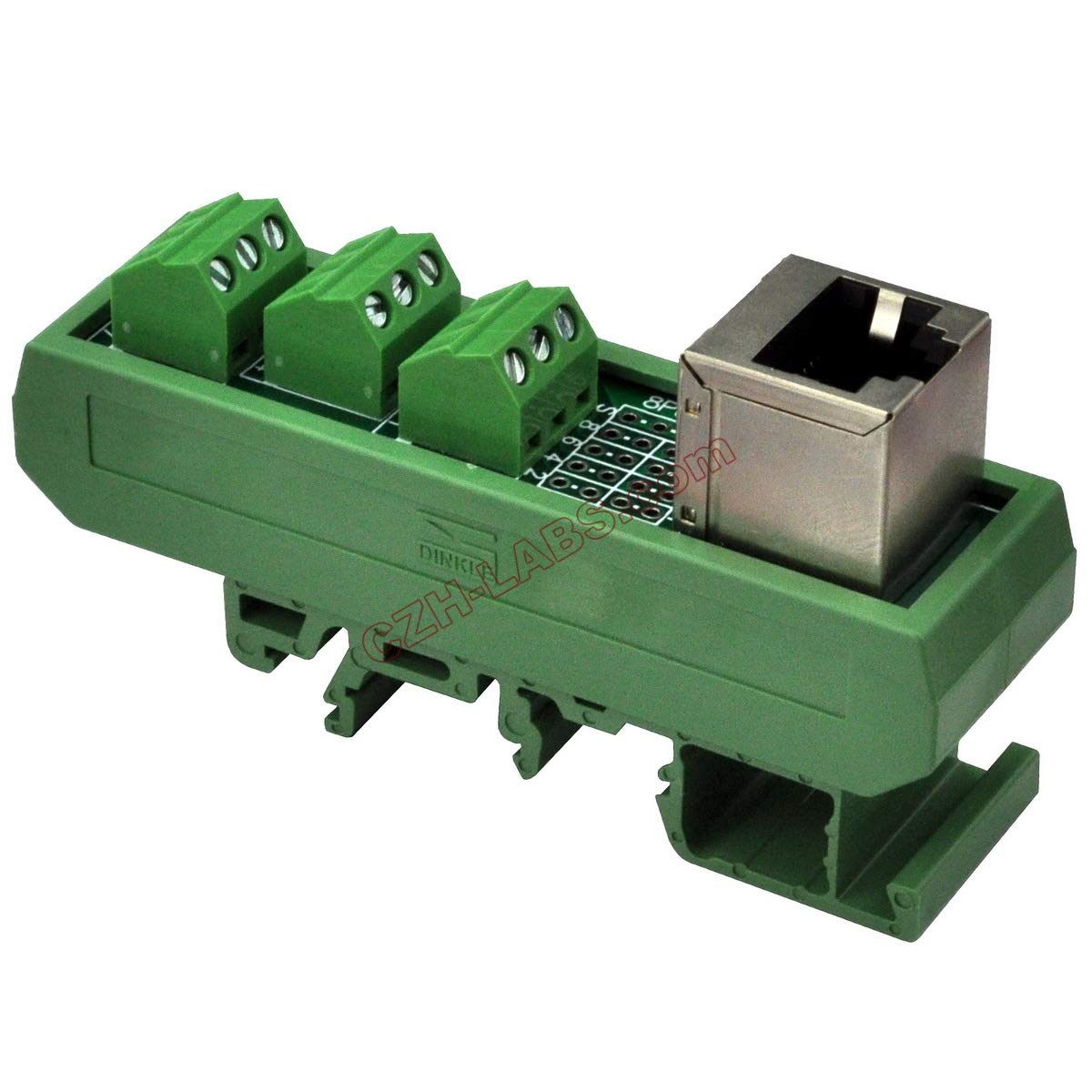

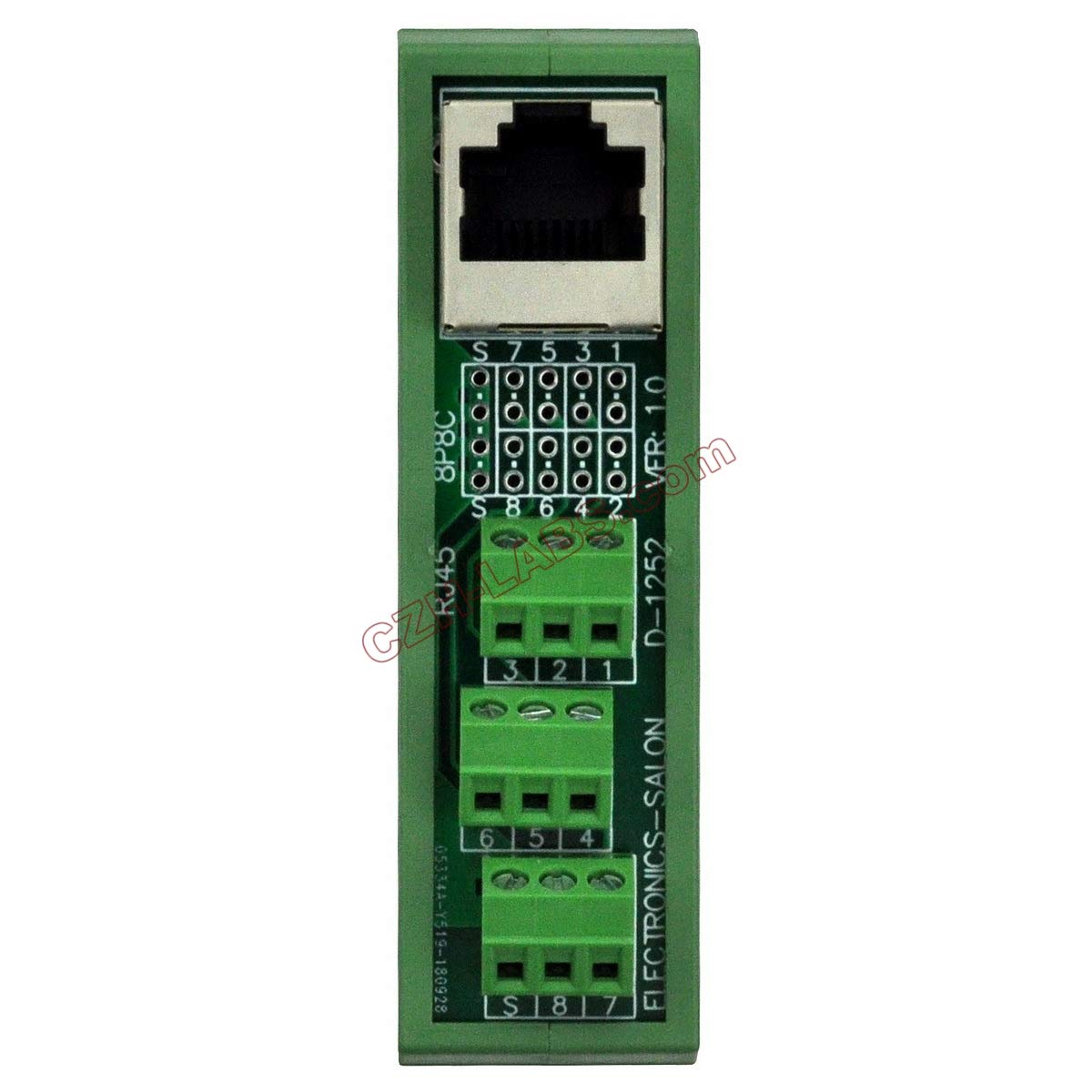

Slim DIN Rail Mount RJ45 8P8C Breakout Board Interface Module.
R45 8P8C vertical jack. Solder connection holes 2 per line, supports addition of 0.1" pin headers. FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 80V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 70ºC
Terminal block: Pin pitch 3.5mm/0.138", Wire range 28 ~ 16 AWG / 1mm square. Strip length 5mm. Screws - M2, steel, Cr3+ Zn plated. Pin header and Cage - Brass.

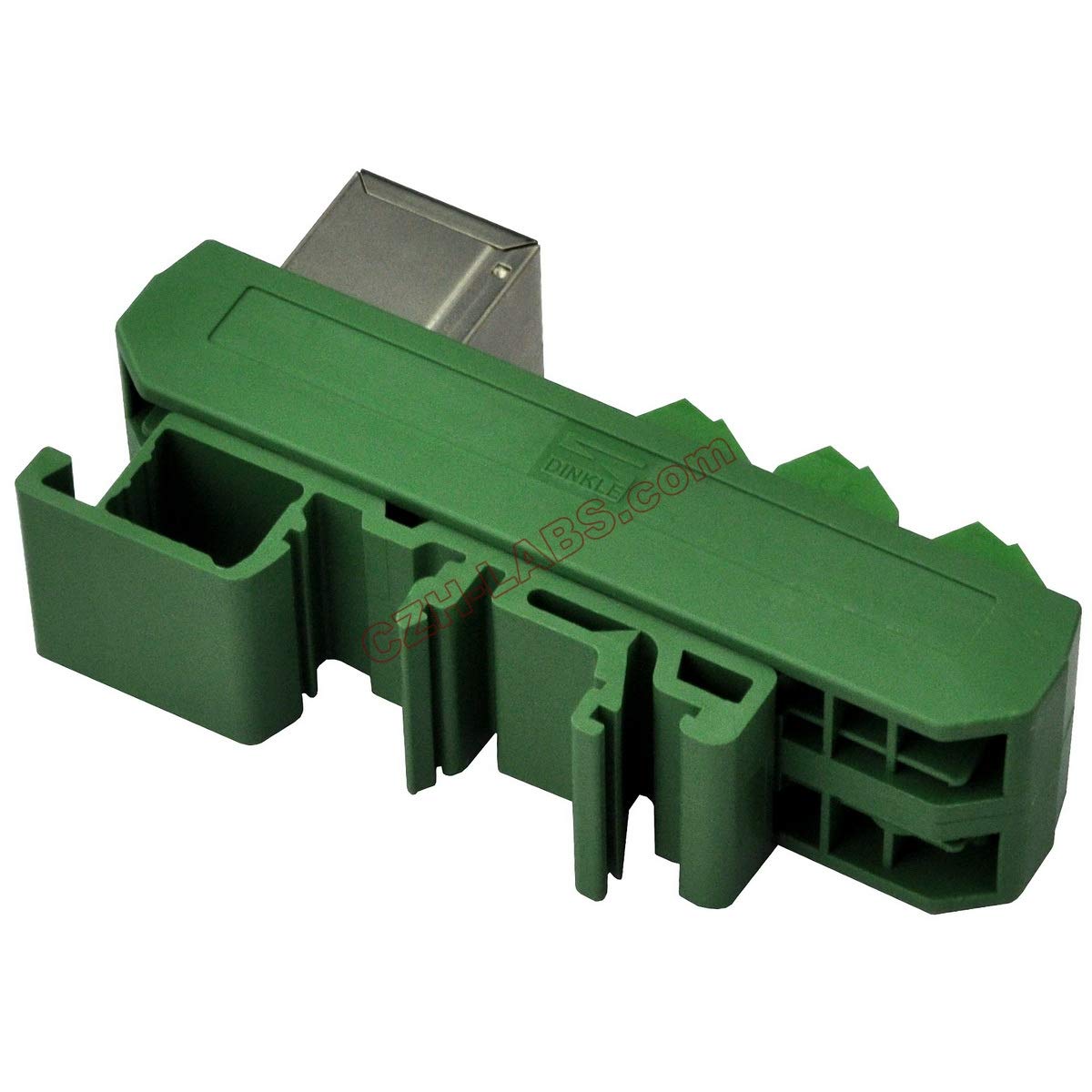

High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.

Slim DIN Rail Mount RJ45 8P8C Breakout Board Interface Module. R45 8P8C vertical jack. Solder connection holes 2 per line, supports addition of 0.1" pin headers. FR-4 fiber glass PCB, dual copper layers. Rated voltage: 80V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 70ºC Terminal block: Pin pitch 3.5mm/0.138", Wire range 28 ~ 16 AWG / 1mm square. Strip length 5mm. Screws - M2, steel, Cr3+ Zn plated. Pin header and Cage - Brass. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.

Free shipping included. 30-day hassle-free returns.
