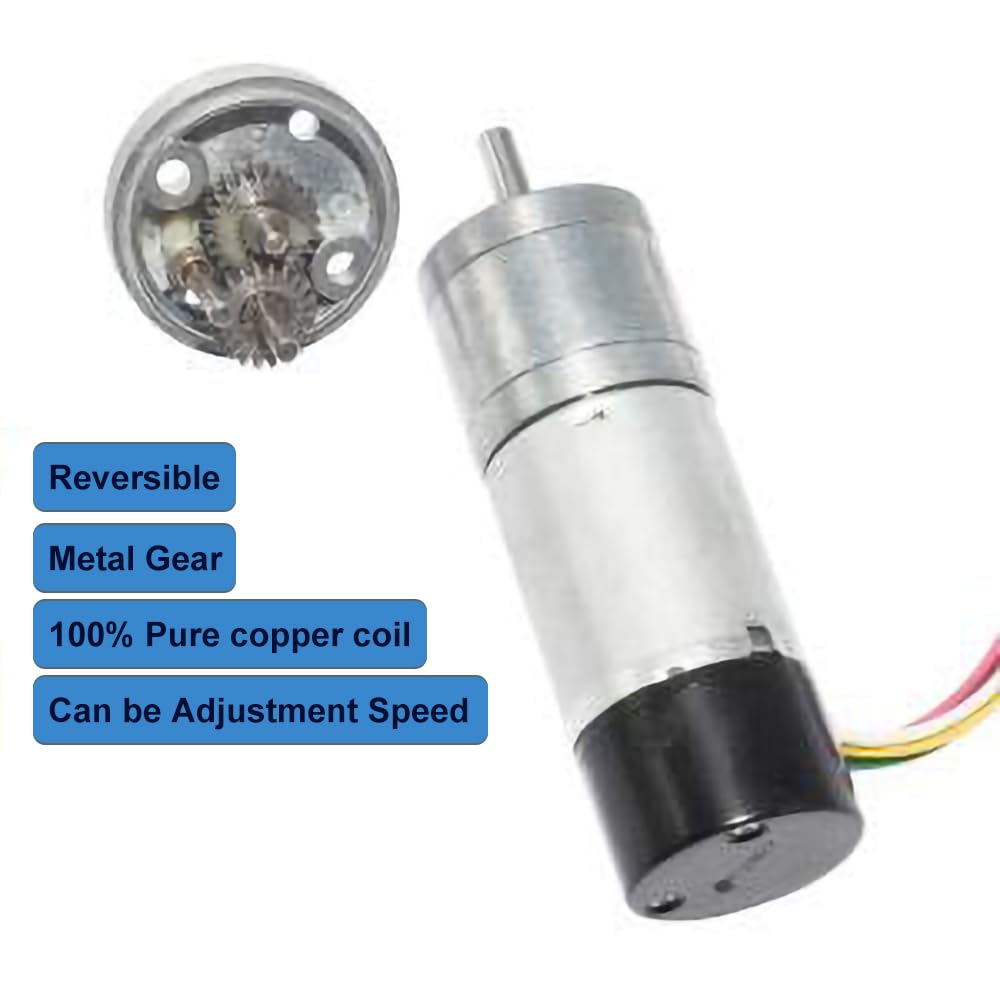

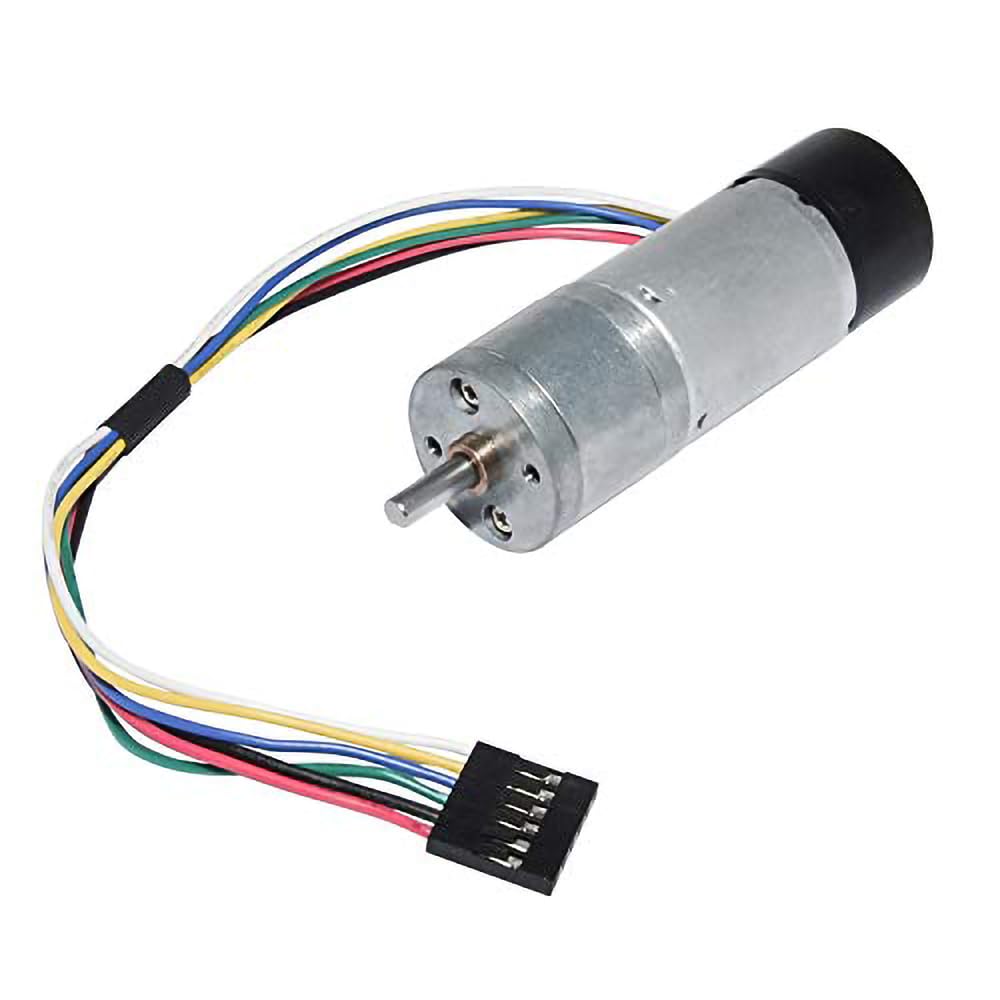

Encoder Metal Gearmotor 12V DC Low Speed 60 RPM Gear Motor with Encoder for Arduino and 3D Printers

Key features

• ✔Product type: DC Gear motor with two-channel Hall effect encoder; Rated Voltage: 12V; No-Load Speed: 60RPM; No-Load Current: ≤ 0.15A; Rated Torque: 2.8kg.cm;

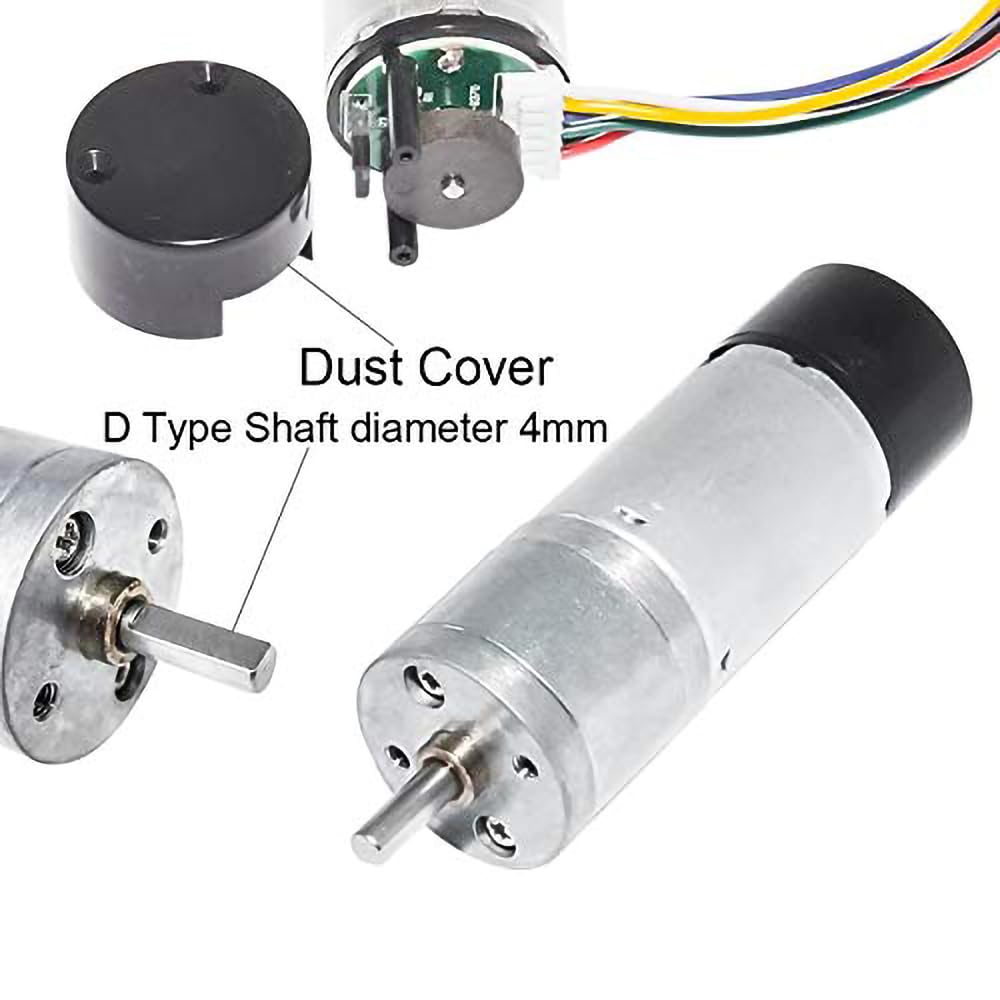

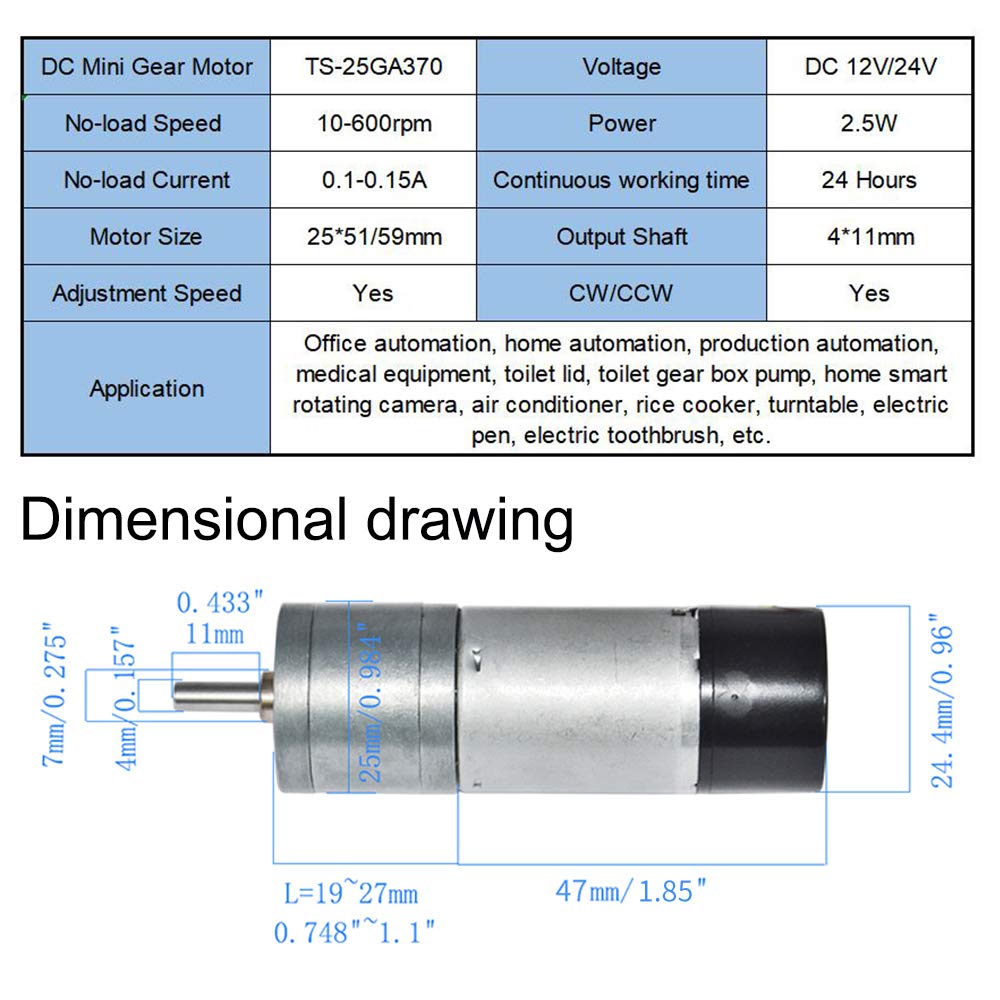

• ✔Main Body Dimensions: 72 x 23mm / 2.84in x 0.91in (L*D); Out Shaft Dimensions: 11 x 4mm / 0.433 x 0.1575in (L*D) with 10 x 0.5mm / 0.39 * 0.017inches flat cut off;
• ✔Single Output 1176 Pulses Per Revolution: Gear Reduction Ratio: 1/98, Each Loop Output Pulses: 12PPR 217*12=1176PPR;

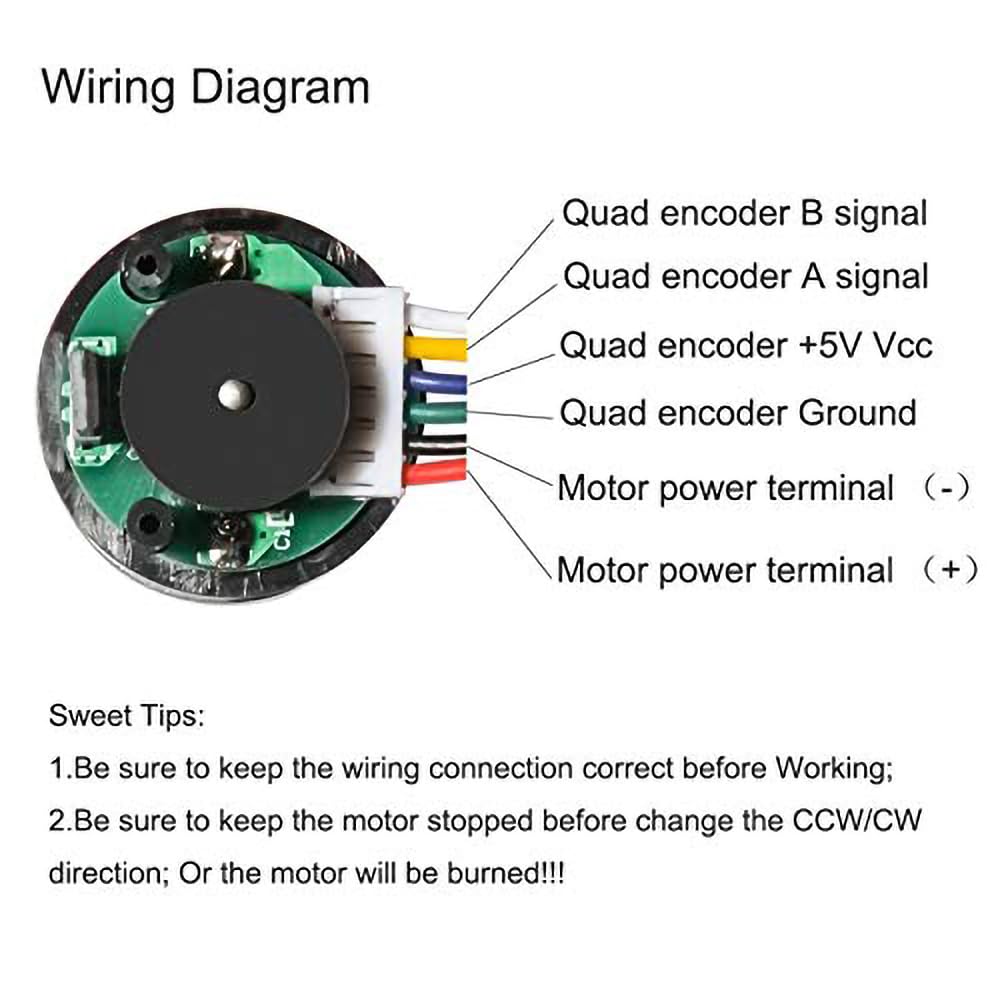

• ✔Wiring Diagram: Red - Motor power terminal (+); Black - Motor power terminal(-); Green - Quad encoder Ground; Blue - Quad encoder +5V Vcc; Yellow - Quad encoder A signal; White - Quad encoder B signal.
• ✔Application: Suit for Projects Such as Robotics, RC Car Model, Custom Servo, Arduino and 3D Printers, DIY Engine Toy.
