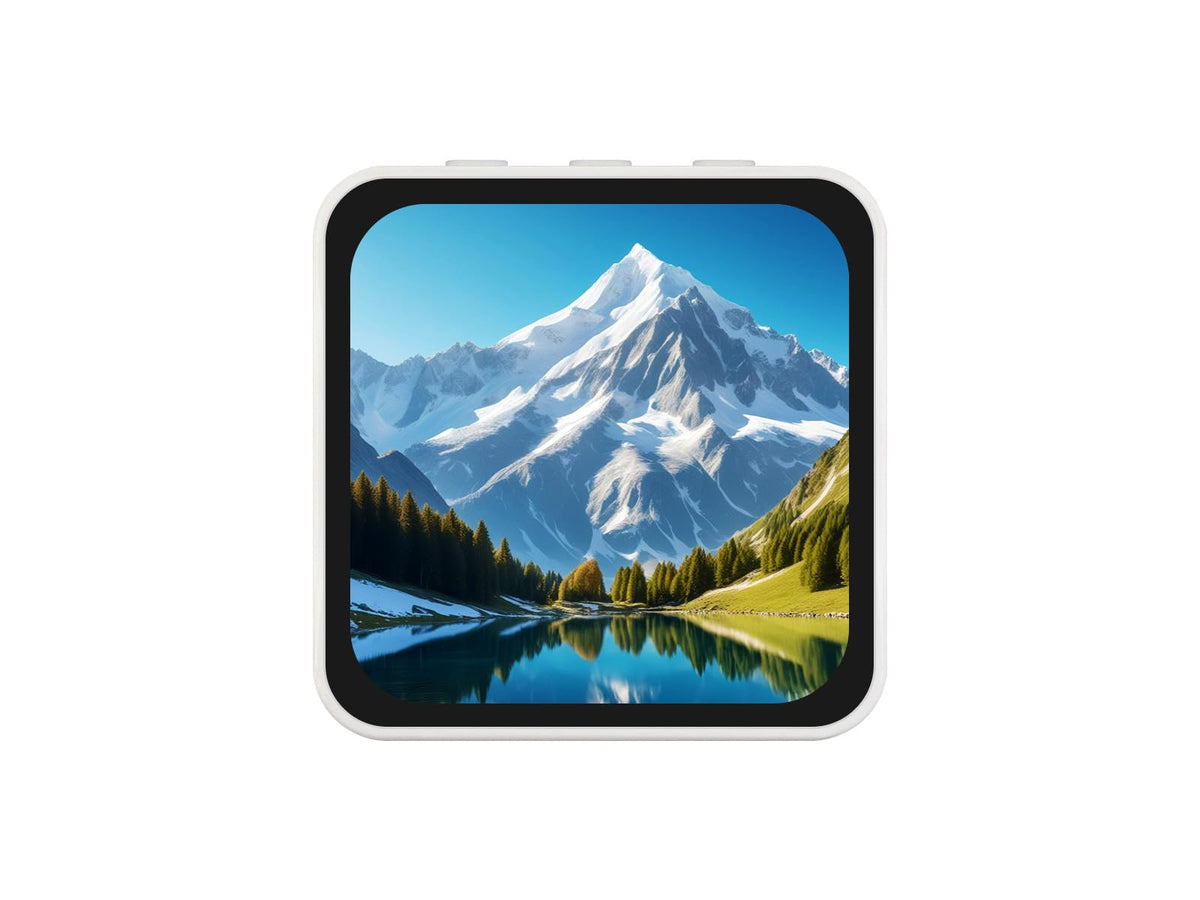

ESP32-C6 2.16inch AMOLED Display Touch Screen Dev Board,480 × 480

Key features

• ESP32-C6 2.16inch Touch AMOLED display development board.Embedded with CO5300 Display Driver and CST9220 Capacitive Touch Chip
• Small Size, Touch More Possibilities.Suitable For Various Smart Device Development, and Can Realize Human-machine Interaction Function. Supports connecting to a Batt for independent operation
• Adopts AMOLED screen.The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images
• 178° wide viewing angle.Excellent Display Performance, 16.7M color, wide viewing angle
• Wi-Fi 6 and BLE 5 support.supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

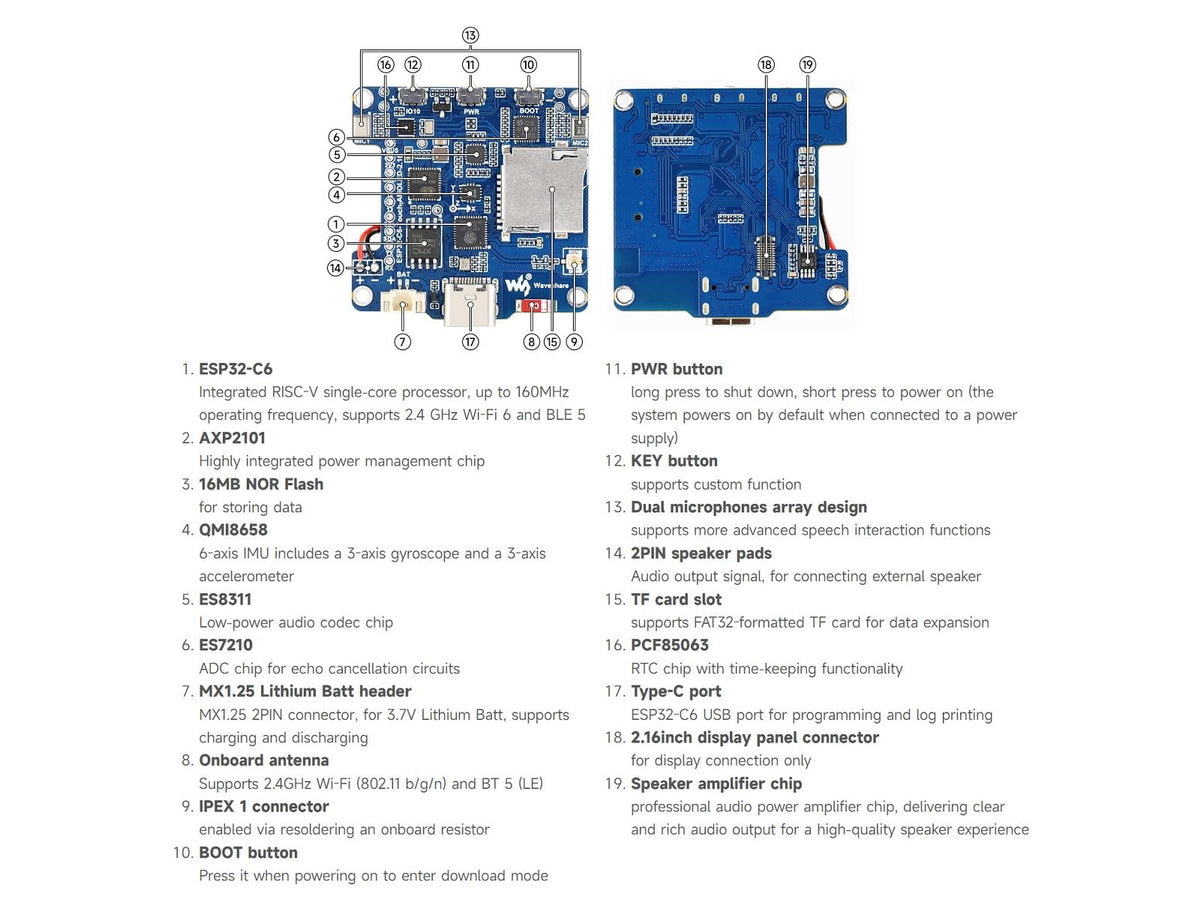

Features The ESP32-C6-Touch-AMOLED-2.16 is a low-cost, high-performance microcontroller development board designed by Waveshare. This product is based on the ESP32-C6 microcontroller and integrates 2.16inch capacitive touch AMOLED display, 6-axis IMU, RTC chip, low power audio codec chip, power management chip, specifically designed for the prototype development and function verification of AI voice-interaction agent applications. Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory Type-C port Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by
