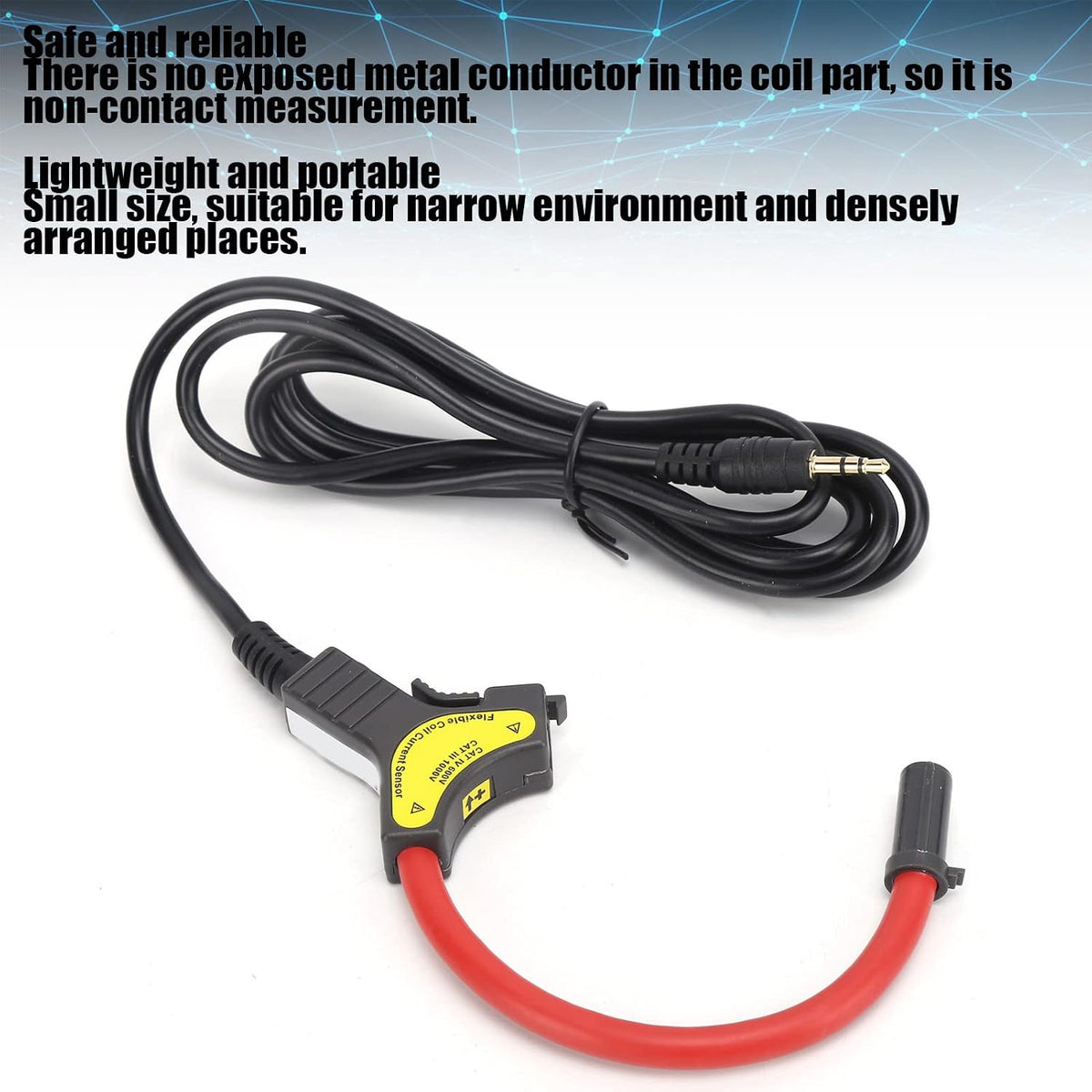

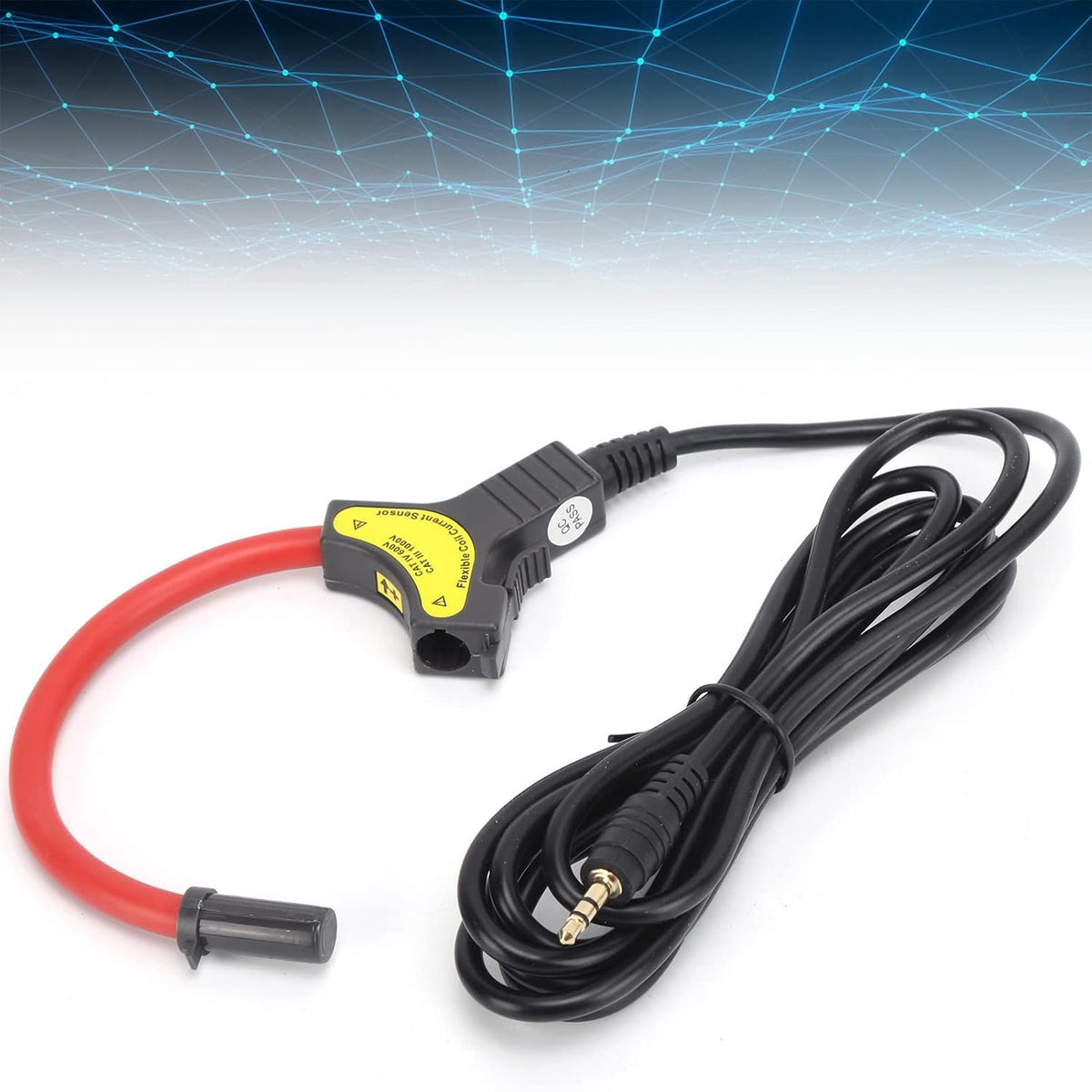

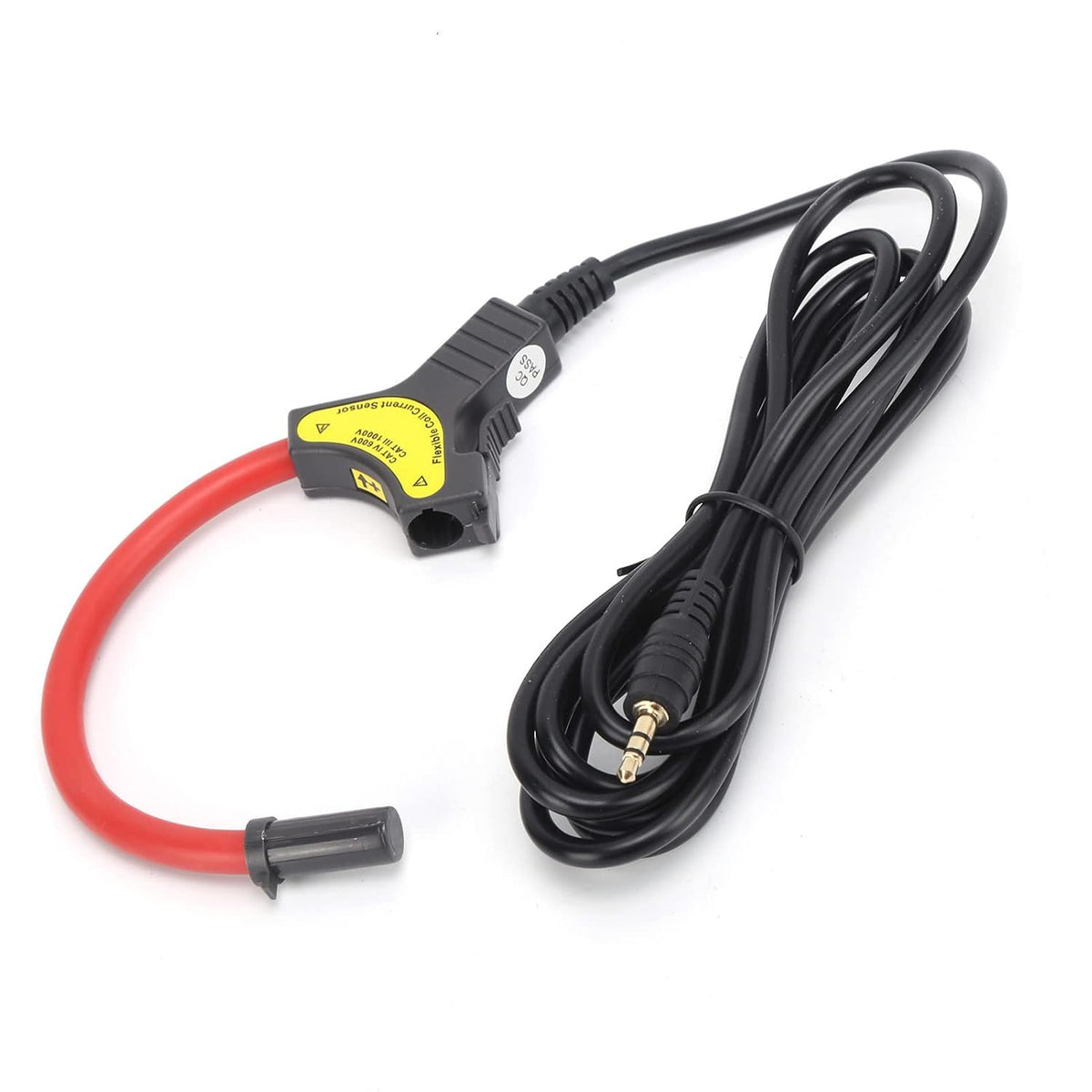

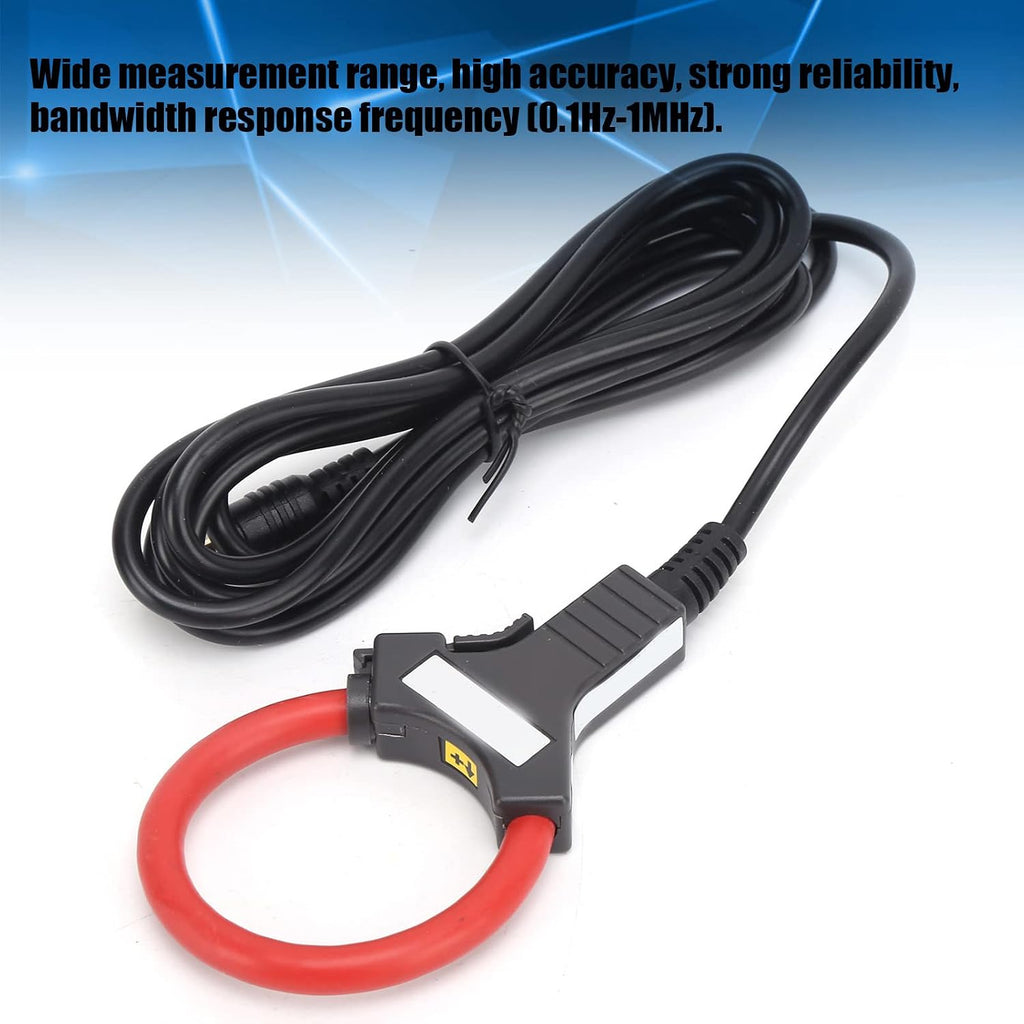

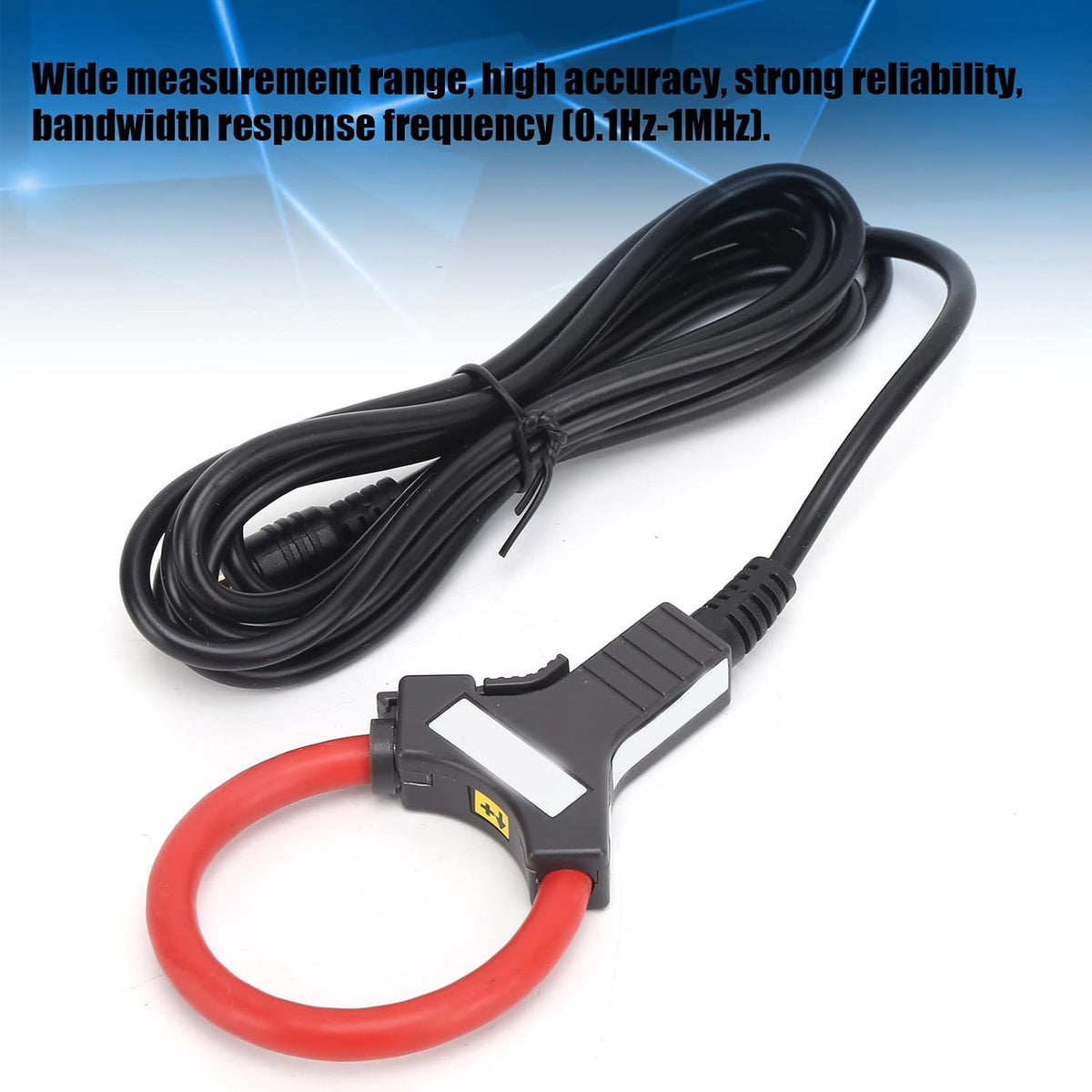

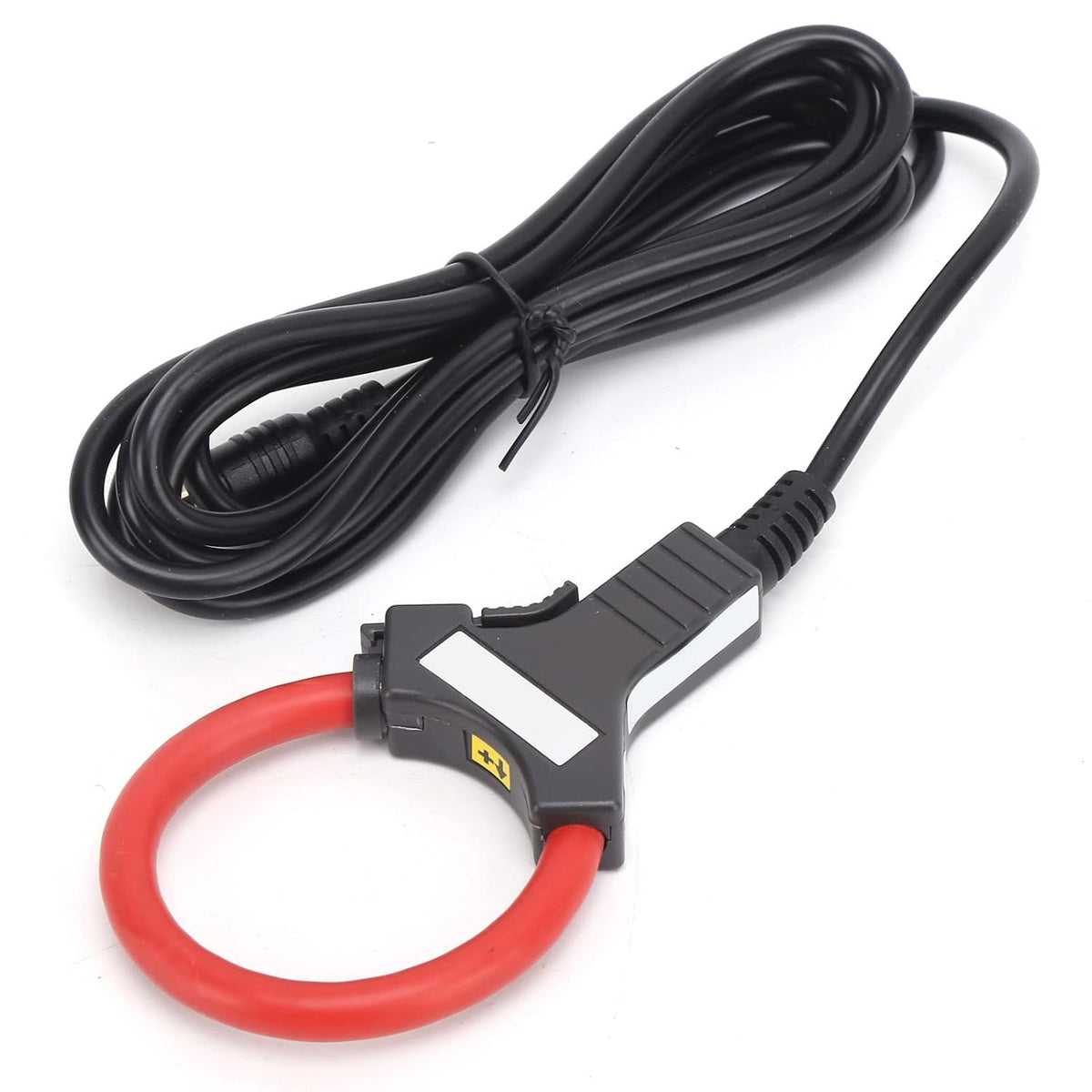

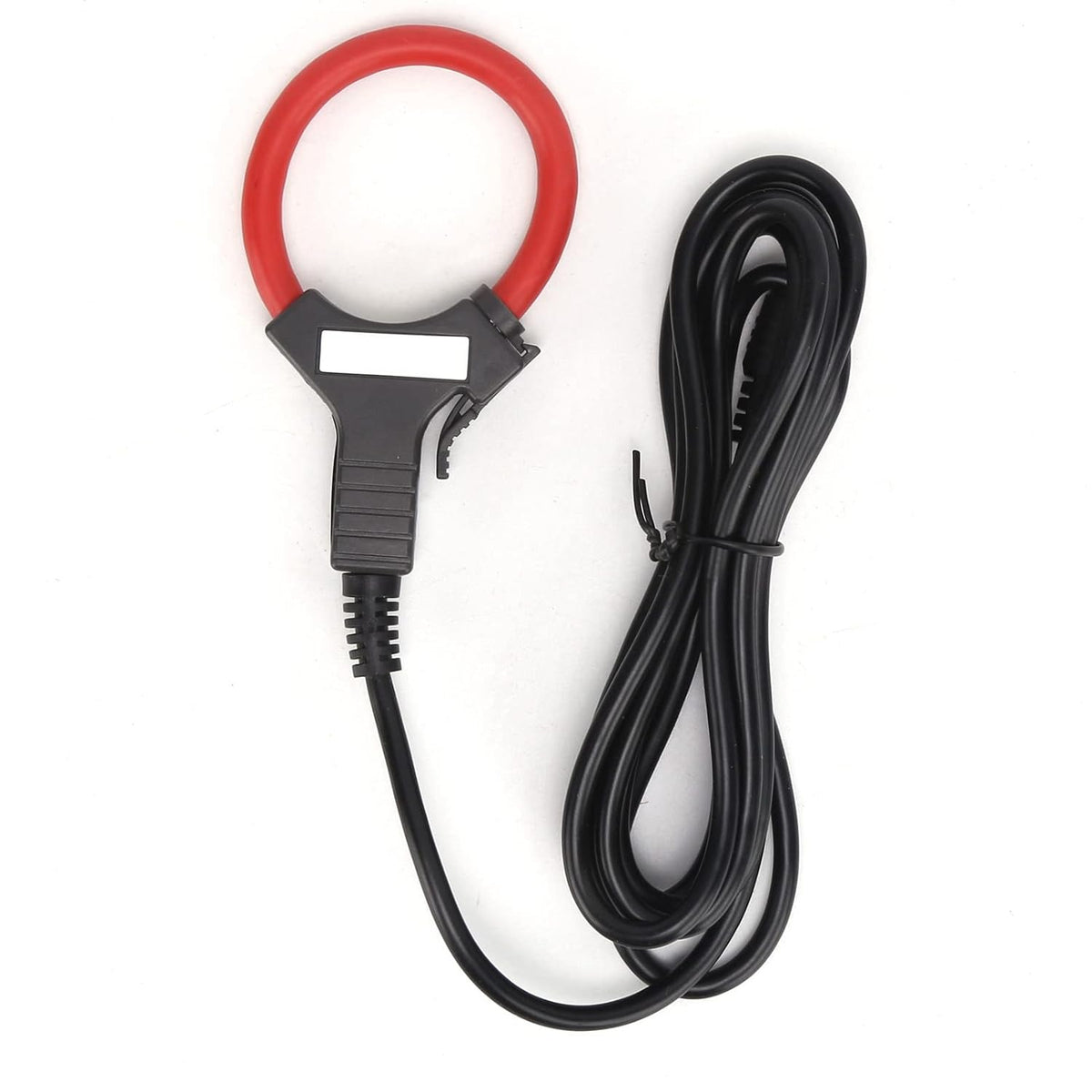

ETCR50FA Current Transformer Probe - Flexible Coil AC Current Transformer - Accessory for Electrical Measurement - Power Monitoring - Industrial & Home Use - Electricians

Key features

• and Non- Measurement] - The flexible coil current sensor is designed with a coil and a handle, ensuring no exposed metal conductors for measurement.
• [Wide Measurement Range and ] - From milliampereto tens of thousands of amperes, this sensor provides accurate and measurements with ±1.0%FS accuracy grade.
• [Long Service Life] - Made of high-quality ABS material, this sensor ensures durability and longevity, suitable for long-term use.
• [Compact and Flexible Design] - Small and lightweight with an exquisite appearance, this current sensor is for narrow spaces and areas with dense cables.
• [Advanced Rogowski Coil Technology] - Utilizing toroidal coil wound on a non-ferromagnetic material, this sensor offers high linearity and almostphase error.

Item Type: Current SensorMaterial: ABSModel: ETCR50FAUses: Electronics industry, power communications, equipment manufacturing, power grid maintenanceFunction AC leakage current, large current, high-order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power,Power factor and other detection Detection method Flexible coil CT: The output signal is the differentiation of current to time. By integrating the output voltage signal, it can be truly restored input Current Coil diameter Φ7.5mm Measuring range 0A～10000A～higher Resolution 10mA Accuracy grade ±1.0%FS (50Hz/60Hz: 23℃±2℃, below 70%RH, the wire is at the center of the coil) Phase error 0.1°(50Hz/60Hz: 23℃±2℃) Output interface 3.5mm audio frequency plug/BNC plug/tap (optional), cable length 2M Electric field interference No hysteresis effect, from external electric field interference Wire position The wire to be tested is at the center of the coil, and the position error affects ±0.3%FS Current frequency 45Hz～70Hz (frequency of measured current) Response frequency 0.1Hz～1MHz Line voltage AC 1000V or less line test Working temperature and humidity -20℃～50℃: below 80%rh Storage temperatu
