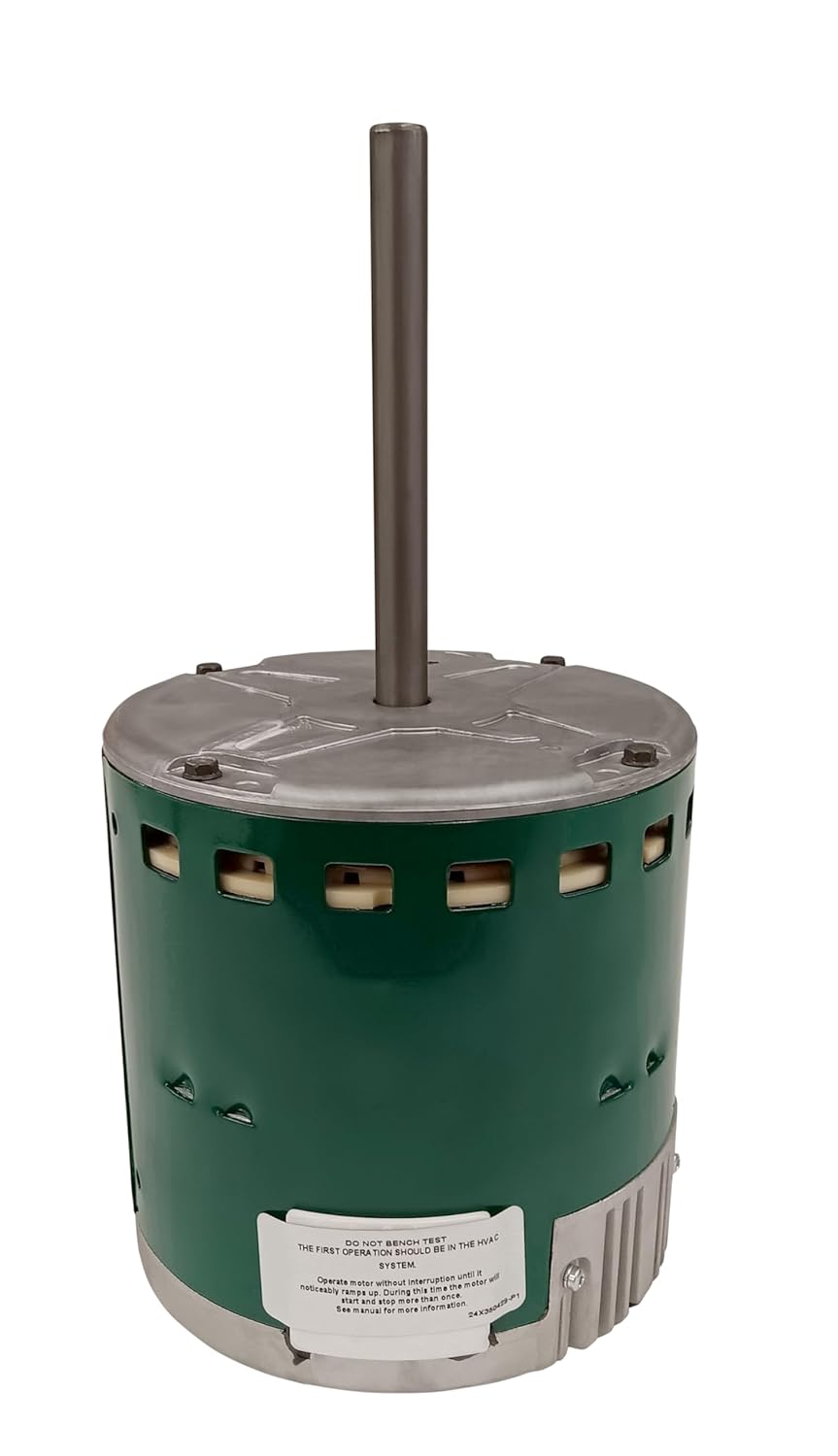

Evergreen Scientific- 6205E GE - Genteq 1/2 HP 230 Volt Replacement X-13 Furnace Blower Motor

Key features

• Multi-speed, constant torque, brushless DC motor
• NEMA 48-frame (5. 6 inch diameter) belly band mount with 5-inch long 1/2 inch diameter shaft
• Four discrete speeds using 24VAC, plus automatic continuous fan speed
• UL and CSA recognized component
• CCW/CW Rotation Sensing Technology
• Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers and package systems that were designed with a 6-pole 1075rpm rated PSC motor
• Replaces / Supersedes: American Standard & Trane MOT13004 , MOT-13004 , MOT12888 , MOT-12888 , MOT12292 , MOT12319 , MOT12542 , Carrier / ICP HD44AE137 , HD44AE137A , HD44AE138 , 1172987 , 1173682 , 5SME39HKL017 , 5SME39HXL285 , 5SME39HXL298 , S81-948 and other 1/2 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800.
• DOES NOT REPLACE EON , 3. 0 , 2. 3 and 2. 5 ECM Motors

Evergreen EM X-13 Direct Replacement Motors. No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.
