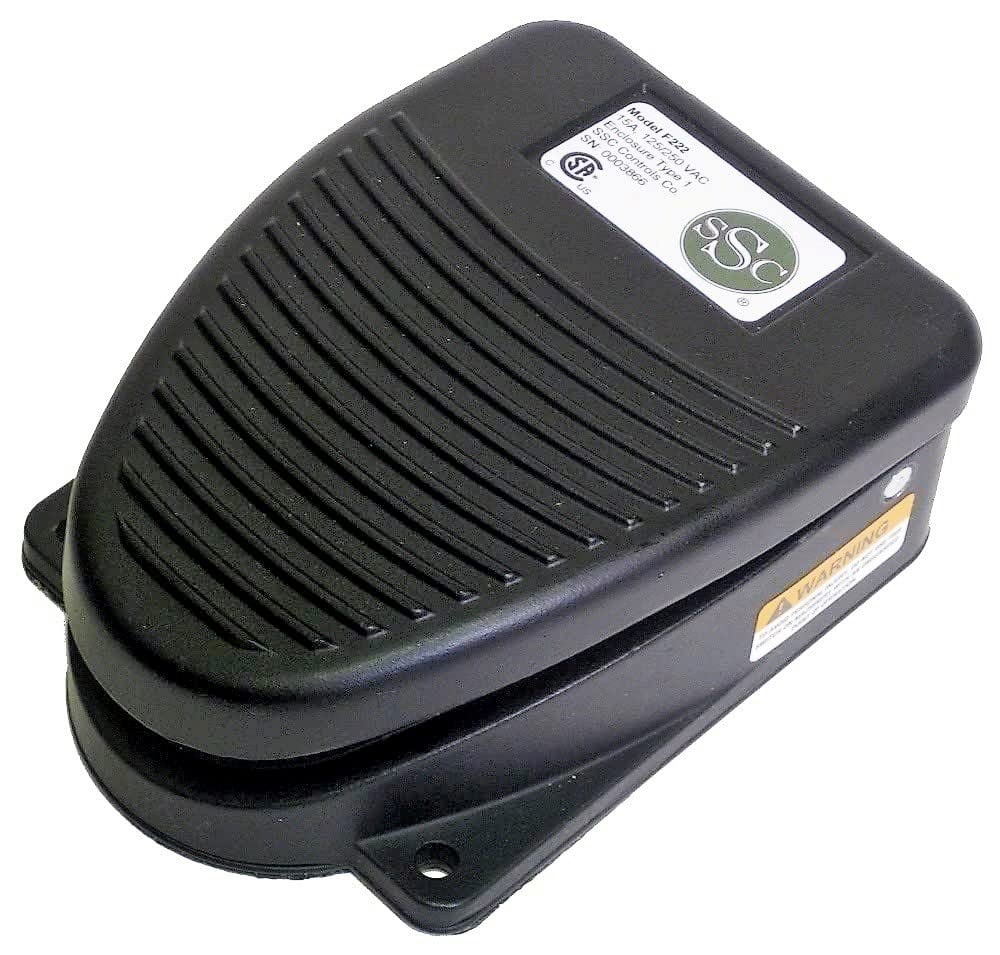

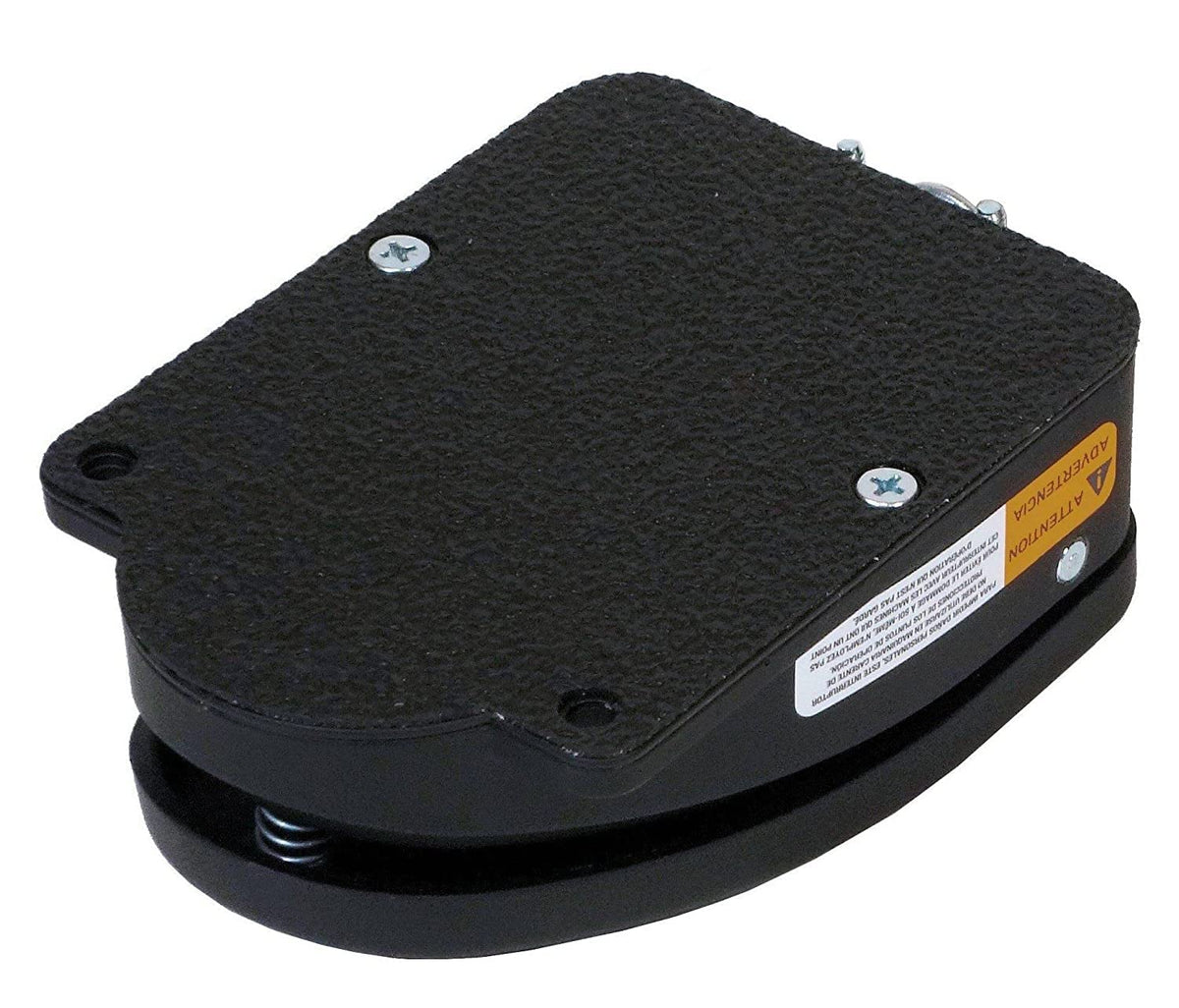

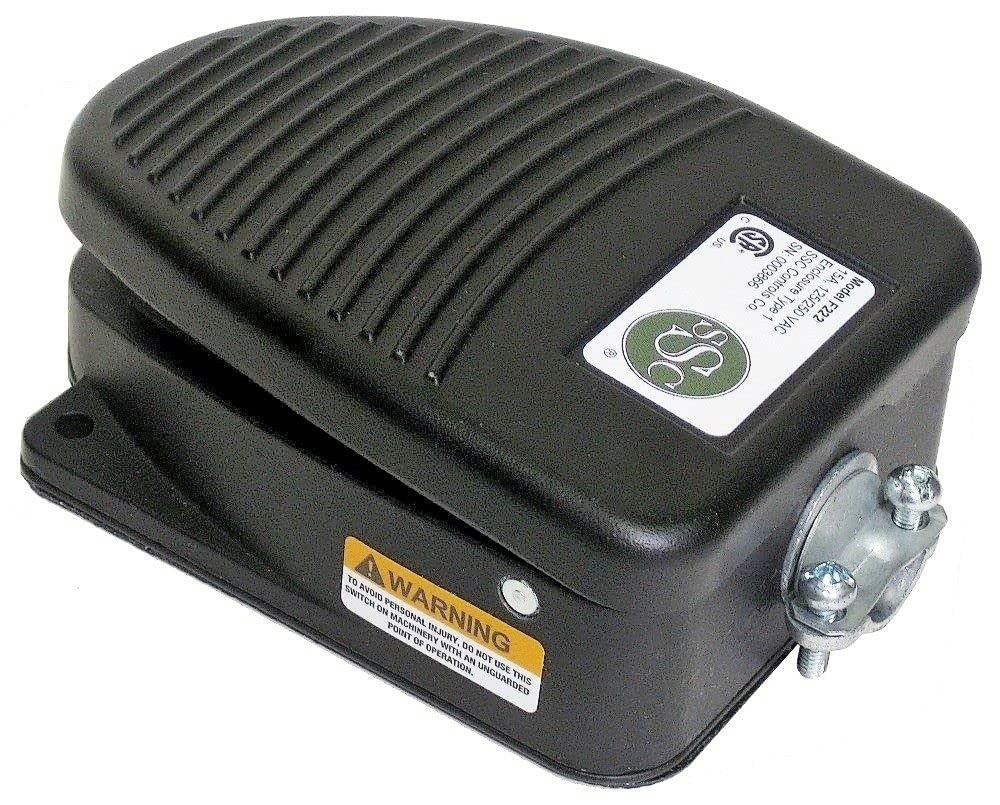

F222 Foot Switch, Momentary Action, Two Switch, Two Stage, 15 Amp, Die-Cast, Electrical, Single Pedal, Cross

Key features

• Momentary action with two stages - press down halfway to activate the first switch; continue to press down harder to activate the second switch. Release your foot and it will return upright to the original “off” position.
• User connects their own cable inside the foot switch. Switch has tabs for quick-connect terminals (.187 x .020) or for soldering.
• Electrical rating: 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC; has two switches in a two-stage setup
• Medium-duty foot switch with highly durable die-cast housing and powder-painted finish.
• Made in USA. UL / CSA Certified. Cross Reference 636-S.

The F222 is a medium-duty foot switch with two switches and two stages (press down halfway to activate the first switch; continue to press down harder to activate the second switch; release your foot and it will return upright to the original “off” position). Features a highly durable die-cast zinc alloy housing, powder-painted finish, and do-it-yourself wiring connection. Ideal for home and shop tools and many other applications requiring two-stage circuitry. Features two 15-amp, 125/250 VAC-rated switches with one common, one normally open, and one normally closed contact. Elecrical rating: 15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC. The switch has .187 x .020 tabs on it for quick-disconnect terminals (or you can solder directly to the terminals). This is a momentary foot switch, which means that it actuates when your foot is on the foot pedal, and de-actuates when you release your foot from the pedal. Note: This product is intended for lighter electrical loads; for more demanding electrical loads, see our G-Series products. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor us
