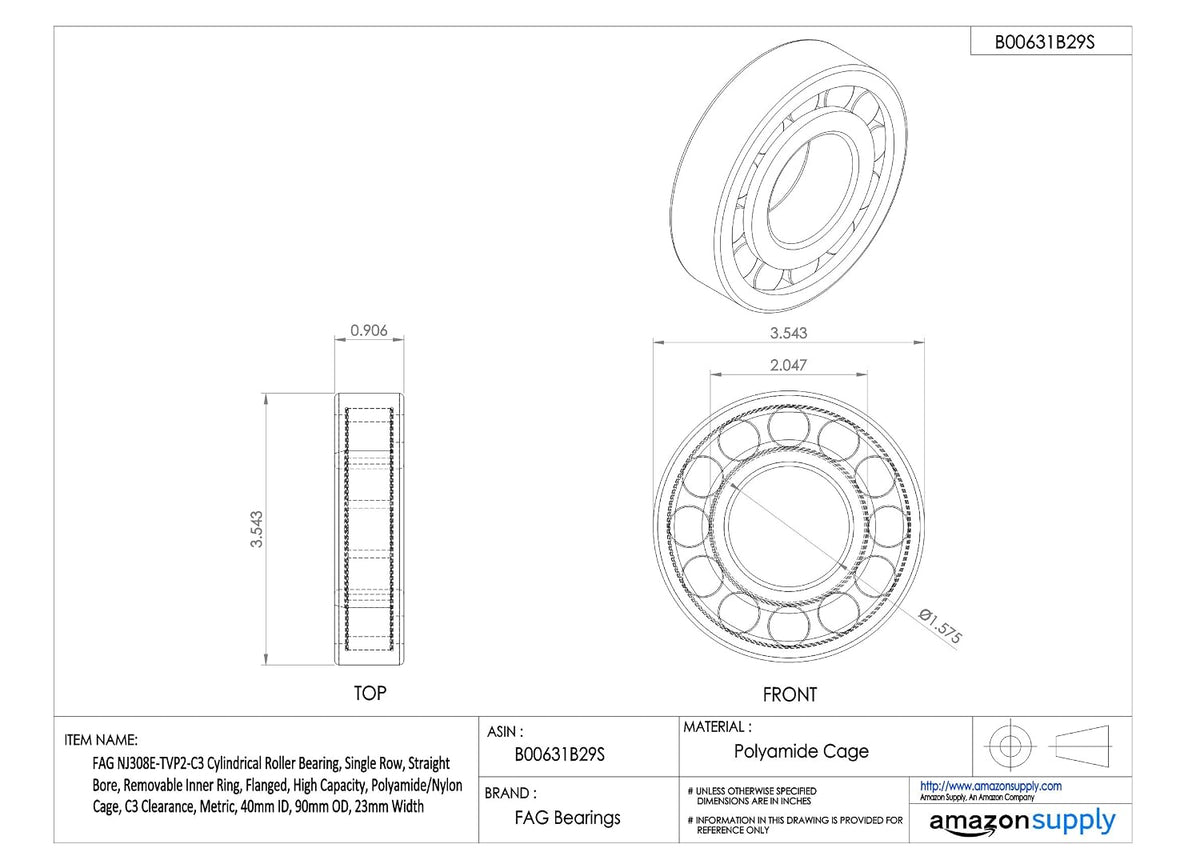

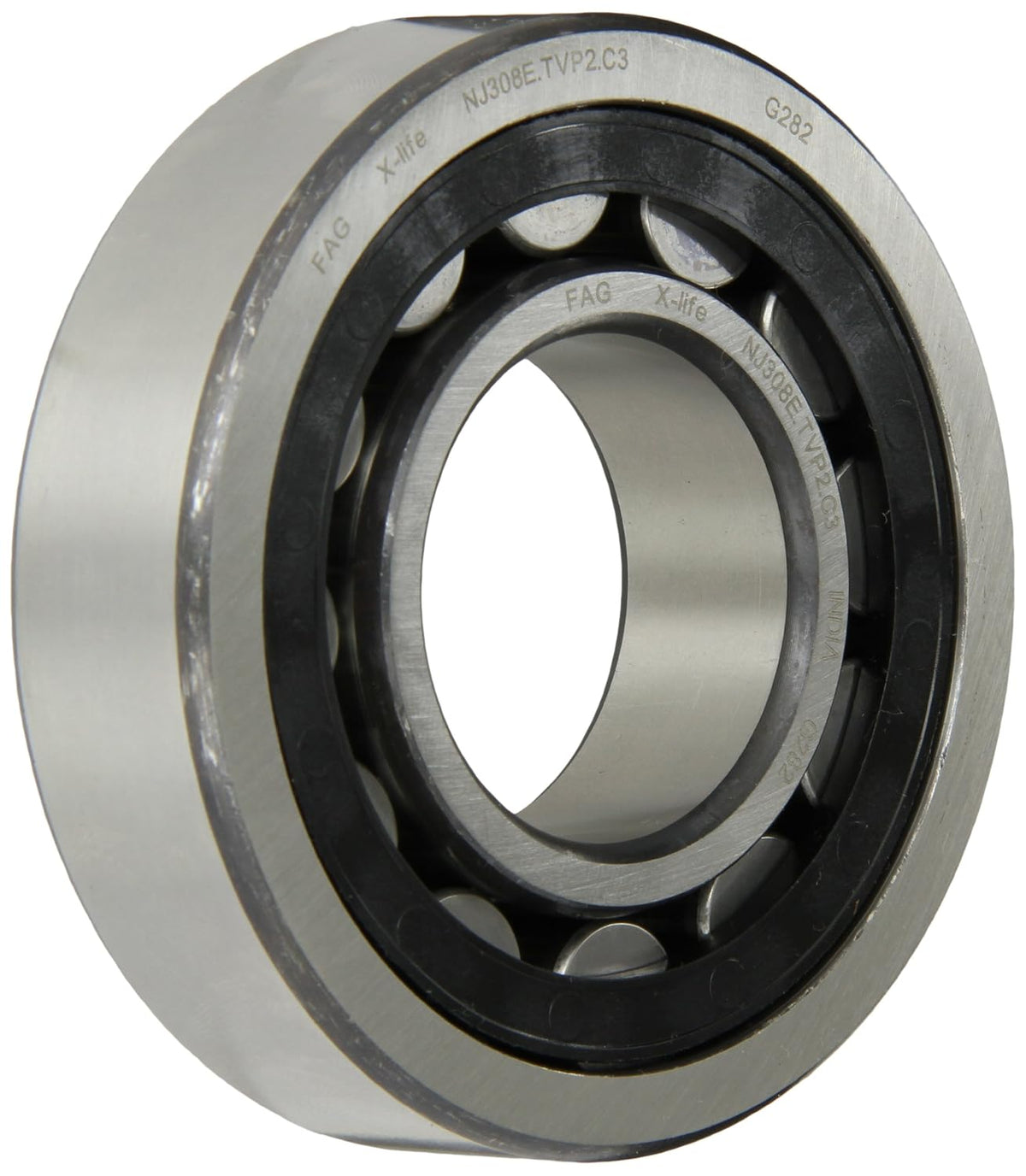

FAG NJ308E-TVP2-C3 Cylindrical Roller Bearing, Single Row, Straight Bore, Removable Inner Ring, Flanged, High Capacity, Polyamide/Nylon Cage, C3 Clearance, Metric, 40mm ID, 90mm OD, 23mm Width

Key features

• Single row cylindrical roller bearing for applications that support high radial loads
• C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
• Semi-locating bearing (two ribs on the outer ring, one rib on the inner ring) for supporting axial forces in one direction
• Polyamide cage is lightweight and produces less noise and vibrations than brass cages
• Removable inner ring in open bearing allows for lubrication in place

This FAG single row cylindrical roller bearing with a glass fiber reinforced polyamide cage and removable inner ring is suitable for applications that support high radial loads. It has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than CN (normal) and the press fit inner and outer rings can withstand a large temperature differential. This clearance allows for thermal expansion as the bearing supports radial loads and its cylindrical rollers reduce rotational friction. This cylindrical roller bearing can support heavier loads than bearings with comparable-sized ball bearings because the cylindrical shape of the rollers provides more surface area for distributing the load, and it also has a larger roller set than the standard roller design. This cylindrical roller bearing can be used to a maximum operating temperature of 120 degrees C/248 degrees F. The inner and outer rings and cylindrical rollers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. The bearing is semi-locating, with two ribs on the interior circumference of t
