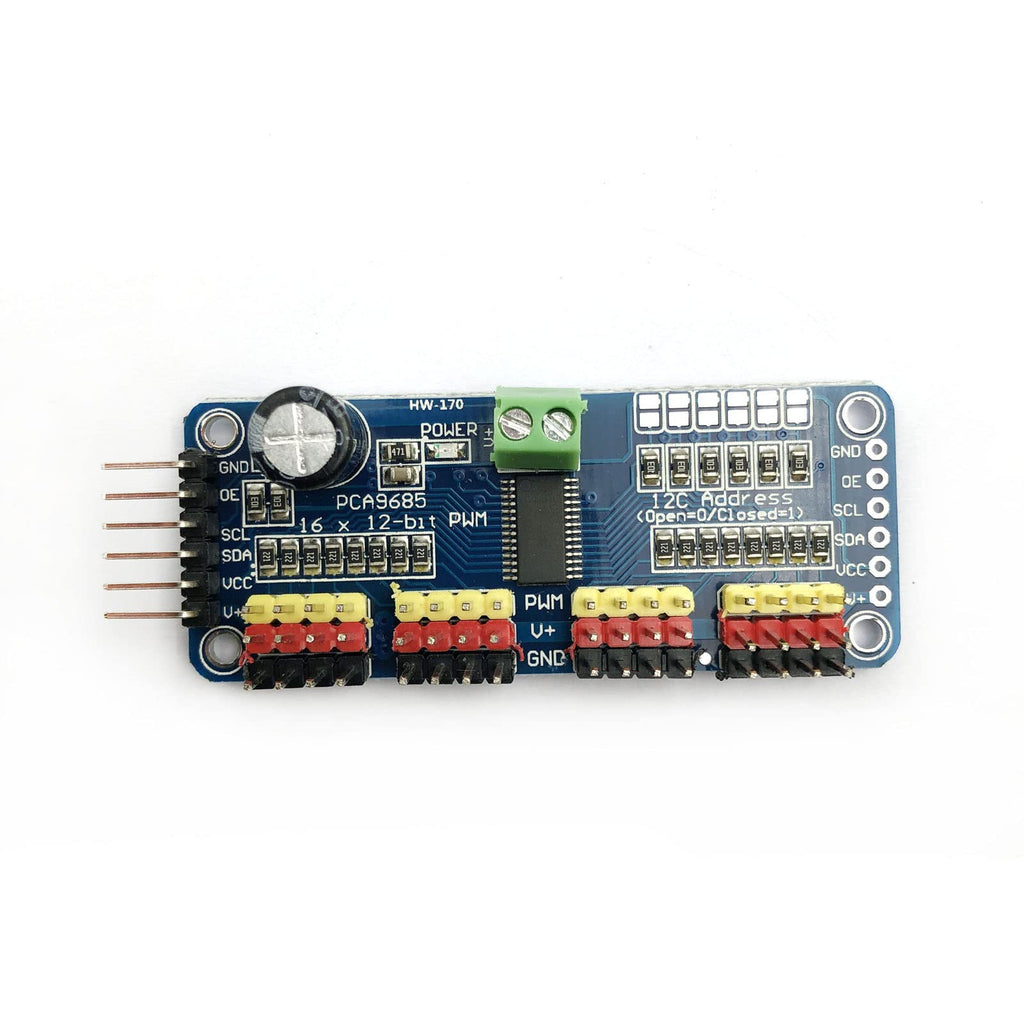

FainWan 2pcs PCA9685 16 Channel 12-Bit PWM Servo Motor Driver IIC Module Compatible with Ar-duino Robot
FainWan 2pcs PCA9685 16 Channel 12-Bit PWM Servo Motor Driver IIC Module Compatible with Ar-duino Robot
Key features
- Communication Interface: IIC
- 16-way steering gear control
- Voltage: DC5-10V power supply
- The PCA9685 chip is wrapped in the center of the board
- All PWM output lines have a 220 ohm series resistor protection and can easily drive LED.
Technical Parameters: Voltage: DC5-10V power supply Communication Interface: IIC 16-way steering gear control Size:25*61mm Product features: The PCA9685 chip is wrapped in the center of the board Power input terminal Green power indicator In the 4 groups of 3-pin connector to facilitate the insertion of 16 servo motor (servo motor plug slightly wider than 0.1 ") The polarity of the reverse polarity is input on the terminal block Cascade design: V + line to place a large capacitor, the maximum external input voltage depends on the 10V 1000uf capacitor All PWM output lines have a 220 ohm series resistor protection and can easily drive LED
