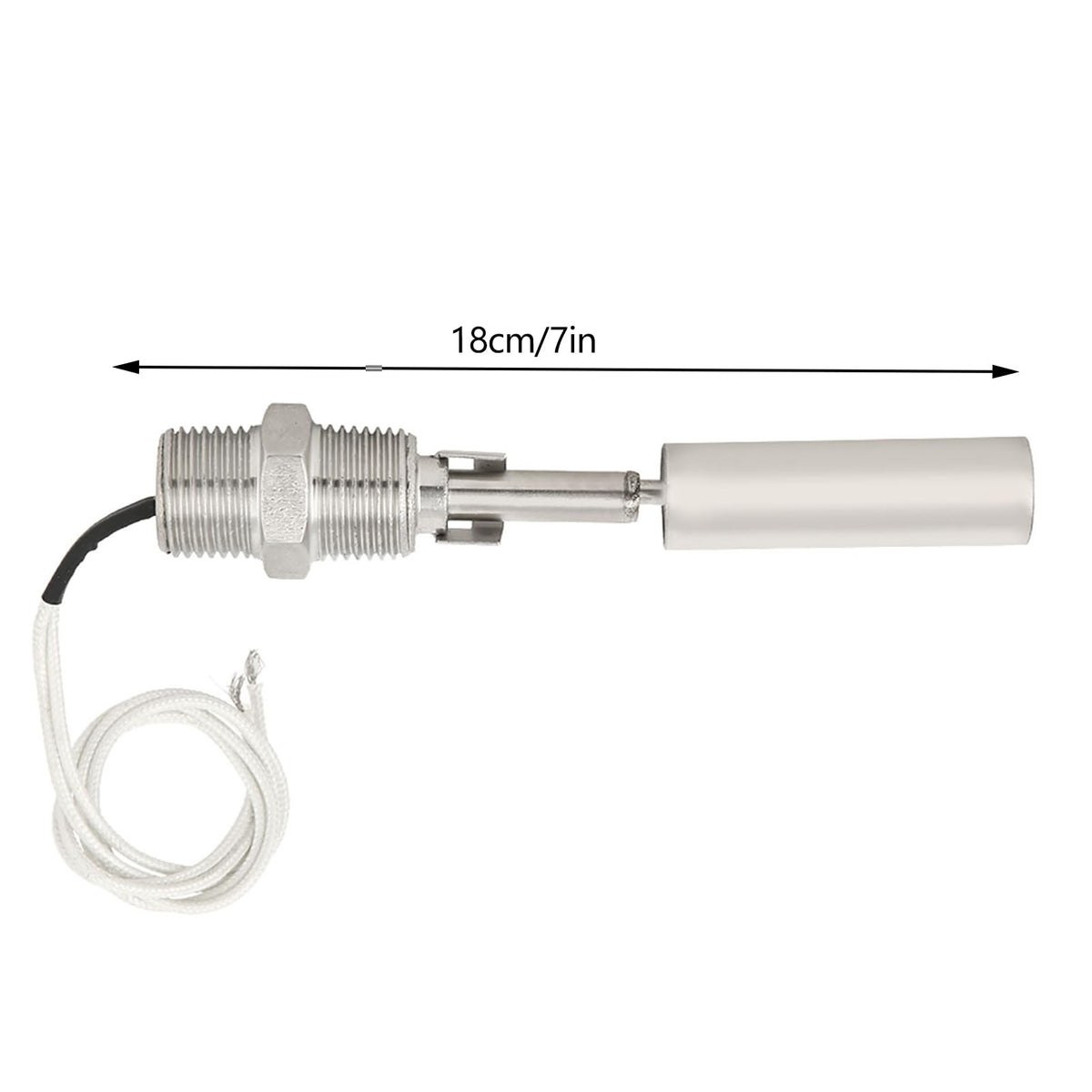

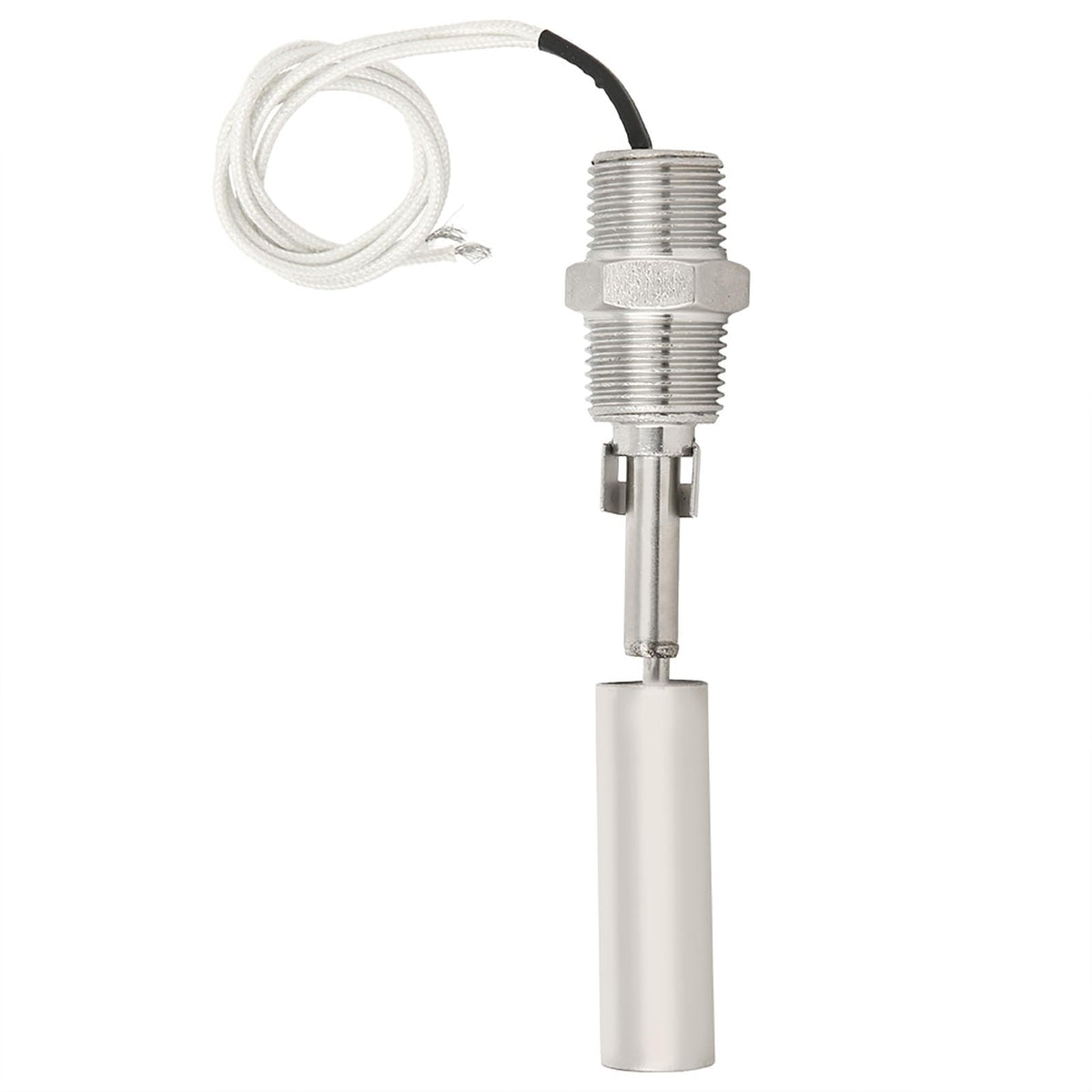

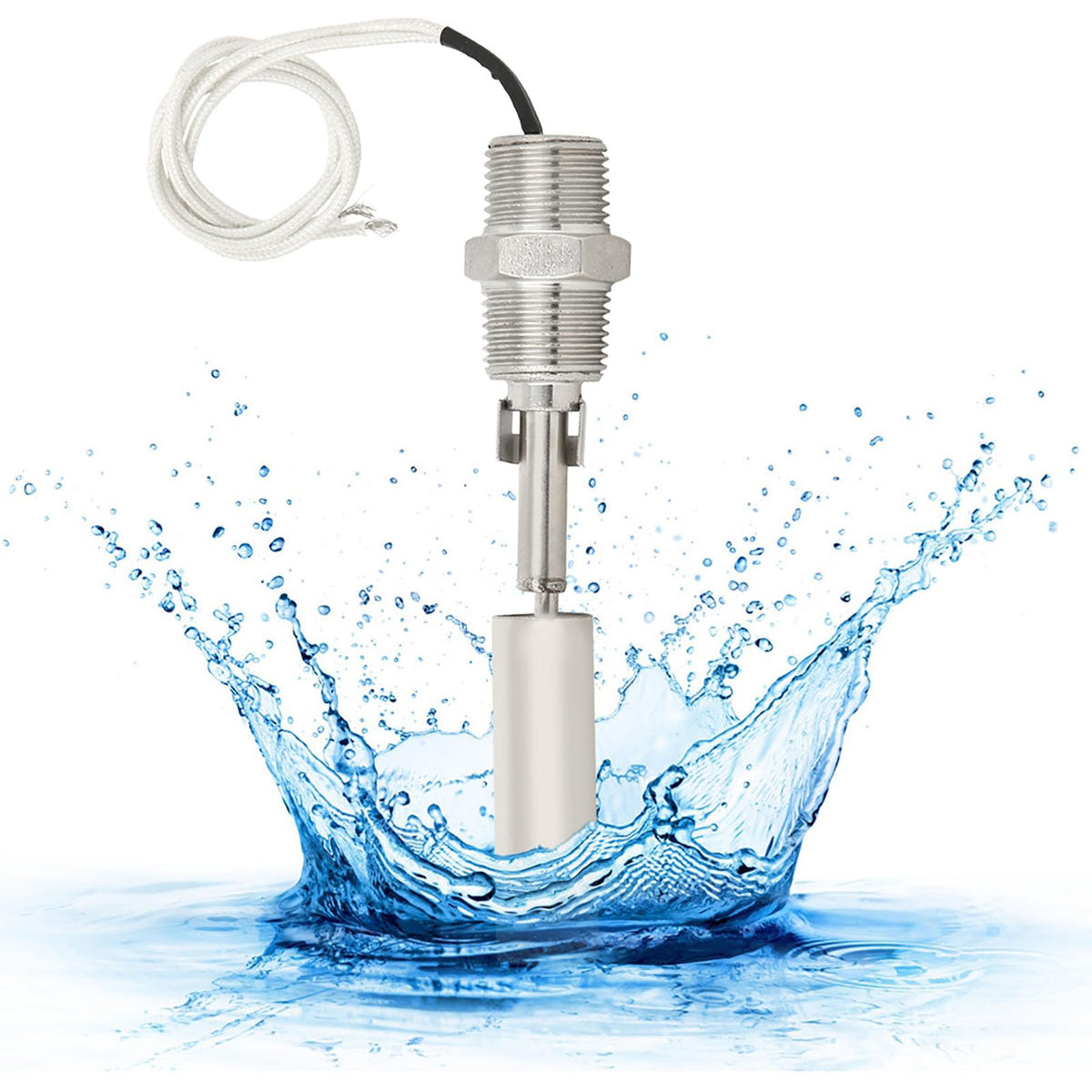

Fayelume Water Level Sensor, DC0-110V Bilge Pump Float Switch, Side Mounted Liquid Level Sensor, 1/2NPT Male Thread Float Switch, for Water Tank Fuel

Key features

• MULTI-FUNCTION CONTROL: Advanced touchless water level sensor with multi-point adjustment capability, float stroke allows precise positioning. High-stability design ensures consistent performance under 0.2Mpa pressure, compatible with various liquid media
• HIGH QUALITY MATERIALS: Bilge pump float switch crafted with 304 stainless steel (1/2NPT male thread) withstands weak alkali exposure and high temps. Anti-degradation construction ensures long-term use in humid conditions
• PRODUCT PARAMETER: Water level switch operates at 0-1A DC current with 10mm/0.39in measurement accuracy. Adjustable control range through modular installation, suitable for liquid densities from 0.7g/cm³
• COMPATIBILITY: Pool water level sensor features universal 1/2NPT threading standard, ideal for solar systems and anti-dry burn protection in water heaters. Endures continuous use in chemical liquid applications
• MULTI-SCENARIO APPLICATION: Float switch designed for water dispensers, AC units, and fuel tanks. Certified for bathroom equipment and vending machines

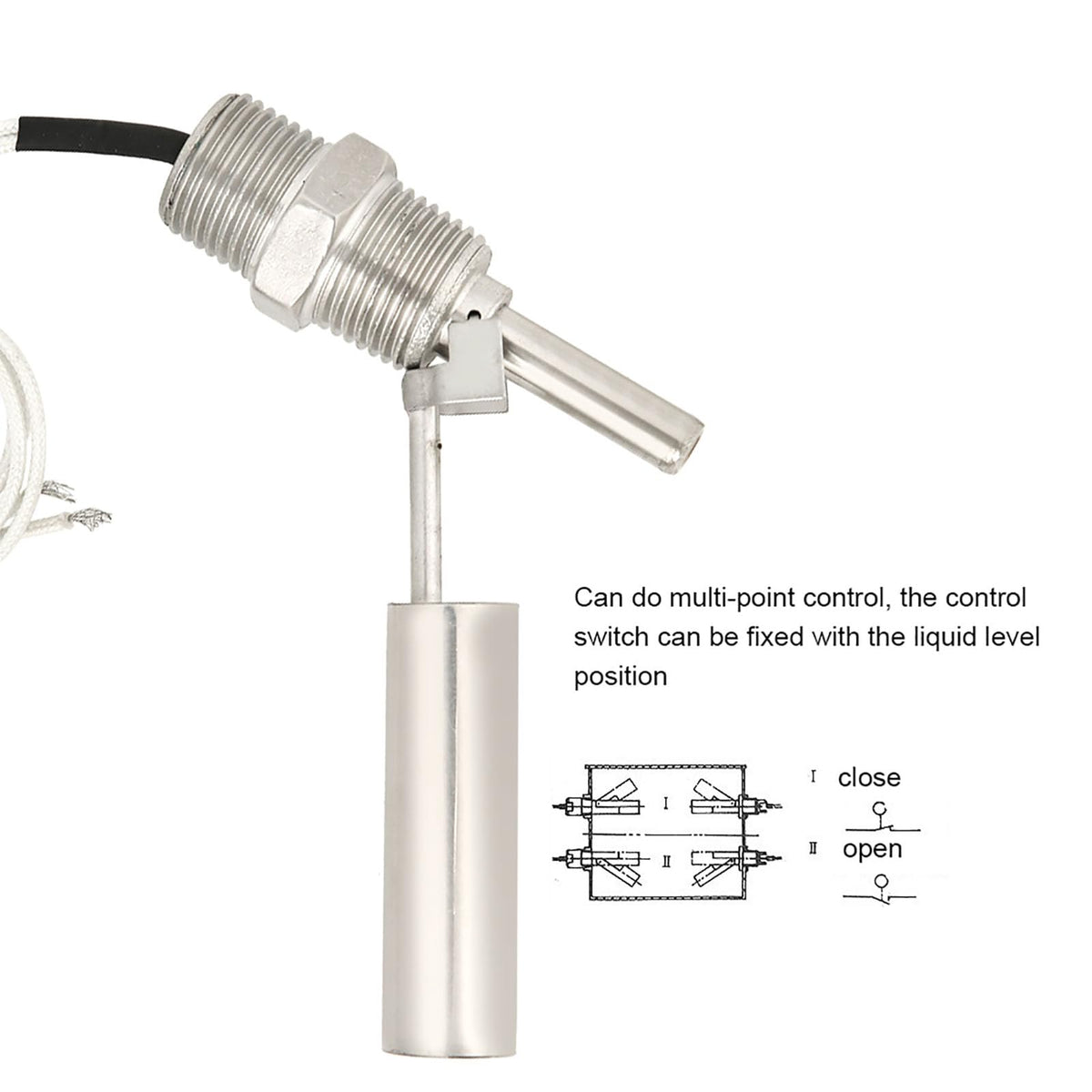

Specification Item Type: Liquid Water Level Sensor Model: YZ-SUS304 (H type) Male Thread Size: 1/2NPT Material: 304 stainless steel Working Current: 0-1A Maximum Temperature Rebellion: 150℃ Working Pressure: 0.2(Mpa) Medium Specific Weight: 0.7 The product can be used for water level control of water dispensers, water heaters, solar energy, air conditioners, humidifiers, bathroom equipment, sales machines, fuel tanks, water towers, chemical liquids, anti-dry-burning water level sensors for water heating equipment such as kitchen equipment and water heaters Package List 1 x Liquid Water Level Sensor Note The stroke of the float is 10mm, that is, the control range is 10 mm. If the control range is required, it can be installed in 2 combinations.
