Fesjoy CNC Breakout Board for Precision Control Tasks

CNC Breakout Board for Precision Control Tasks

Key features

• [ENHANCED OPERATIONAL STABILITY] The CNC Engraving Machine breakout board is equipped with a high-speed processing chip designed to enhance the stability of the device. By correcting and amplifying input and output signals, this technology minimizes unwanted disturbances for optimal machine performance.
• [SAFE COMMUNICATION LINKS] Our breakout board allows for five input signals to communicate effectively with the host computer through optical coupling isolation. This safety feature is essential for maintaining signal integrity, especially when interfacing with main shaft encoders, ensuring accurate operation.
• [VERSATILE OUTPUT MANAGEMENT] Offering 12 output signals capable of controlling up to six axls linkage, this system promotes flexibility in your CNC setup. The ability to reuse specific ports for multiple functions enhances adaptability, ensuring that this board meets various project demands seamlessly.

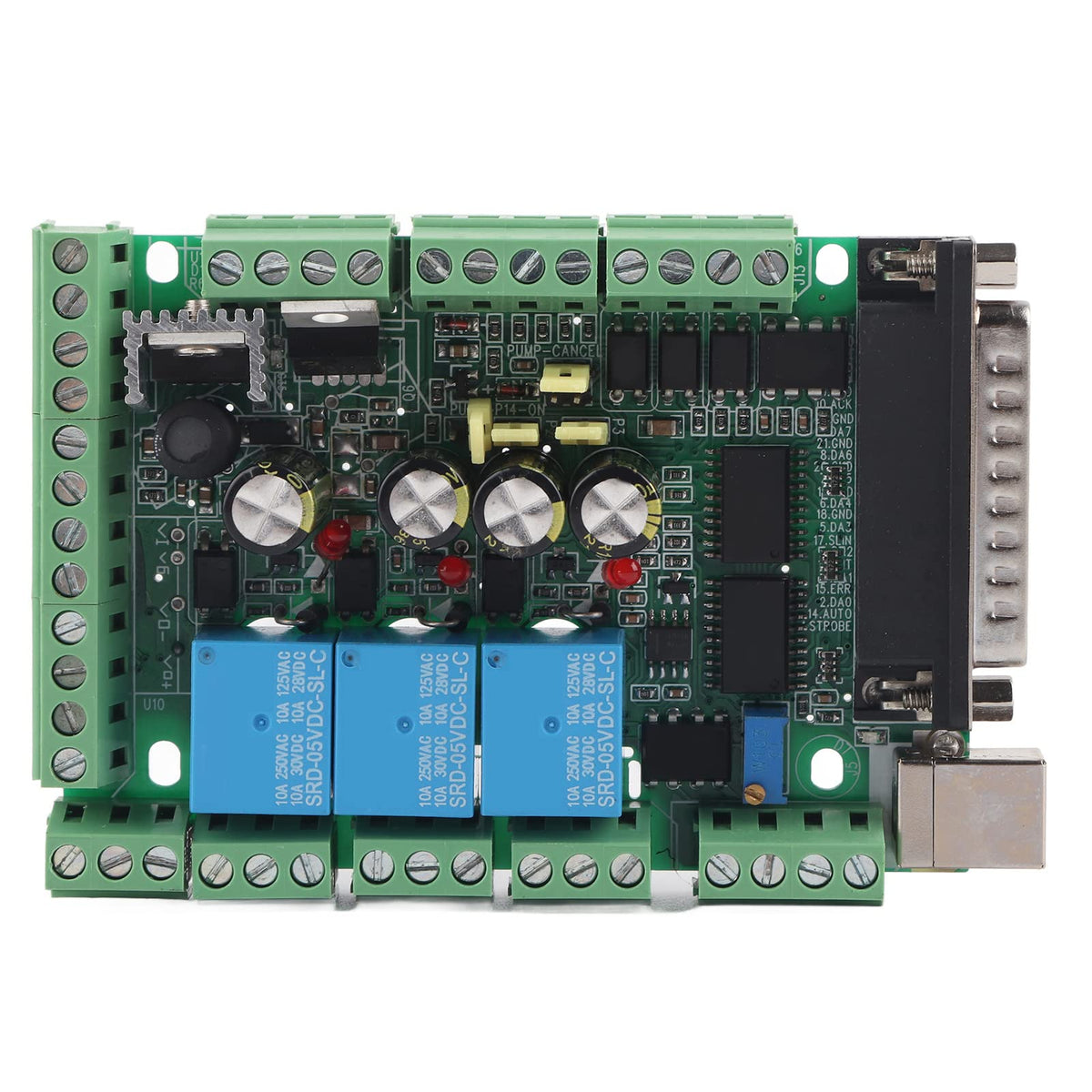

• [EFFECTIVE UTILIZATION] Enjoy the ease of programming with three relays (P2, P3, P4) designed for integration with control software. Each relay is equipped with an indicator light for clear visibility, helping you monitor operations intuitively and improving overall efficiency.
• [PRECISION CONTROL FOR SPINDLES] The high-speed optical coupling ensures accurate control of spindle rotational speeds, facilitated through the P1 parallel port with PWM output of up to 2.5KHZ. This allows for detailed tuning within a range of 0-10V, ideal for expert-level CNC machining tasks.
