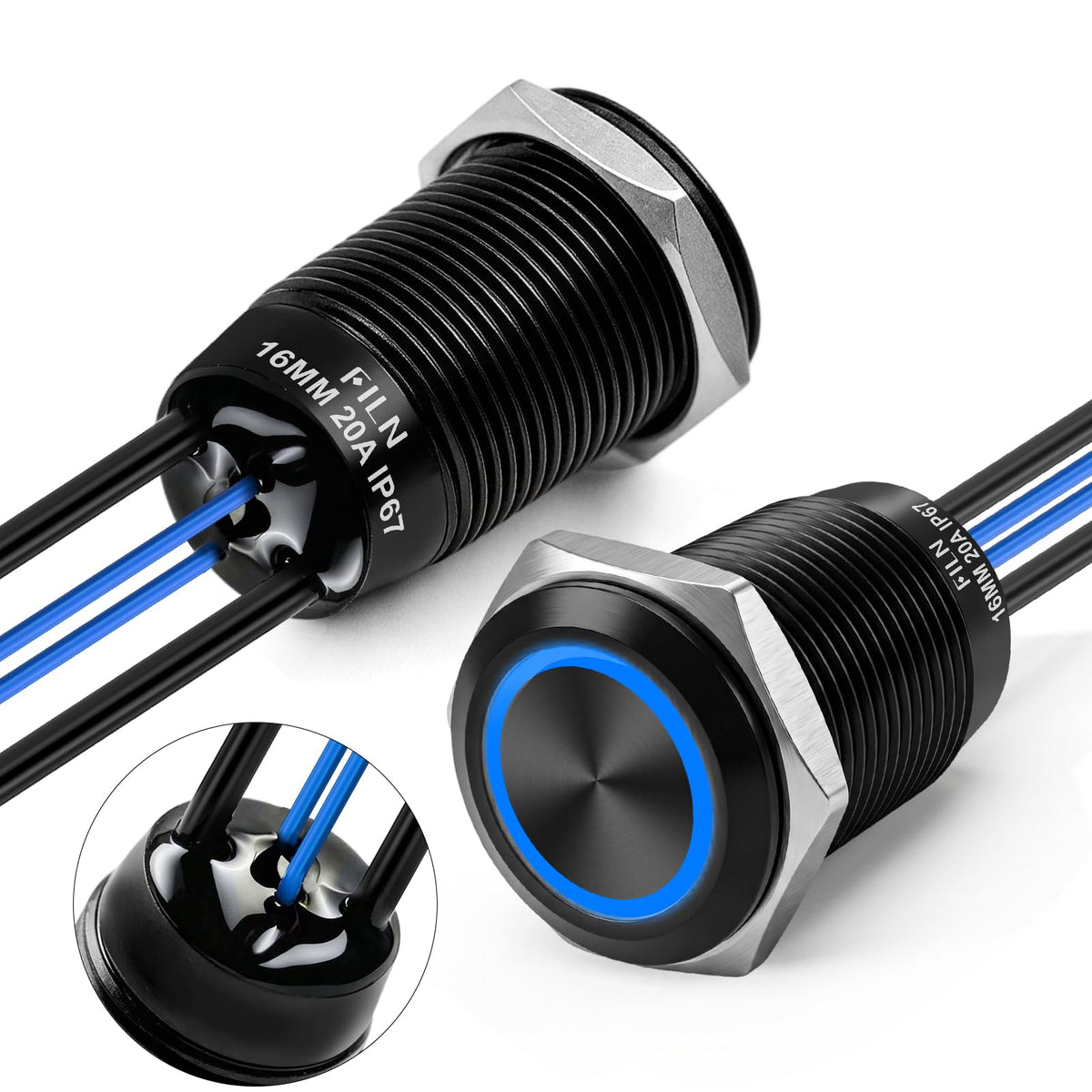

FILN 2PCS 20A 16mm Latching Push Button Switch 12V-24VDC IP67 Black Shell

Key features

• [Parameter] FILN Pushbutton switch 16mm Voltage: 12V-24V; Current: 20A; Waterproof rating: IP67 Tail epoxy resin potting waterproof; Wire length: 15cm; Power wire:15AWG; LED wire:22AWG; Electrical life: 100,000 cycles (10A), 25,000 cycles (20A); mechanical life: 200,000 cycles.
• [Built-in resistor, ultra-wide voltage range] Equipped with a premium built-in metal film resistor to limit current and stabilize signals , the dual-line LED ring is optimized for 12V-24V DC systems. Notably, the indicator remains operational and will still illuminate down to 3V, though the brightness will scale down at lower voltages. Drawing less than 20 mA , it ensures efficient, flicker-free status tracking without dashboard interference.
• [IP67 fully Waterproof] Built to endure harsh outdoor environments, the switch features complete backend epoxy resin potting to fully seal out moisture, dust, and coastal salt spray. The robust zinc-aluminum alloy housing offers superior impact defense and rust resistance , delivering reliable power control on exposed marine boat dashboards, motorcycle panels, and off-road vehicles.
• [Package] This set includes 2 push button switches, plus nuts, waterproof rings, and a detailed wiring guide.it fits seamlessly into custom dashboards, control panels, and vehicle cockpits. Ideal for DIY enthusiasts and professional installers upgrading electrical systems in trucks, RVs, and marine vessels.
• [Applications] Wide compatibility: can be used to adjust the dashboards of cars, motorbikes and boats , also can be used for household appliances, industrial dashboards, automated machinery, test equipment, marine bilge pumps, off-road LED light, RV power modifications, and truck dashboard electronics.
