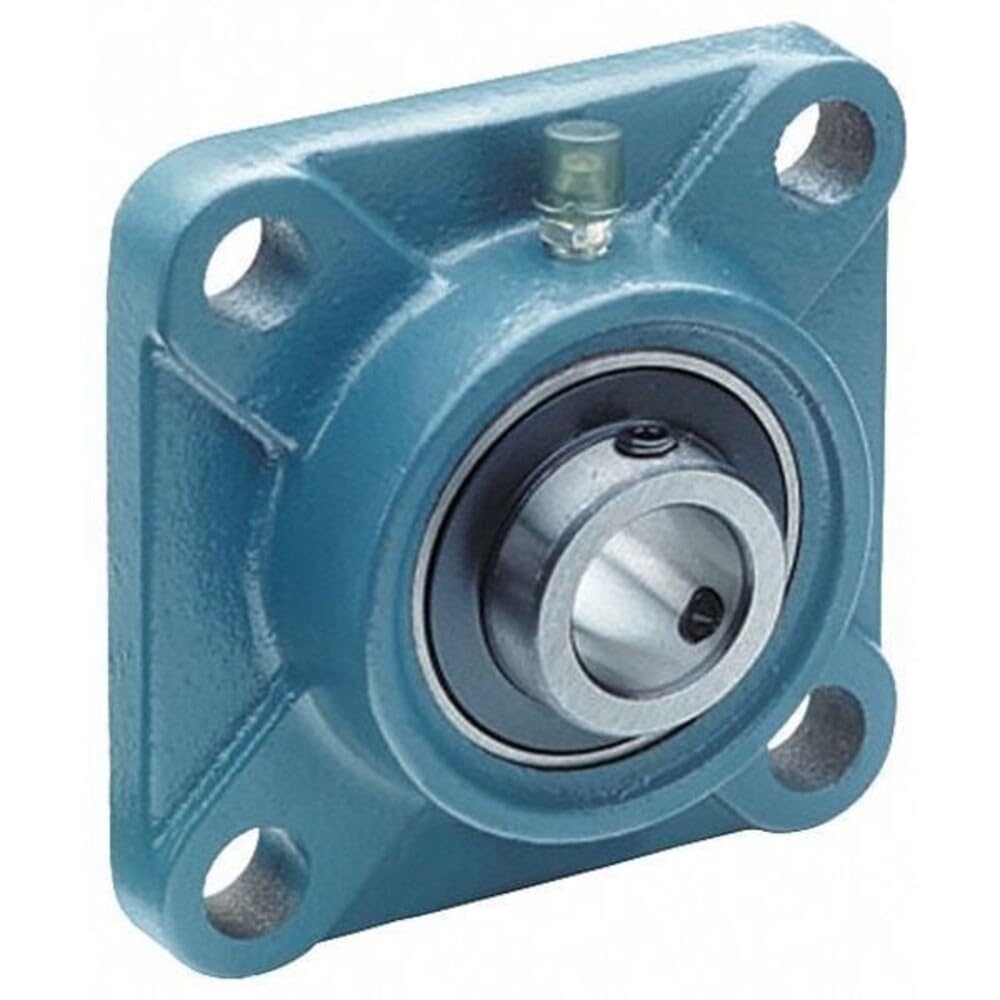

Flange Bearing, 4-Bolt, Ball, 1-1/2" Bore
Flange Bearing, 4-Bolt, Ball, 1-1/2" Bore
Key features
- Item: 4-Bolt Flange Bearing
- Mounted Bearing Item: 4-Bolt Flange Bearing
- Bearing Insert Type: Ball
- Bore Dia.: 1-1/2"
- Shaft Locking Type: Set Screw
Specification: Item: 4-Bolt Flange BearingItem: 4-Bolt Flange BearingMounted Bearing Item: 4-Bolt Flange BearingMounted Bearing Item: 4-Bolt Flange BearingBearing Insert Type: BallBearing Insert Type: BallBore Dia.: 1-1/2"Bore Dia.: 1-1/2"Shaft Locking Type: Set ScrewShaft Locking Type: Set ScrewBearing Housing Material Type: Cast IronBearing Housing Material Type: Cast IronBearing Insert Material: 52100 Chrome SteelBearing Insert Material: 52100 Chrome SteelBolt Hole Center-to-Center: 102mmBolt Hole Center-to-Center: 102mmSeries: UCFSeries: UCFBolt Size: 1/2"Bolt Size: 1/2"Overall Height: 51.2mmOverall Height: 51.2mmOverall Width: 130mmOverall Width: 130mmOverall Length: 130mmOverall Length: 130mmBearing Lubrication: Shell Alvania RL2 or NLGI #2 EquivalentBearing Lubrication: Shell Alvania RL2 or NLGI #2 EquivalentDynamic Load Capacity: 6631 lb.Dynamic Load Capacity: 6631 lb.Static Load Capacity: 4069 lb.Static Load Capacity: 4069 lb.Temp. Range: -40 Degrees to 250 Degrees FTemp. Range: -40 Degrees to 250 Degrees FFinish: PaintedFinish: PaintedStandards: ISO, AFBMAStandards: ISO, AFBMA
Free shipping included. 30-day hassle-free returns.
