FOCMKEAS 2 Pcs TM-1307 Micro Limit Switch, 15A 250VAC Micro Switch, SPDT

Key features

• Limit Switch Model：TM-1307; Size：49.6 mm (L) x 17.6 mm (W) x 51 mm (H), rated load 250VAC/15A, actuator type: Pivot Roller Lever; product nameplate clearly marks core parameters for quick identification(See product description for parameter analysis)

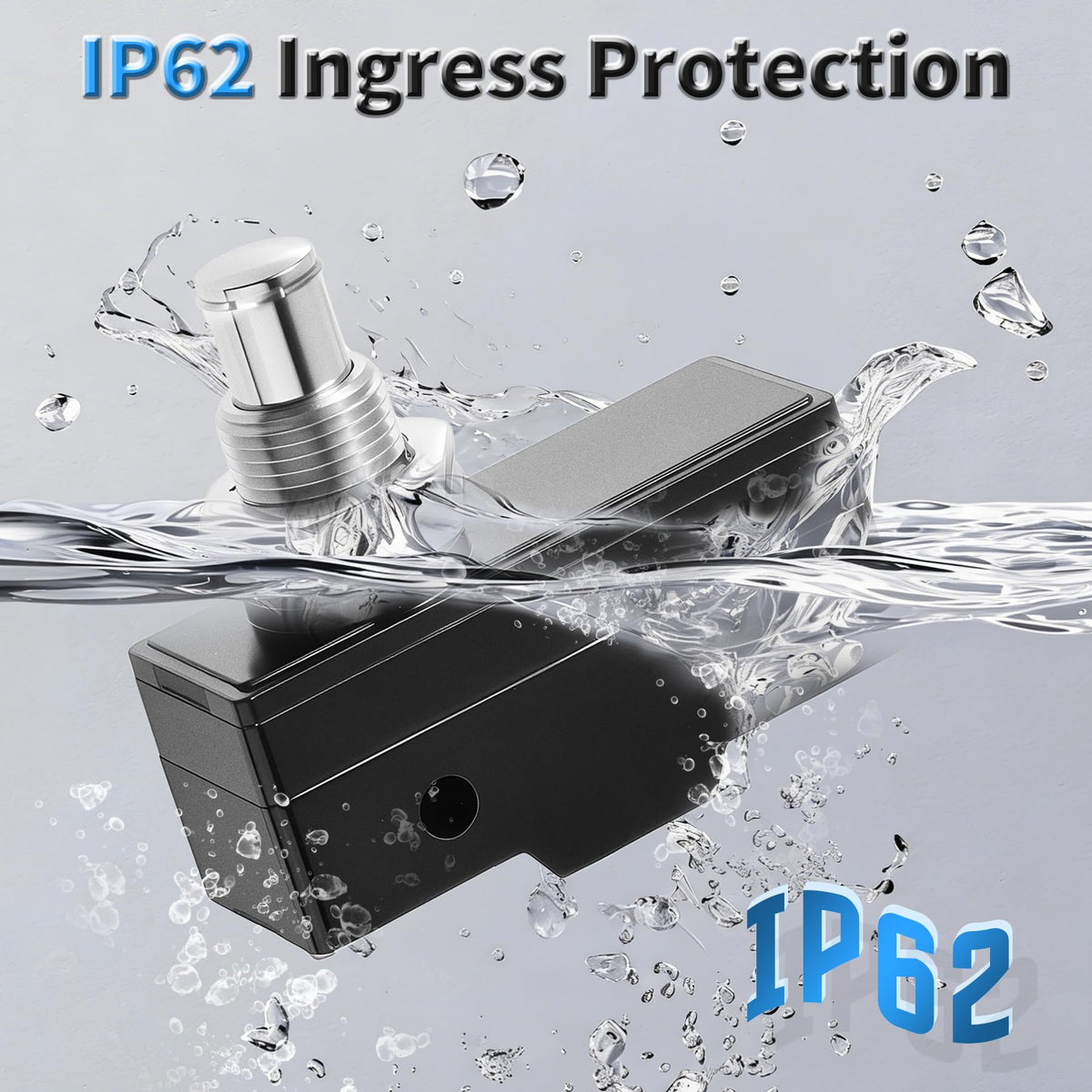

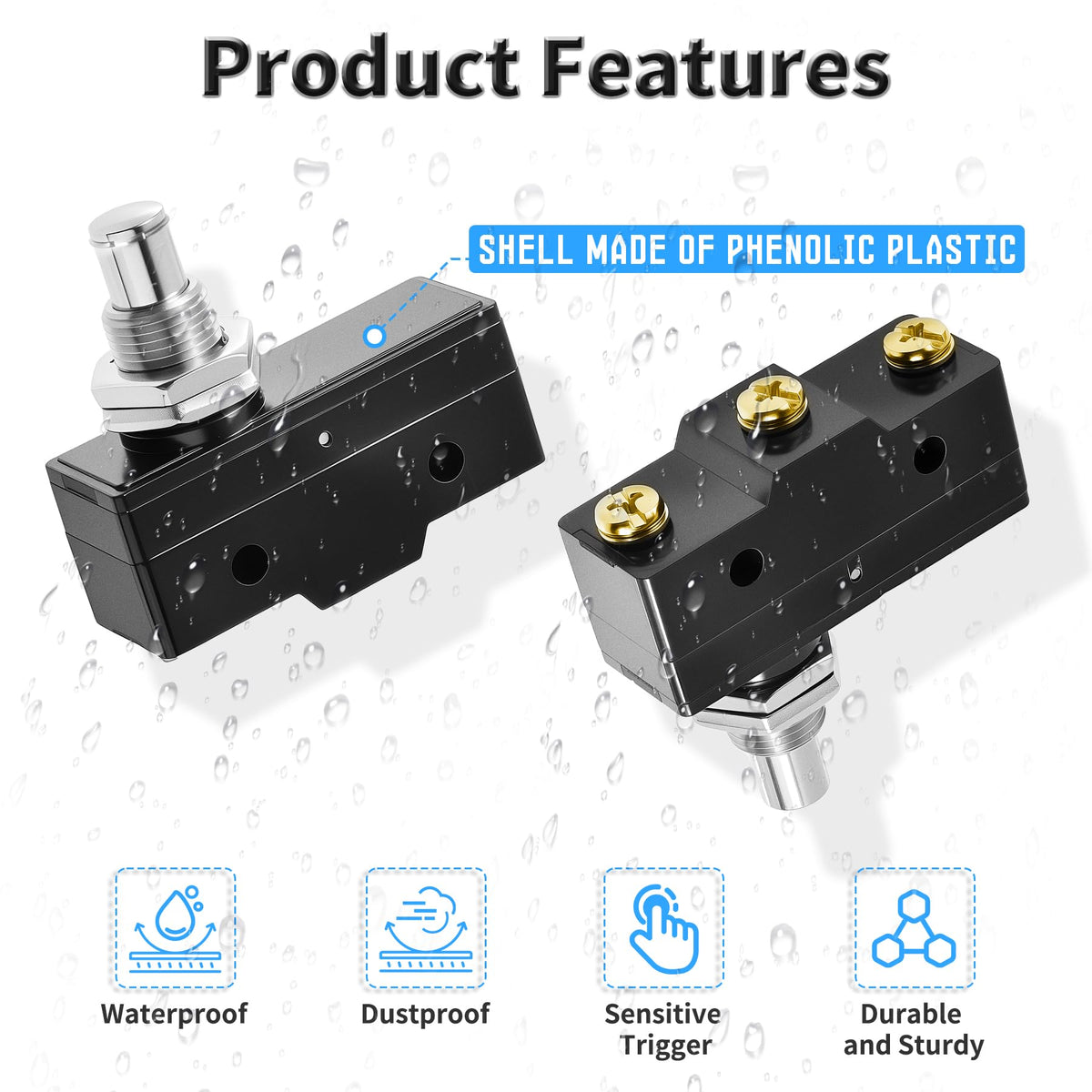

• Material：The shell of micro limit switch is made of phenolic plastic, featuring sturdy, corrosion-resistant and high-temp resistance up to 180℃/356°F; seal design reaching IP62 protection level to block dust and water, protecting internal components
• Excellent Performance：Small micro switch contacts made of silver alloy, internal copper conductive parts, featuring good conductivity and low heat generation, pivot roller lever has high trigger sensitivity and quickly self-reset after force application
• Easy to install：Micro travel limit switch pins are clearly marked with "C" (common), "NO" (normally open), "NC" (normally closed), connect the positive and negative poles according to project requirements, and tighten the screws to complete installation
• Applications：Micro switch can be used as mouse buttons, microwave button, washing machine door control protection, refrigerator door light switch, sensor signal triggering, car door switch; Widely used in home appliances and consumer electronics

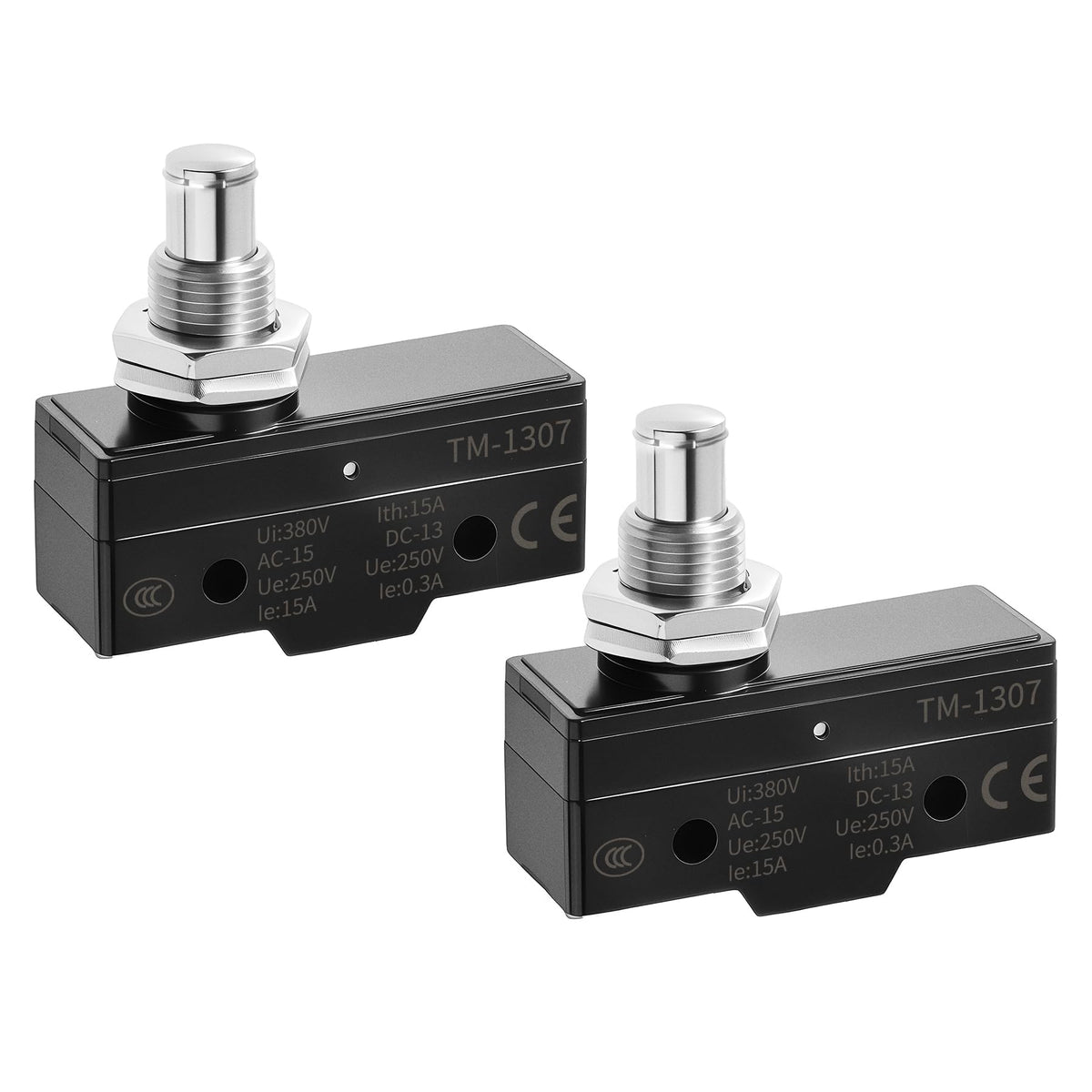

Nameplate parameter analysis eg. Ui (Rated Insulation Voltage): 380V, the maximum insulation voltage that the switch can withstand, the upper limit of no breakdown and no leakage Ith (Conventional Enclosed Thermal Current): 10A, the maximum current allowed by the shell and internal parts in case of long-term electrification, and the actual current shall be ≤ Ith in daily use to avoid overheating damage. Under AC circuit scenario (AC-15), Ue (rated working voltage): 220V; Ie (rated working current): 0.3A; For DC circuit scenario (DC-13), Ue (rated operating voltage): 220V; Ie (rated operating current): 0.3A. Product Features： FOCMKEAS Z-15GW22-B Micro Limit Switch combines durability and precision. Its shell is made of phenolic plastic, with 180℃ high-temperature resistance and IP62 protection level, adapting to multi-scenario working conditions; silver alloy contacts + pure copper conductive parts ensure low-resistance stable conduction, and the actuator is sensitive and self-resetting, suitable for high-frequency mechanical control; clear wiring marks and easy installation, meeting both home and industrial needs. Application Scenarios： Consumer Electronics: Core trigger for mouse
