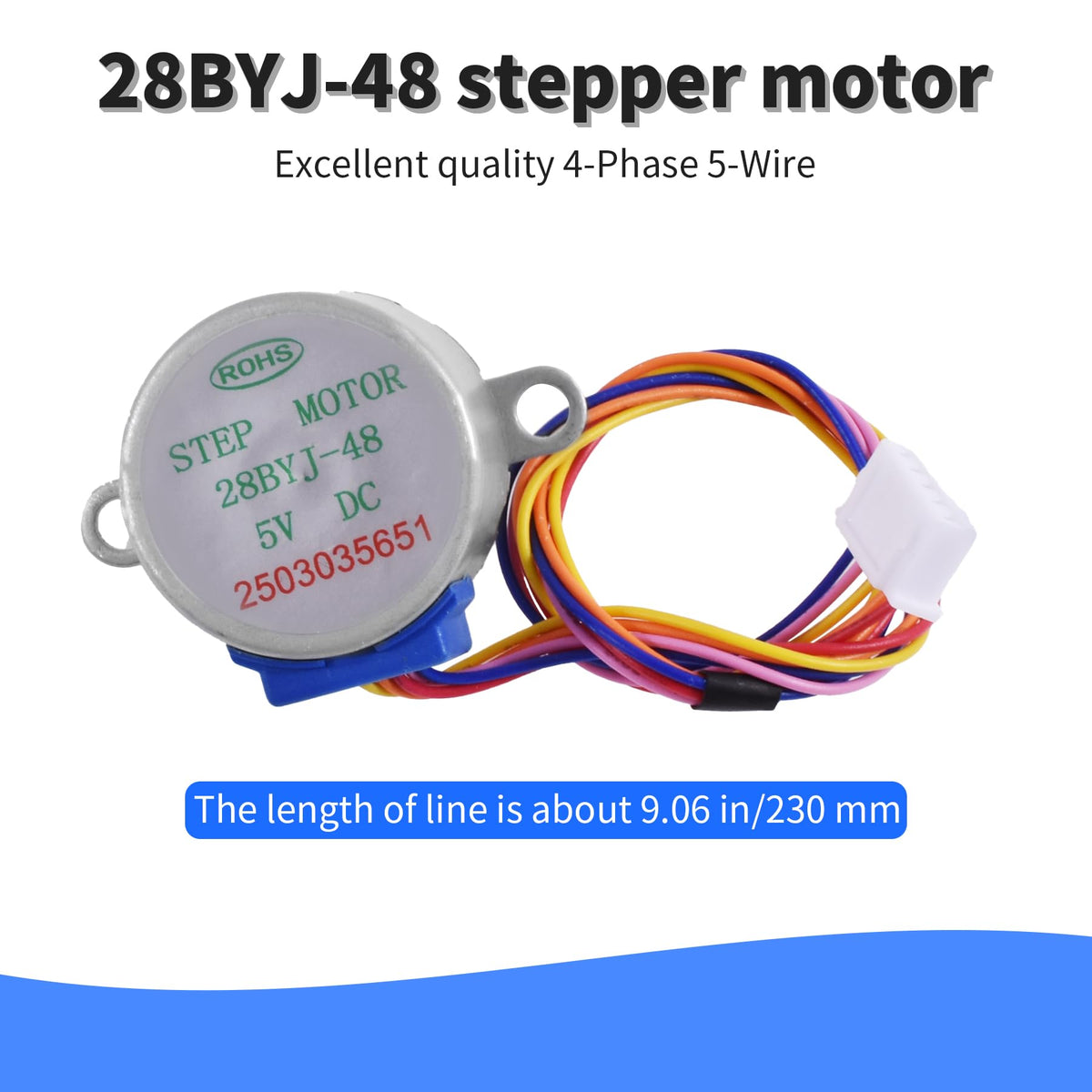

FOCMKEAS 28BYJ48 DC 5V Stepper Motor + Driver Board, 4 Phase 5 Wire

Key features

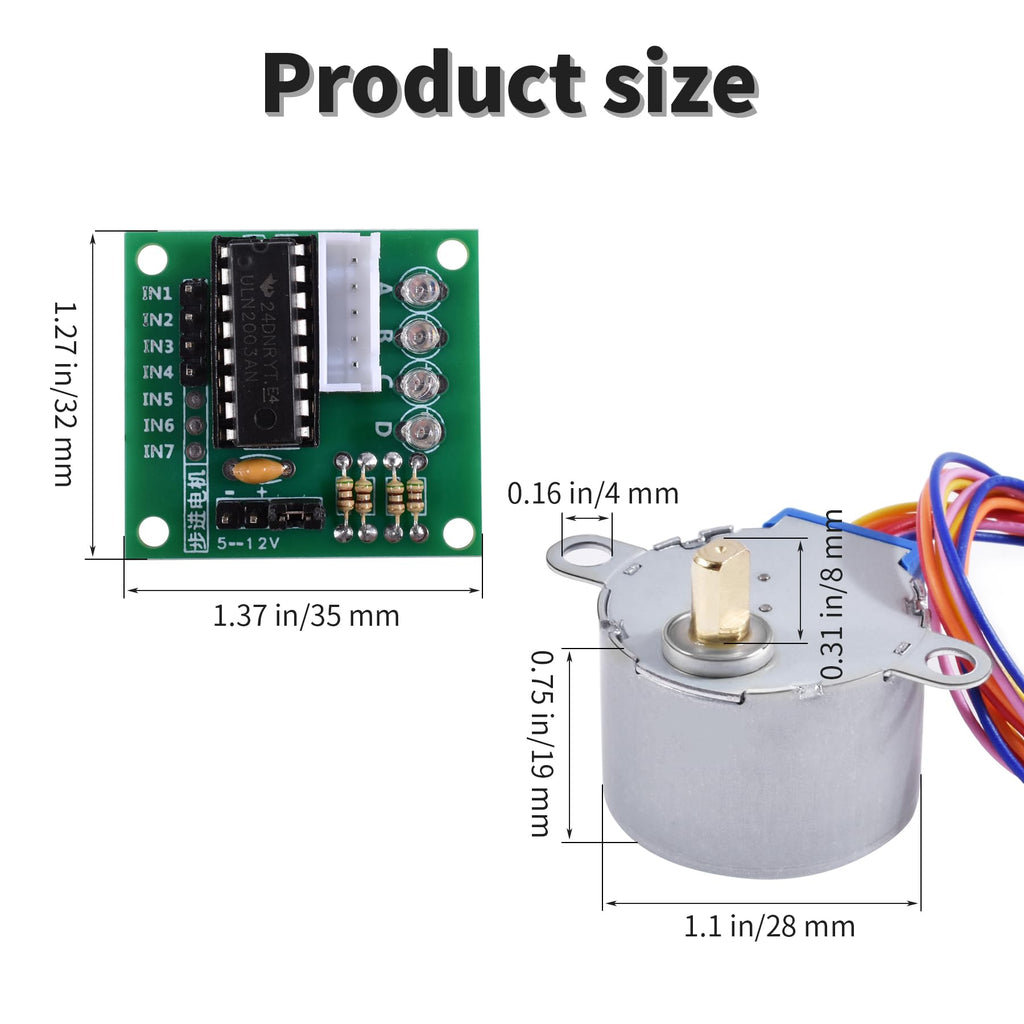

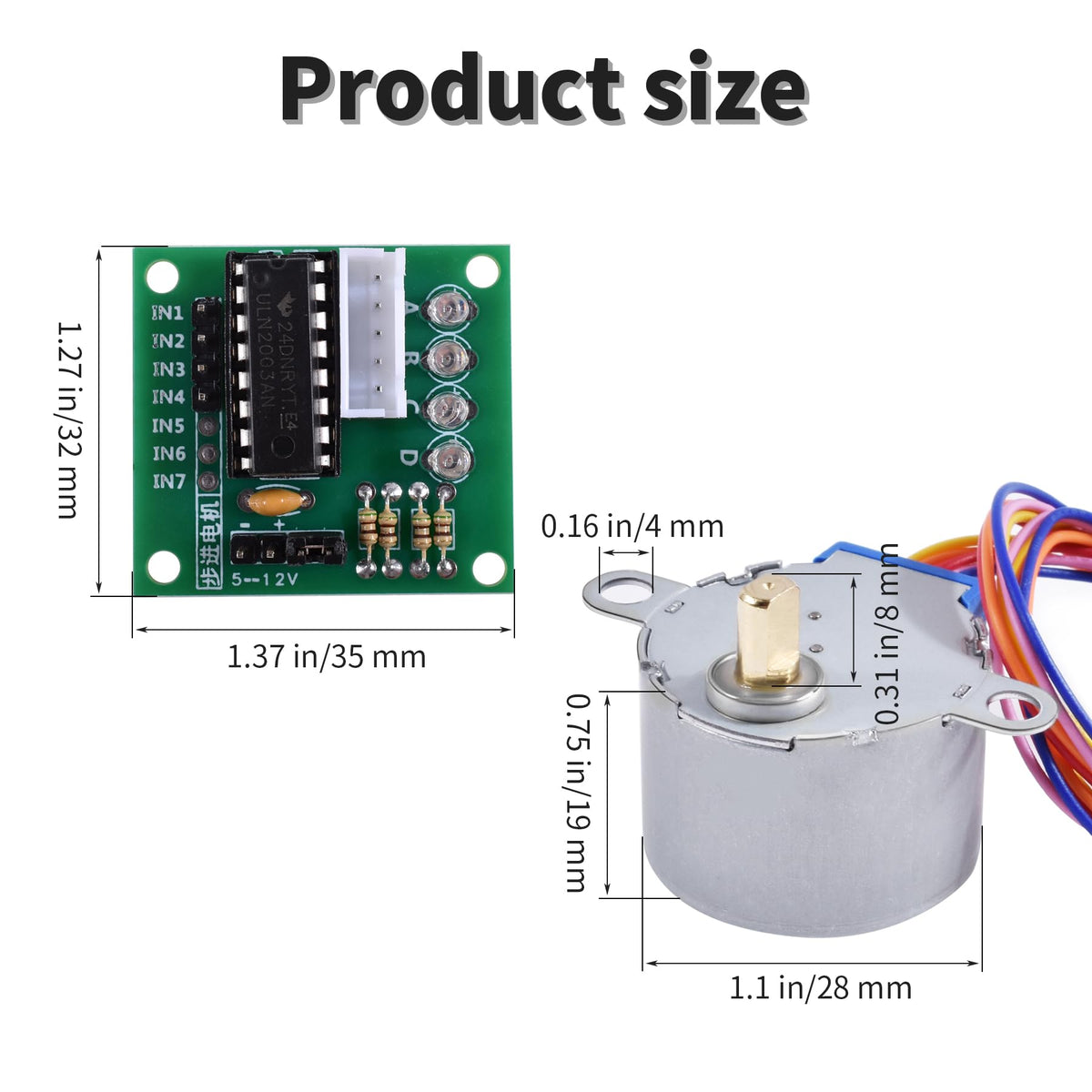

• DimensionsStepping motor diameter: 1.1 in/28 mm; Motor height: 0.75 in/19 mm; Shaft diameter: 0.2 in/5 mm; Shaft height: 0.31 in/8 mm; Mounting hole distance: 1.38 in/35 mm; Mounting hole diameter: 0.16 in/4 mm; Wire length: 9.06 in/230 mm.

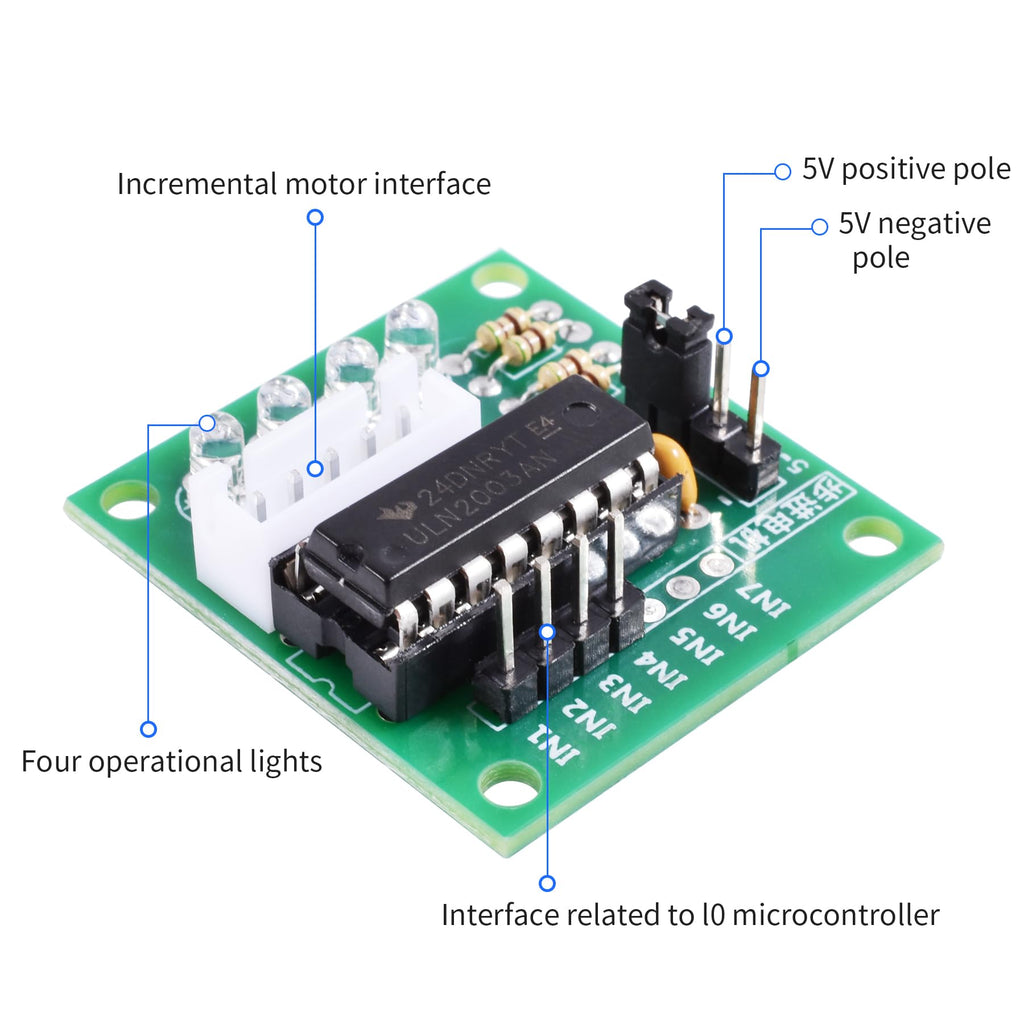

• Technical ParametersModel: 28BYJ48; Voltage: DC 5V; Step angle: 5.625°/64; Reduction ratio: 1/64; Weight: 20g. The package includes 1 set stepper motor and ULN2003 driver board.
• 4-phase 5-wire DesignThis mini stepper motor features a 5-wire 4-phase design, which can be driven by a common chip and connected for use in two phases, providing flexibility for different project requirements. The motor adopts a standard interface and can be directly plugged in and out during use, which is convenient and quick.
• High QualityThe reduction stepper motor is made of high-quality materials, with high precision, low vibration and noise, stable and reliable performance, and a long service life. It is an excellent substitute for replacing damaged components.
• Wide ApplicationThis micro reducer stepping motor is highly suitable for various DIY projects, air conditioners, robots, wireless cameras, monitors, fans, warm air blowers, electric heaters, combustion furnaces, microwave ovens, lighting, and various electrical appliances. It is an ideal choice for both enthusiasts and professionals.

Product FeaturesThis stepper motor features high precision and high resolution, with low vibration and noise; it has stable and reliable performance and a long service life. Working PrincipleA stepper motor is an electromagnetic device that moves in discrete steps. It contains multiple coils, and a series of magnets are mounted on the central shaft. The coils surrounding the shaft are alternately powered on or off to generate a magnetic field that repels or attracts the magnets on the shaft, thus driving the motor to rotate. Wide ApplicationThis motor is highly suitable for various DIY projects, air conditioners, robots, wireless cameras, monitors, fans, warm air blowers, electric heaters, combustion furnaces, microwave ovens, lighting, and all kinds of electrical appliances. It is an ideal choice for both enthusiasts and professionals.

Free shipping included. 30-day hassle-free returns.
