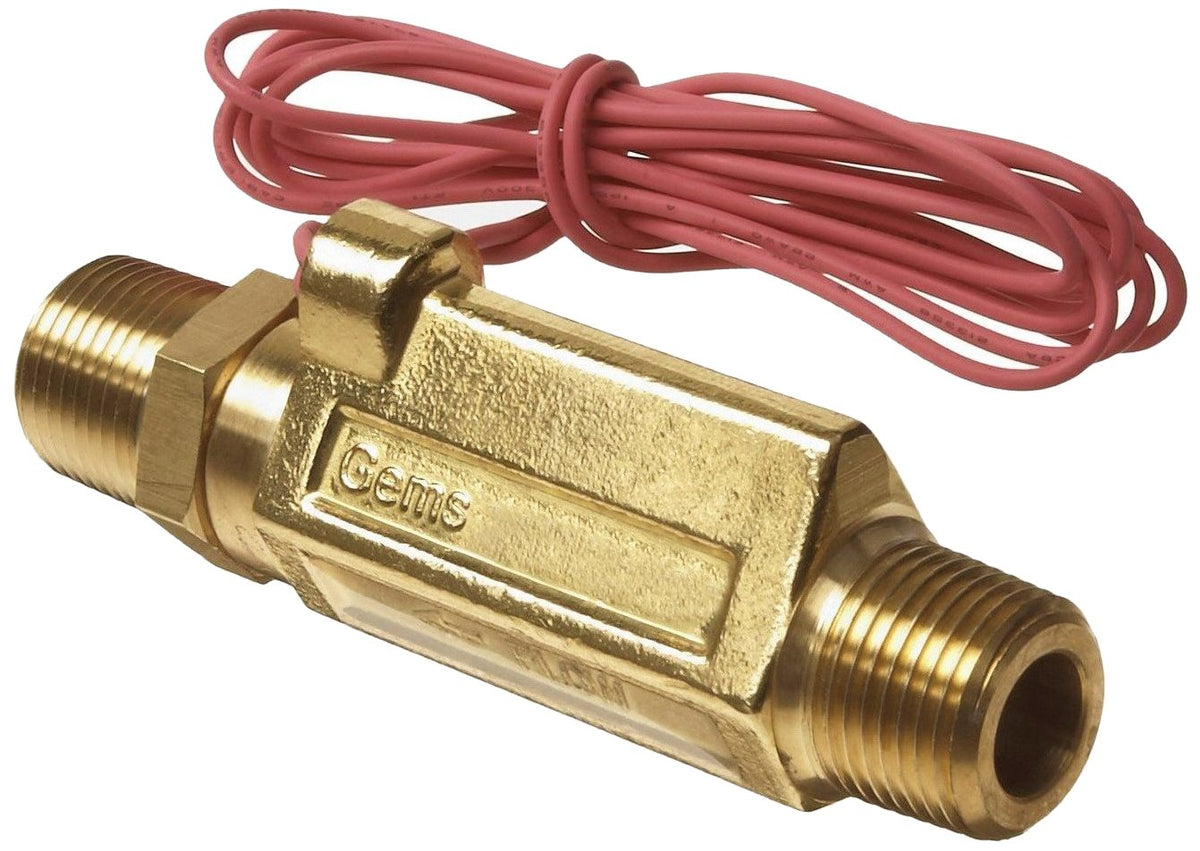

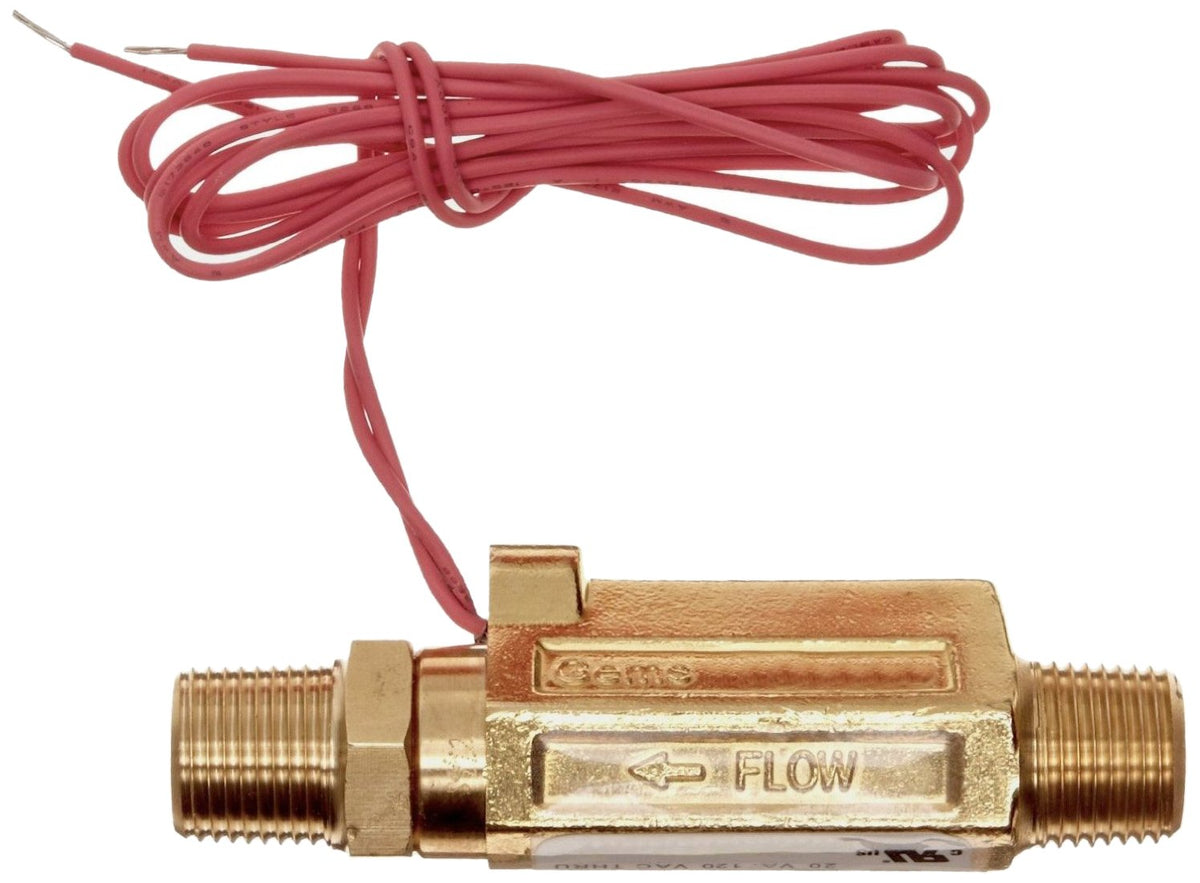

Name: Gems Sensors FS-380 Series Brass High Pressure Flow Switch, Inline, Piston Type, 1 gpm Flow Setting, 3/8" NPT Male
Brand: Belmont Warehouse
SKU: BW-B006Z1073S
Price: 394.99 USD
Availability: InStock

Gems Sensors FS-380 Series Brass High Pressure Flow Switch, Inline, Piston Type, 1 gpm Flow Setting, 3/8" NPT Male

$394.99

$394.99 $512.99

FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

Wetted Materials: Brass, PPS Composite, Epoxy, 316 Stainless Steel, Fluorocarbon
Electrical Termination: 22 AWG, 24"-26" long Polymeric Leads
Switch Type: SPST, N.O. (20VA)
Set Point Differential (Maximum): 0.2
Recommended Filtration: 100 micron

FS-380 Series - Compact Flow Switch for High Inline Pressures. These rugged inline flow switches use 100 micron filtration and are less susceptible to clogging than other high-pressure inline flow switches. The one-piece magnetic PPS composite piston makes the FS-380 ideal for high-pressure applications such as industrial cleaning equipment. The FS-380 is also an excellent choice for semicon cooling applications where simple design and reliable operation are required.
