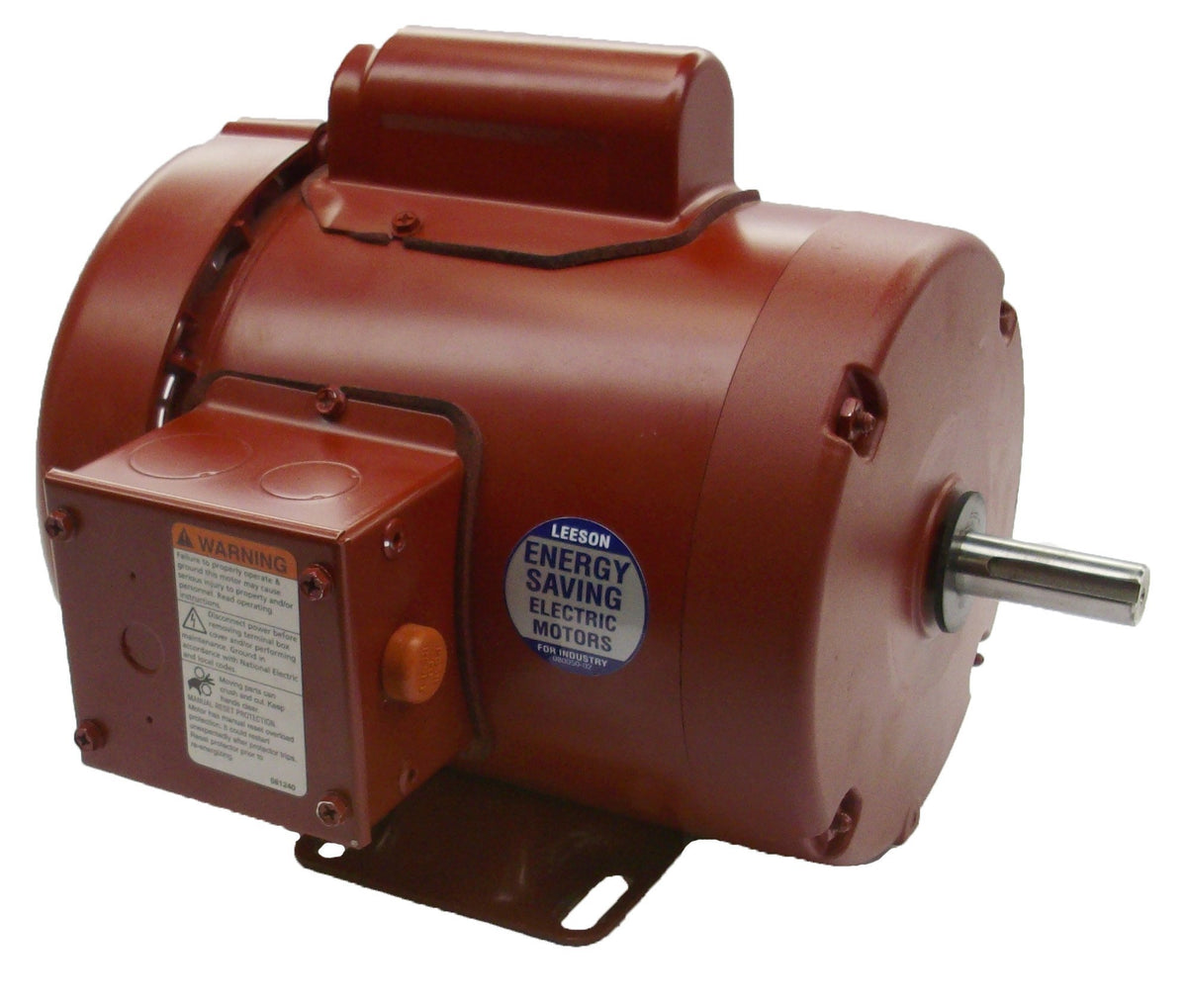

General Purpose Farm Duty Motor, 1-1/2 HP

Key features

• Price For: Each Frame Material: Rolled steel Ins. Class: F HP: 1-1/2 Nominal Efficiency: 79.0% Hz: 60 Motor Enclosure Design: Totally Enclosed Fan-Cooled Motor Mounting Position: Horizontal Duty: Continuous Motor Shaft Rotation: CWSE Max. Ambient Temperature: 40 Degrees C Finish: Enamel Motor Thermal Protection: Manual Item: High Torque Farm Duty Motor
• Motor Design: Capacitor-Start/Run Frame: 56H Full Load Amps: 17.2/8.6 Phase: 1 Standards: UL (E49747), CSA (LR2025) Voltage: 115/230 Motor Bearings: Ball Motor Mounting Type: Rigid Base Shaft Dia.: 5/8" Length Less Shaft: 11-1/16" Overall Length: 13" Motor Shaft Design: Keyed RPM Range: 1701-1800 Nameplate RPM: 1725 Shaft Length: 1-15/16" Motor Service Factor: 1.15
• Motor Application: Farm Duty Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240 Country of Origin (subject to change): United States

'General Purpose Farm Duty Motor, Capacitor-Start/Run, 1-1/2 HP, Nameplate RPM 1725, Voltage 115/230, 1 Phase, Frame 56H, Totally Enclosed Fan-Cooled, Full Load Amps 17.2/8.6, 60 Hz, Rigid Base Motor Mounting Type, Motor Thermal Protection Manual, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temperature 40 Degrees C, CWSE Motor Shaft Rotation, Overall Length 13 In., Shaft Dia. 5/8 In., Shaft Length 1-15/16 In., Frame Material Rolled Steel'
