Genuine Square D HOM230 30 Amp Double Pole Circuit Breaker Kit

Key features

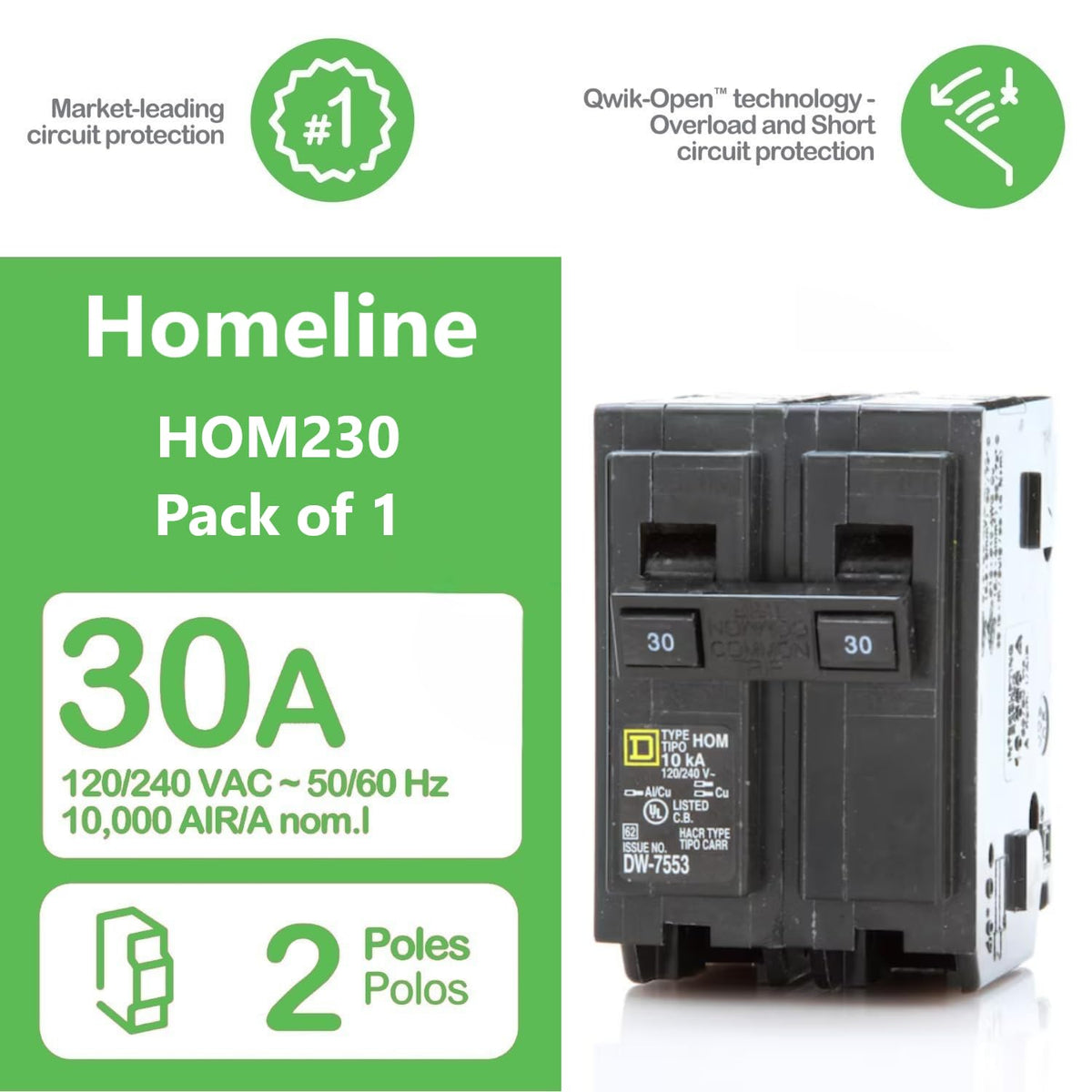

• GENUINE OEM BREAKER — This offer includes one (1) authentic HOM230 30-Amp double-pole circuit breaker from Square D's trusted Homeline series. The robust thermal-magnetic mechanism is engineered for reliable dual-action protection, responding to both sustained low-level overcurrents and instantaneous high-current short-circuit events. This component is a factory-new, unused Original Equipment Manufacturer (OEM) part, ensuring full compatibility for 240V branch circuits.

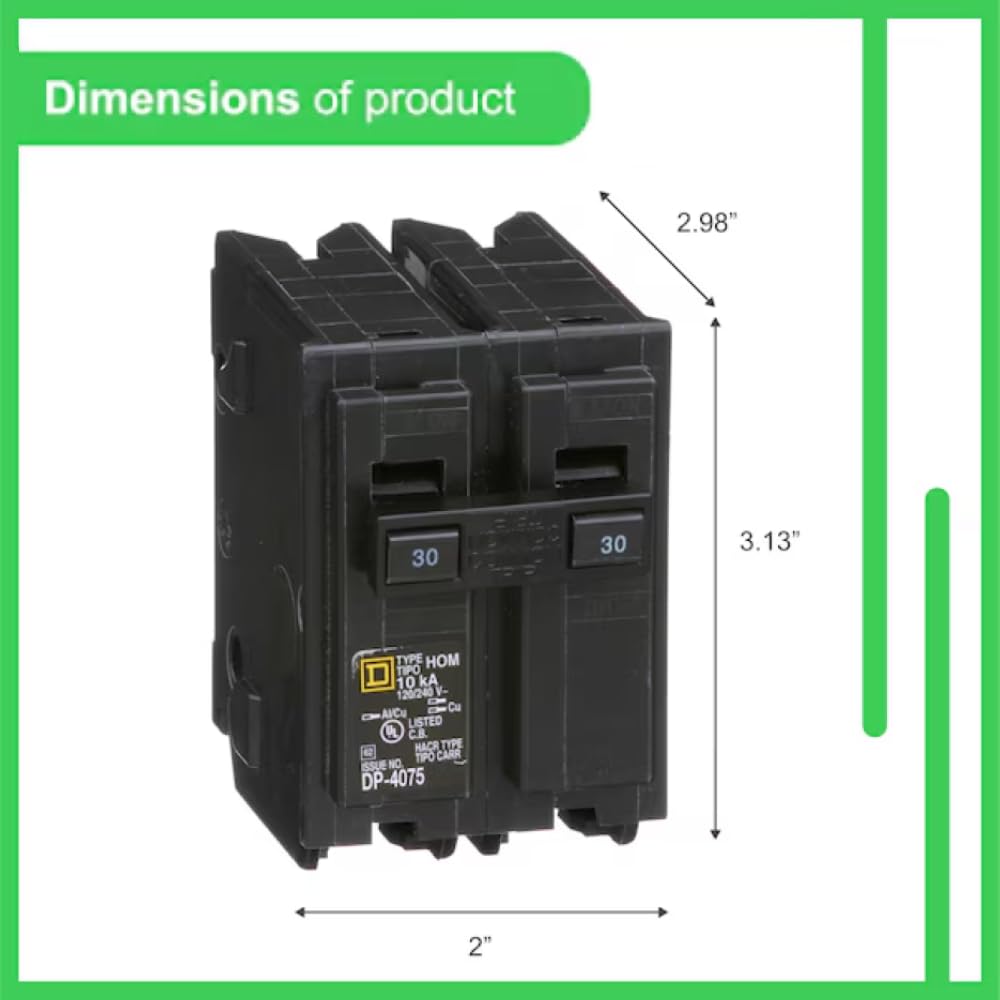

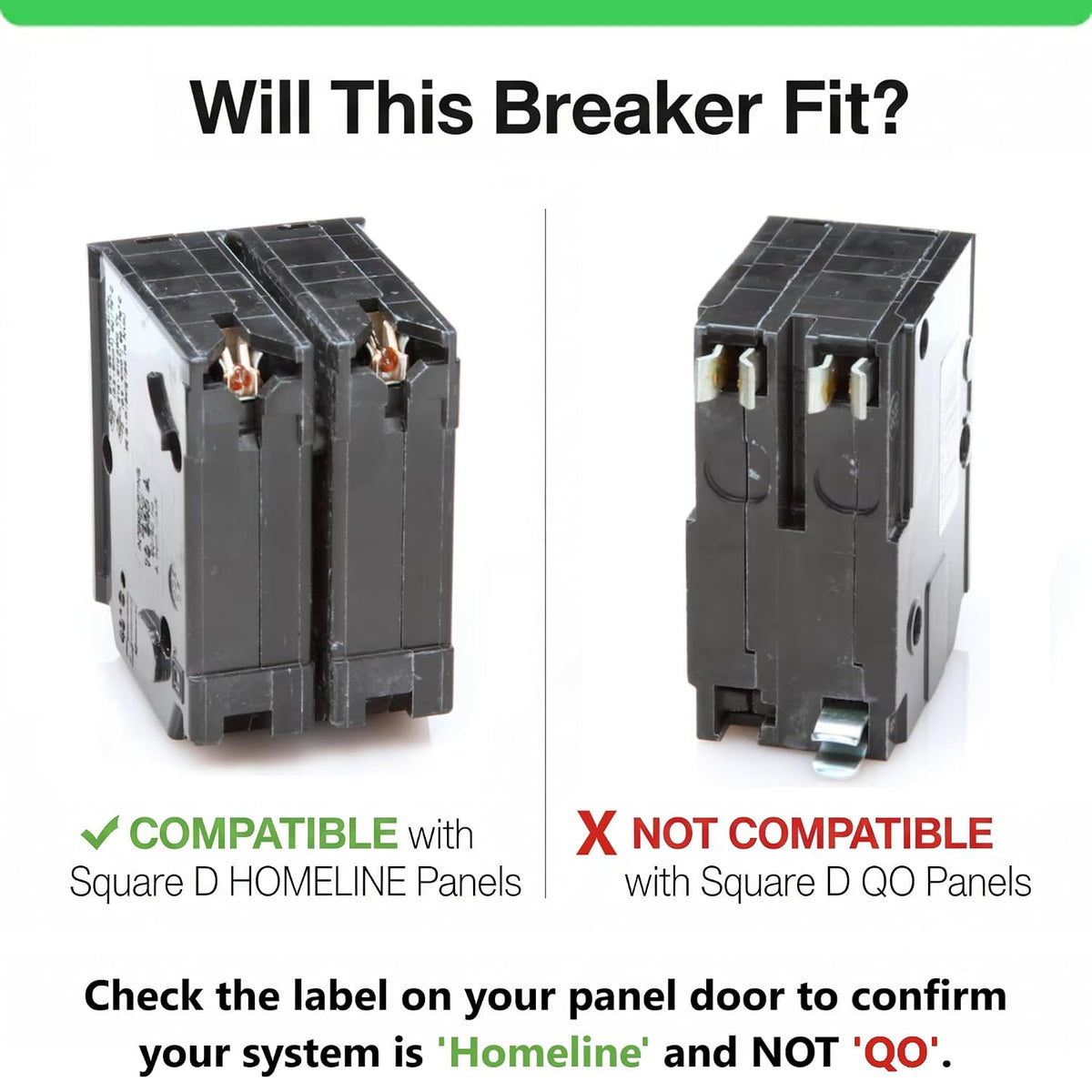

• HOMELINE PANEL COMPATIBILITY — Designed with a plug-on mounting system for exclusive use in Square D Homeline load centers, CSEDs (Combined Service Entrance Devices), and breaker boxes. This standard 2-inch format (2-space) breaker makes a secure and reliable connection to the panel's aluminum bus bar. It is not compatible with the different bus bar design of Square D QO-series panels, which ensures you are sourcing the specific component required.
• 240V APPLIANCE APPLICATION — The 30-Amp, 120/240V capacity is ideal for dedicated 240V circuits that use 10-gauge copper wiring (NM-B). Common applications include powering major household appliances such as electric clothes dryers, medium-sized electric water heaters, and some central air conditioning units or heat pumps. This is a direct replacement for existing 30A double-pole Homeline breakers.

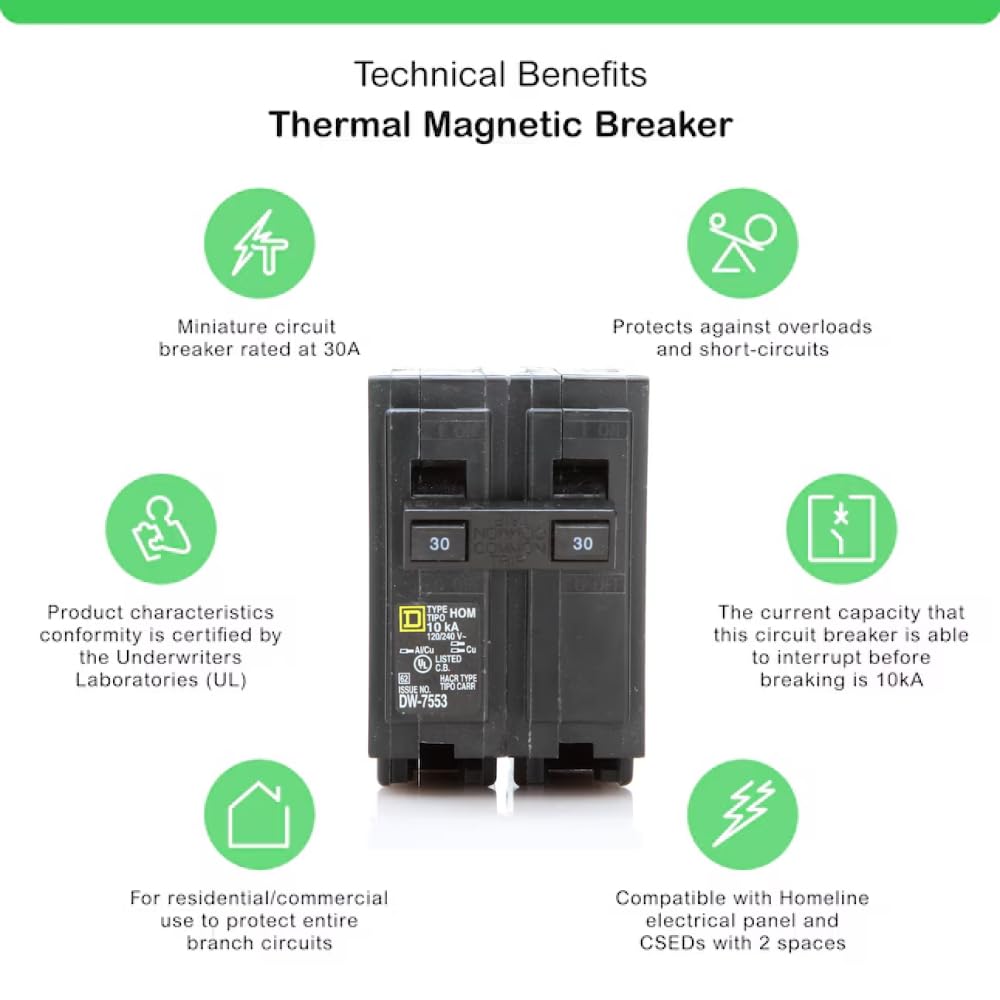

• TECHNICAL SPECIFICATIONS — This circuit breaker is Underwriters Laboratories (UL) Listed and American National Standards Institute (ANSI) Certified. It features a standard 10,000 Ampere Interrupting Capacity (10kAIC) for residential safety. The box lug terminals accept a wire size range of #14 to #8 AWG for copper (Cu) and #12 to #8 AWG for aluminum (Al) conductors and have a recommended tightening torque of 35 lb-in.

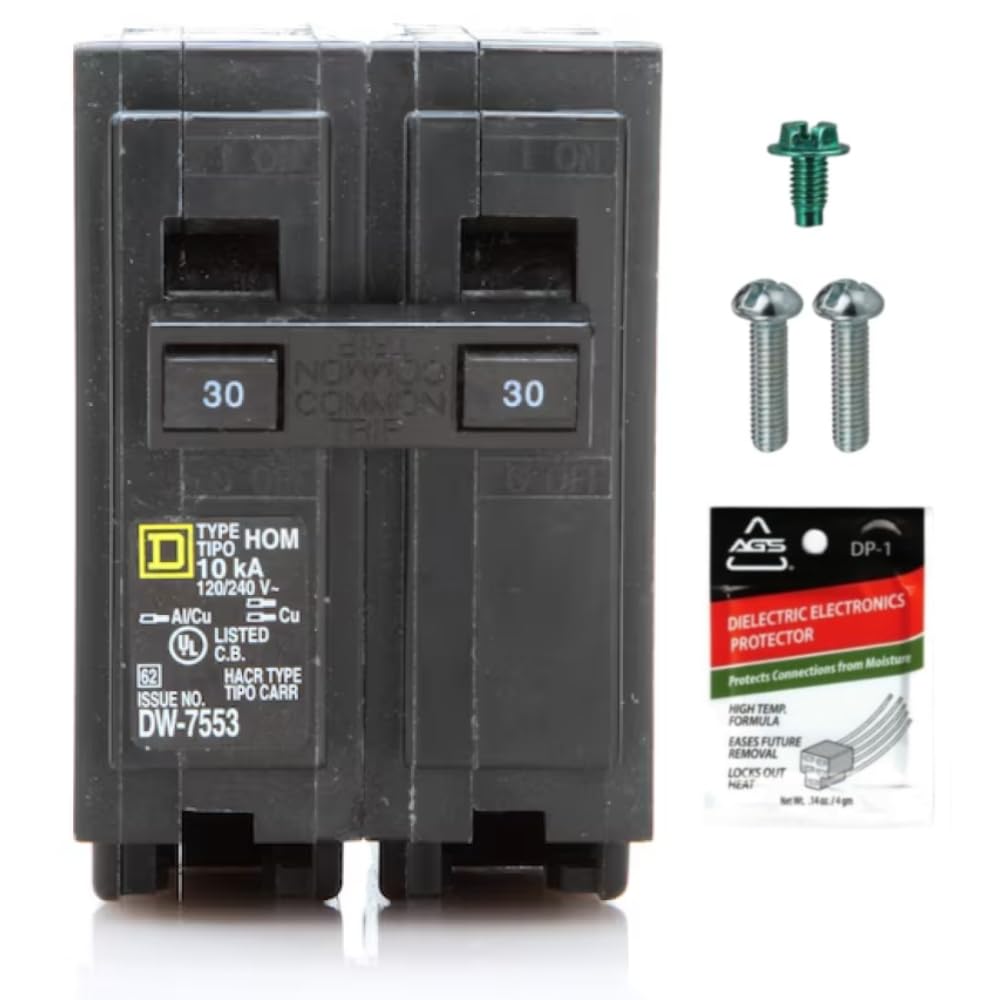

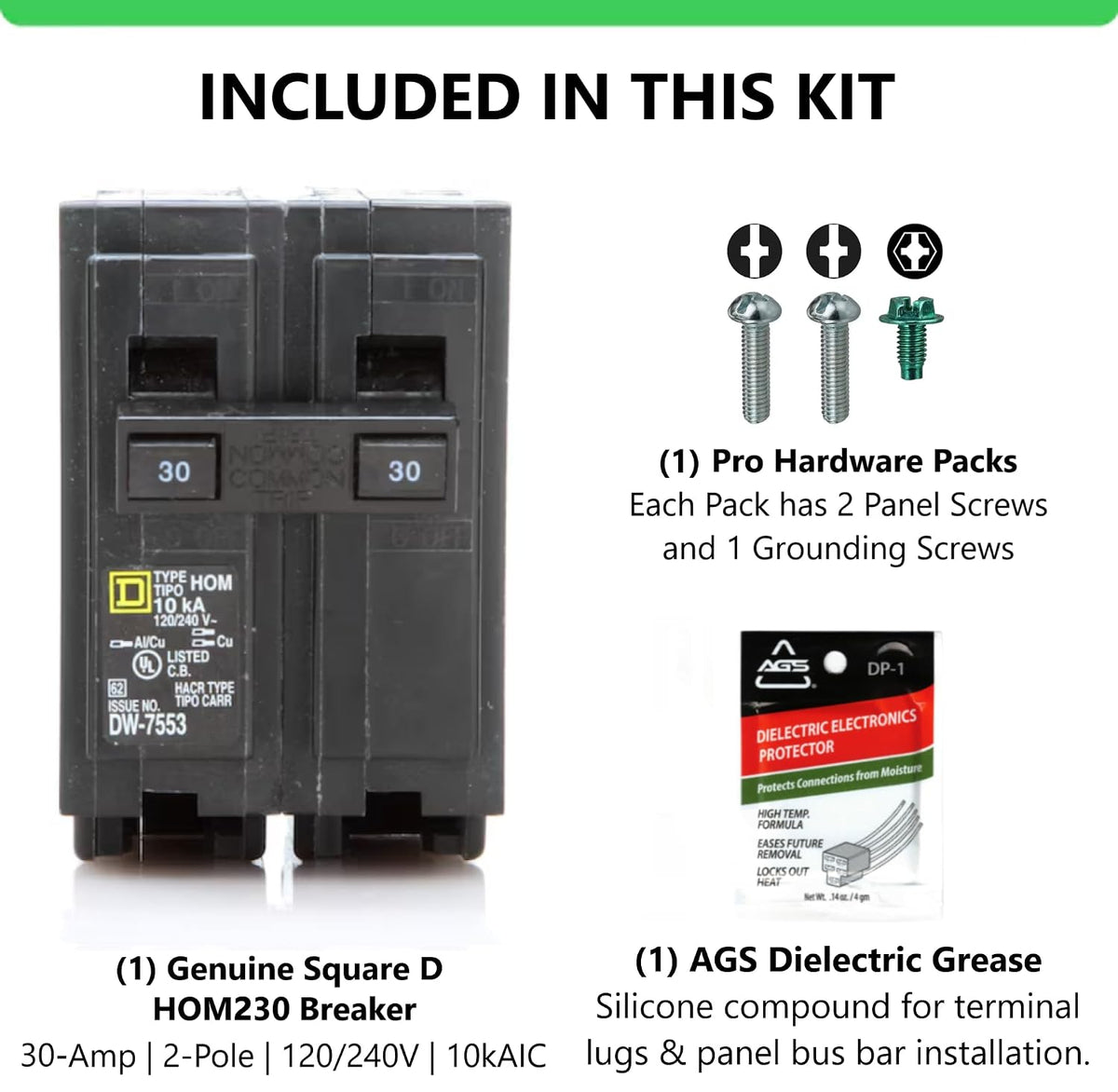

• INSTALLATION KIT — This is a value-added kit from FalconSupply. The box includes one (1) HOM230 breaker, one (1) packet of AGS dielectric grease for terminal lug and bus bar contact lubrication, and one (1) Pro-Finishing Hardware Pack providing two zinc-plated steel combination-drive panel cover machine screws and one green hex-head grounding machine screw.

Secure the precise electrical components needed for your project with this Single-Unit Offering of the Genuine Square D HOM230 30-Amp Double-Pole Homeline Miniature Circuit Breaker, bundled by FalconSupply with a professional installation kit. This package is an excellent choice for electricians and installers tackling projects requiring a 30 Amp, 240V circuit for a major appliance or sub-panel feeder.Proven Homeline Technology:The foundation of this offer is the authentic HOM230 circuit breaker, a product of established, quality engineering within the Square D Homeline series. This thermal-magnetic breaker is carefully engineered to provide reliable dual-action circuit performance, contributing to the thorough stability of your residential electrical system and 240V appliances.Designed for Dependability and Common Applications:Engineered for 120/240V AC systems, this 2-pole 30 Amp breaker is built for lasting performance. Its 10kA Interrupting Rating (10kAIC) indicates its ability to safely handle significant fault current conditions. The plug-in design ensures a secure and stable connection for use with compatible Homeline series load centers for appliances like electric dryers,

Free shipping included. 30-day hassle-free returns.
