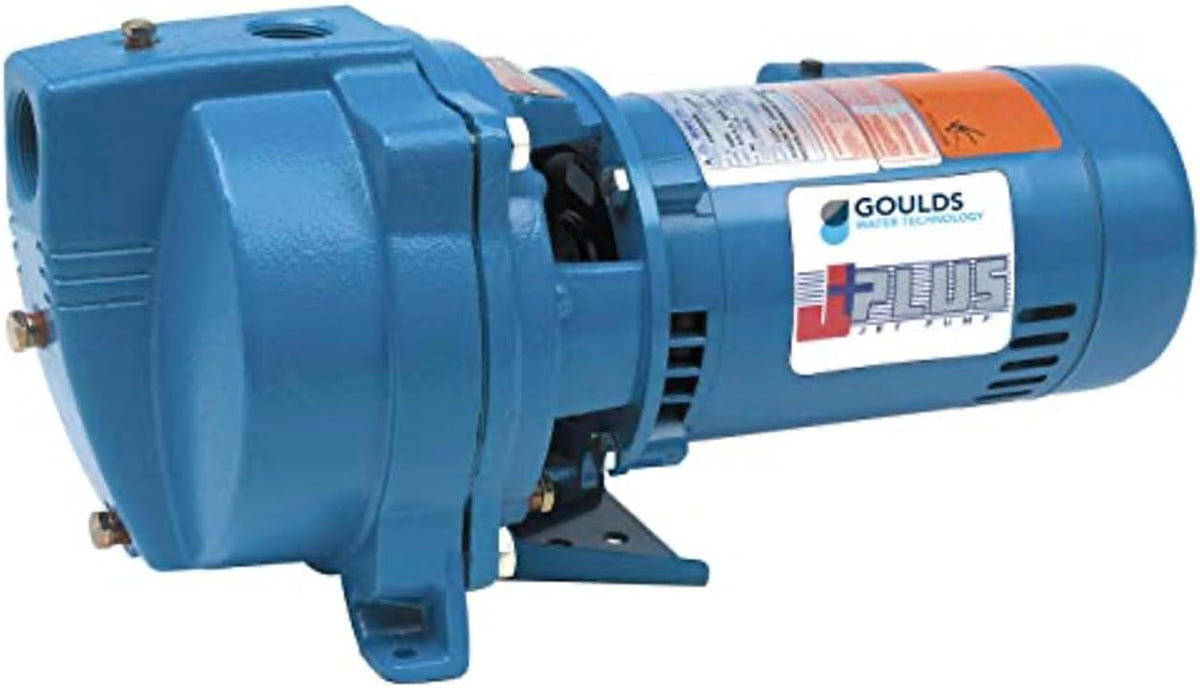

Goulds J10S Shallow Well Jet Pump

Key features

• See all sketch images for more details, NEMA standard, 60 Hz, 1 HP, 115/230 V capacitor start, single phase, 3500 RPM
• Built-in overload with automatic reset, stainless steel shaft, pressure regulator included.
• Rotation: Clockwise when viewed from motor end, UL778 listed
• Pipe connections: 1. 25" Npt suction and 1" Npt discharge, pressure switch: as4 preset (30-50 PSI).

compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. SERVICEABLE: Back pullout design allows disassembly of pump for service without disturbing piping. Two compartment motor for easy access to motor wiring and replaceable components. Nozzle clean out plug in pump case. Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring Impeller: F. D. A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Diffuser (Guide vane): Bolt down diffuser provides positive alignment with impeller. Diffuser also has stainless wear ring for extended performance in abrasive conditions. F. D. A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance. Tubing and Fittings: F. D. A. compliant engineered plastic is corrosion and U. V. resistant. Powered for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage. Corrosion Resistant: Electro-coated paint process is applied inside and out, then baked on. Protected Mechanical Seal: Spe
