Gulfmew 4 Pack Condensate Overflow Switch for HVAC (White)

Key features

• Effectively Detect Condensate Overflow: The SS1 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged A/C condensate drains and shuts off system to prevent water damage to floors, wall and ceilings; When a blockage occurs, the float within the fitting rises with the rising condensate level; The magnetic element within the float triggers the reed switch to shut down the system and stops operation
• Easy to Install: Install the SS1 Air Conditioner Float Switch with ease; Low voltage condensate overflow shut off switch can be installed horizontally or vertically, inline or on the primary pan's auxiliary drain outlet by using the included 3/4" adapter, bushing and cap; Besides, you can enjoy the flexibility of installation, as the switch can be installed on a sloping line and does not need to be level or plumb; And then connect the 6ft wire to the either the red or yellow thermostat wires
• Quality Material: Made of quality Schedule 40 PVC plastic components, this air conditioner float switch ensures a long time use; Well made magnetic reed switch will not stick or rust
• Easy to Clean: This water float switch is designed with a detachable cap that allows you to remove it with tapered cams for cleaning after prolonged use, ensuring both cleanliness and optimal performance; Tips: you can use PTEE tape for a high watertight seal
• Wide Application: SS1 condensate float switches can be installed on primary drains or auxiliary drain outlet, easy access to the switch and the primary drain line for service; Every home with an HVAC should have a HVAC float switch

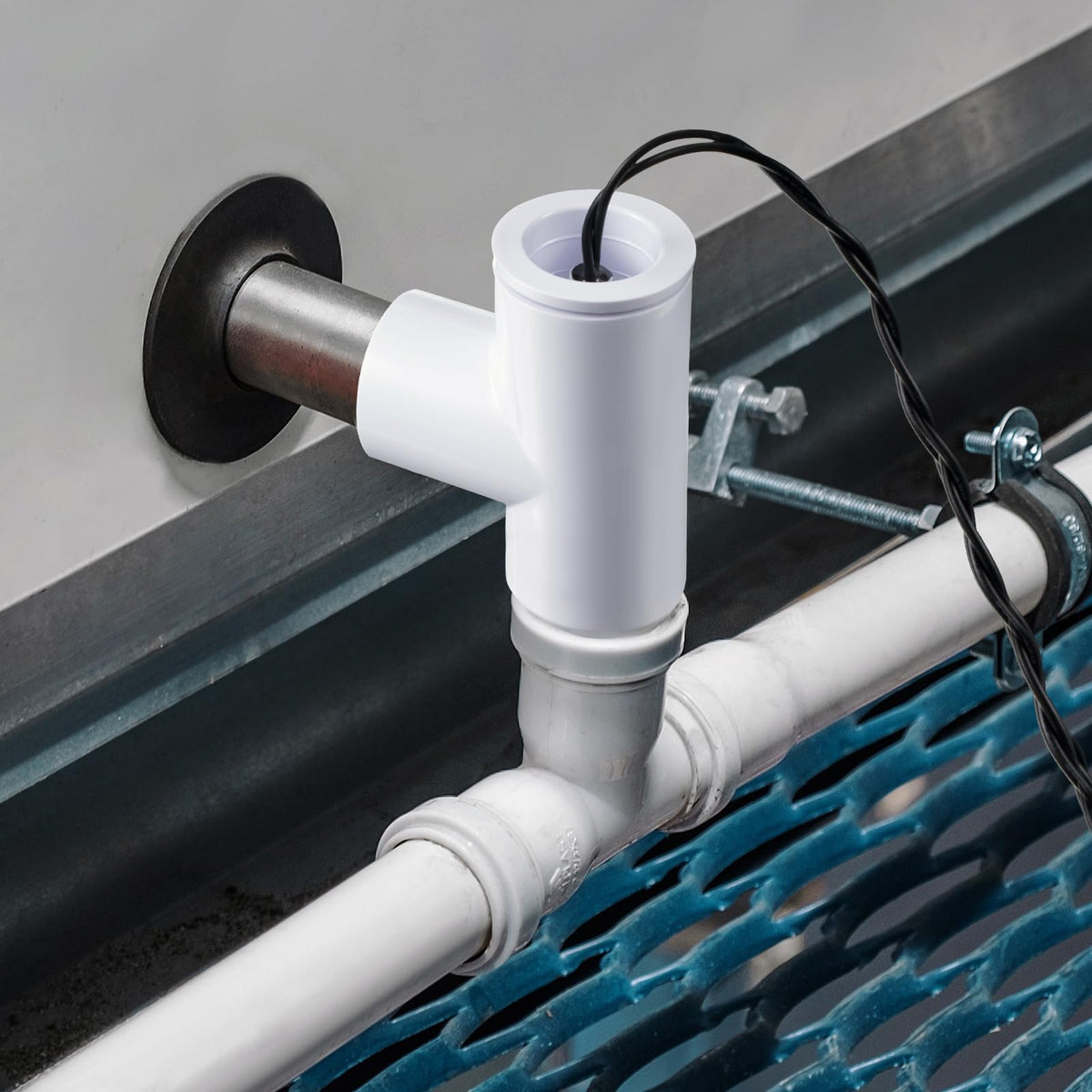

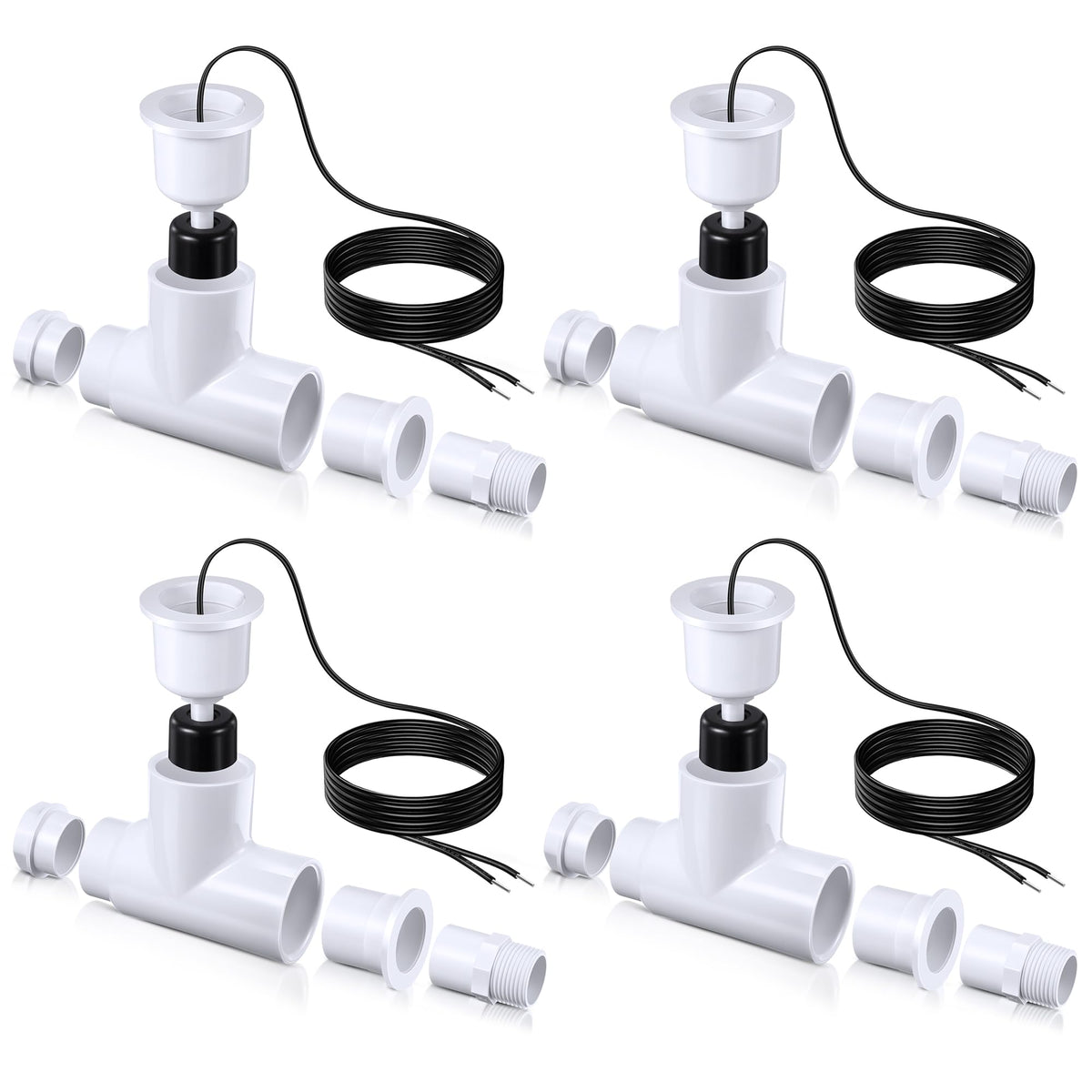

If you're concerned about your furniture, floors, wall and ceilings getting soaked from condensation leaks while using your HVAC, installing a float switch is highly recommended. The SS1 vertical float switch mounts in a primary or auxiliary drain line and shuts the system off should water back up. Specifications: Model: SS1 Material: White PVC Carry Capacity 1.25 Amp Working temperature: -20 +80℃ Wire length 6feet (1.8M) Product List 1. 3/4" NPT X 3/4" SLIP PVC Adaptor 2. 3/4” X1" SLIP PVC Bushing 3. 1"X3/4"X1" SLIP Tee (Schedule 40/PVC 1) 4. 72"-Inch (Prewired/Potted) 5. Electrically Potted Switch/Cap Assembly 6. 3/4" SLIP Plug for Close Coupled Applications Notice: We come with instructions, please read and comply with all warnings, cautions and instructions prior to starting installation, make sure the installation goes smoothly.

Free shipping included. 30-day hassle-free returns.
