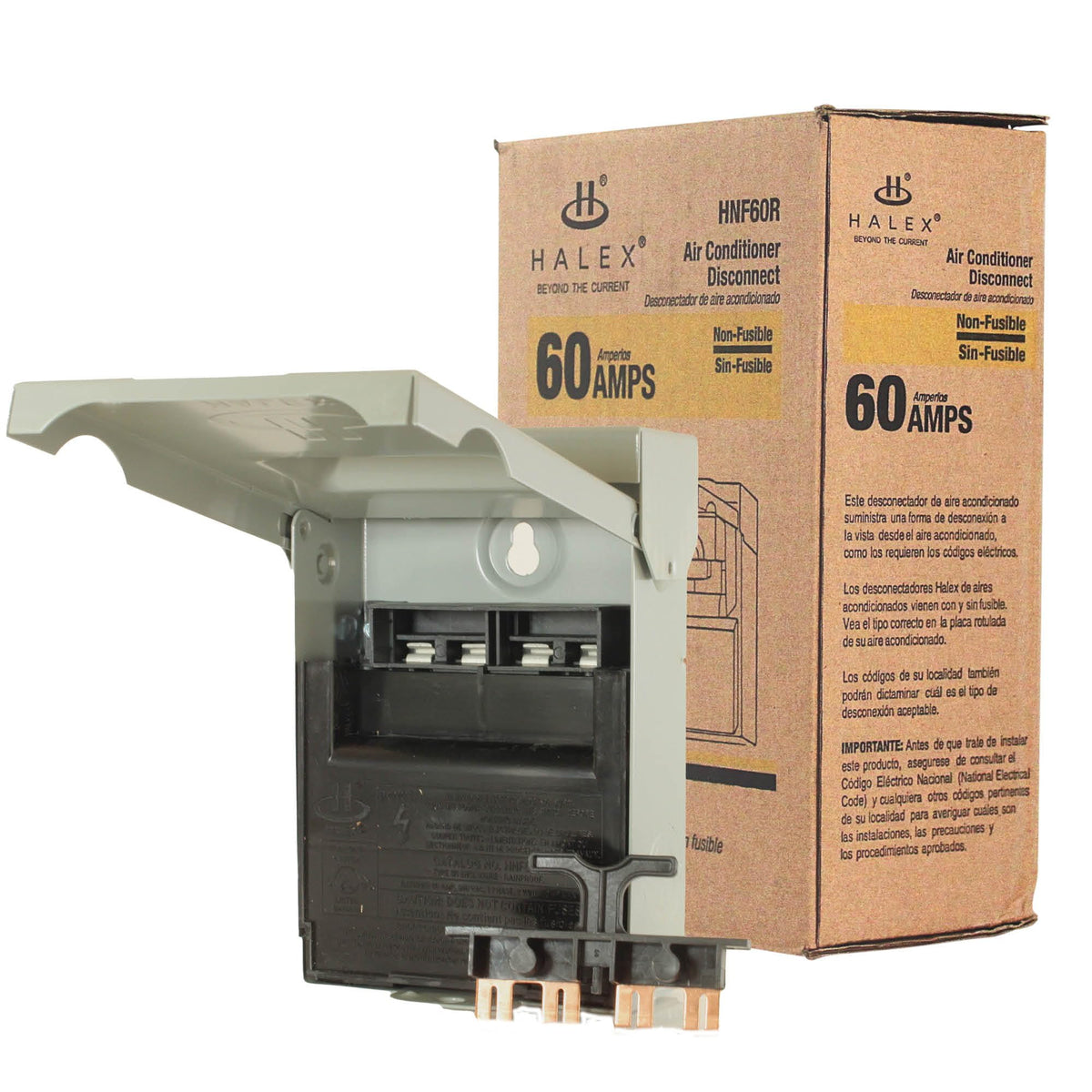

Halex 60 AMP Metallic AC Non-Fused Disconnect with Pull-Out Switch, 1-Pack

Key features

• SAFE SHUTOFF WITHIN SIGHTA/C disconnect box with pull-out/general duty safety switch for safe isolation during installation. Supports 60 AMP and up to 240 V. Pair with the correctly sized breaker at your panel for overcurrent protection per NEC and local code.
• OUTDOOR RATED, INSPECTION READYUL-listed, ANSI-certified NEMA 3R powder-coated steel enclosure. Safe for weather-resistant electrical and HVAC installations withstands rain, snow, and UV’s. Designed to meet inspector and utility requirements and for outdoor mounting in residential and light commercial, near your condensing unit.
• 60 AMP DISCONNECT BOXRated up to 60 AMP, this non fused disconnect safely serves air conditioners, mini splits, heat pumps, spas, well pumps, and other 120/240V loads. Always match the disconnect to the equipment nameplate and breaker size and install per local code.
• PADLOCKABLE, EASY TO WORK WITH Features an easy to remove cover, fast 2 point mounting, and a padlock ready door. Includes pre punched knockouts for simplified installation. Sold in a 1 pack for single installations or replacement needs.

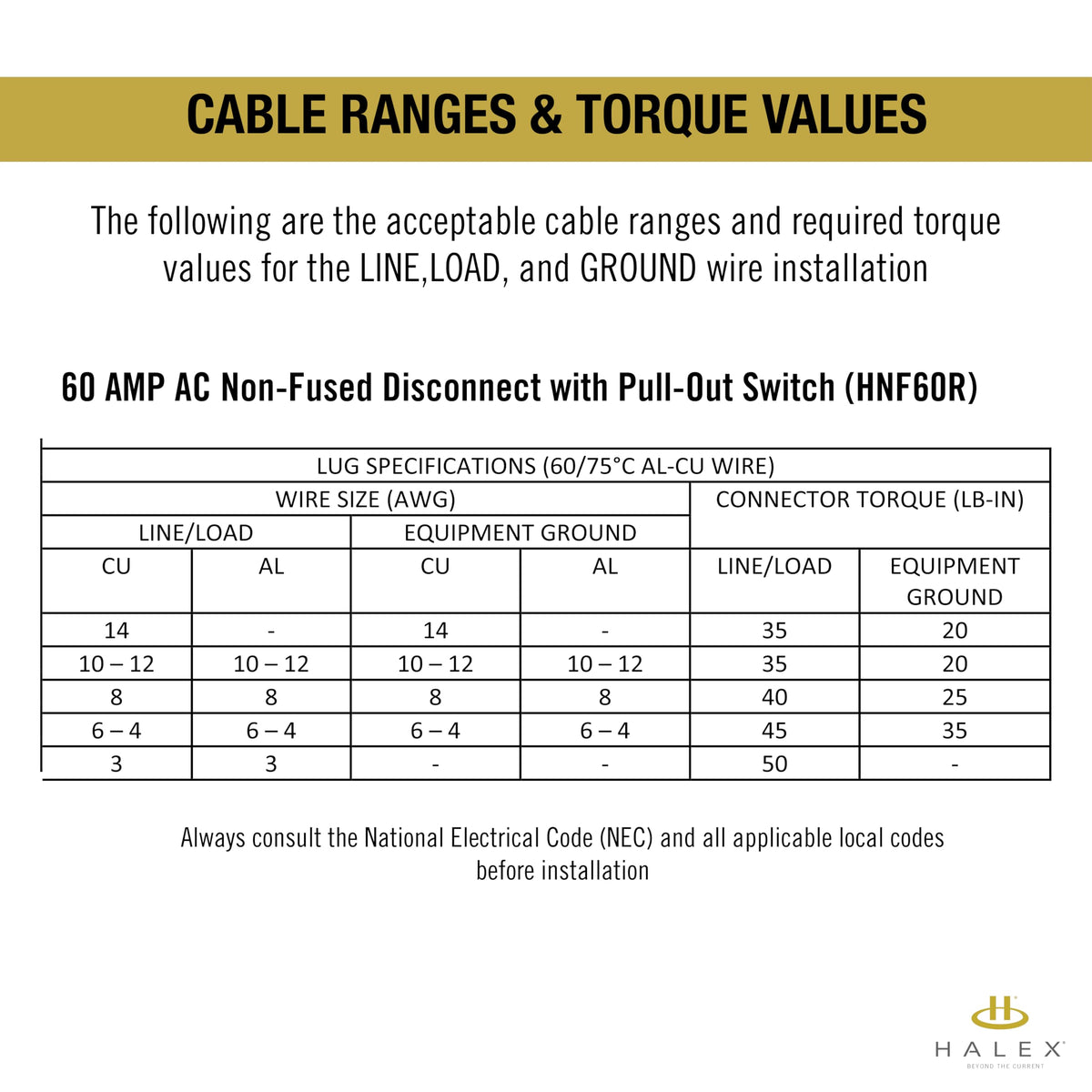

• LUG SPECIFICATIONSThe interior label provides accepted wire ranges, torque specifications, and clear line/load orientation for zero guesswork. It supports copper conductors from 14 AWG to 3 AWG and aluminum conductors from 12 AWG to 3 AWG. Designed to accept wire connections for straightforward installation.

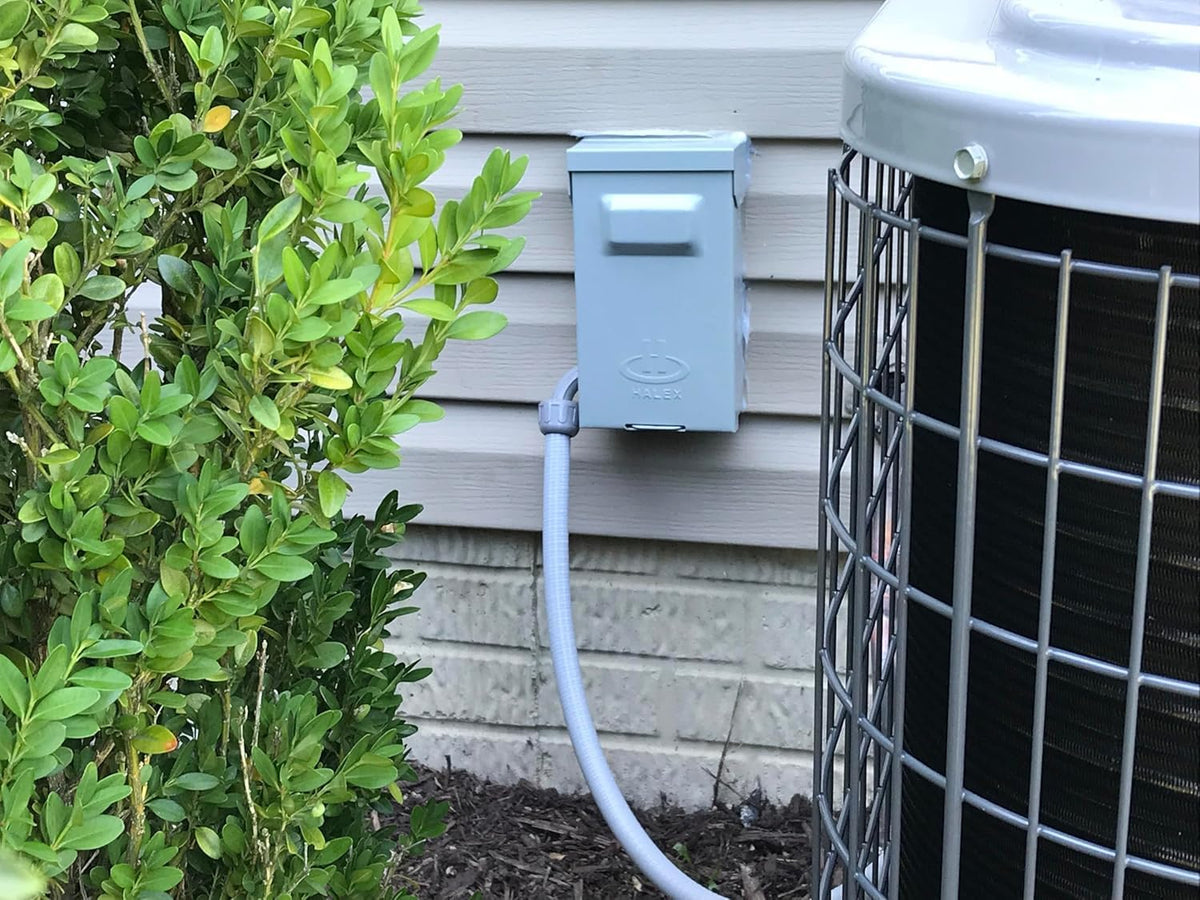

The Halex 60 Amp 240-Volt Non-Fuse Metallic AC Disconnect is designed to stop the power going to an air conditioning unit to allow for safe working conditions. The disconnect is a non-fuse, puller type and is UL listed with an enclosed pull-out switch. Compatible with copper or aluminum lug wire range 14-3.
