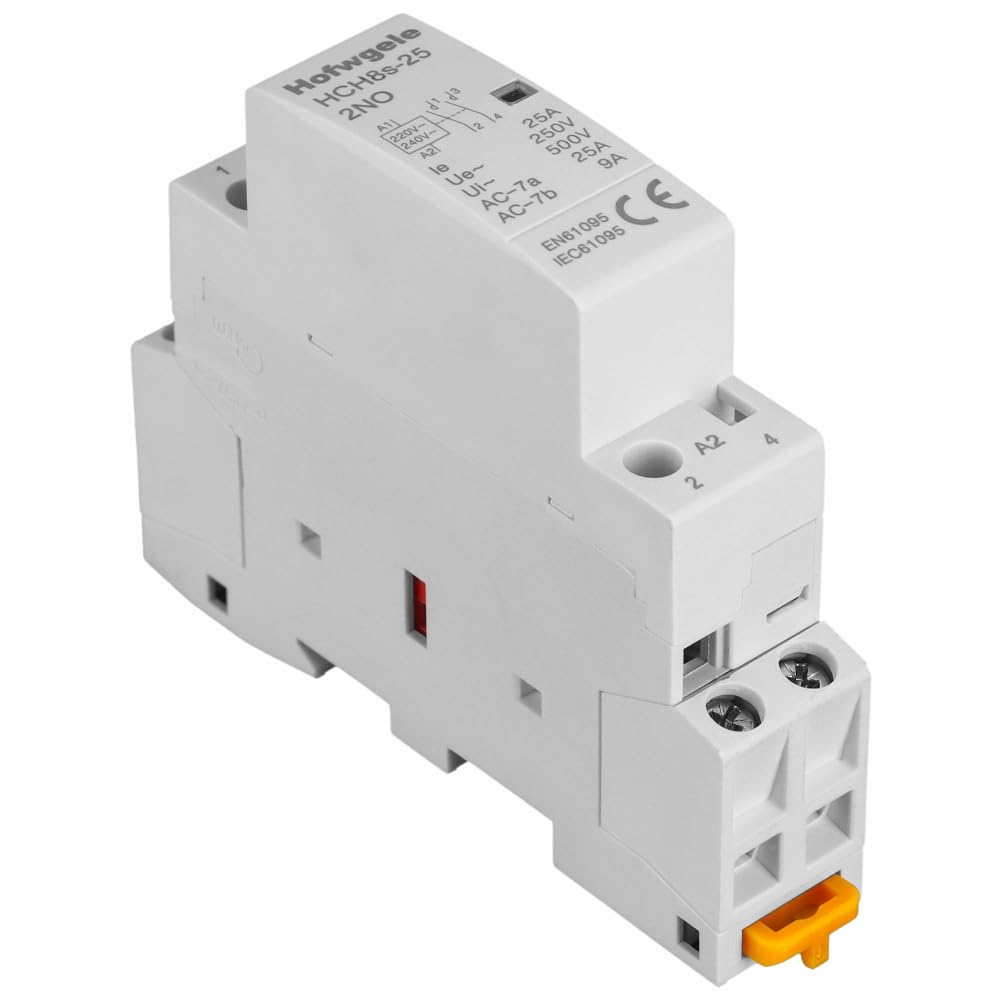

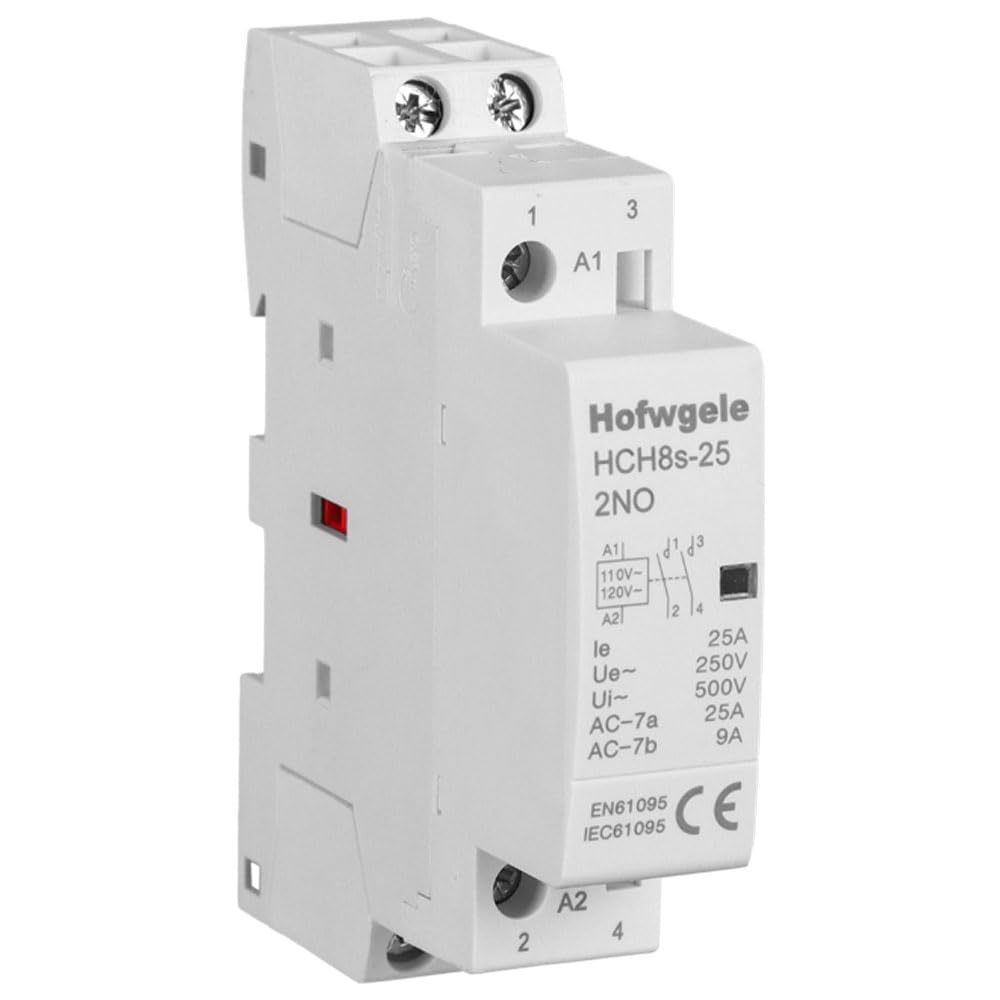

HCH8s-25 AC Contactor 25A 2 Pole 110V/120V Coil 2NO Modular Electromagnetic Relay for Universal Circuit Control, DIN Rail Mount
HCH8s-25 AC Contactor 25A 2 Pole 110V/120V Coil 2NO Modular Electromagnetic Relay for Universal Circuit Control, DIN Rail Mount
Key features
- Product Name : Household AC Contactor
- Rated Coil Voltage : 110V/120VAC; Contact Type: 2NO, 2 Poles
- Rated Current : 25A;Ui : 500V;Ue : 110V
- AC-7a 5.5KW; AC-7b 2KW; Mounting Type : 35mm DIN Rail Mount
- Net Weight : 130g; Package Content : 1 x AC Contactor
HCH8s series home AC contactor is a kind of control electric appliance which is used for long distance/remote switch on and break off a non-inductive load or low inductive load, such as electric resistance furnace, household appliances and similar low inductive load,motor and other household application.The contactor is mainly used in AC 50/60Hz,Rated voltage up to 400V, rated current up to 100A.Temperature: 5℃~+40℃,AVG not over within 24h+35℃Altitude : not over 2000m.Atmospheric conditions: RH+40℃ not over 50% under,RH can be for 90% under +20℃，In dewing,it should be taken sp ecial precautious.Class of pollution: 2Installation type : IIMode of installations: TH35-7.5 types steel DIN-RAILStandard: EN61095IP Grade: IP20
Free shipping included. 30-day hassle-free returns.
