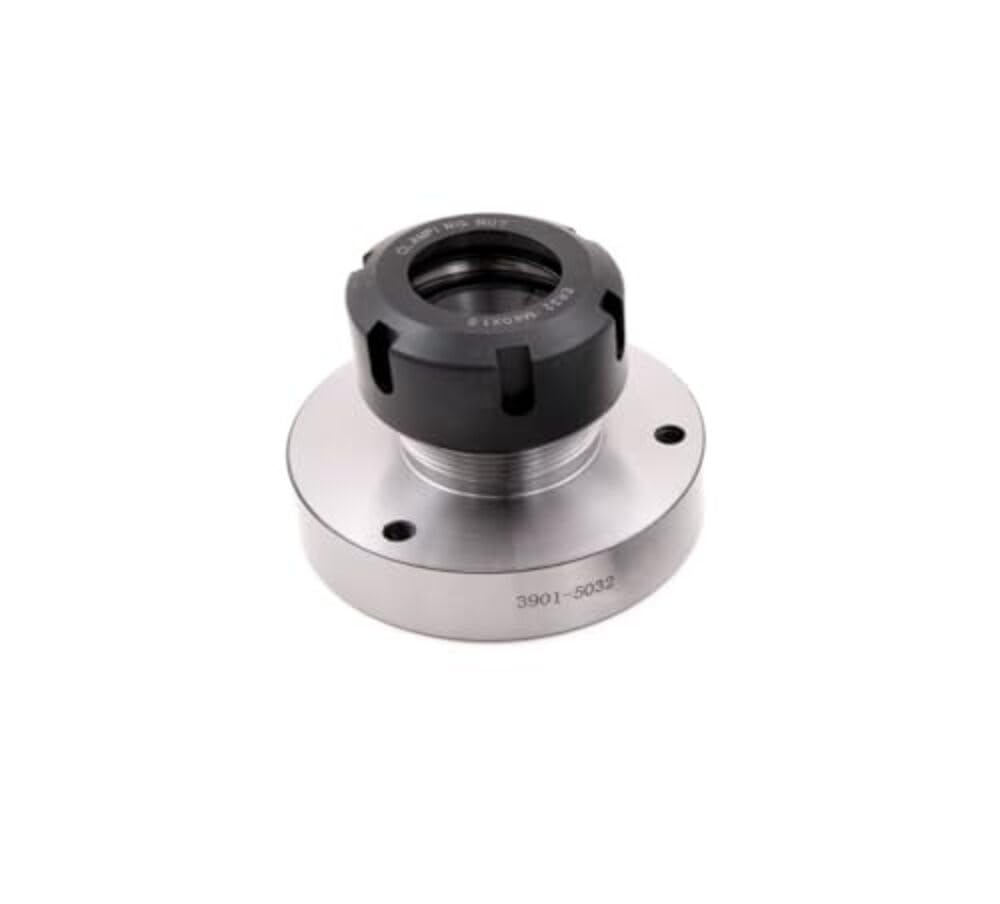

HHIP 3901-5032 ER-32 Collet Chuck, 80 mm Diameter

Key features

• Superior Concentricity - Ensures high-accuracy machining with a precision concentricity rating of 0.0016 inches
• Versatile Mounting Options - Can be used as a lathe chuck with a backplate or as a precision fixture on a milling table
• Robust ER-32 Capacity - Designed to work with the popular ER-32 collet system for a wide range of workholding sizes
• Precision Registration - Features an 80mm outside diameter and a 55mm registration diameter for accurate machine mounting

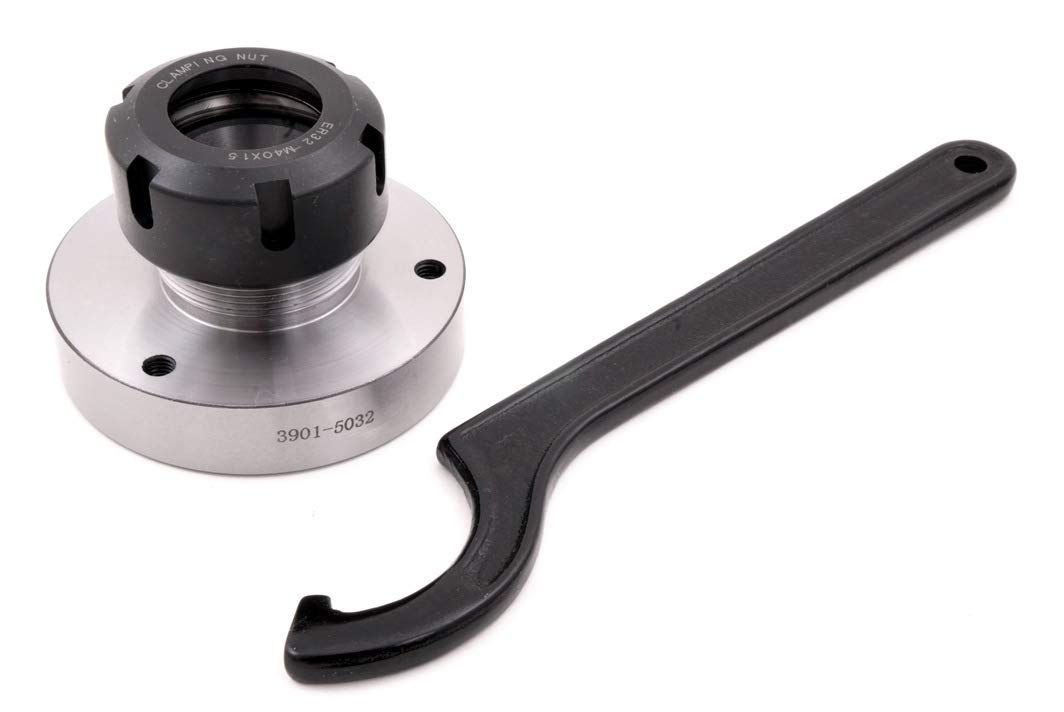

• Complete Tool Set - Comes supplied with a dedicated wrench for fast and secure collet installation and removal

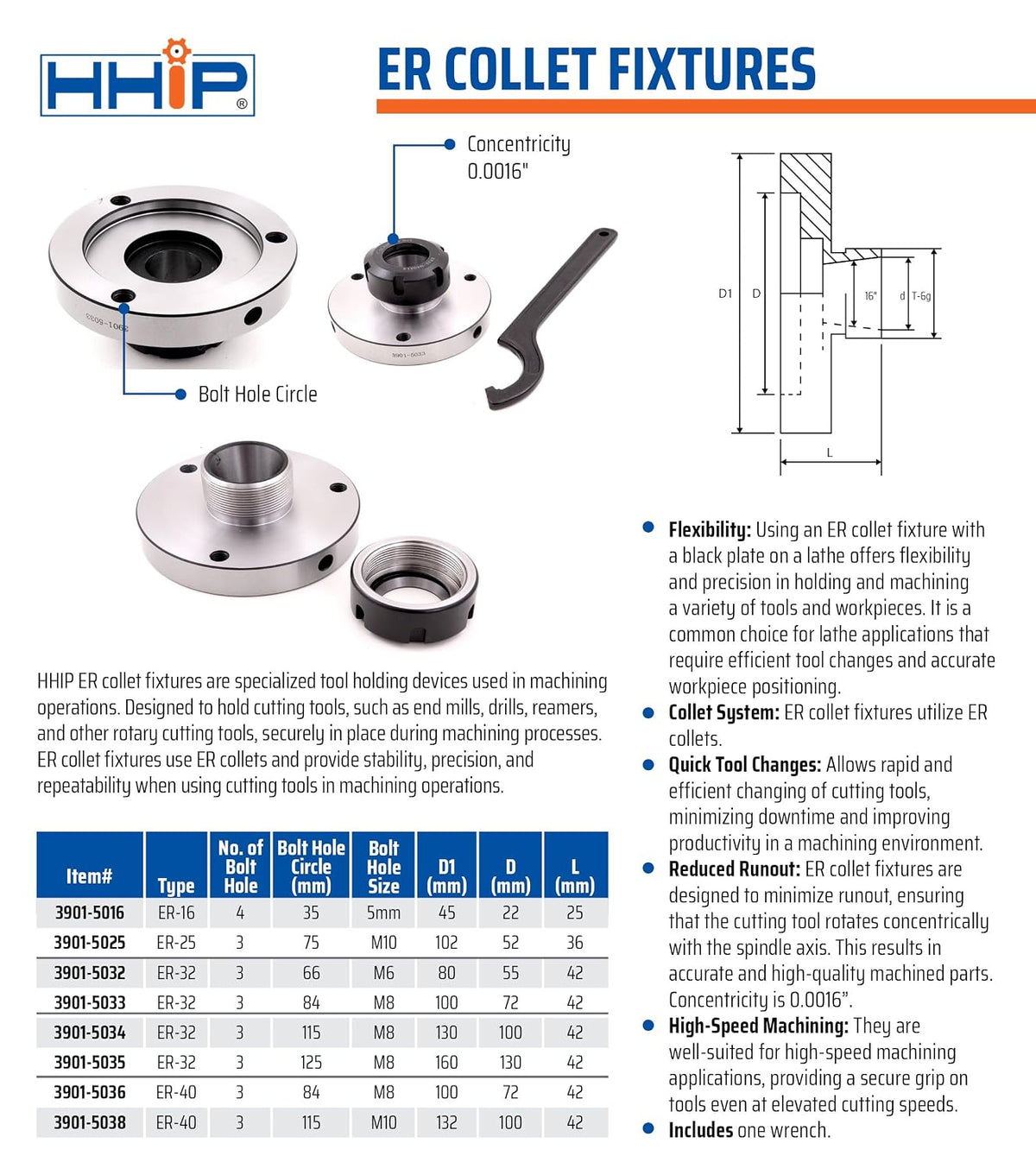

80MM Diameter ER-32 Collet Chuck ~ Mount to your choice of backplate to use on a lathe. ~ Can also be used as a fixture on a milling table. ~ Concentricity is . 0016". ~ D1 is 80mm. ~ D is 55mm. ~ L is 42mm. ~ The outside diameter of the collet chuck is 80 mm. ~ It has a 55 mm registration diameter and mounts with three M6 bolts on a 66 mm bolt circle.
