hiBCTR 2-Pack 1.8in ST7735R SPI TFT LCD Display, 128x160

Key features

• FLEXIBLE POWER CONFIGURATION: Operates by default on a 5V power supply for VCC and Backlight (BL) with the J1 jumper open. To use a 3.3V power supply, you must solder the J1 jumper on the back of the module closed. Please confirm your microcontroller's voltage output and configure the module accordingly before powering on.

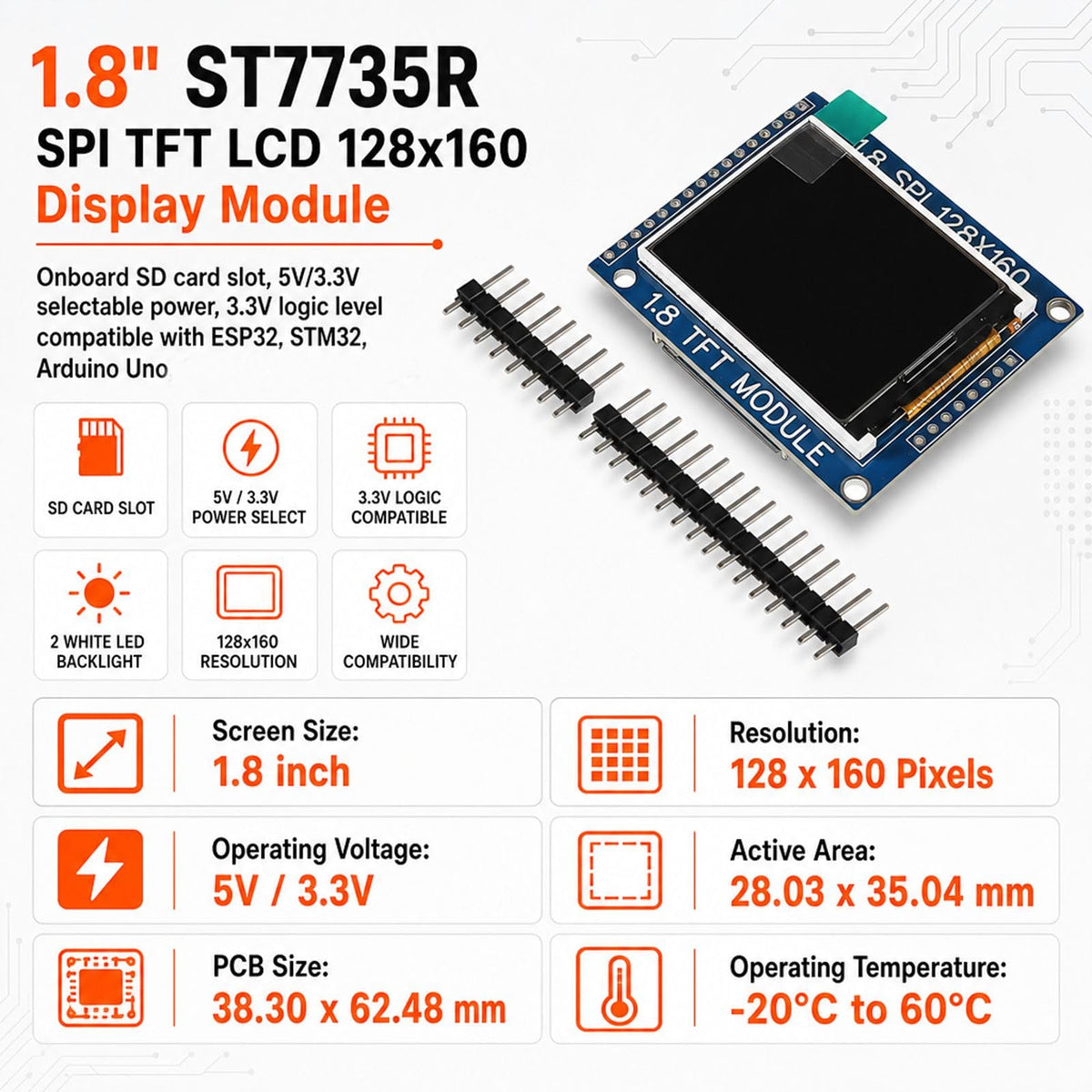

• CRISP COLOR DISPLAY & SPI INTERFACE: Features a 1.8-inch TFT screen with 128x160 pixel resolution for clear, vibrant graphics. The module is driven by an ST7735S IC via a 4-wire SPI interface. A bright, 2-LED white backlight ensures visibility. Each screen ships with a protective film to prevent scratches.
• EXPANDABLE I/O & PINOUT VERIFICATION: The board includes an integrated SD card slot for projects requiring local storage. Accessing the SD card requires soldering headers to the second row of unpopulated pin holes. CRITICAL: Pinout markings may differ from other ST7735 modules. Always verify the silkscreen labels on your specific board before wiring.
• WIDE COMPATIBILITY & COMPACT SIZE: The module's logic interface is compatible with both 3.3V systems (like ESP32, STM32) and 5V systems (like Arduino Uno), even when the board is powered by 5V VCC. The compact PCB measures 38.30 x 62.48 mm, with a display active area of 28.03 x 35.04 mm. Operating Temperature: -20°C to 60°C.

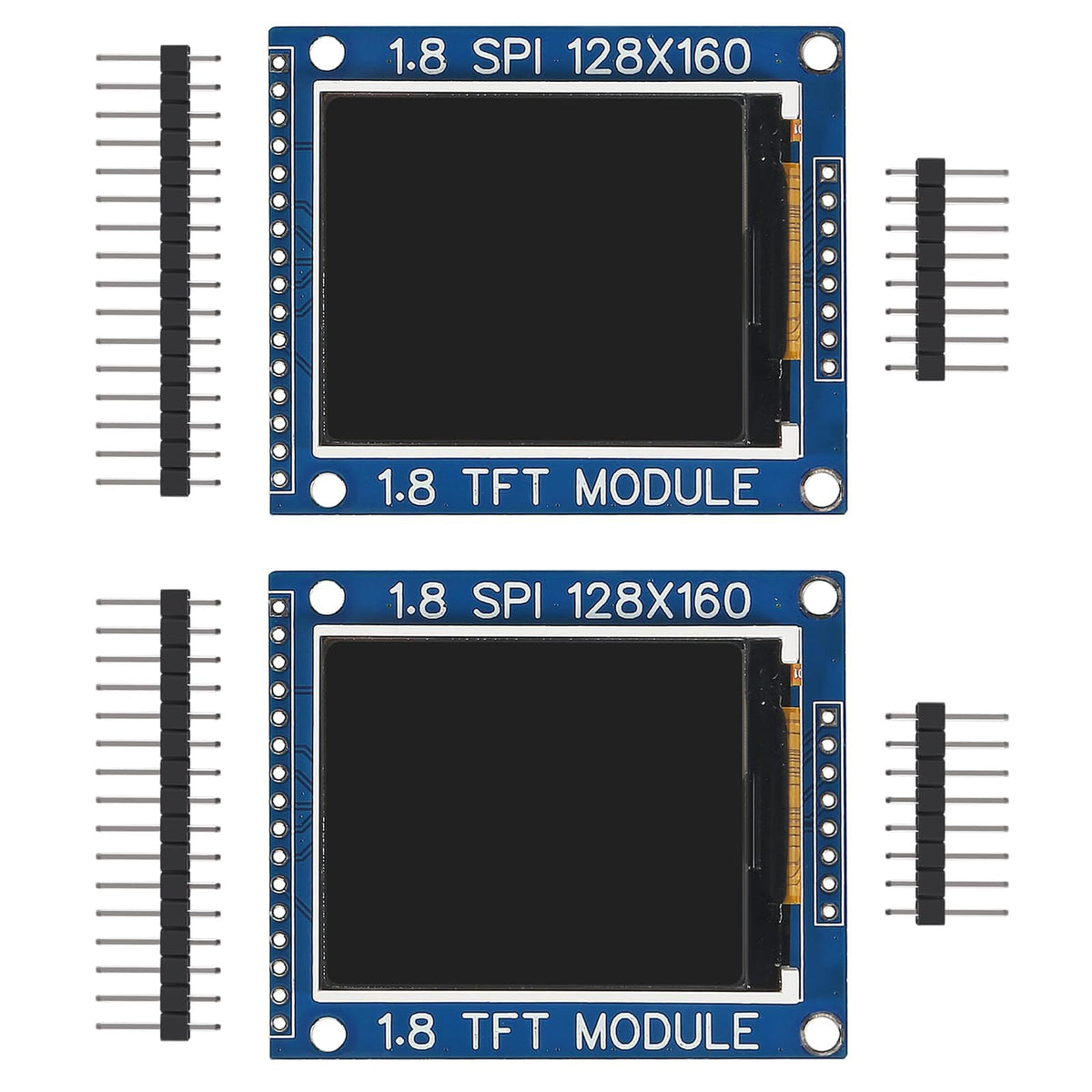

• COMPLETE 2-PACK KIT & SUPPORT: Includes 2 x 1.8-inch TFT LCD Display Modules, 2 x 16-Pin Male Headers, and 2 x 8-Pin Male Headers. Digital documentation and technical support for setup, programming, and troubleshooting are available through our store customer service.
