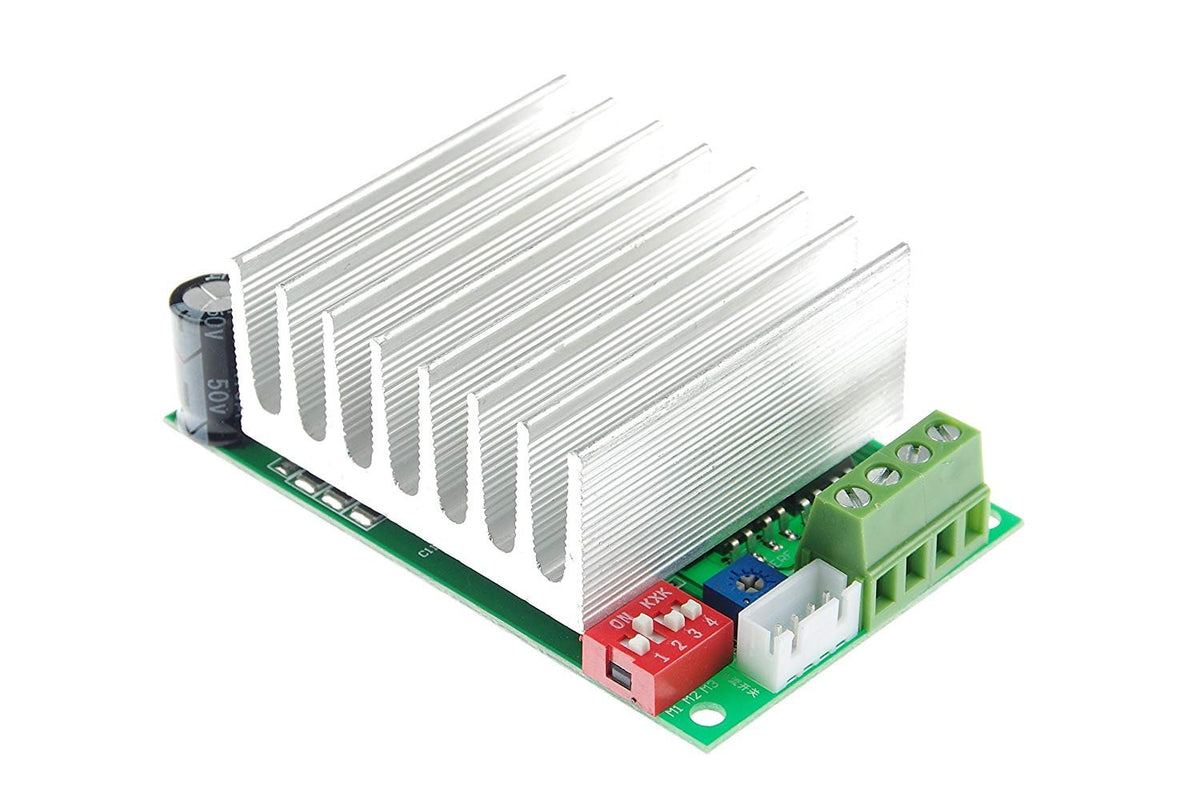

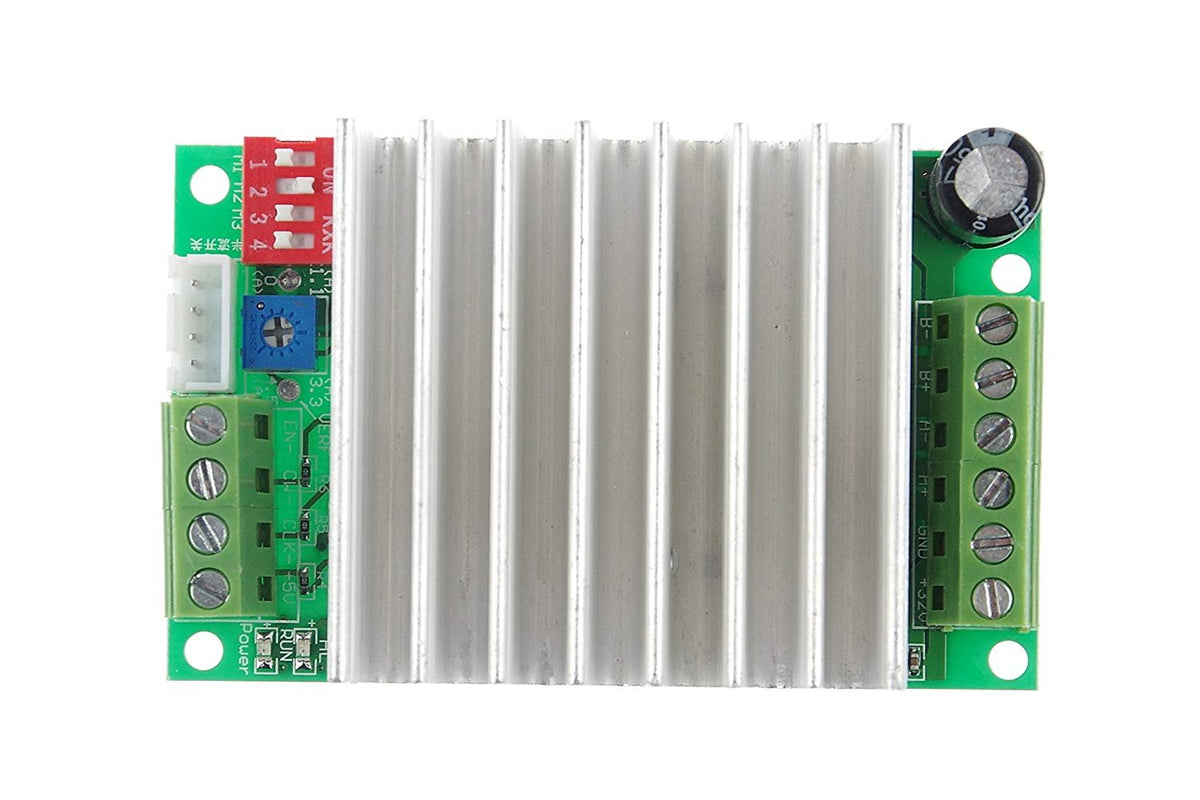

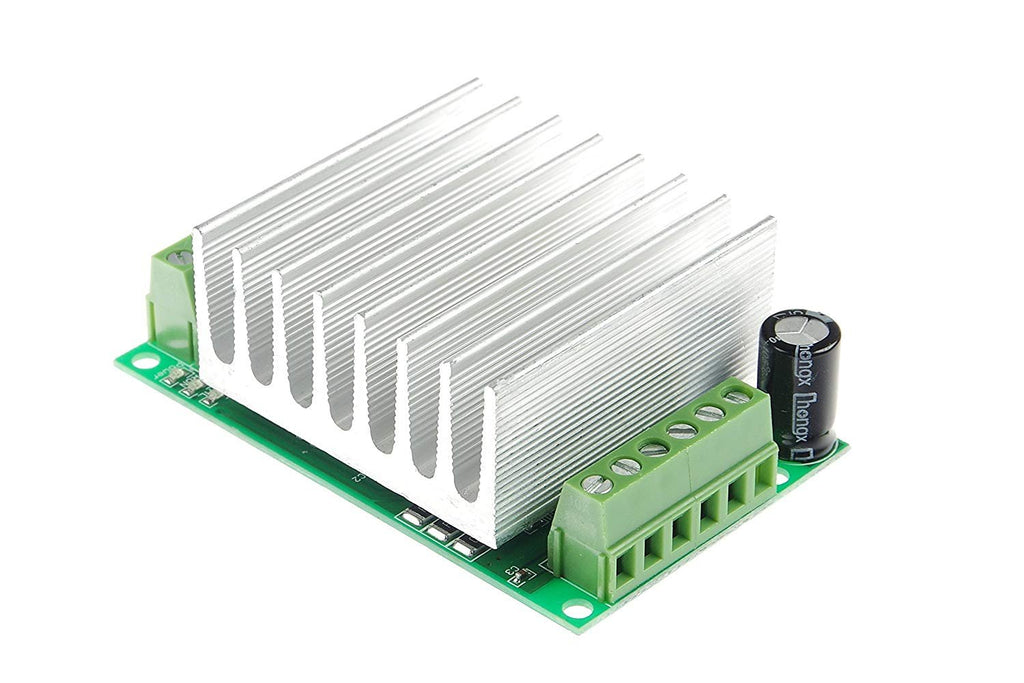

HiLetgo 4.5A TB6600 TB6600HG Single Axis Stepper Motor Driver Controller Replace TB6560

Key features

• TB6600 TB6600HG Single Axis Stepper Motor Driver Controller
• Operating voltage: DC 10V-45V
• Rated maximum output reached: ¡À 4.5A
• ize: 82mm * 50mm * 35mm (L * W * H)
• Automatic half current function

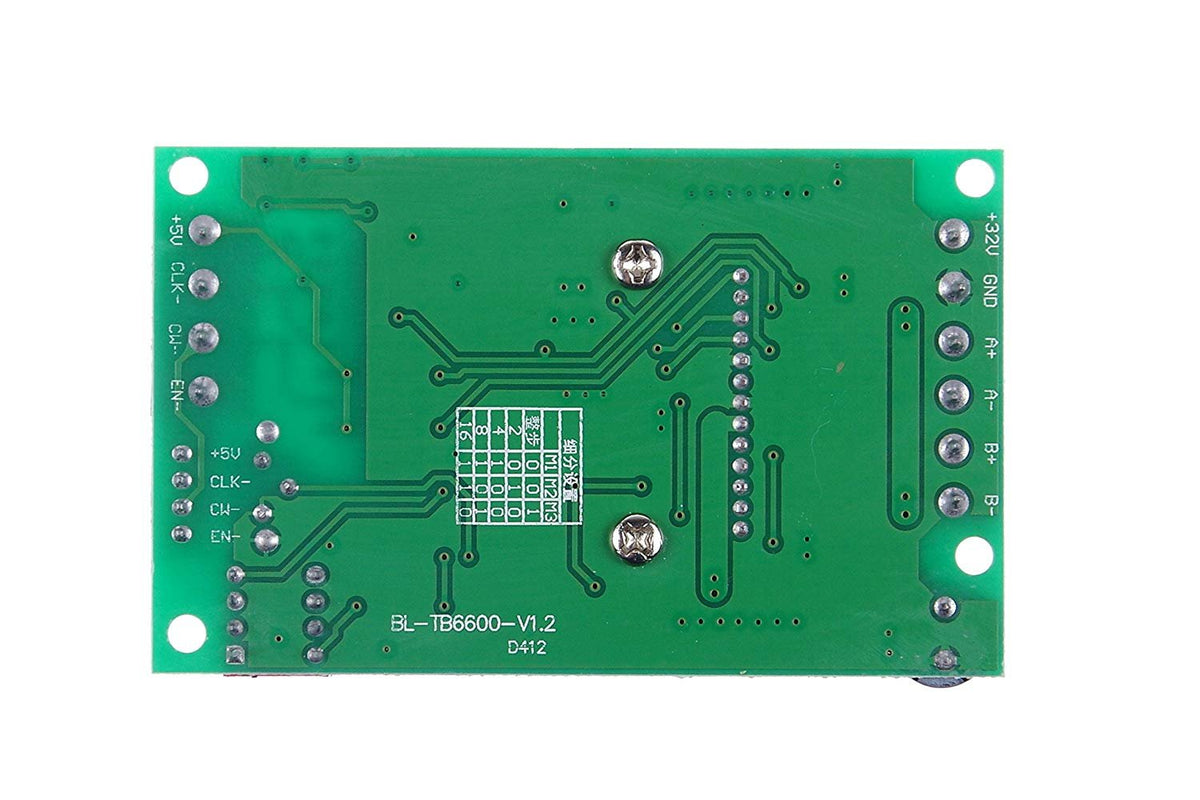

Descriptions: *Operating voltage: DC 10V-45V. *It is recommended to use DC32V power supply switch power supply. *The use of high-speed optical coupling 6N137, ensure high speed without losing step. *The use of high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560. *Rated maximum output reached: ¡À 4.5A. *4.2A of 42,57,86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor. *Automatic half current function. *Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments. *Size: 82mm * 50mm * 35mm (L * W * H) Product Features: *Output current stepless adjustable to meet your various application requirements. *Automatic half current function. And a semi-automatic flow switch, easy to use. *The use of high-speed optical coupling 6N137, ensure high speed without losing step. *Printed on the back panel are subdivided setup instructions. *Used to increase the heat sink, good heat dissipation. *Output short-circuit protection, the use of mind. *Using common anode input mode, there are two input term
