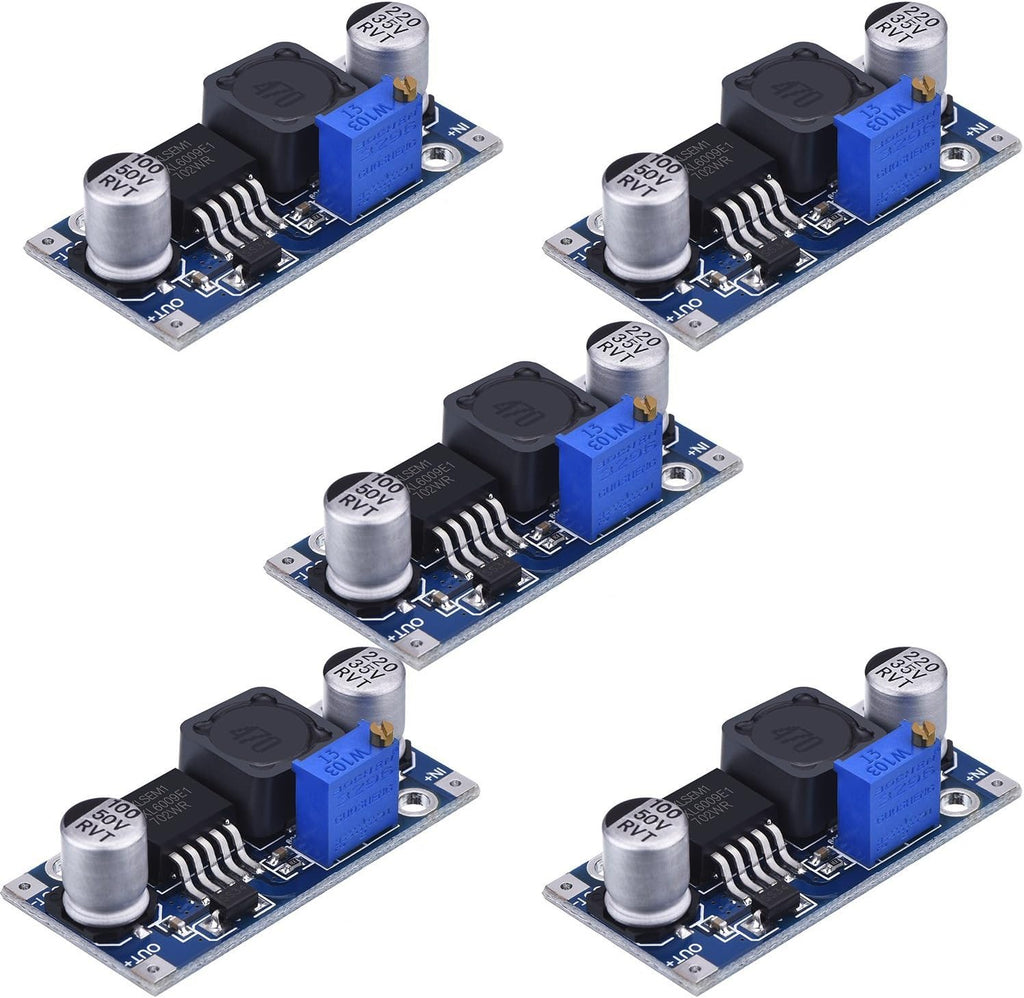

HiLetgo 5pcs XL6009 Boost Module DC-DC Adjustable Module DC3.0-30V to DC5-35V Output Voltage Power Converter Circuit Board Module 400KHz
HiLetgo 5pcs XL6009 Boost Module DC-DC Adjustable Module DC3.0-30V to DC5-35V Output Voltage Power Converter Circuit Board Module 400KHz
Key features
- XL6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577
- Wide input voltage: 3V~32V;Optimum operating voltage range: 5~32V;Wide output voltage: 5V~35V
- With 4A high efficiency MOSFET switches, the efficiency of XL6009 can be up to 94%(LM2577current is 3A
- With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compared to LM2577,its frequency is 50KHz)
- With 0.1uF high-frequency bypass capacitor, effectively filter out high-frequency noise

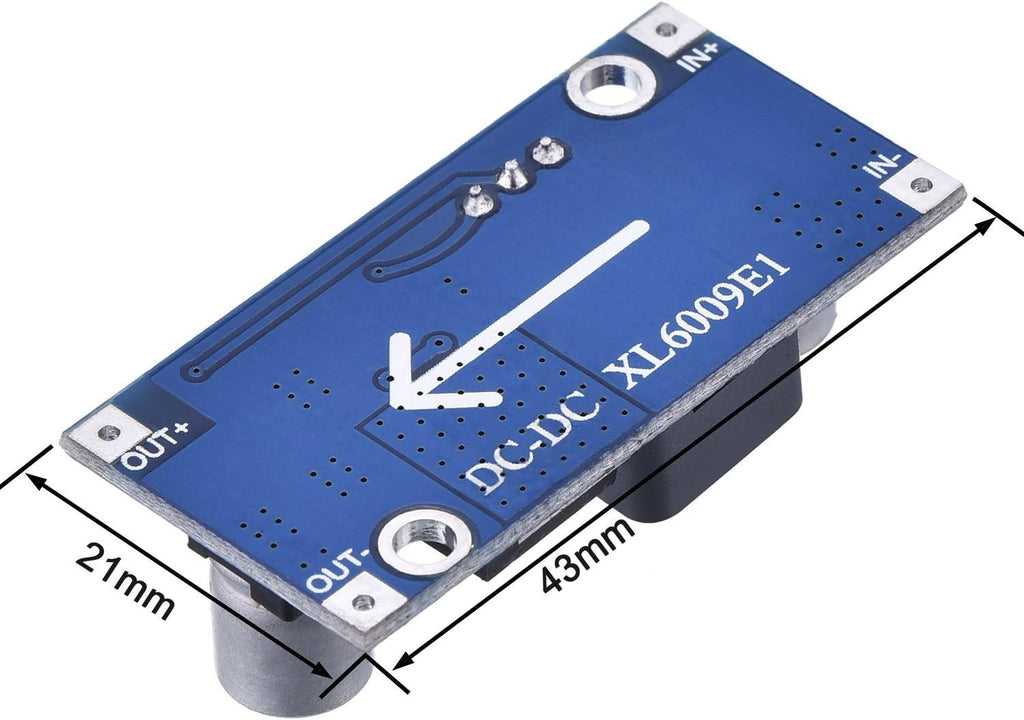

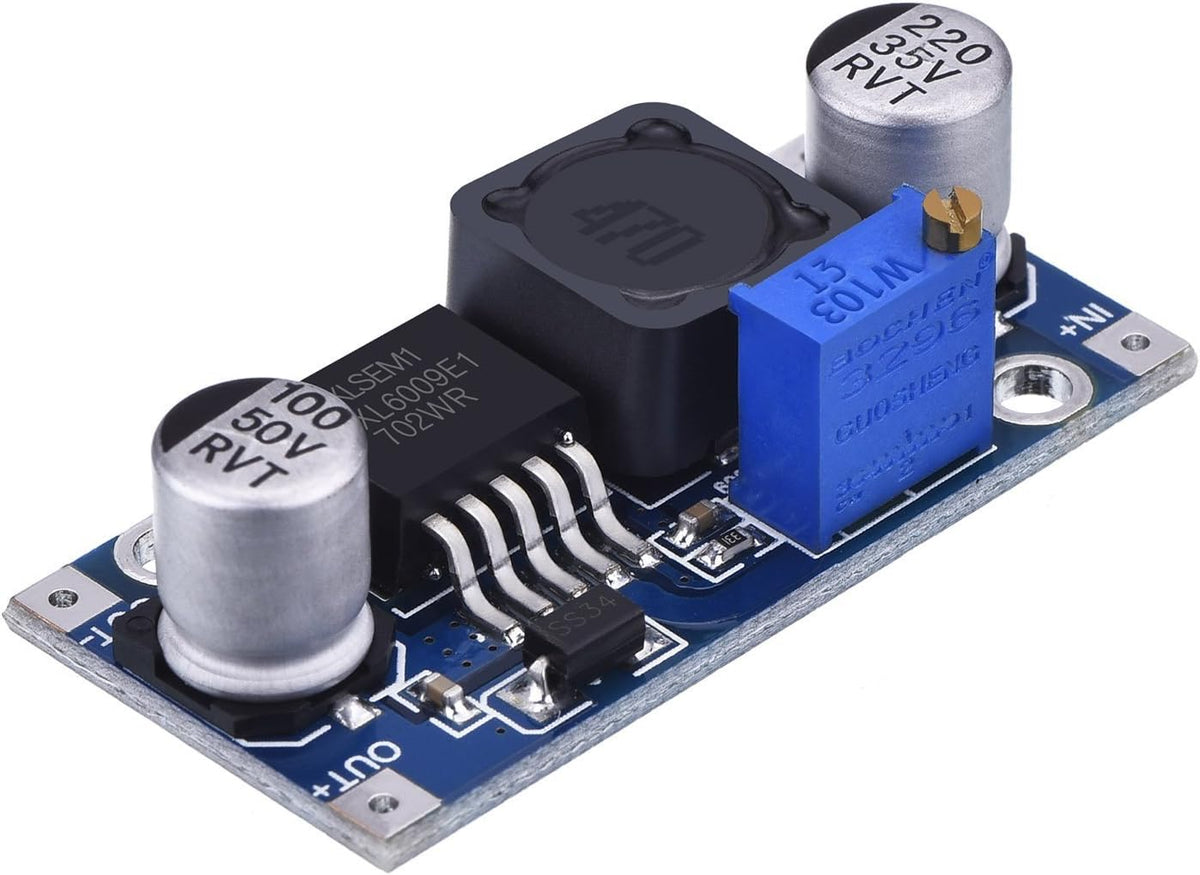

Input 3V Output 12V 0.4A 4.8WInput 5V Output 12V 0.8A 9.6WInput 7.4V Output 12V 1.5A 18WInput 12V Output 15V 2A 30WInput 12V Output 16V 2A 32WInput 12V Output 18V 1.6A 28.8WInput 12V Output 19V 1.5A 28.5WInput 12V Output 24V 1 A 24WVin * Iin * Efficiency = Vout * IoutVin: Input VoltageIin: input currentVout: Output VoltageIout: output currentFeatures :Modules nature: Non-isolated step-up (Boost)Rectification: Non-synchronous rectificationInput voltage: 3V-32VOutput voltage: 5V-35VInput current: 4A (max), No-load current 18mAConversion efficiency: 94% (highest)Switchig frequency: 400KHzOutput ripple: 50mV (max)Load regulation: ± 0.5%Voltage regulation: ± 0.5%Operating Temperature: -40 ° C to +85 ° CDimension: 47 x 22 x 13 mmShort Circuit Protection: NONEApplications:DIY a mobile power supplyBoost chargerPower supply for electronic equipmentPackage Included:5* XL6009 Adjustable DC-DC Boost Module
