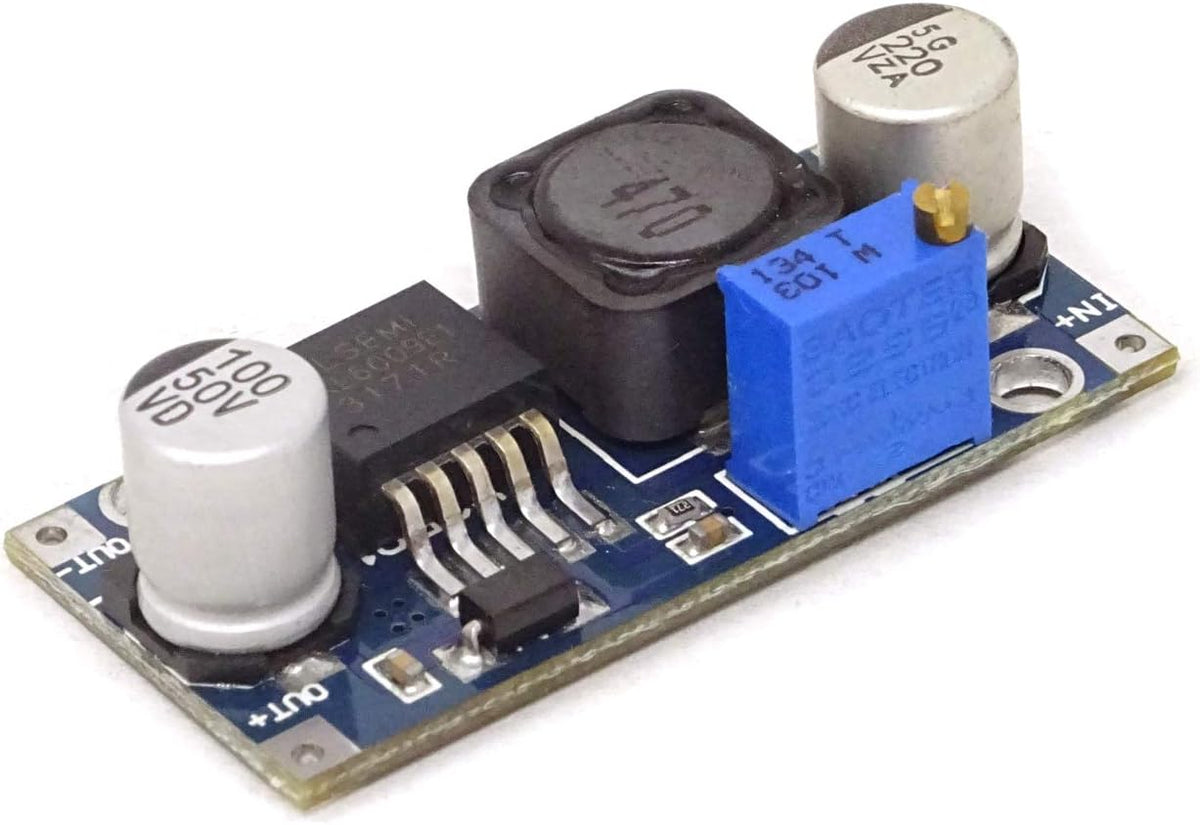

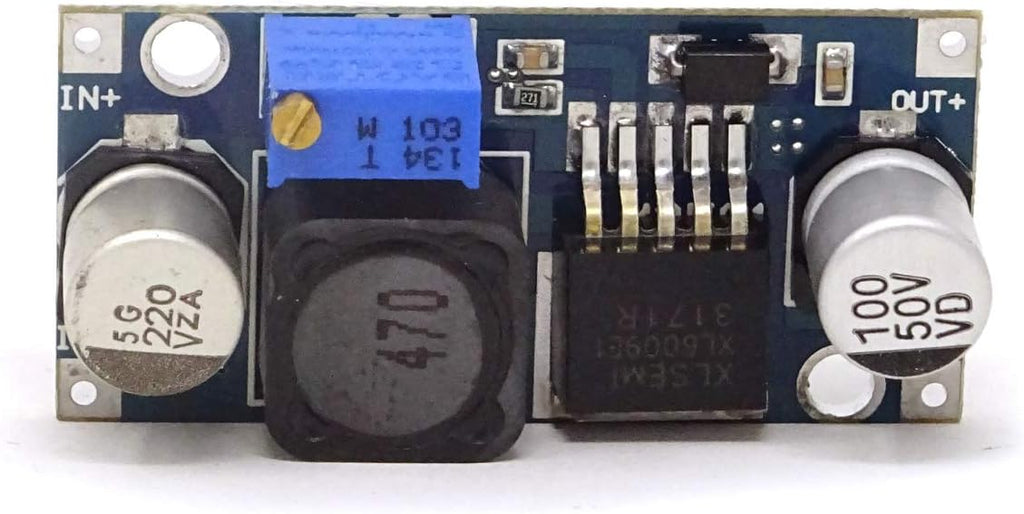

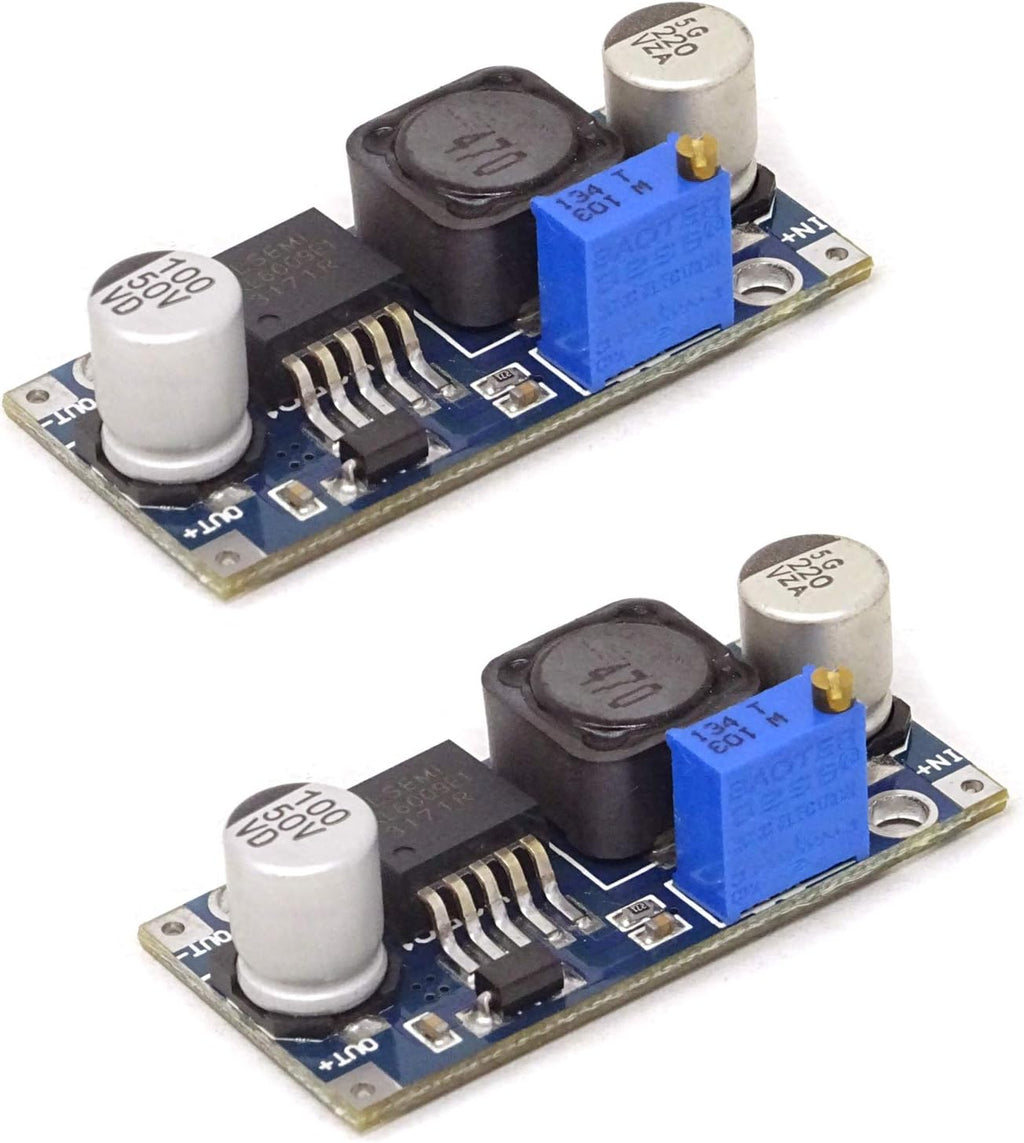

Honbay 2PCS DC-DC Step-up Module XL6009 DC to DC Input 3V-32V to Output 5V-35V Boost Converter Module
Honbay 2PCS DC-DC Step-up Module XL6009 DC to DC Input 3V-32V to Output 5V-35V Boost Converter Module
Key features
- DSN6009 is a good performance 4A switch current boost converter module. The module uses the XL6009E1 of the second-generation high frequency switch technology as the core chip, the performance is much higher than LM2577
- Input: DC 3 V to 32 V, optimum operating voltage range: 5V to 30V; Output: DC 5 V to 35 V, voltage is continuously adjustable; Maximum input current is 4 A
- With 4A high efficiency MOSFET switches, the efficiency of XL6009 can be up to 94%
- With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results
- Note: Please check whether the negative and positive terminals are accessed correctly before operating

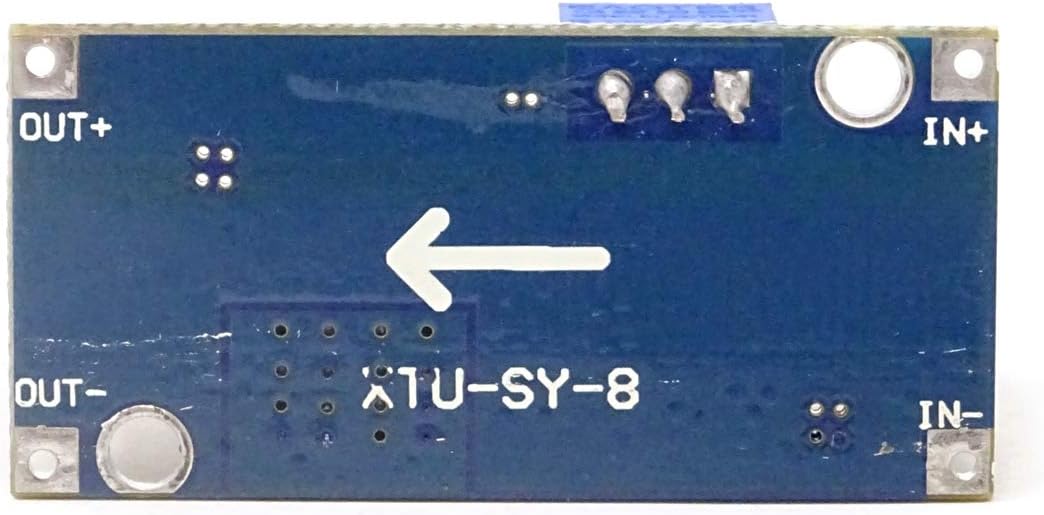

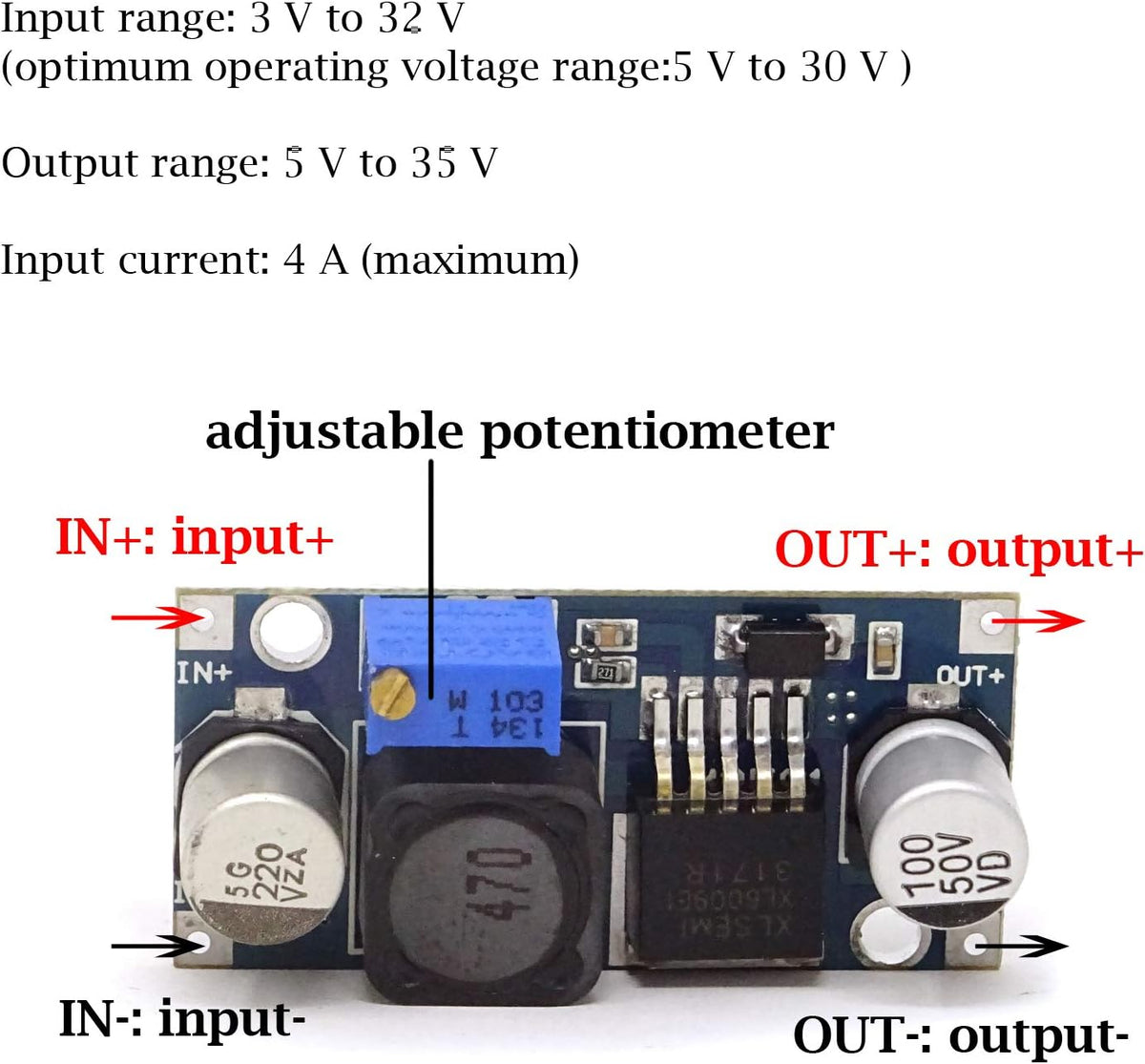

DSN6009 is a good performance 4A switch current boost converter module. The module uses the XL6009E1 of the second-generation high frequency switch technology as the core chip, the performance is much higher than LM2577 Specifications: Model Number: DSN6009 booster module Model Nature: Non-Isolated Boost Rectifying way: Non-synchronous rectifier Input range: 3 V to 32 V(optimum operating voltage range:5 V to 30 V ) Output range: 5 V to 35 V Input current: 4 A (maximum), no-load 18 mA (5 V input, 8 V output, no-load less than 18 mA. The higher the voltage, the greater the no-load current) Conversion efficiency: <94 % (the greater the pressure difference, the lower the efficiency) Switching frequency: 400 KHZ Output ripple: 50 mV (the higher the voltage, current, the ripple is larger) Load regulation: ±0.5% Voltage regulation: ±0.5% Working temperature: - 40 ℃ to + 85 ℃ Overall dimensions: 43 mm x 21 mm x 14 mm (length x width x height) IN+: input+ IN-: input- OUT+: output+ OUT-: output- Package included: 2 x DC-DC Step-up module Warm note: Optimum operating voltage range:5 V to 30 V Please check whether the negative and positive terminals are accessed correctly before opera
Free shipping included. 30-day hassle-free returns.
