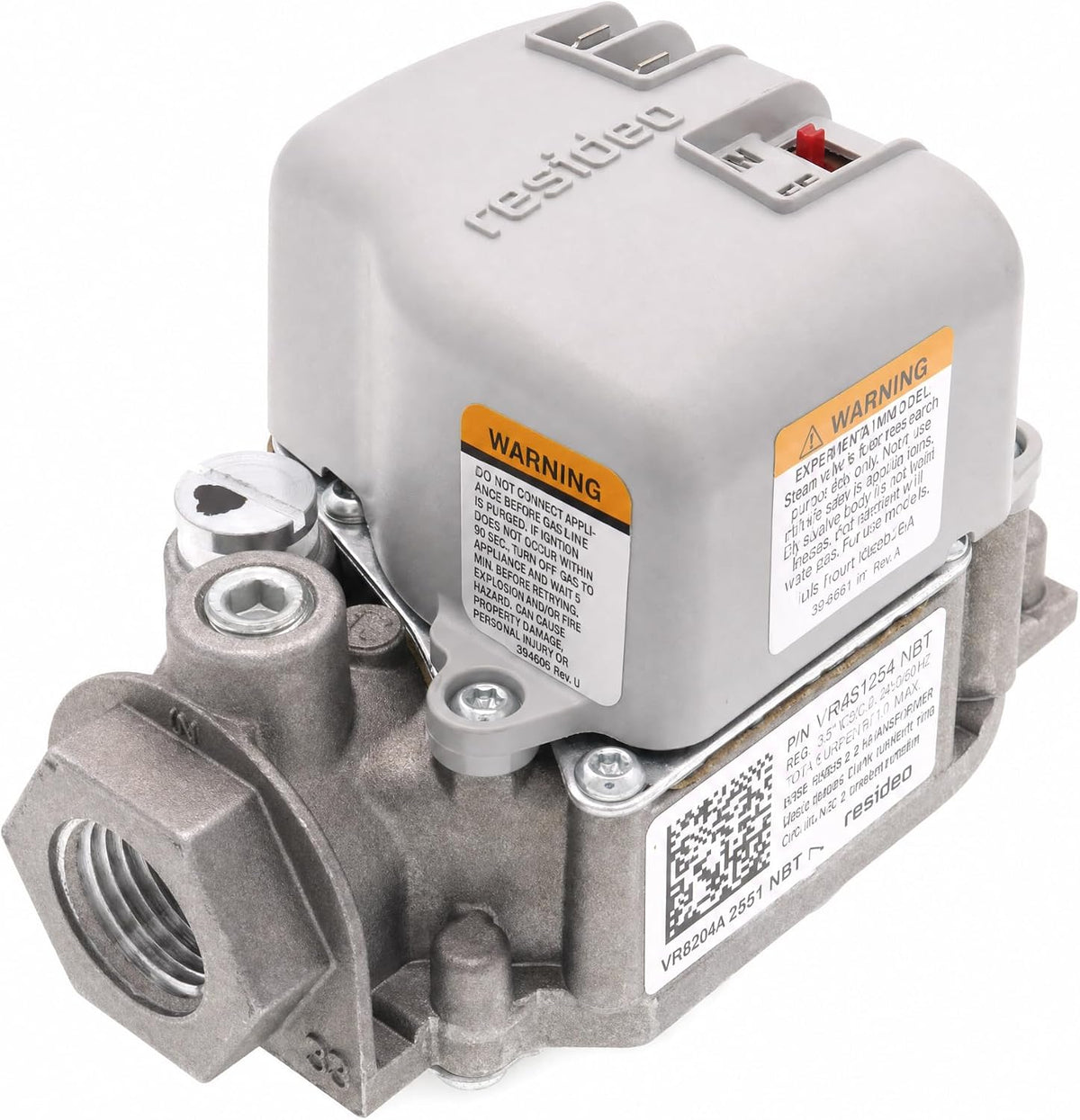

Honeywell VR8215S1248 Direct Ignition Gas Valve, 24VAC, 1/2 NPT

Key features

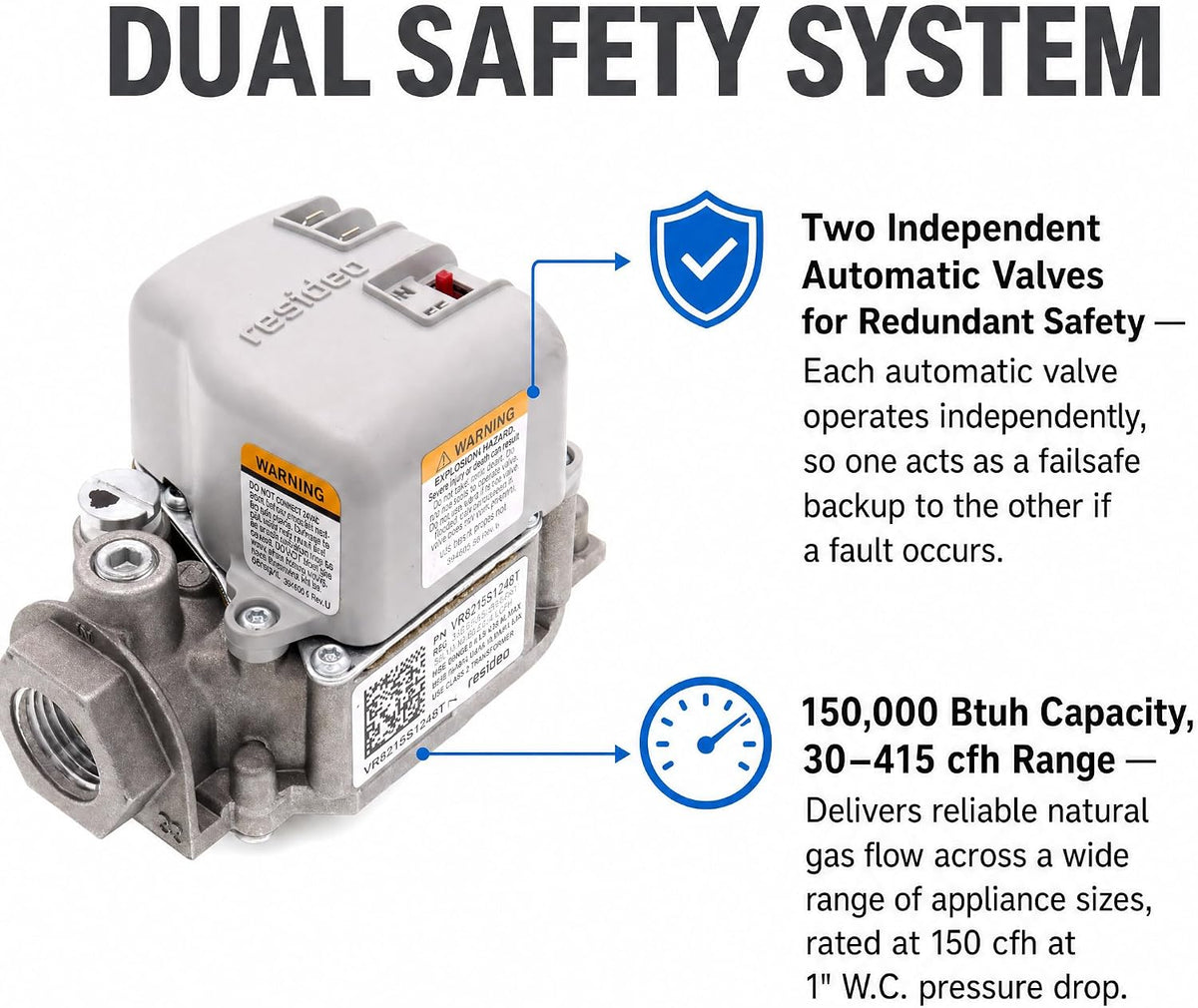

• DUAL AUTOMATIC VALVE DESIGN – A solenoid-operated first valve opens on thermostat call for heat and closes when the call ends, while a diaphragm-operated second valve is governed by the built-in regulator and closes if gas or power supply is interrupted, meeting codes that require dual automatic shutoff.

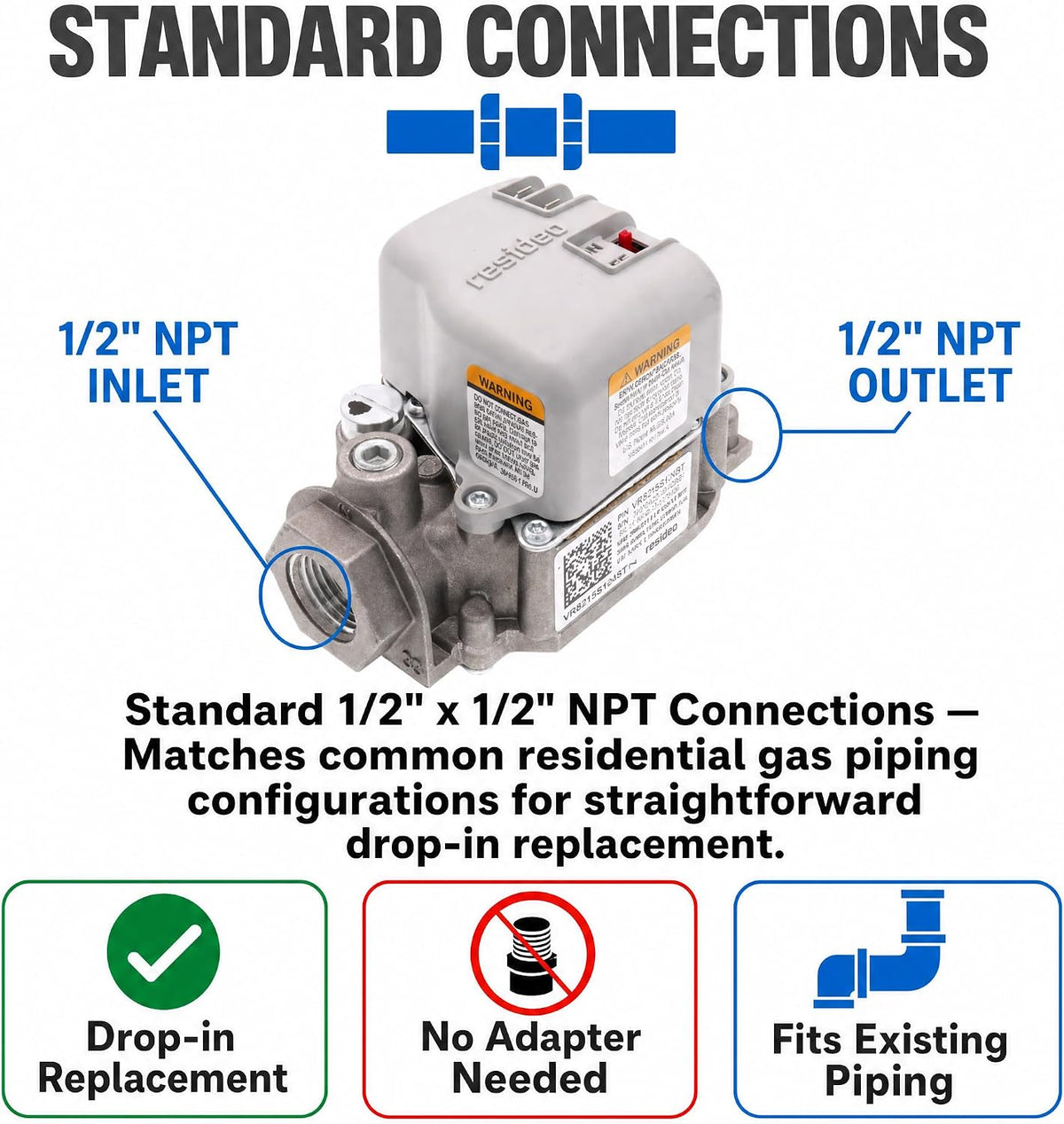

• RATED FOR RESIDENTIAL & LIGHT COMMERCIAL FURNACES – Delivers 150,000 BTUh capacity at a 1-inch W.C. pressure drop (15,000 BTUh minimum, 200,000 BTUh maximum) through a compact 1/2-inch x 1/2-inch straight-through body.
• STANDARD OPENING WITH PRECISE REGULATION – A Class 2, Grade 20 pressure regulator holds a steady 3.5-inch W.C. output, keeping burner performance consistent as incoming gas pressure varies.

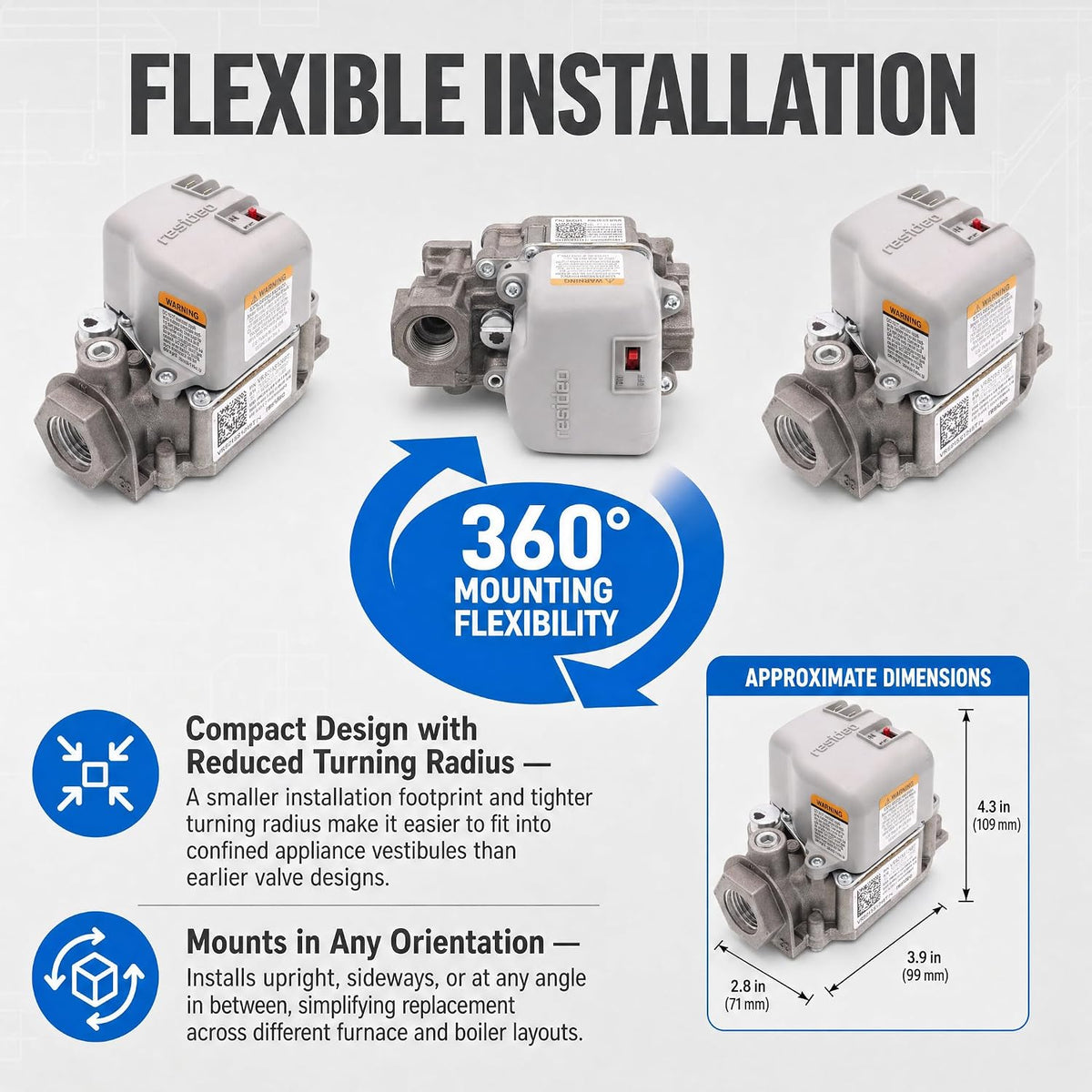

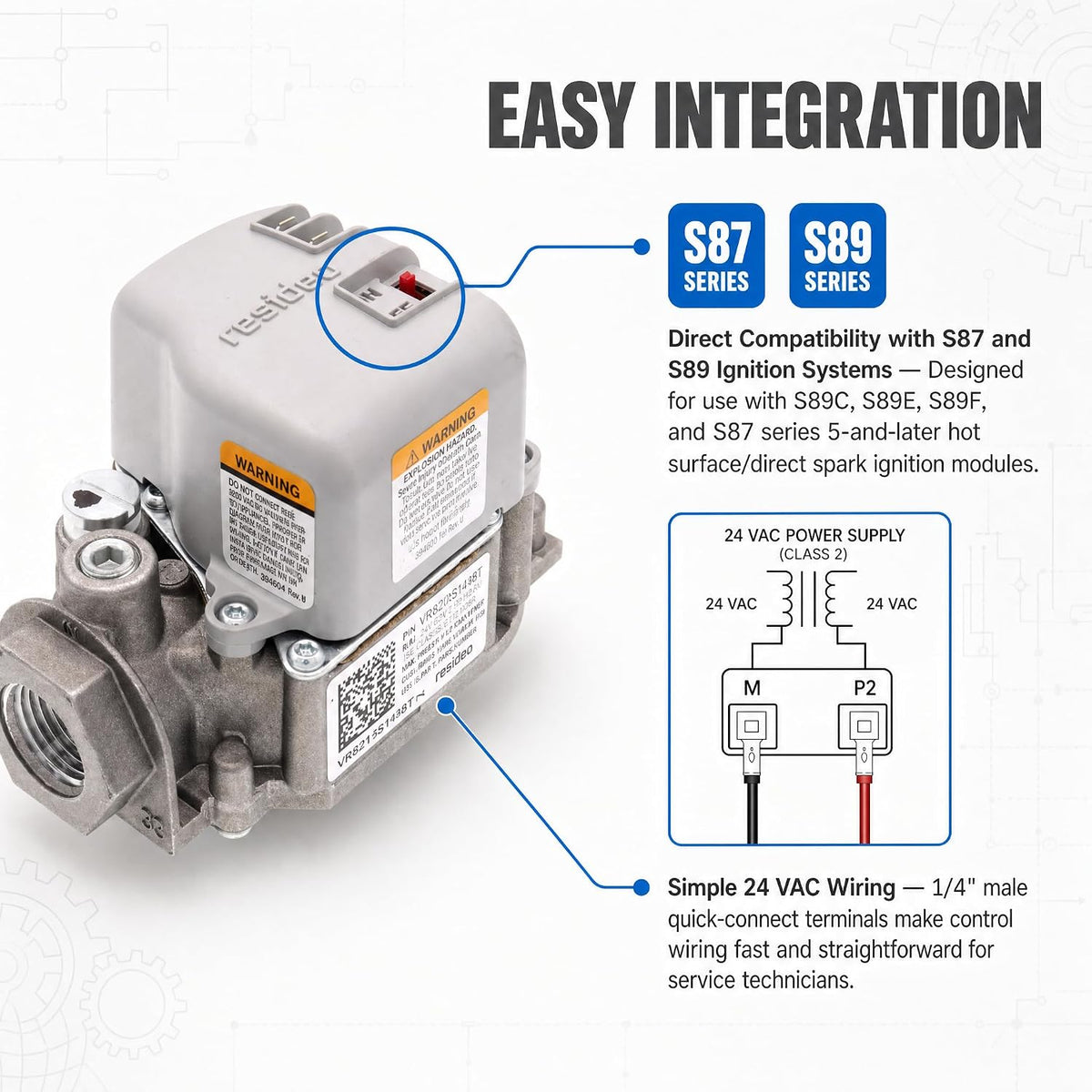

• FLEXIBLE INSTALLATION – Mounts in any direction and wires with 1/4-inch quick-connect terminals, with natural-to-LP and LP-to-natural conversion kits available separately for added flexibility.
• WHAT'S IN THE BOX – 1 x Honeywell VR8215S1248 Gas Valve. Installation must be performed by a qualified, licensed HVAC contractor.

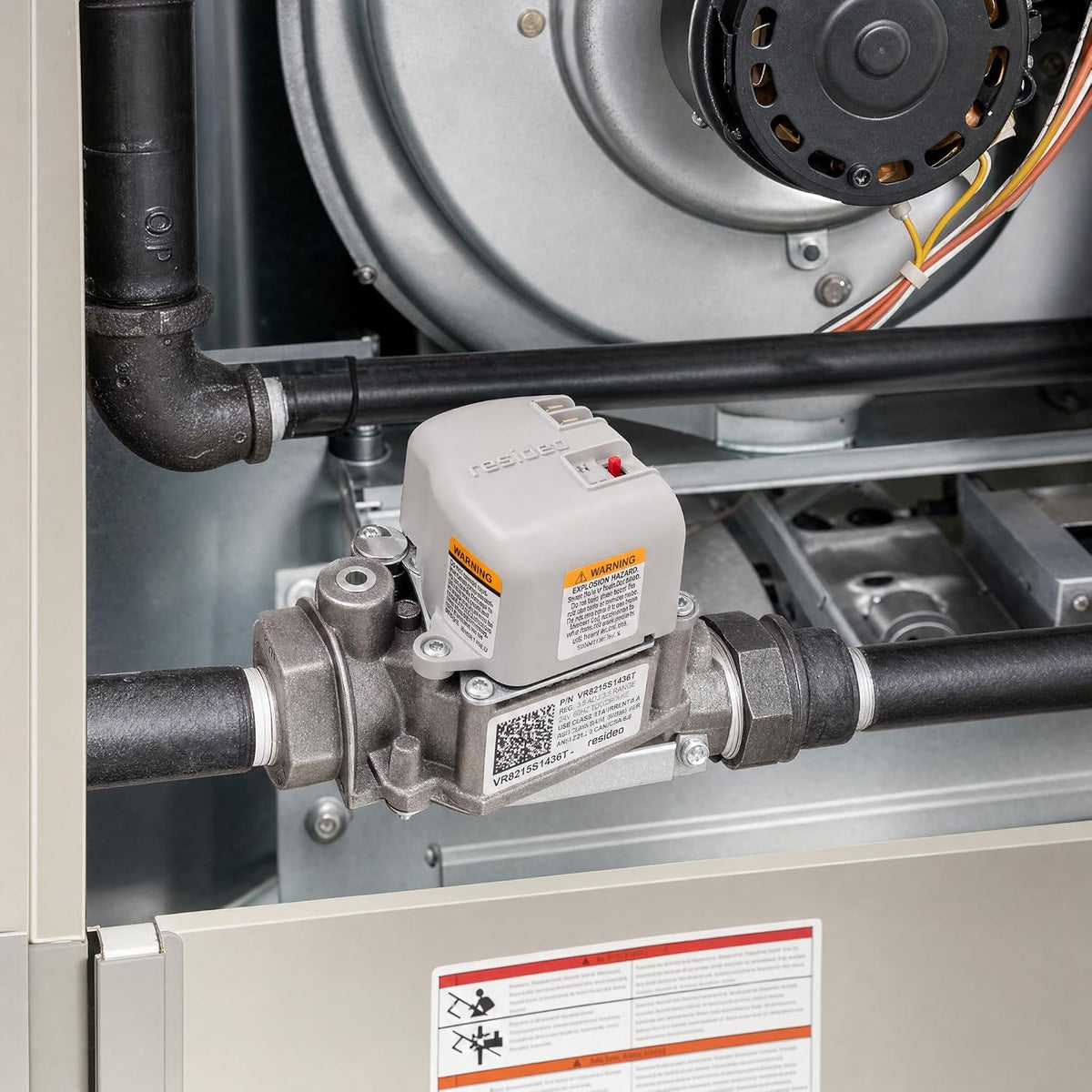

The Honeywell VR8215S1248 is a 24 VAC single-stage direct ignition combination gas valve built for natural gas-fired furnaces, unit heaters, and similar appliances that use hot surface or direct spark ignition. It combines a manual valve, two automatic operators, and an integrated pressure regulator in a compact 1/2-inch x 1/2-inch straight-through body. The first automatic valve opens on a thermostat call for heat and closes when the call ends, while the second automatic valve stays under regulator control and closes automatically if gas or power supply is interrupted, meeting codes that call for dual automatic shutoff. A Class 2, Grade 20 pressure regulator maintains a steady 3.5-inch W.C. output, and the valve is rated for 150,000 BTUh capacity at a 1-inch W.C. pressure drop. It mounts in any direction and wires easily using 1/4-inch quick-connect terminals, with natural-to-LP and LP-to-natural conversion kits available separately for added application flexibility. This part also cross-references to Lennox 102837-01 for compatible replacement applications. As with any gas control component, installation and combustion checkout should be performed only by a qualified, licensed HV
