Name: Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine
Brand: Belmont Warehouse
SKU: BW-B0BC1GF4G9
Price: 32.99 USD
Availability: InStock

Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine

$32.99

$32.99 $52.99

FREE shipping on orders $50+· add $17.01 moreShips from West Long Branch, NJ. Typically arrives in 3–7 business days.

30-day returnsChanged your mind? Send it back within 30 days. Return policy

Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

WIDE VOLTAGE: The working voltage is DC 6V-30V, with MOS voltage output, the output voltage is equal to the supply voltage.

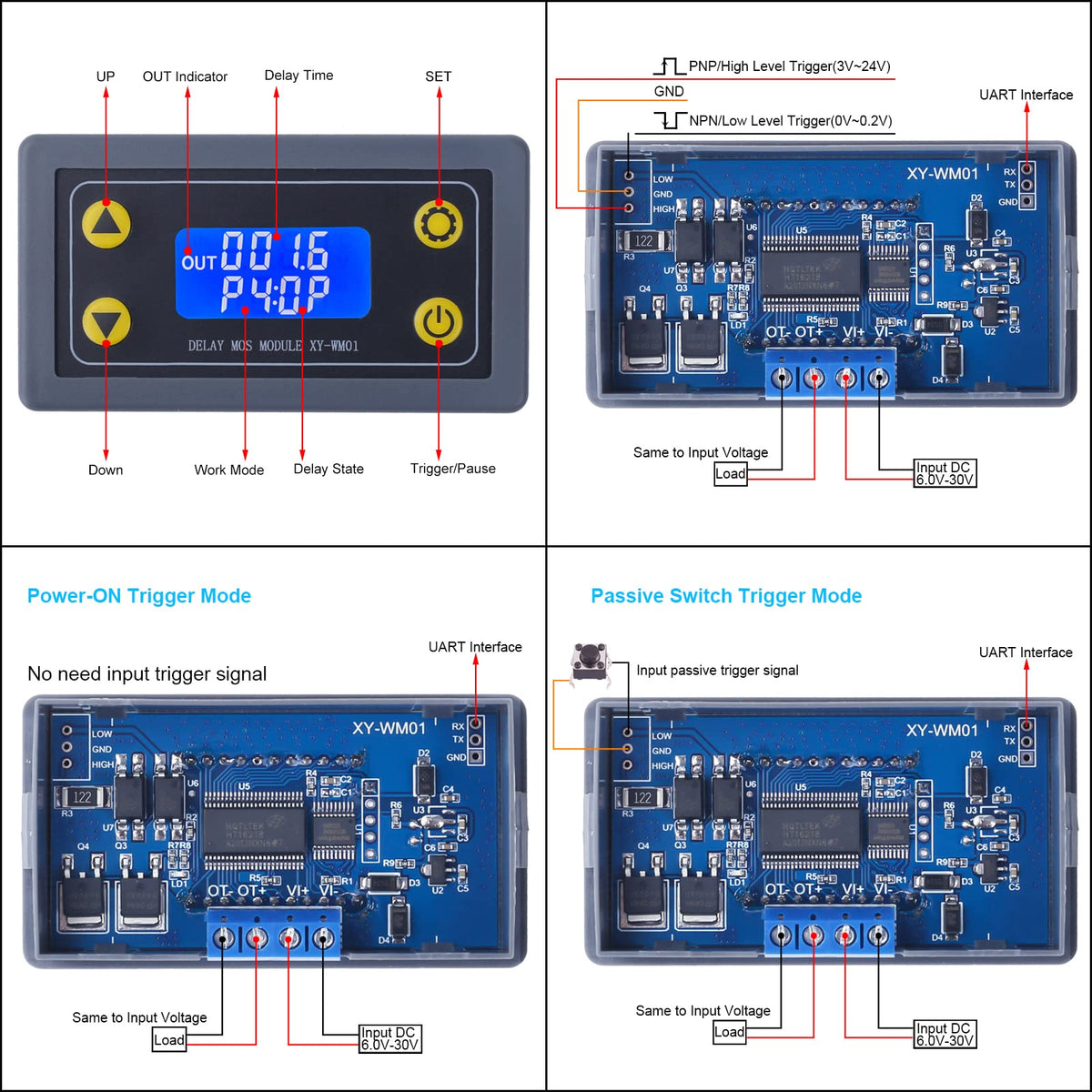

TRIGGER SIGNAL SOURCE: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control, NPN, PNP sensor.
WIDE TIMING RANGE: Minimum 0.01 seconds, maximum 9999 minutes, continuously adjustable. Equipped with LCD high-definition display, it can be able to set OP, CL, LOP parameters, and they are independent of each other and saved separately. Support UART data upload and parameter setting.
EMERGENCY STOP FUNCTION: Built-in one-key emergency stop function, with reverse connection protection and optocoupler isolation. All parameters are automatically saved after power failure.
SLEEP MODE: After power on, if there is no operation for 5 minutes, the display will automatically turn off, press any key to wake up.

Free shipping included. 30-day hassle-free returns.
