IMXMI 3/4" Automatic Water Level Control Valve, Inside Type,Side inflow
IMXMI 3/4" Automatic Water Level Control Valve, Inside Type,Side inflow
Key features
- General Introduction: Our Automatic Water Level Control Valve is patented product which is instead of traditional float valve. It automatically controls the water supply and stop according the water level changes. It can solve the water leakage problem, save more than 60% water
- Wide Range of Applications: Suitable for water tank, water tower, livestock drinking, air cooling, hydroponics, machinery, humidifier, swimming pool, toilet, solar energy, water heating boiler, aquarium and other industrial applications

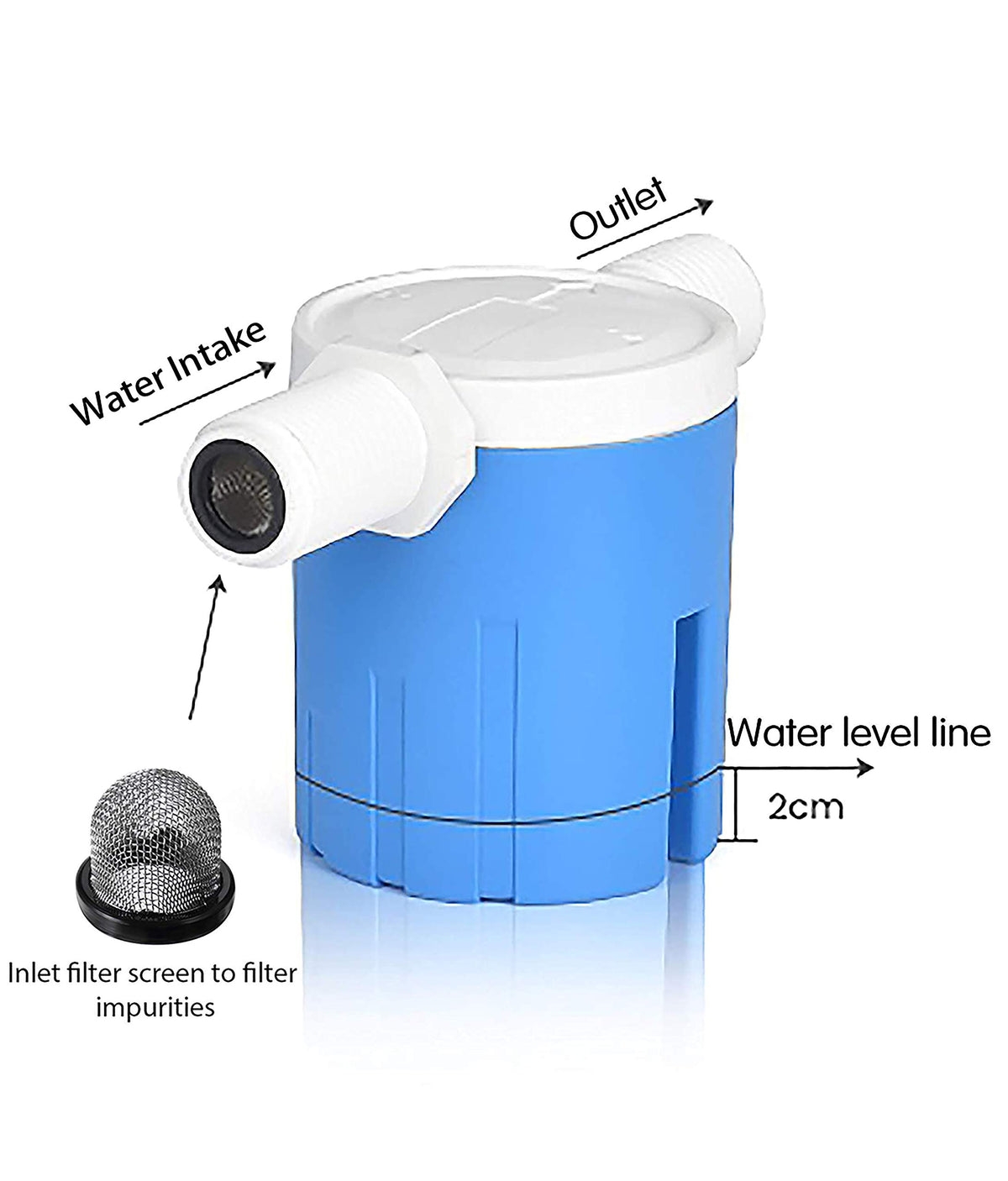

- Working Principle: When water level rises to water limited line, the Water Level Control Valve will stop supplying water immediately; when water level drops, the valve will start to supply water automatically
- Compact Design and Easy Installation: Small size and easy to install with work pressure ranging from 0.01MPa to 1.5MPa, ensuring reliable performance across various water pressure conditions
- Maintenance Requirements: This product is an automatic water level control valve that can move automatically, regular inspection and maintenance is necessary to ensure optimal performance
- Vertical Installation Required: This product must be vertically installed on level surface with the valve fixed horizontally and connected to the tank inlet for proper operation

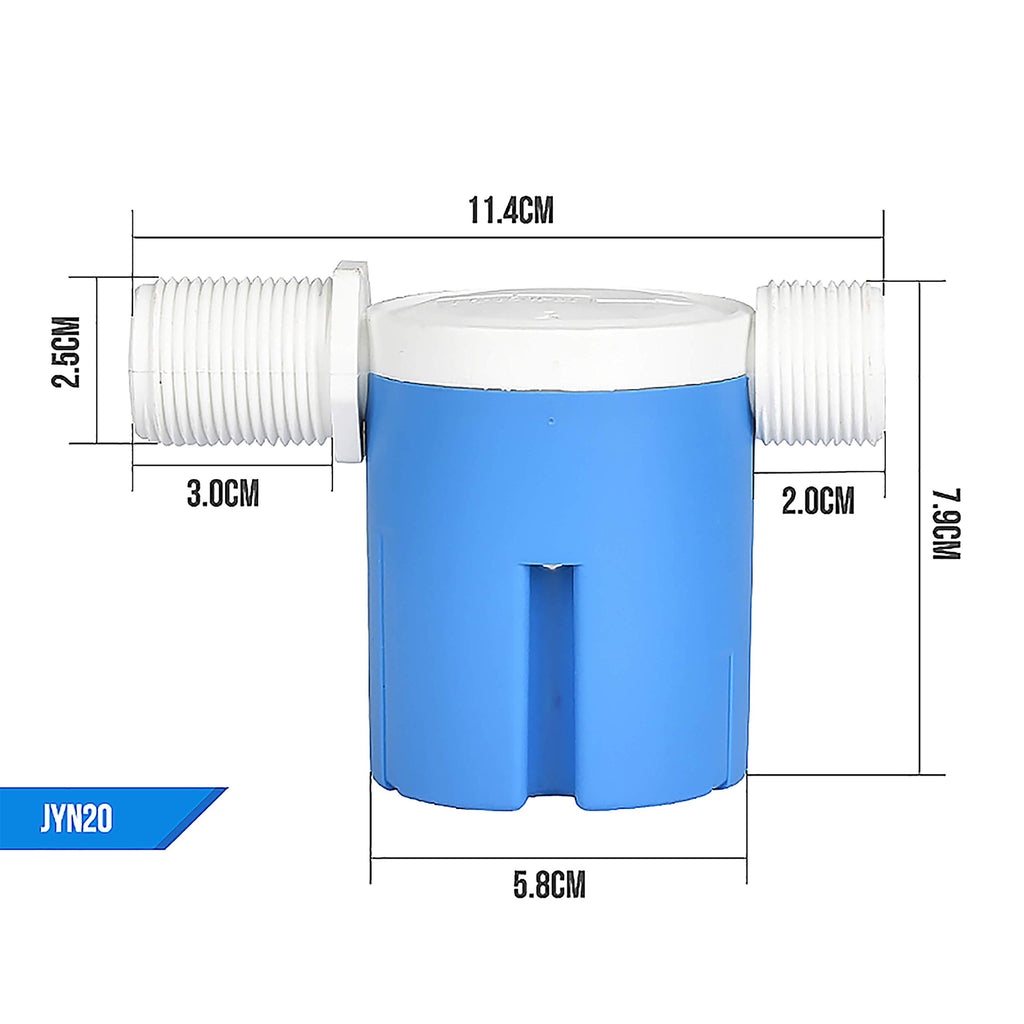

- 3/4 Inch Inside Type Design: Side inner water automatic float valve features inside type configuration, providing efficient water level control for various water storage systems
The AUTOMATIC WATER LEVEL CONTROL VALVE is a patented product, which is lnstead of old float valve.It automatically supply and stop water according to the water level change. Product Principle: When water level rise to water limit line, water level control valve will stop supplying water at once; when water level of water tank fall down, the valve will start to supply water automatically. NOTICE 1. Water pressure: min 0.1kg; max 10kg 2. Before installing, please clean the impurities in the pipeline to avoid blocking the valve. 3. This product must vertically installed on level surface. 4. The valve should be fixed horizontally and connected the water level control valve with the tank inlet. MAINTENANCE If water is not very clean and with some impurities, the valve should need proper maintenance. When user find water supply time prolonged or the valve can’t close automatically, please unload the valve and clean it.
