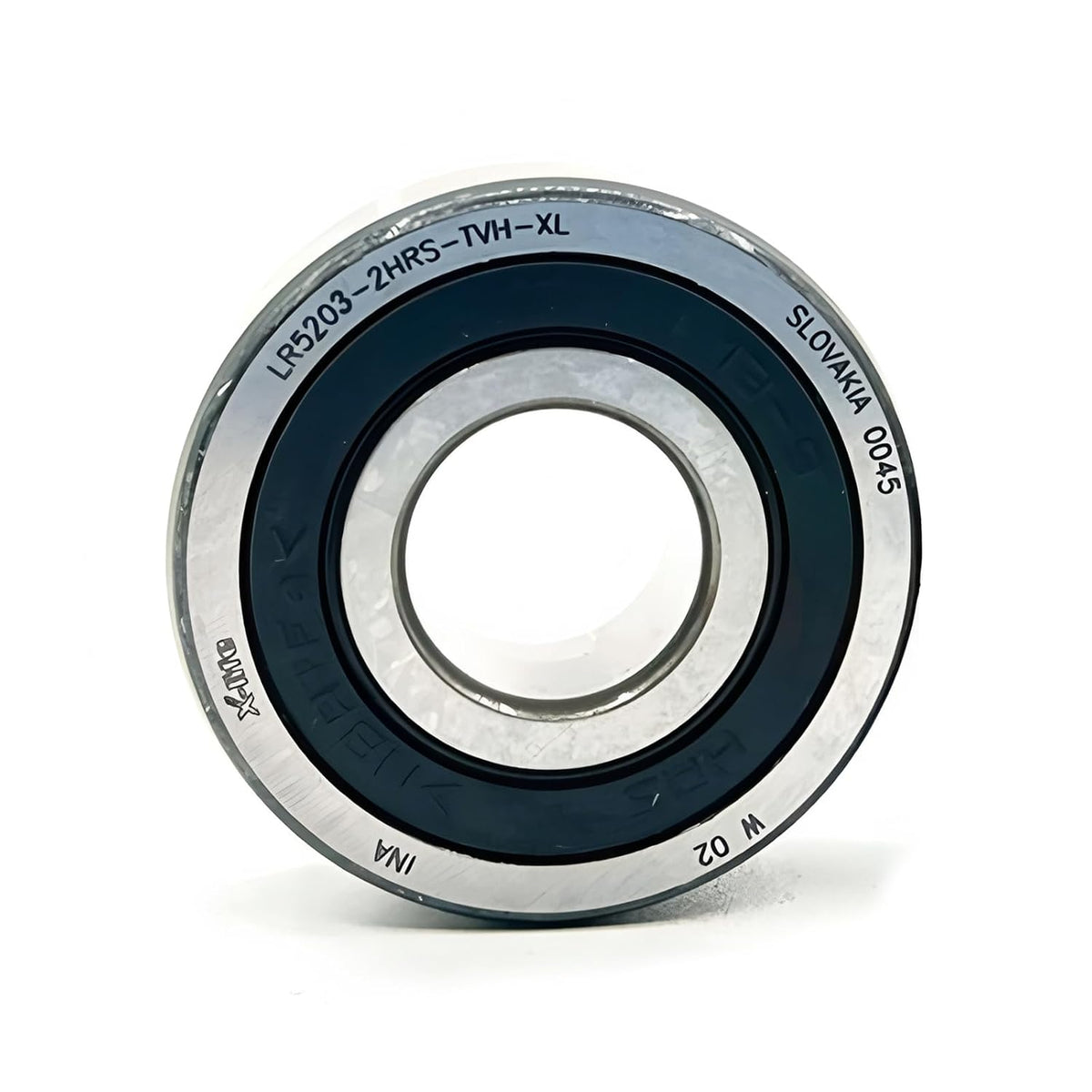

INA LR5203-2HRS-TVH-XL Yoke Type Track Roller Bearings 17x47x17.5mm

Key features

• High radial load carrying capacity and relatively high speed capability
• Accommodate tilting moments;Long service life;Ready to mount;
• Solid cage made of glass-fiber reinforced polyamid PA66;Outer Ring profile-R500
• Packaging may differ due to different production dates and origins, shipped randomly
• 17MM*47MM*17.5MM

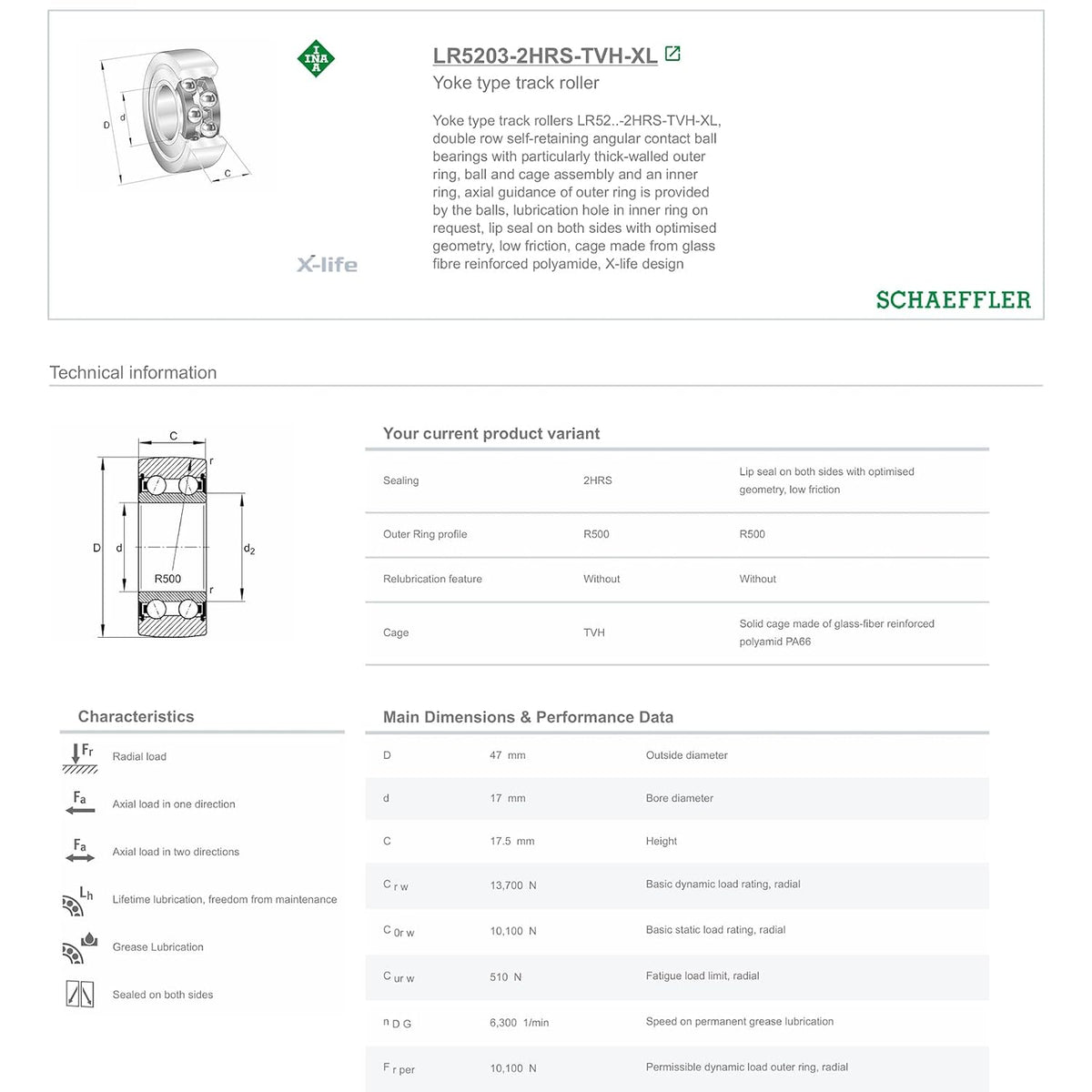

ID: From Germany INA LR5203-2HRS-TVH-XL;Yoke type track rollers LR52..-2HRS-TVH-XL, double row self-retaining angular contact ball bearings with particularly thick-walled outer ring, ball and cage assembly and an inner ring, axial guidance of outer ring is provided by the balls, lubrication hole in inner ring on request, lip seal on both sides with optimised geometry, low friction, cage made from glass fibre reinforced polyamide, X-life design;These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount.

Free shipping included. 30-day hassle-free returns.
