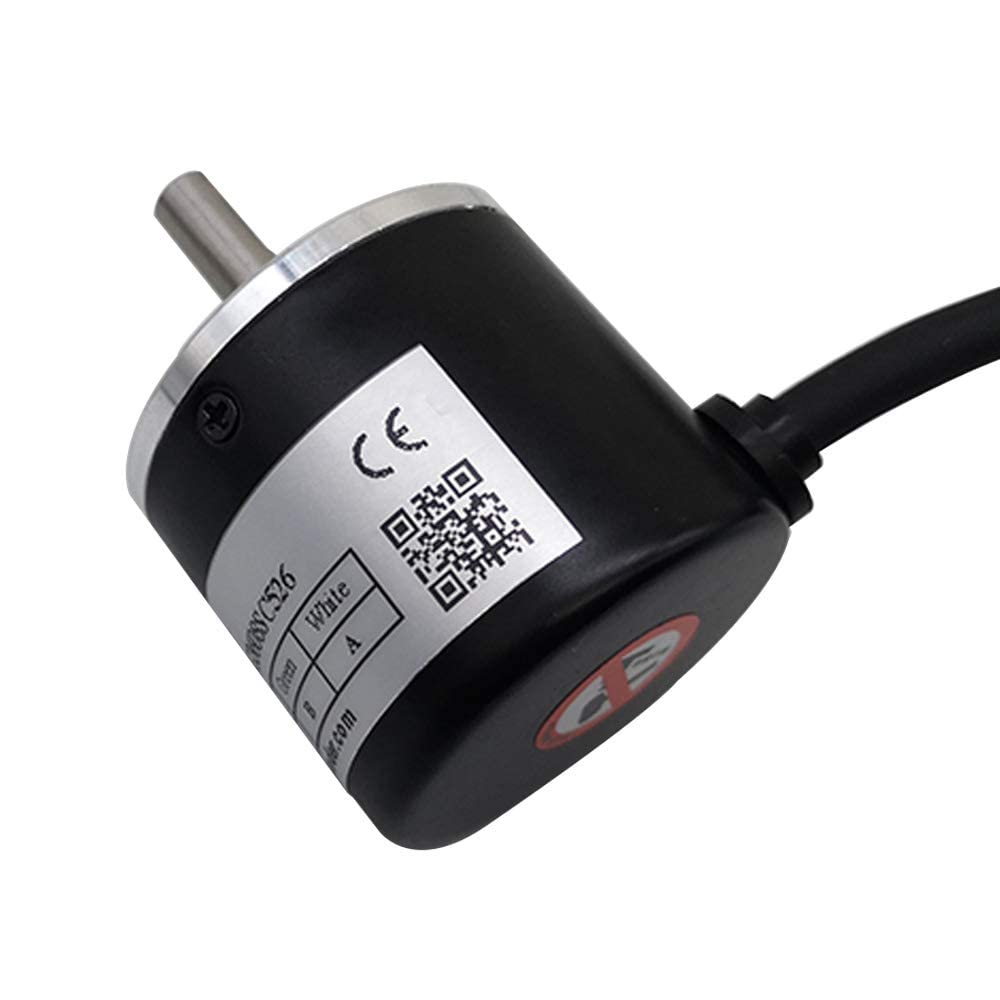

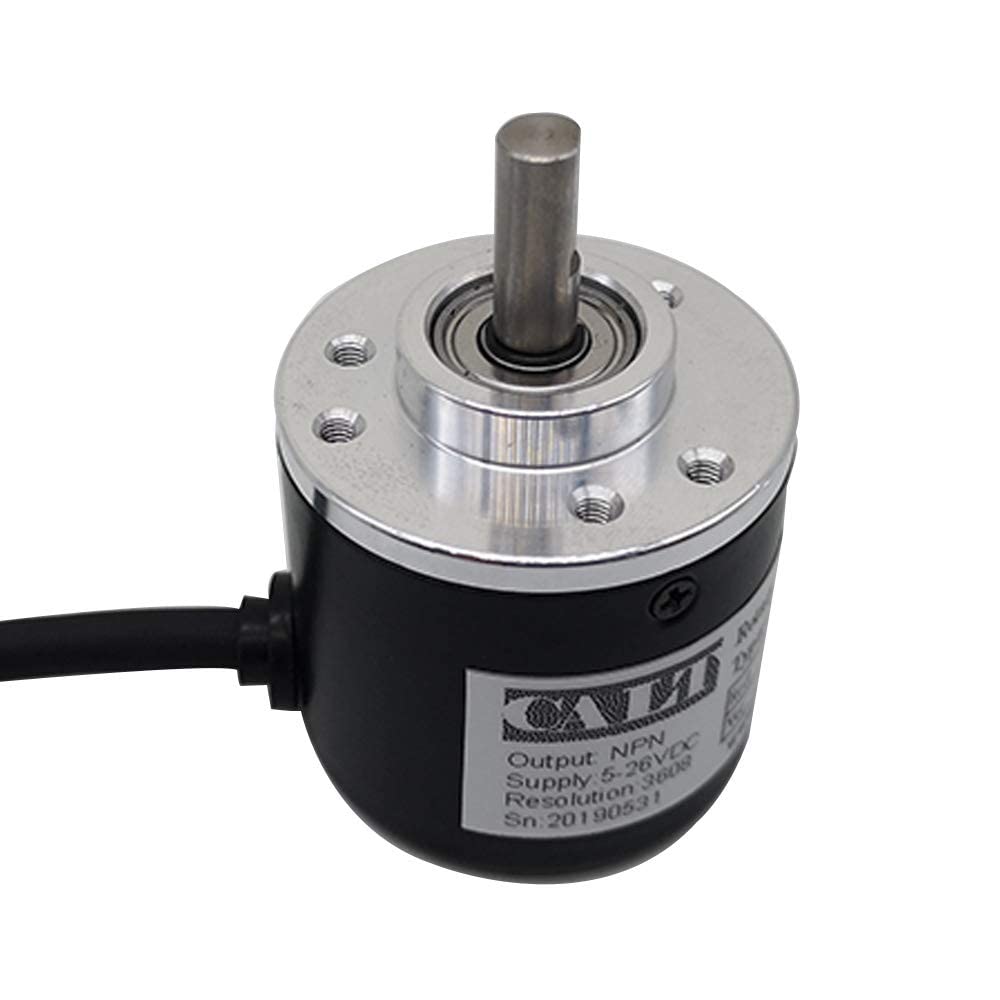

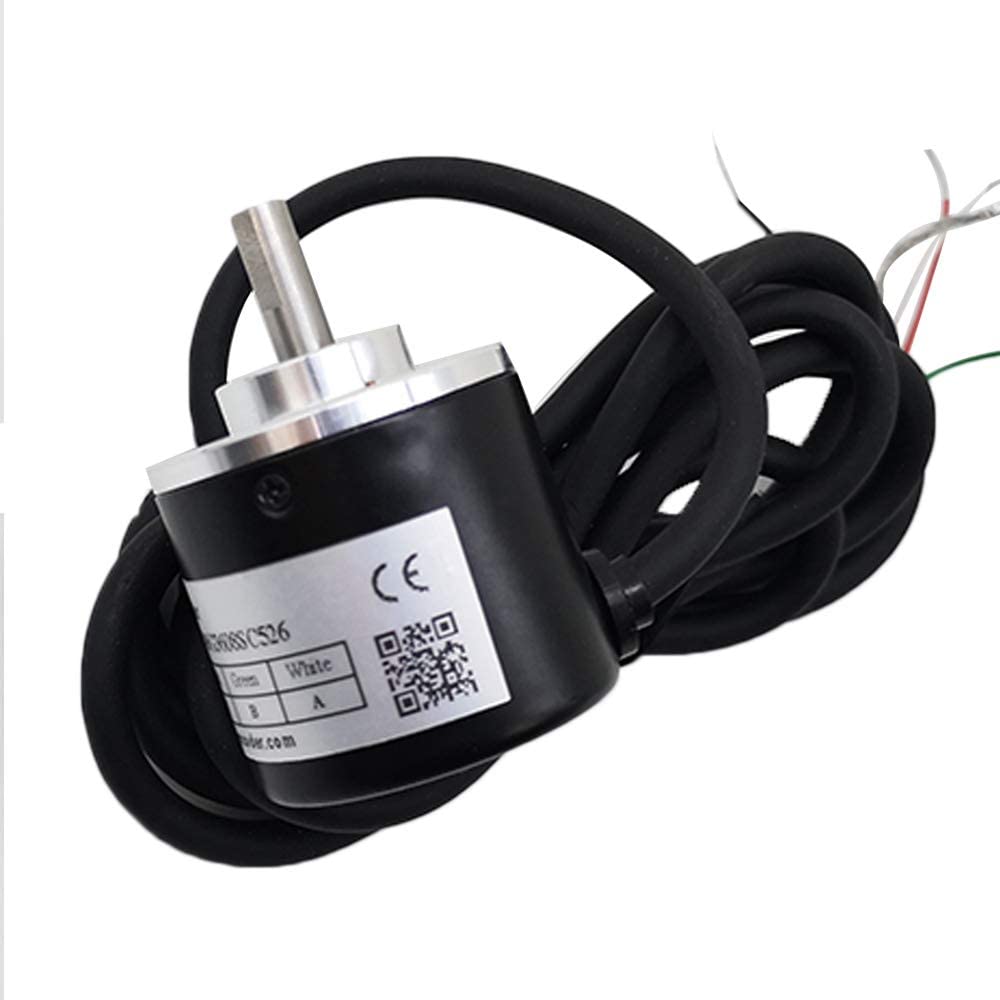

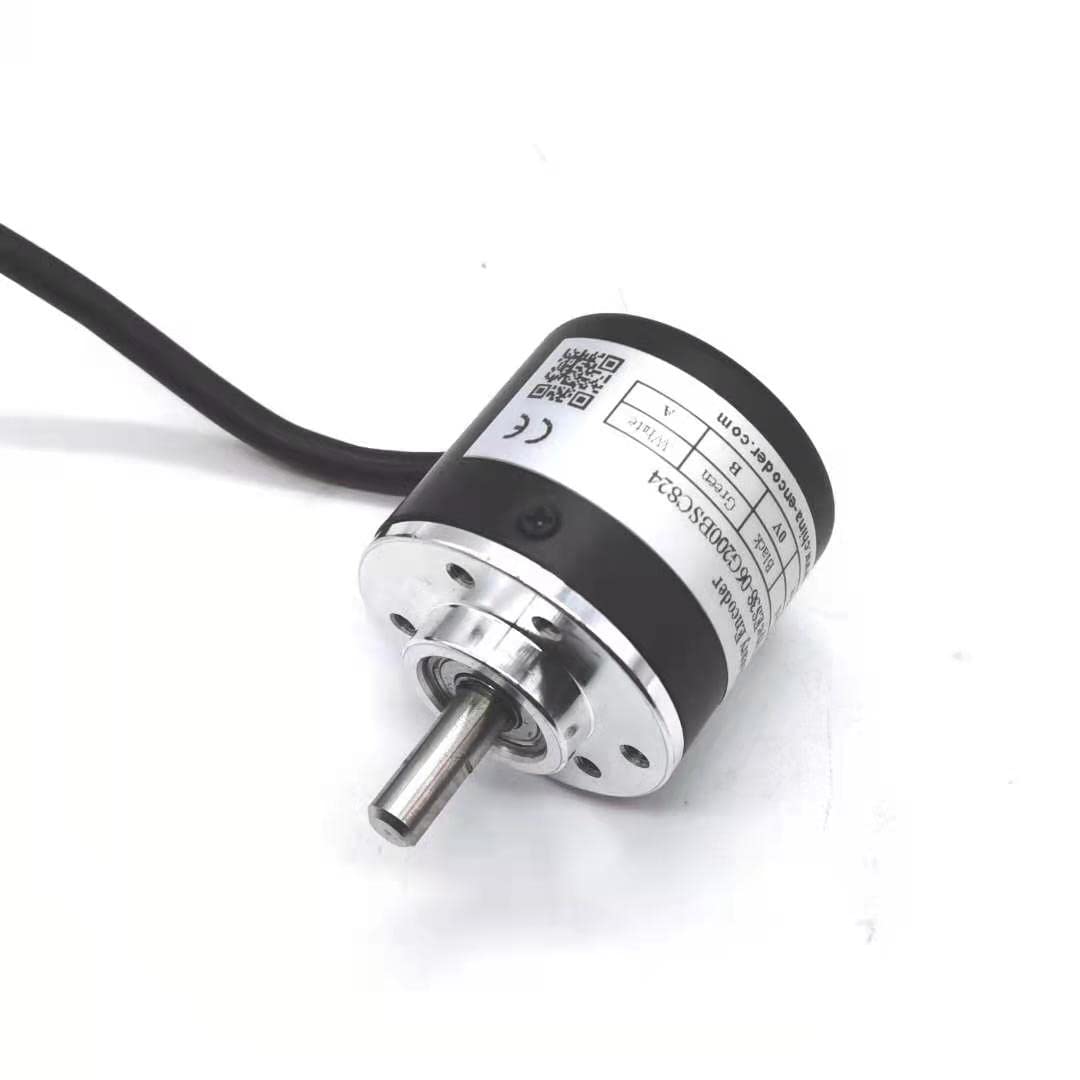

Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft

Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft

$54.99
$54.99 $91.99
Skip to product information
Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
  • Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft
Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft

Incremental Rotary Encoder 500PPR A B 90° Phase 5V Voltage Output 6mm Solid Shaft

$54.99
$54.99 $91.99
FREE shipping on this itemShips from West Long Branch, NJ. Typically arrives in 3–7 business days.
30-day returnsChanged your mind? Send it back within 30 days. Return policy
Secure checkoutQuestions? Call 1-888-460-3822 · Mon–Fri 9–5 ET

Key features

  • no index Z out, only A B Square wave rotary encoder
  • 2m cable side
  • very stable performance, economical selection encoder. suitable for microcontroller or arduino control board
  • 6mm solid shaft encoder
  • 5V-Voltage output, 500PPR

Free shipping included. 30-day hassle-free returns.
