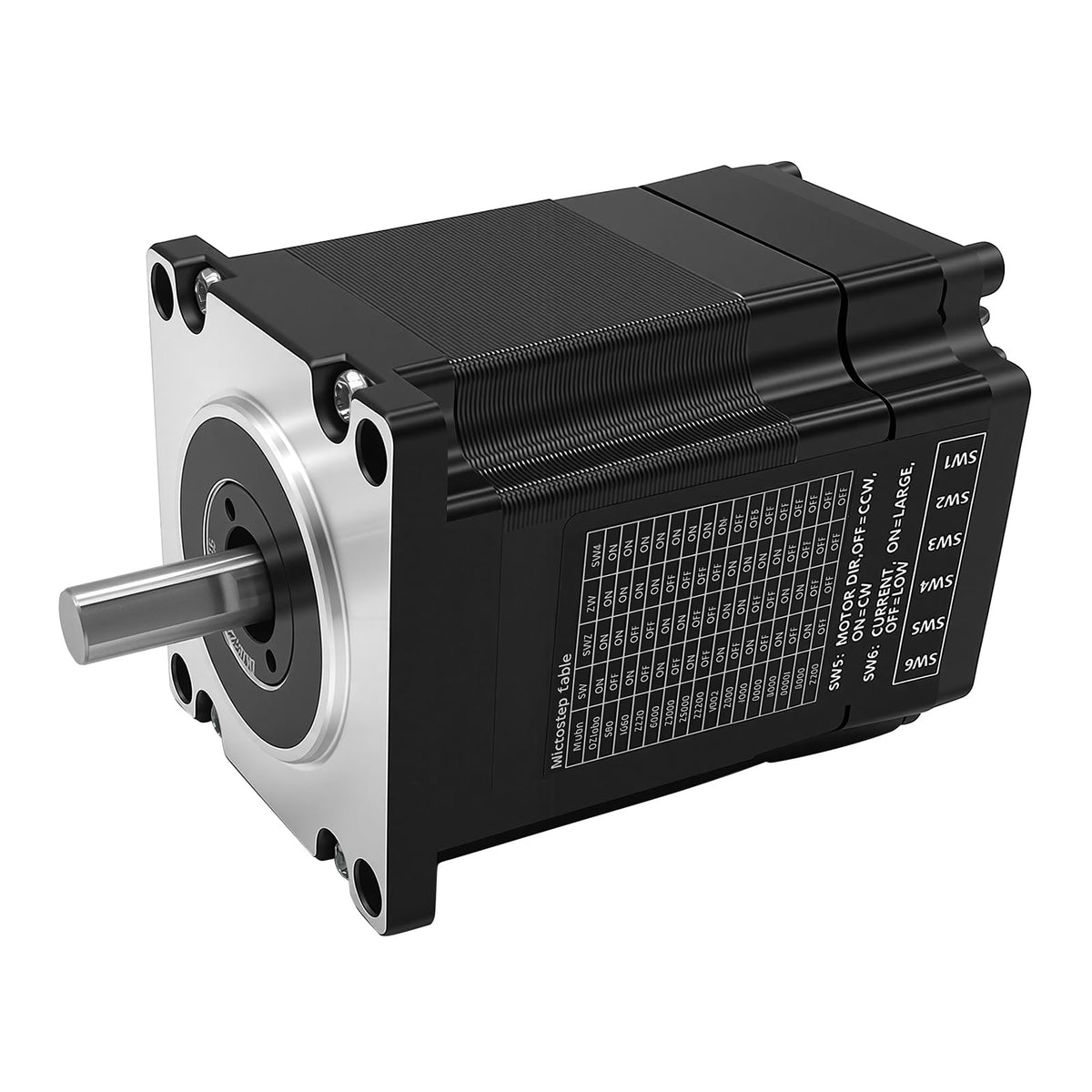

Integrated Nema 23 57mm Closed Loop Stepper Motor 2Nm with Encoder Driver

Integrated Nema 23 57mm Closed Loop Stepper Motor 2Nm with Encoder Driver

Key features

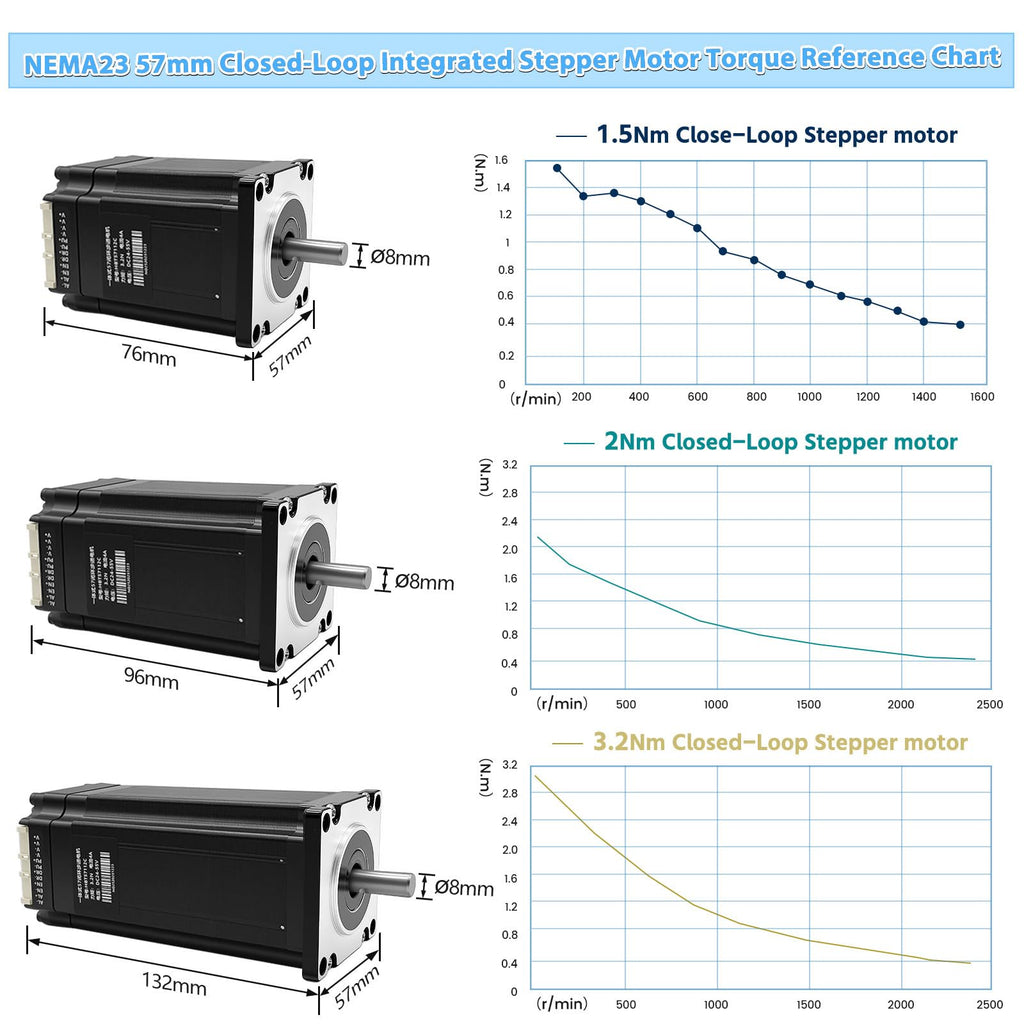

• HIGH TORQUE: Holding Torque 2 Nm. Running with no vibration/noise and high torque, good substitution of AC/DC servo stepper motor at low speed.
• PLUG & PLAY: This high-torque Nema 23 stepper motor is an all-in-one smart servo system. It integrates the motor, encoder, and driver into a durable aluminum alloy housing.

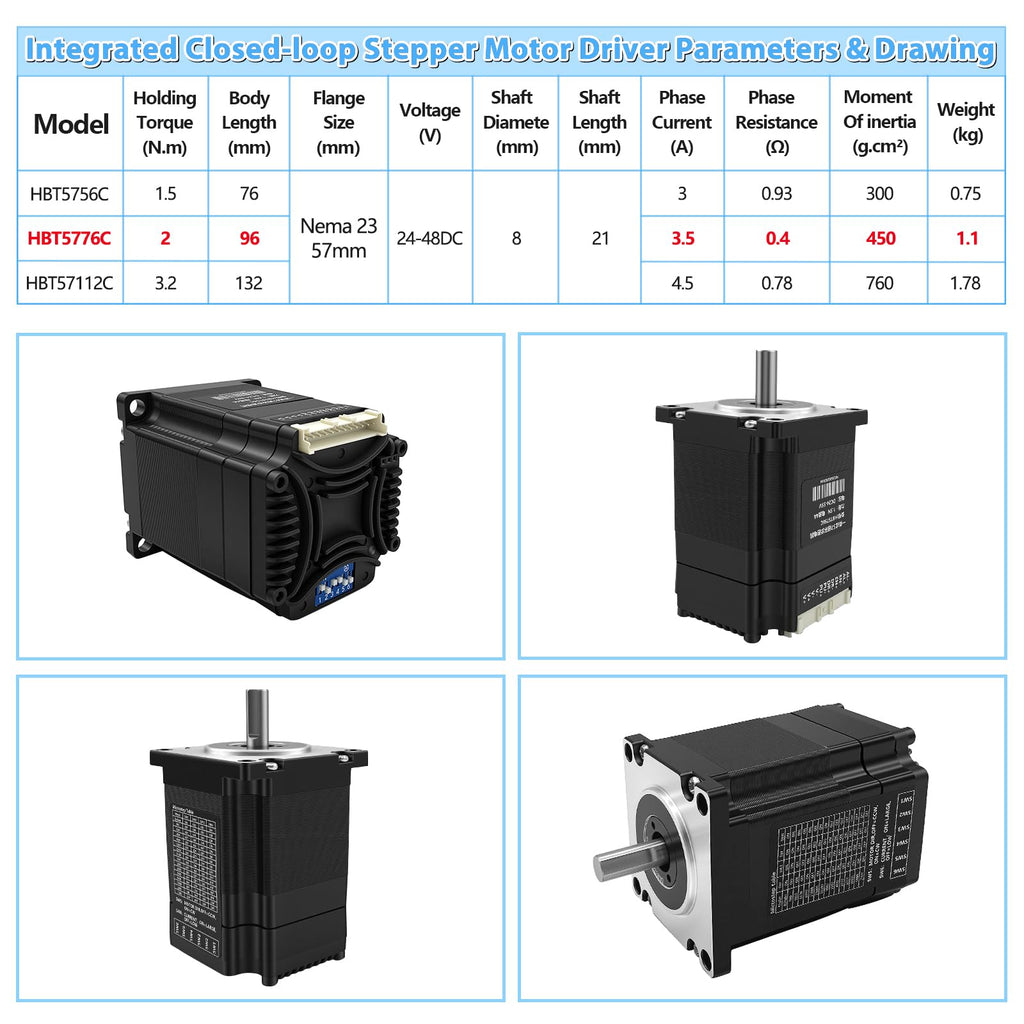

• SPECIFICATIONS: Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x96 mm / 2.24*2.24*3.78 inch; Shaft Diameter:8mm; Lead wire: 4; Support DC Power Supply:DC24-55V; Current: 3A.
• HIGH PRECISION: It is a new motor-driven integrated hybrid servo drive system.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product.
• EXCELLENT DESIGN: Closed-loop motion, high positioning accuracy, fast response, and high speed to 1000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
