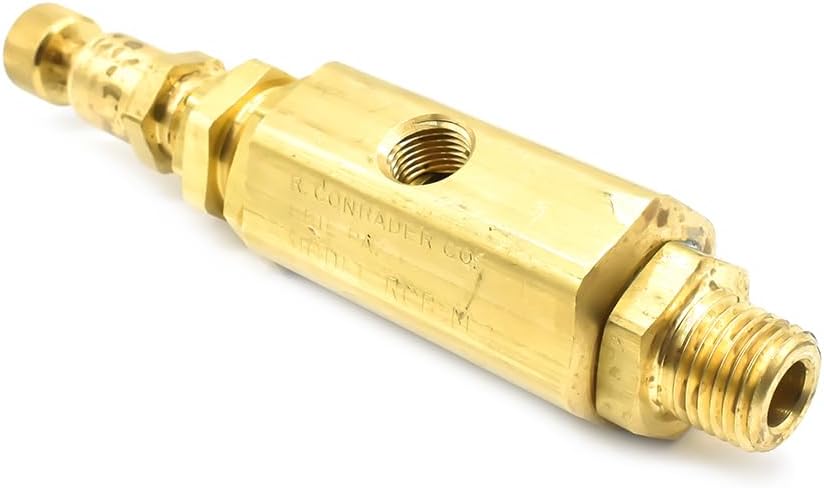

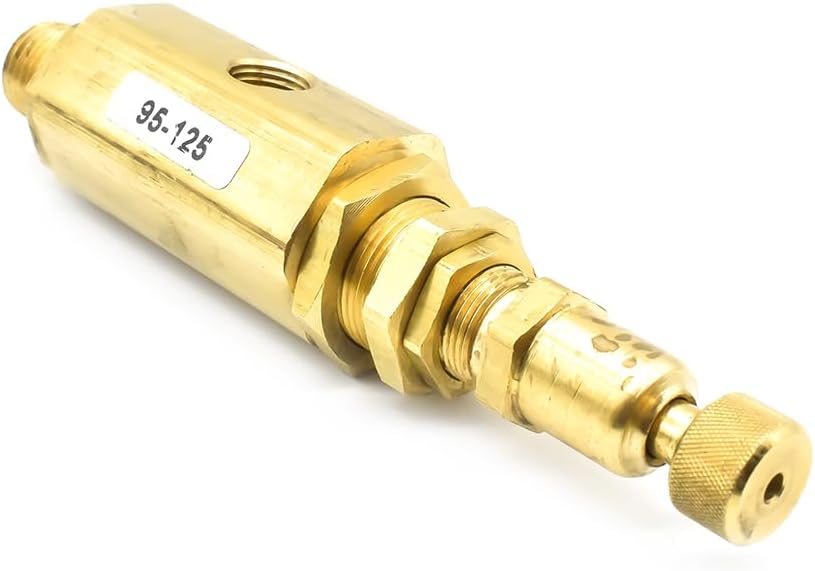

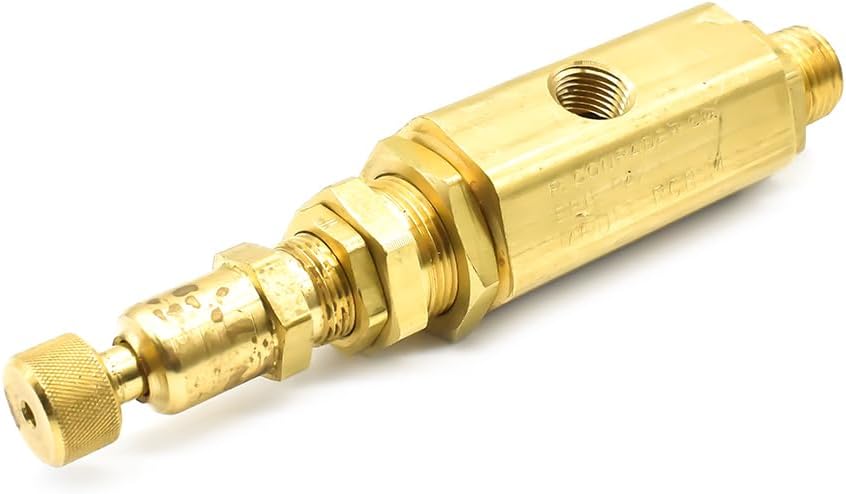

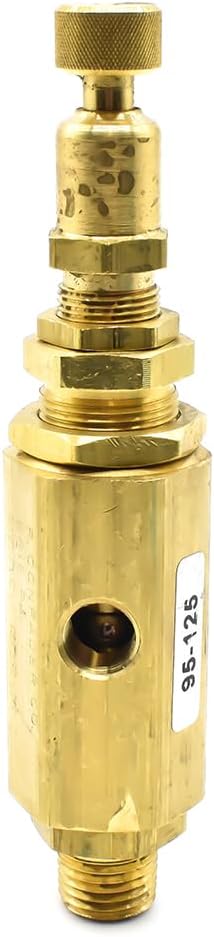

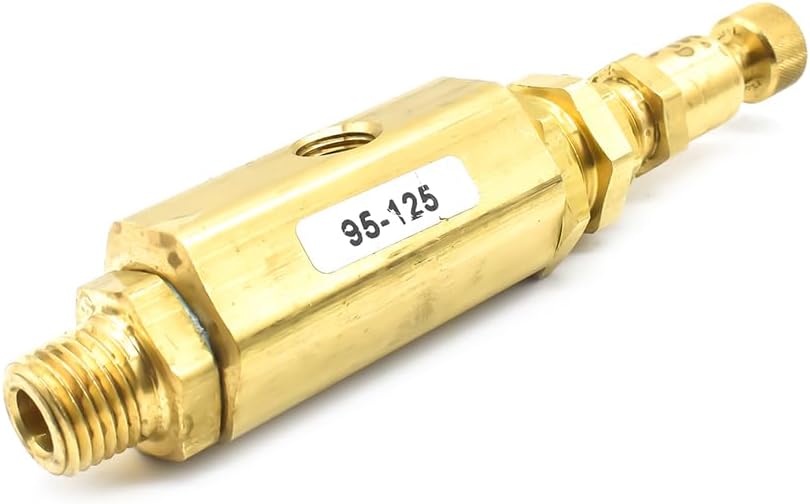

Interstate Pneumatics CVP7050 Unloader Control Pilot Valve for Air Compressors Compatible With (Emglo / Dewalt) Style

Key features

• Specifications: Preset at 95-125 PSI | Operating Pressure: 20-1200 PSI | Operating Temperature Range: -15° to 400° F | Inlet Connection Port: 1/4″ Male NPT | Outlet Connection Port: 1/8″ Female NPT | Body/Fittings: Brass | O-Rings: Silicone/Viton | Poppets: Reinforced PTFE | Springs: Stainless Steel | Made in USA
• This item fits the following models: Pilot Valve for pumps w/ unloaders compatible with (Emglo / Dewalt) style - RCB style
• Compatible with: Dewalt 5130236-00
• Compatible with: Emglo K5HGA-8P | K5GA-8P | K5WGA-8P | K5CGA-8P | K5HGA-17P | K5GA-17P | K5WGA-17P | K5CGA-17P | G8HGA-17P | G8GA-17P | G8CGA-17P | G8VGA-17P | G8KGA-17P | G8HGA-8P | G8GA-8P | G8CGA-8P | G8VGA-8P | G8KGA-8P

Pilot Valves are used on compressed air systems to control other devices using a pneumatic signal. The pilot valve is factory set in a pressure range with an unload (cut-out) and load (cut-in) setting. As the system pressure increases and the unload (cut-out) pressure is achieved, the pilot valve opens and pressurizes the line downstream of the pilot. As the system pressure deceases and the load (cut-in) pressure is achieved, the pilot valve closes and depressurizes the line downstream of the pilot valve.
