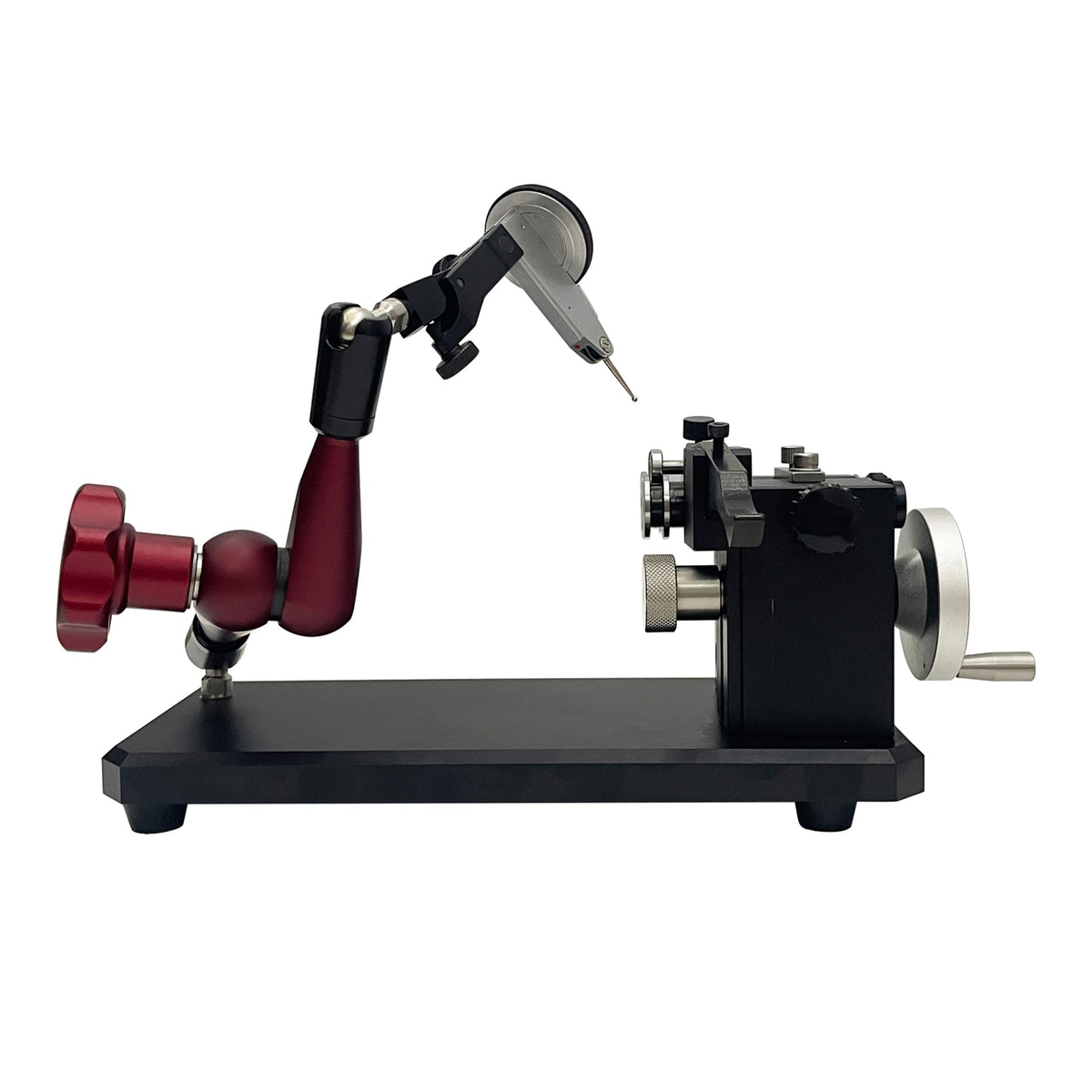

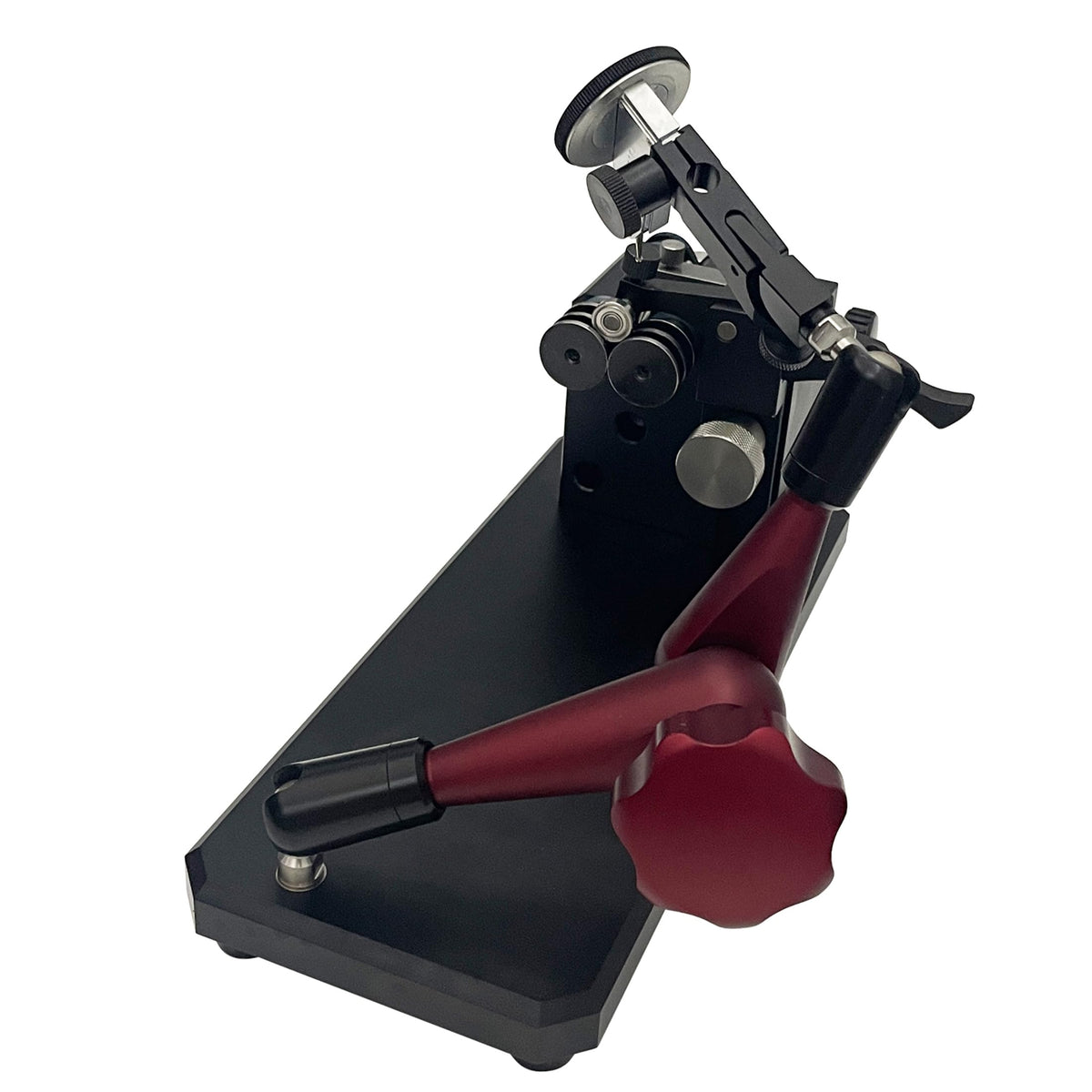

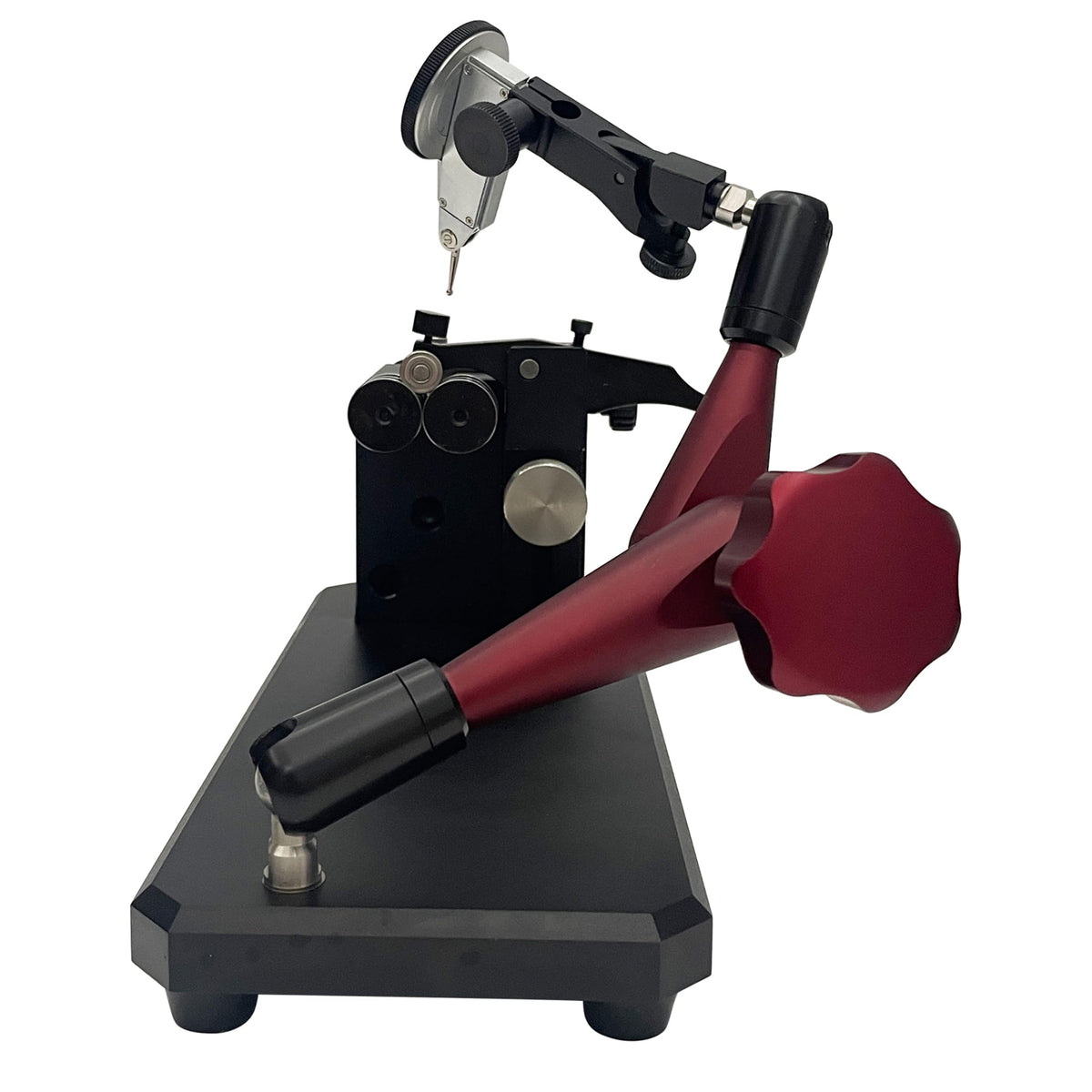

INTSUPERMAI Cylindrical Concentricity Tester Concentricity Measuring Instrument Concentricity Gauge Runout Concentricity Tester 0.0004" Accuracy
INTSUPERMAI Cylindrical Concentricity Tester Concentricity Measuring Instrument Concentricity Gauge Runout Concentricity Tester 0.0004" Accuracy
Key features
- 0.0004" Head AccuracyThe machine is equipped with a 0.01mm dial indicator, which can be accurately measured, with high precision, and fast measurement to save time.
- Manual MeasurementRotate the handle by hand to measure the workpiece to be measured, measure its runout, and read through the meter.
- 360° Universal Magnetic BaseThe dial plate base is a universal magnetic base, which can be rotated 360°, can be fine-tuned, has locking bolts, can be adjusted according to needs, and is very flexible
- Lifted Up and Down RollerThe roller with double grooves can be lifted up and down and the height of the roller can be adjusted through this handle according to the diameter of the workpiece to be measured.

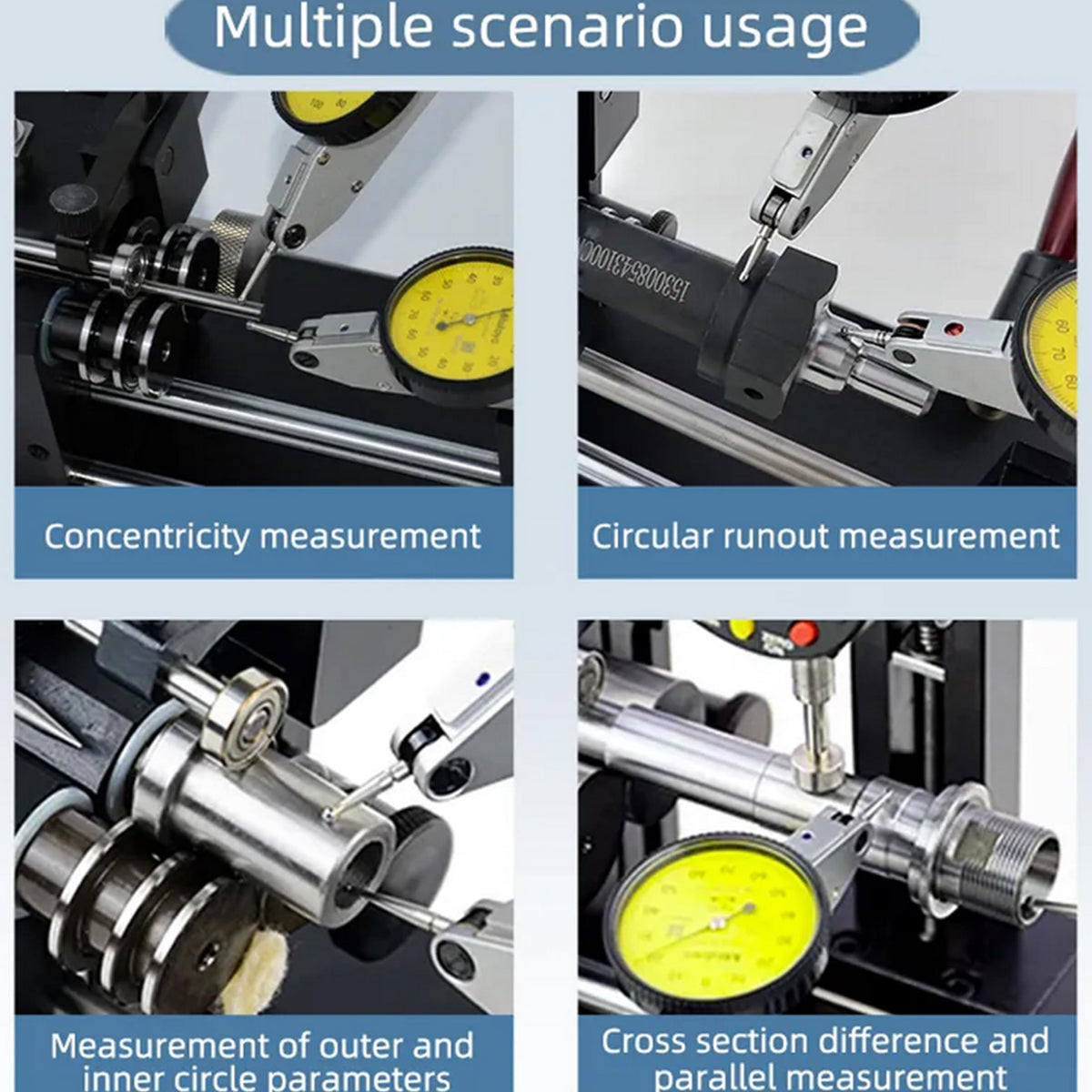

- Wide ApplicationPrecision measurement of roundness, concentricity, circular runout and section difference of shaft parts.Simultaneous Precise Measurement of External and Internal Parameters of Shaft Parts.Simultaneous precise measurement of multi-point parameters of shaft parts. Quick measurement, differential surface, outer circle and inner circle can be measured at the same time.
Product Overview Concentricity alignment instrument is used for centrifugal pumps, compressors, fans, generators and other rotating equipment to find the concentricity of two axes work (also known as wheel alignment). It has the characteristics of reasonable structure, high precision, small error, wide application range, easy use and maintenance, and is an ideal measuring tool, widely used in petrochemical, power generation, paper making, textile and other machinery industries. The measuring instrument has axial and radial two double-sided dial indicator, easy to read, the base is equipped with high-performance magnetic steel, can be firmly adsorbed on the diameter of 30 ~ 900mm different diameters of the coupling, used to detect the concentricity of cylindrical pin type, gear type, fixed type, elastic type and other coupling, not only improve the measurement accuracy, reduce the measurement error, and can greatly improve the work efficiency. Reduce machine vibration and extend service life. Product Parameters Model: ACE-1 Roller: Double grooves Applicable diameter: 0.04"-1.38" (1-35mm) Applicable length: 4" (102mm) Head accuracy: 0.0004" (0.01mm) Package size: 19"*10"*9" (45CM*27C
