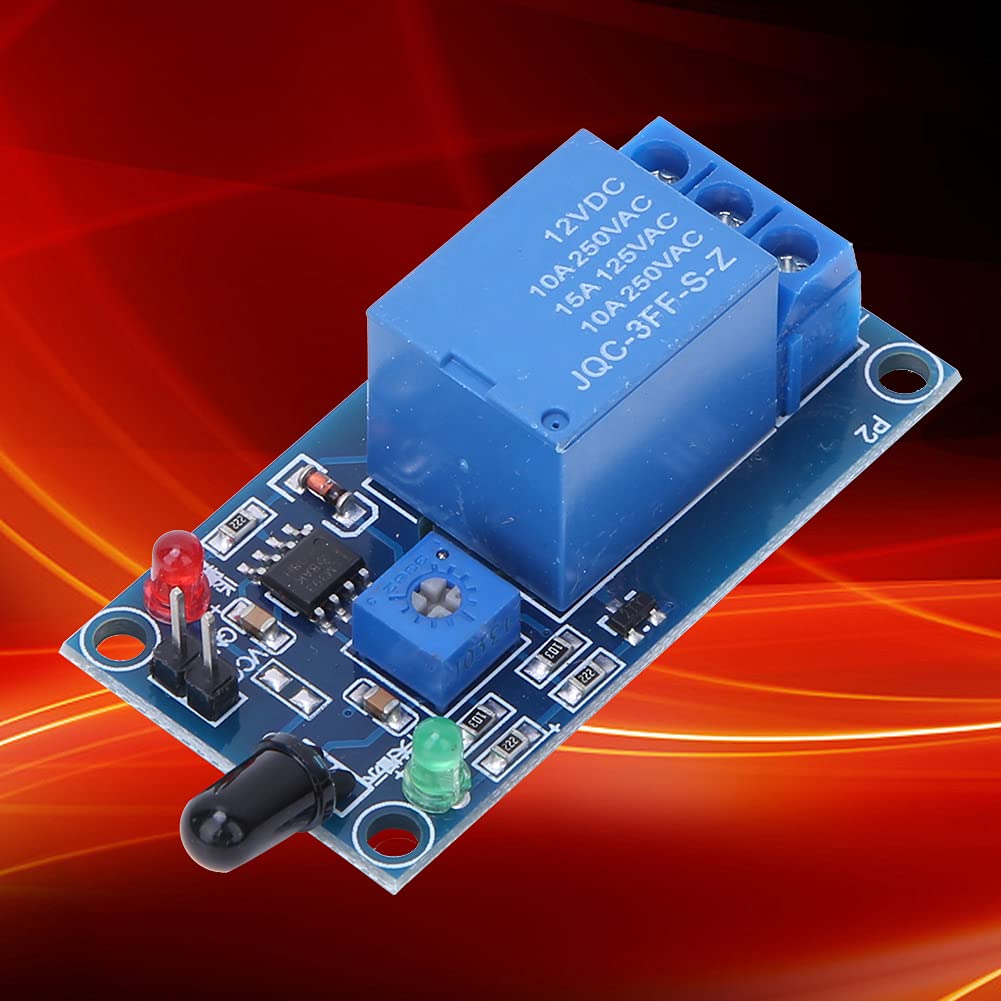

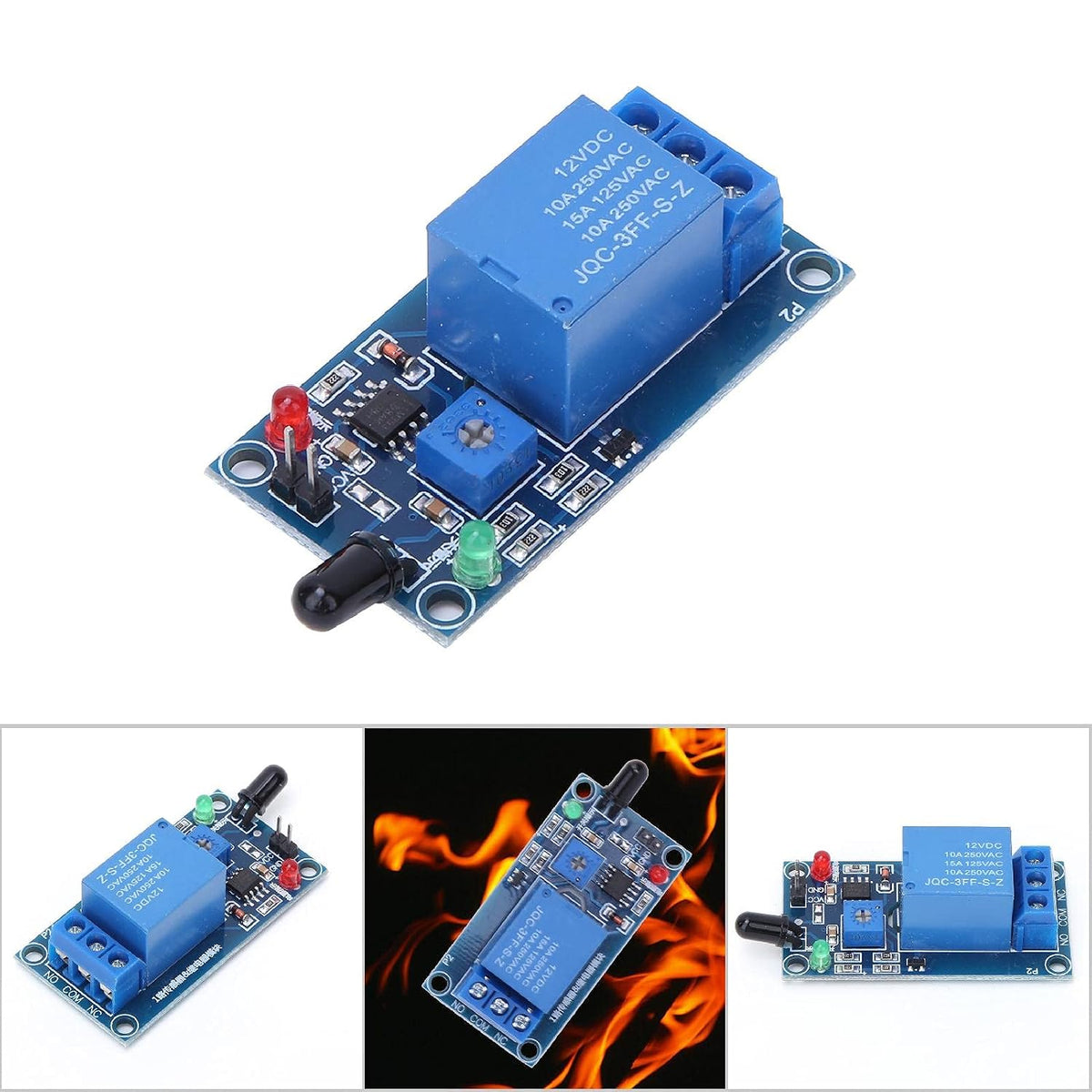

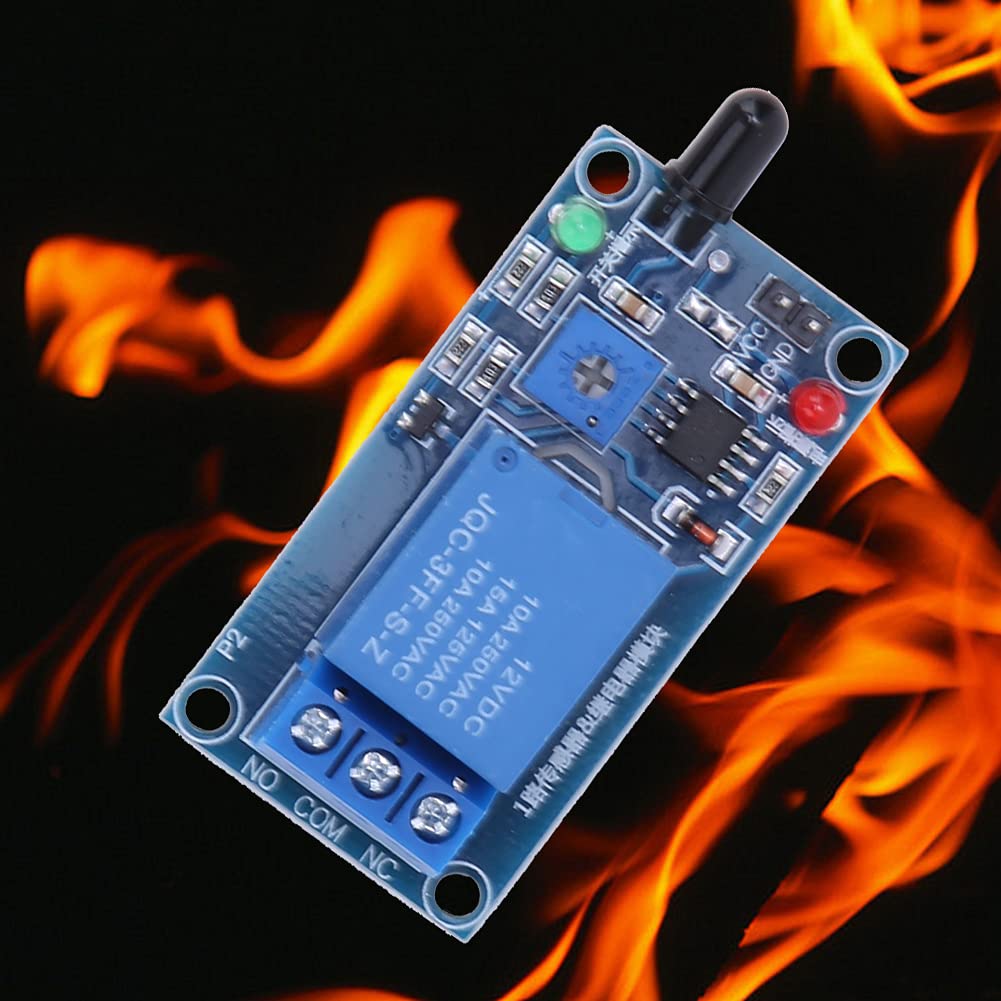

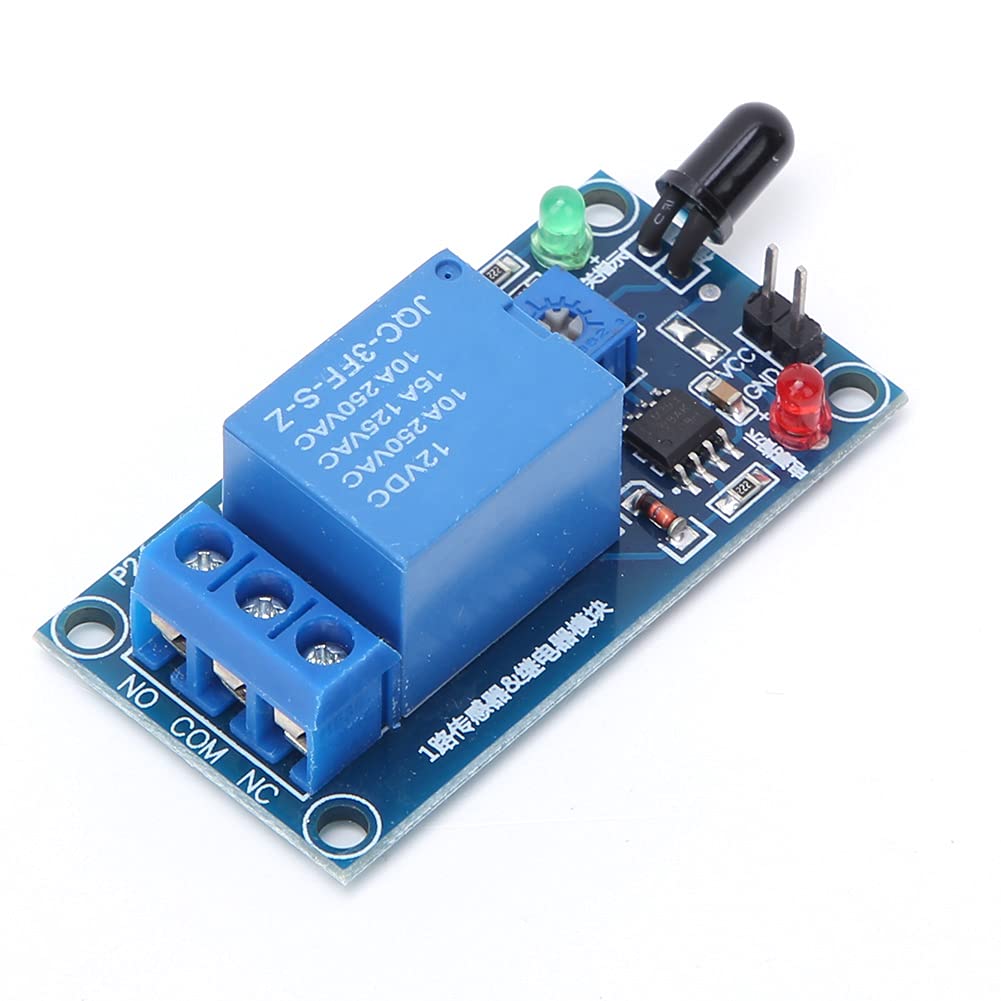

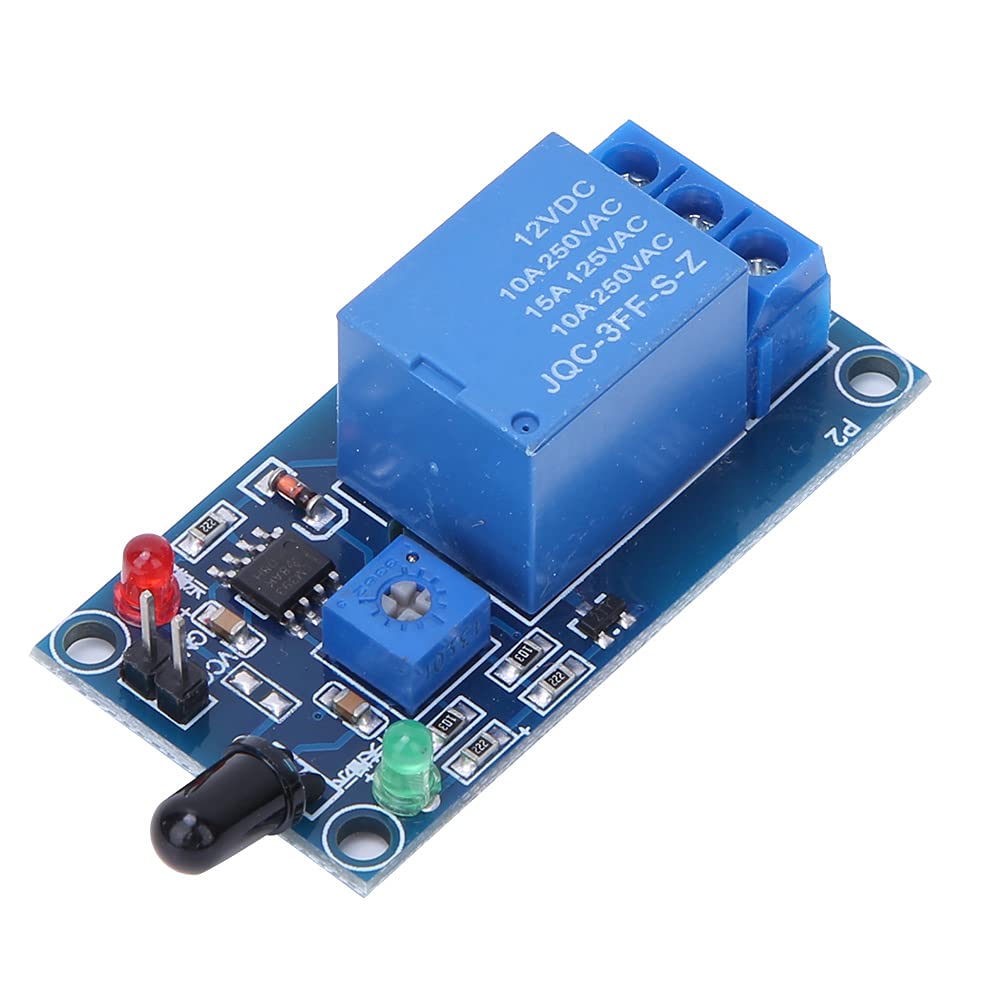

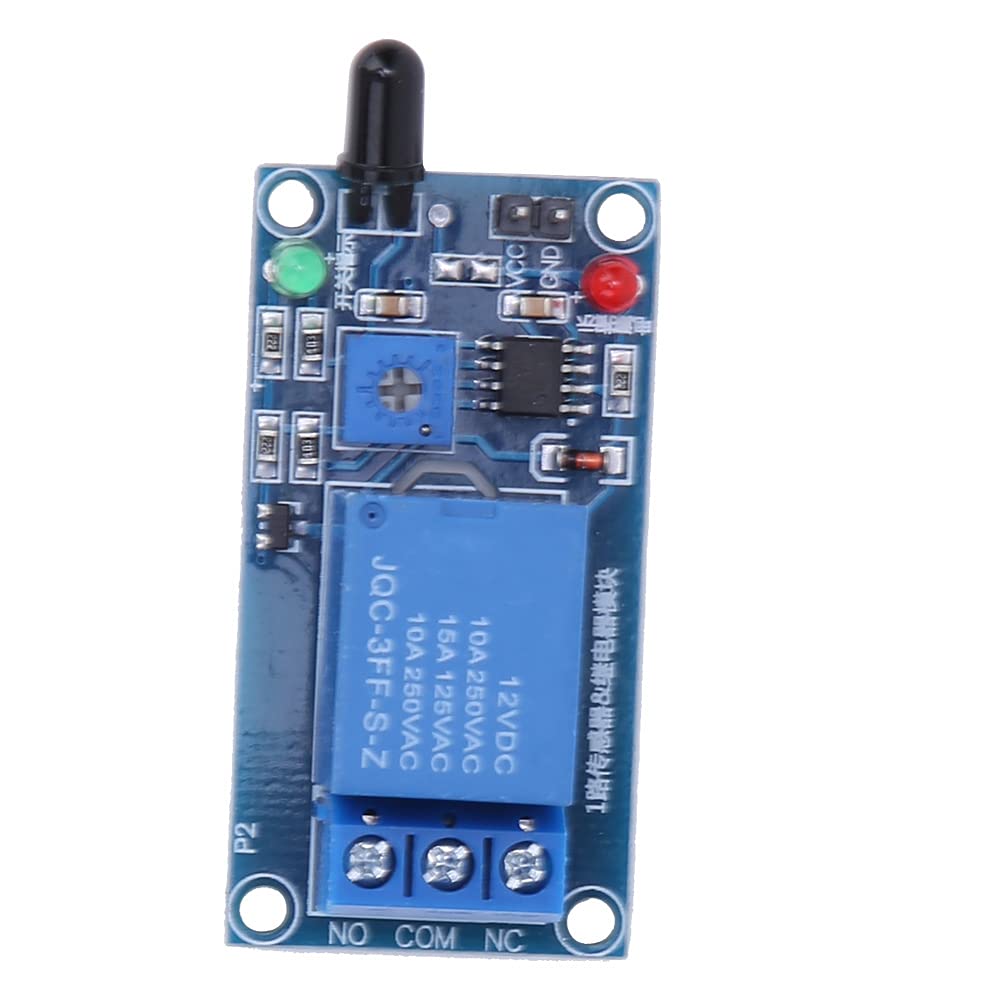

IR Flame Sensor, Flame Sensing Relay Module 12VDC 760~1100nm, Detect Light Source with 60 Degree Detection Angle, Adjustable Sensitivity, Easy Wiring with Terminal Block, for

Key features

• [Easy Installation] Output with blue terminal block for simple and convenient wiring setup.
• [Detects Flames and Light Sources] Detects within the 760 nm to 1100 nm wavelength range. test flame distance of 80 cm, adjust sensitivity with digital potentiometer.
• [Sensitive Detection Angle] With a 60, degree detection angle, highly responsive to flame spectrum.
• [Trigger Relay Output] Comparator output triggers the relay directly for efficient .
• [Adjustable Sensitivity] Easily adjust sensitivity with the blue digital potentiometer for optimal detection.

[Easy Installation] Output with blue terminal block for simple and convenient wiring setup. [Detects Flames and Light Sources] Detects within the 760 nm to 1100 nm wavelength range. test flame distance of 80 cm, adjust sensitivity with digital potentiometer. [Sensitive Detection Angle] With a 60, degree detection angle, highly responsive to flame spectrum. [Trigger Relay Output] Comparator output triggers the relay directly for efficient . [Adjustable Sensitivity] Easily adjust sensitivity with the blue digital potentiometer for optimal detection. Spec: Item Type: Detector Sensor Size:50 x 26mm / 1.97 x 1.02in Thickness:19mm / 0.75in Power Supply Voltage:12VDC(Input) Current:>150mA Load:250VAC 10A or 30VDC 10A Users Manual: 1. The flame sensor is most sensitive to the flame and also responds to the sunlight. It is generally used for alarms and other purposes. 2. By adjusting the potentiometer, the intensity of the sensor's induced flame can be set. When the flame exceeds the set threshold, the relay pulls in, the common end is connected to the normally open end, and when the flame is lower than the set threshold, the relay is disconnected. The common end is connected to the norma
