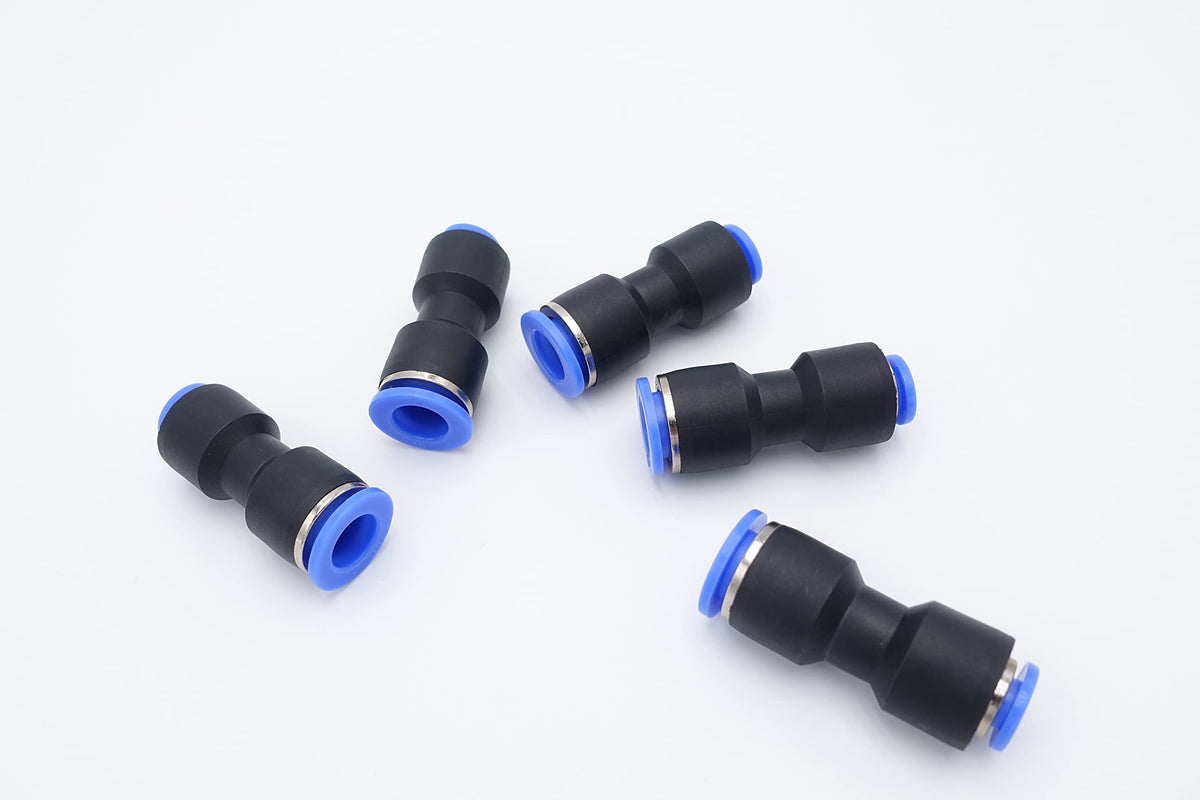

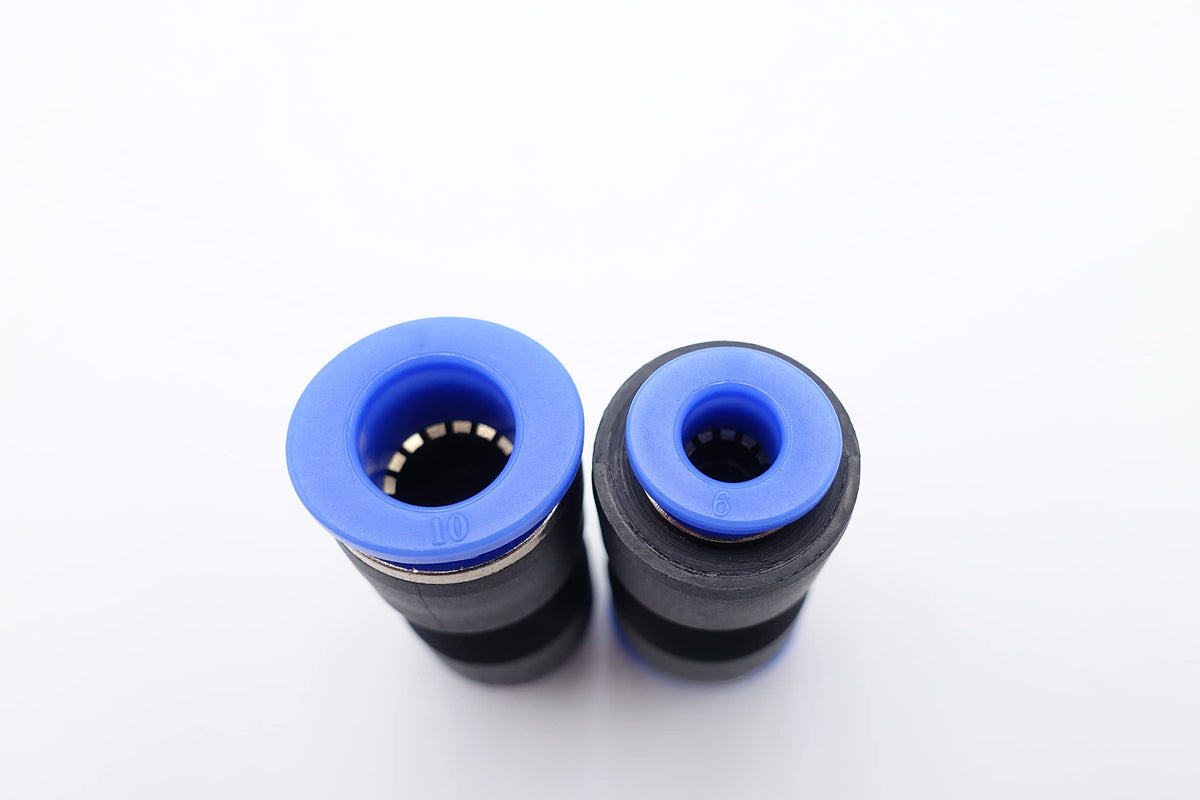

IVLPHA Push to Connect Fitting 10mm x 6mm Tube OD, Straight Union
IVLPHA Push to Connect Fitting 10mm x 6mm Tube OD, Straight Union
Key features
- Quick installation, simple and flexible, space-saving. Even after installation, the direction of tubing can be changed freely.
- The tube fitting comes in a wide variety of models to meet all your needs in pneumatic piping.
- The release ring adopts the ellipse design to make it more convenient and labor-saving for disconnection. Stainless steel locking claw, never stuck, never rust.
- Fit for icemaker, refrigerator, cold water filter, etc. Please do not apply for the tube joint with additional external load (bending, twist or pulling, e.g.: Trailer, Air Suspension).
- Pressure Range: 0~1.1Mpa(0-160psi), Negative Pressure: -100Kpa (-29.5 in.Hg), Pressure Proof Test: 3.0Mpa (435psi), Temperature Range: 0~60℃ (32~140℉), Applicable Tube: Nylon,Polyamide (PA) / Polyurethane (PU). Applicable Fluid: Air, Vacuum, Water.
Before use, it should make clear following points Warning a) Except air and water (only special type and custom-design, e.g.: icemaker, refrigerator, cold water filter), never attempt to use the tube joint other fluids. b) The tube joint application is prohibited where spark and fire might be occurred. c) The tube joint application is prohibited if water temperature is above 60℃ (140℉) because resin might be decomposed and damaged in water under a high temperature. d) The tube joint is not designed for application where there is static charge. e) Never apply tube joint with additional external load (bending, twist or pulling, e.g.: Trailer, Air Suspension), Cautions 1) If you use other supplier tubing, the different tubing tolerance might case leakage or incorrect connection and disassembly. It must check if tubing OD is measured by Metric Size or Inch Size. 2) Always check the end of tubing for a right angle cutting and check the external surface of tubing for any damage or scratch. Please refer to following instruction in connection of tubing. When you insert the air tubing into the joint, you will have two-step feeling. Section One is locking claw while Section Two is seali
