J10S Shallow Well Jet Pump, 1 HP Self-Priming Cast Iron Water Pump

Key features

• Reliable Support & Long-Term Assurance – Backed by a 5-year quality assurance, this J10S shallow well jet pump is designed to deliver dependable performance for long-term use. If you have questions regarding compatibility, installation, or operation, our professional support team is available through Amazon Messages to provide prompt assistance and effective solutions.
• Versatile Shallow Well Pump – Ideal for a wide range of shallow well water systems, cottages, and cabins. Built with a 1 HP self-priming motor, it matches the specifications of Goulds J10S while being easy to integrate into existing shallow well systems. Perfect for home water supply and booster service installations.

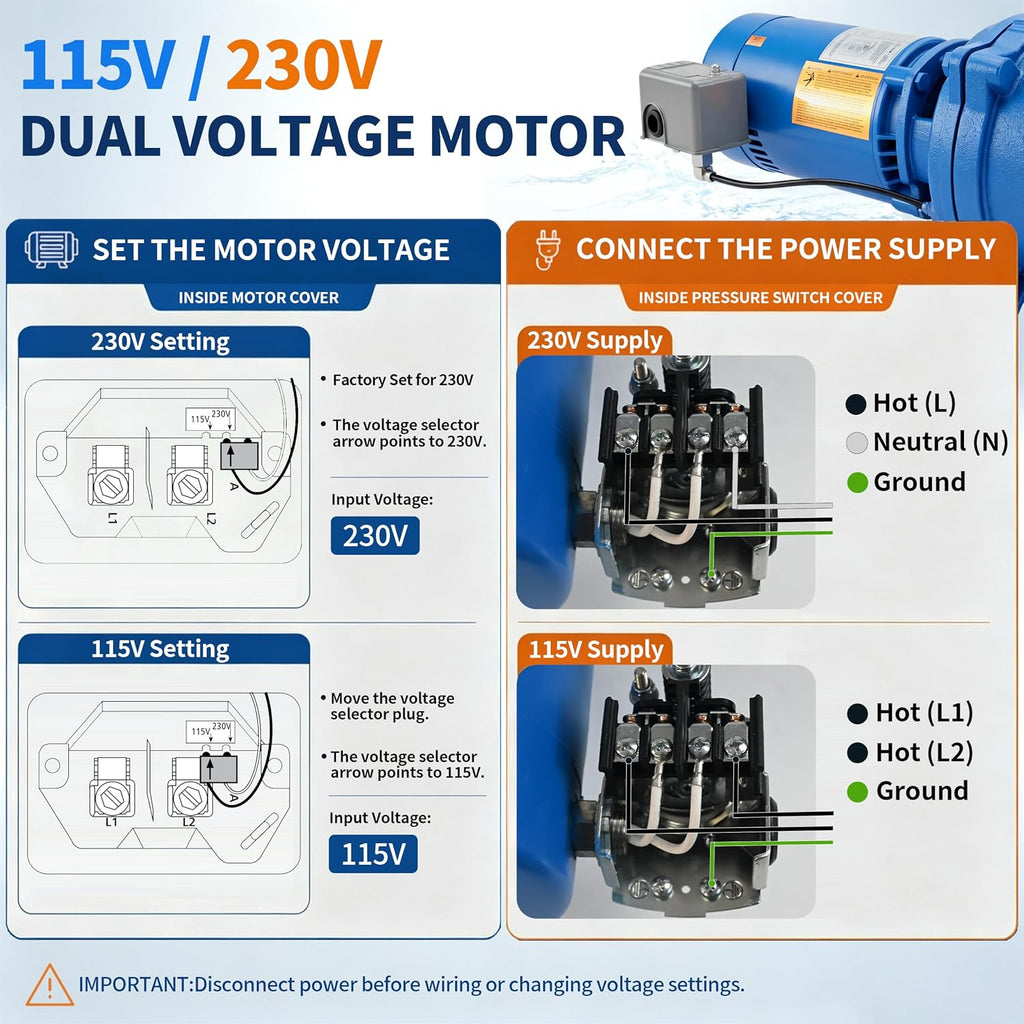

• 1 HP Dual Voltage Motor – Built with a 1 HP, 60 Hz, single-phase capacitor-start motor rated for 115/230V operation and 3500 RPM. Supports shallow well suction lift applications up to 25 ft and delivers up to 25 GPM under proper installation conditions.

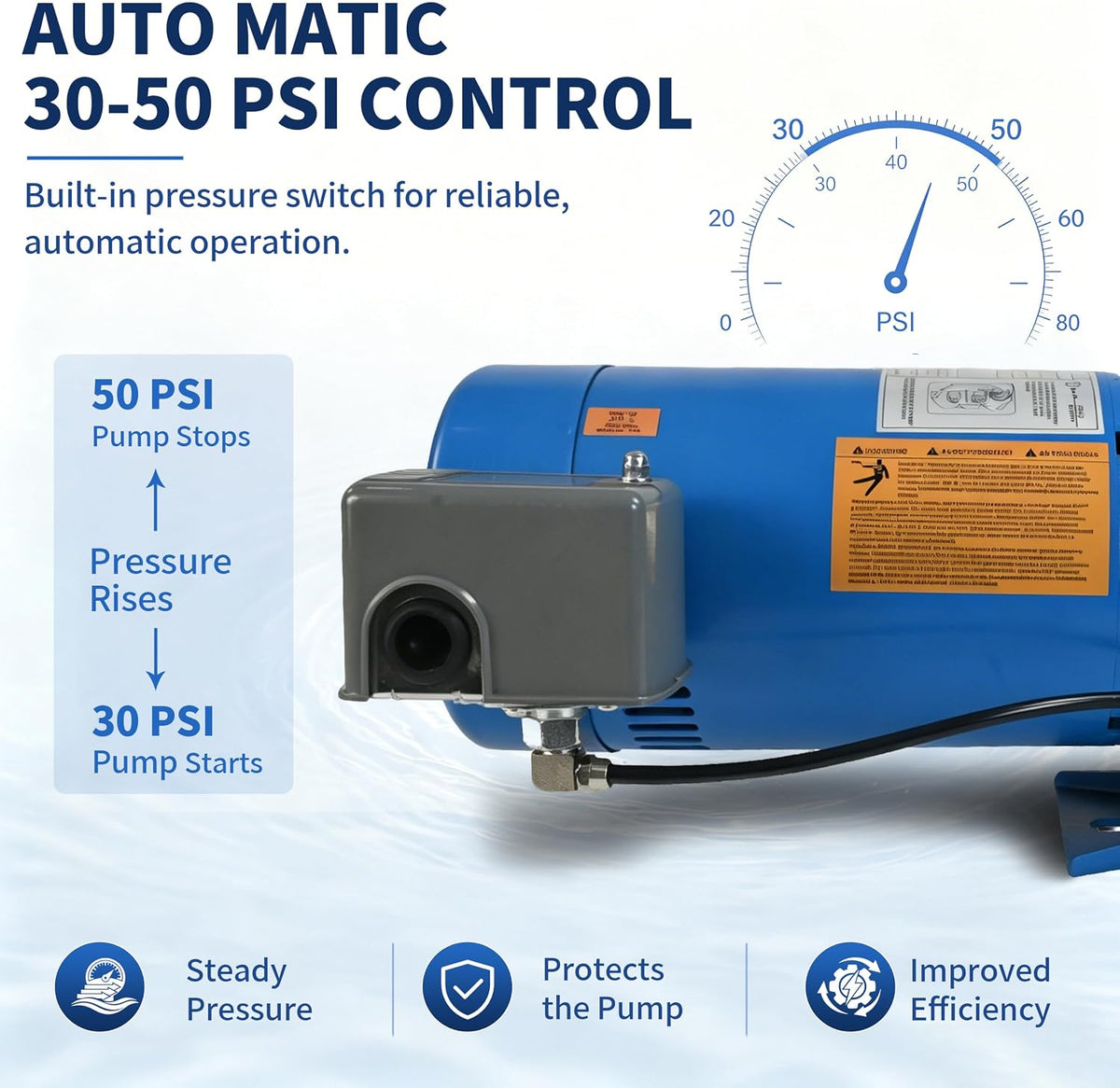

• 30-50 PSI Pressure Control – Equipped with a pressure regulator and AS4-style pressure switch preset at 30-50 PSI for automatic start and stop according to water demand. Self-priming design ensures reliable water delivery after initial priming.

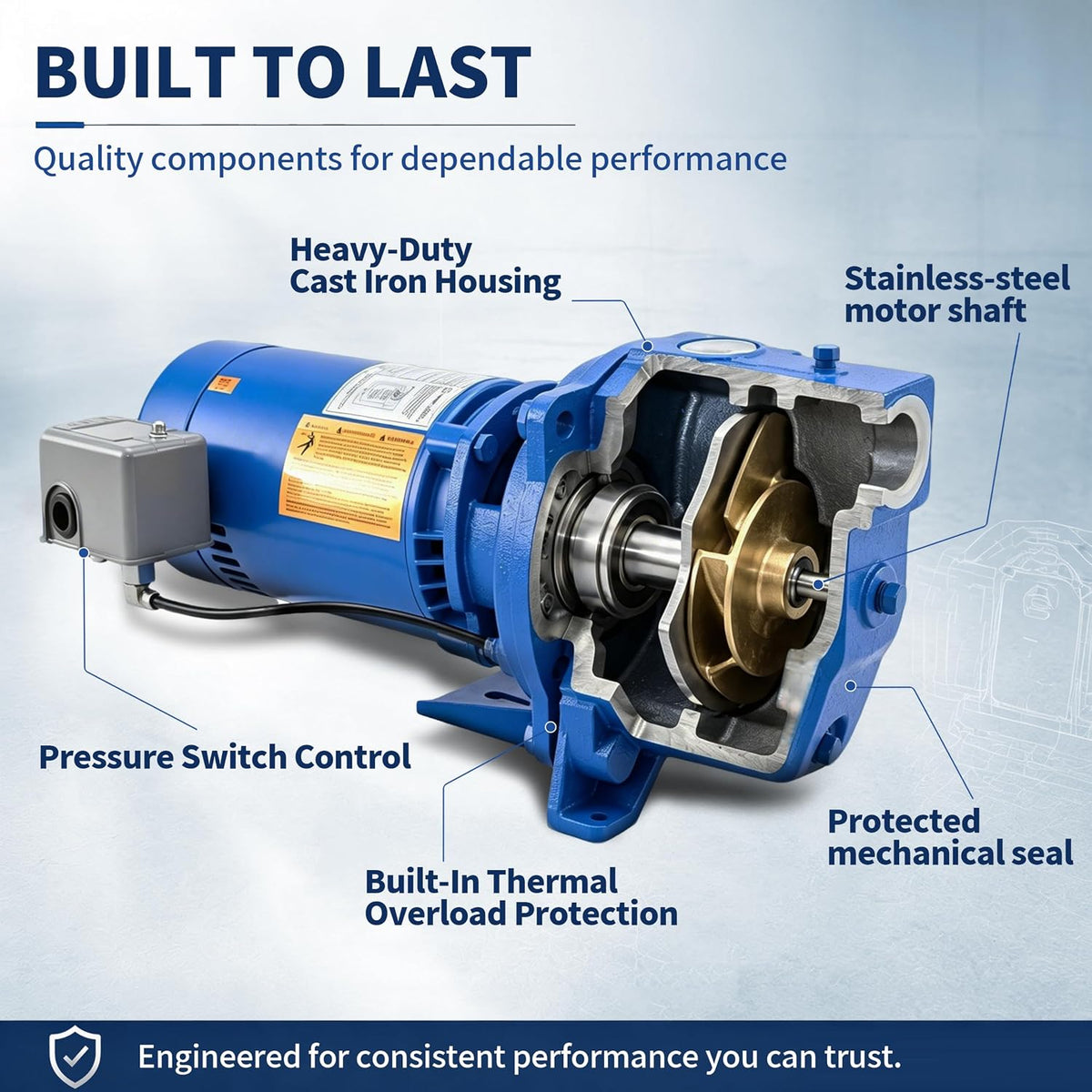

• Durable Cast Iron Construction – Heavy-duty cast iron pump housing, stainless steel shaft, protected mechanical seal, and built-in overload protection with automatic reset provide long-lasting performance for residential water supply and booster applications.

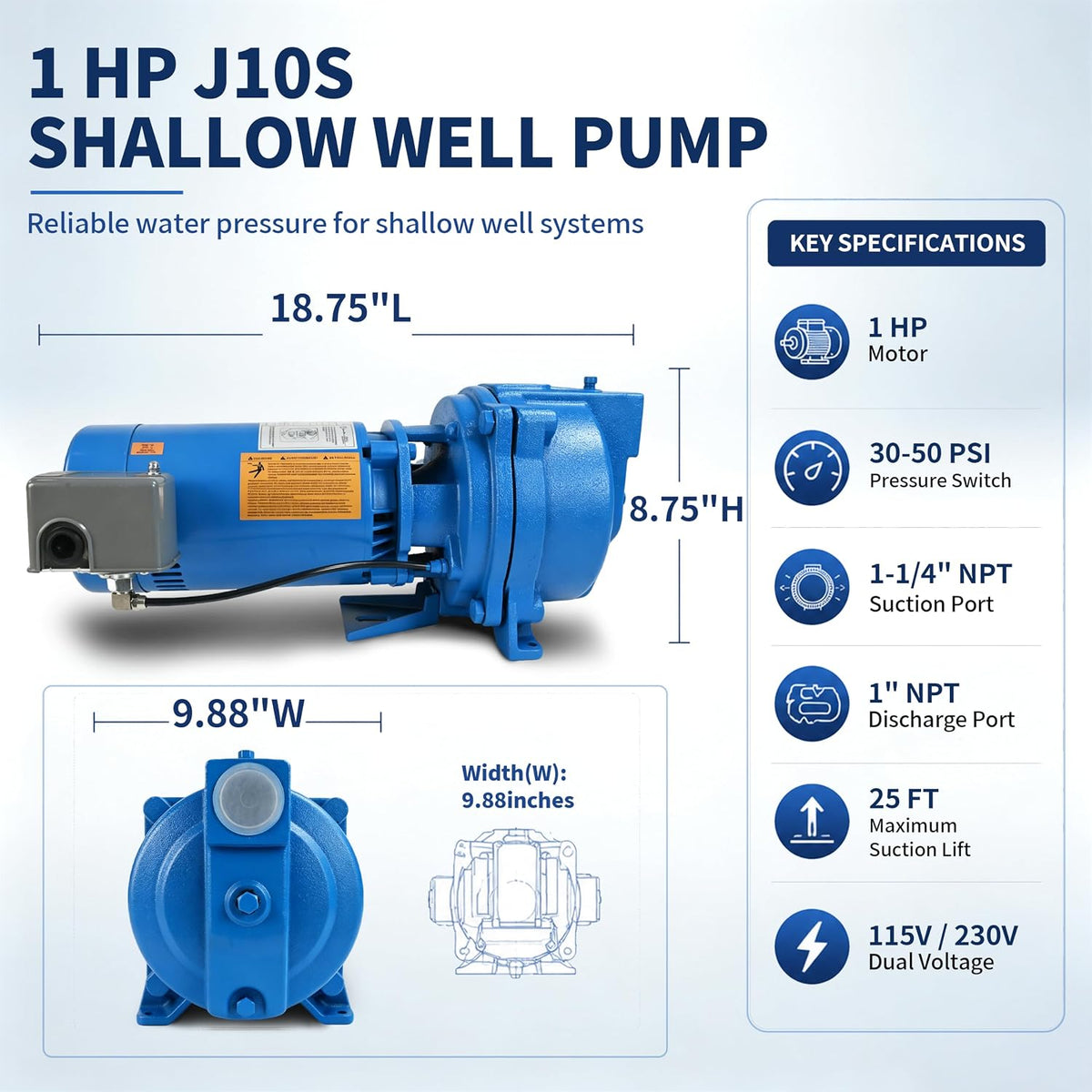

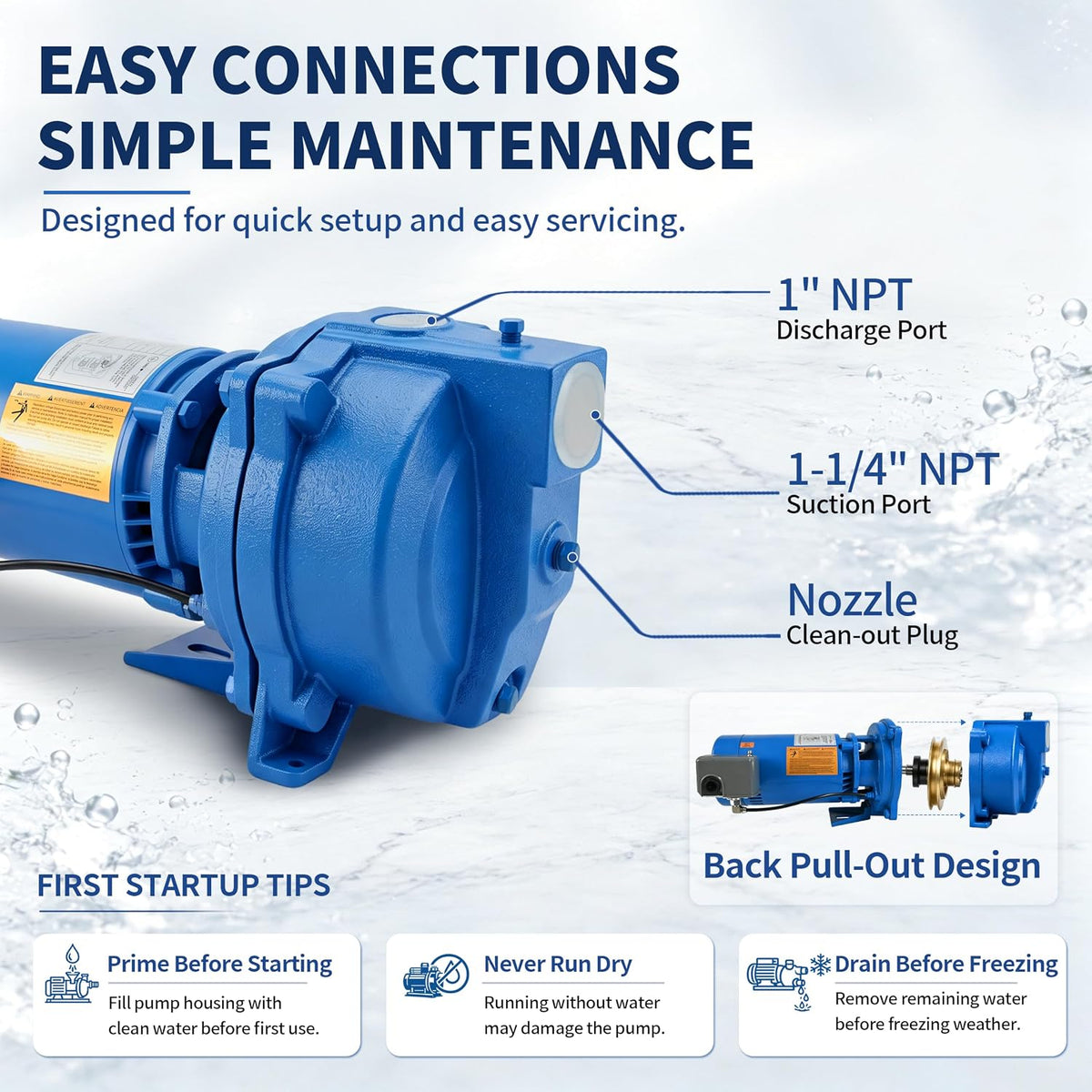

• Easy Installation & Maintenance – Standard 1-1/4" NPT suction and 1" NPT discharge connections, back pull-out design, two-compartment motor access, and nozzle clean-out plug simplify inspection and maintenance. Installation instructions are included for a smooth setup.

The J10S 1 HP shallow well jet pump is designed for above-ground residential water systems, cottages, lawn irrigation and pressure tank applications. Its cast iron pump housing provides a solid, serviceable structure for everyday water-system use. The single-phase 60 Hz motor supports 115V or 230V operation and is factory configured for 230V. Before installation, confirm the incoming supply voltage and set the motor accordingly. The built-in 30-50 PSI pressure switch supports automatic start and stop operation when the pump is installed with a properly sized pressure tank. A 1-1/4 in. NPT suction port and 1 in. NPT discharge port provide standard threaded connections for shallow well systems. For best performance, use an airtight suction line, install the appropriate foot valve or check valve, and avoid undersized piping that can increase friction loss. Prime the pump housing and suction line with clean water before the first startup, after service, or whenever prime is lost. Never run the pump dry. Drain all remaining water before freezing conditions to help prevent damage. The back pull-out design allows service access to the motor and rotating assembly without disturbing the con
