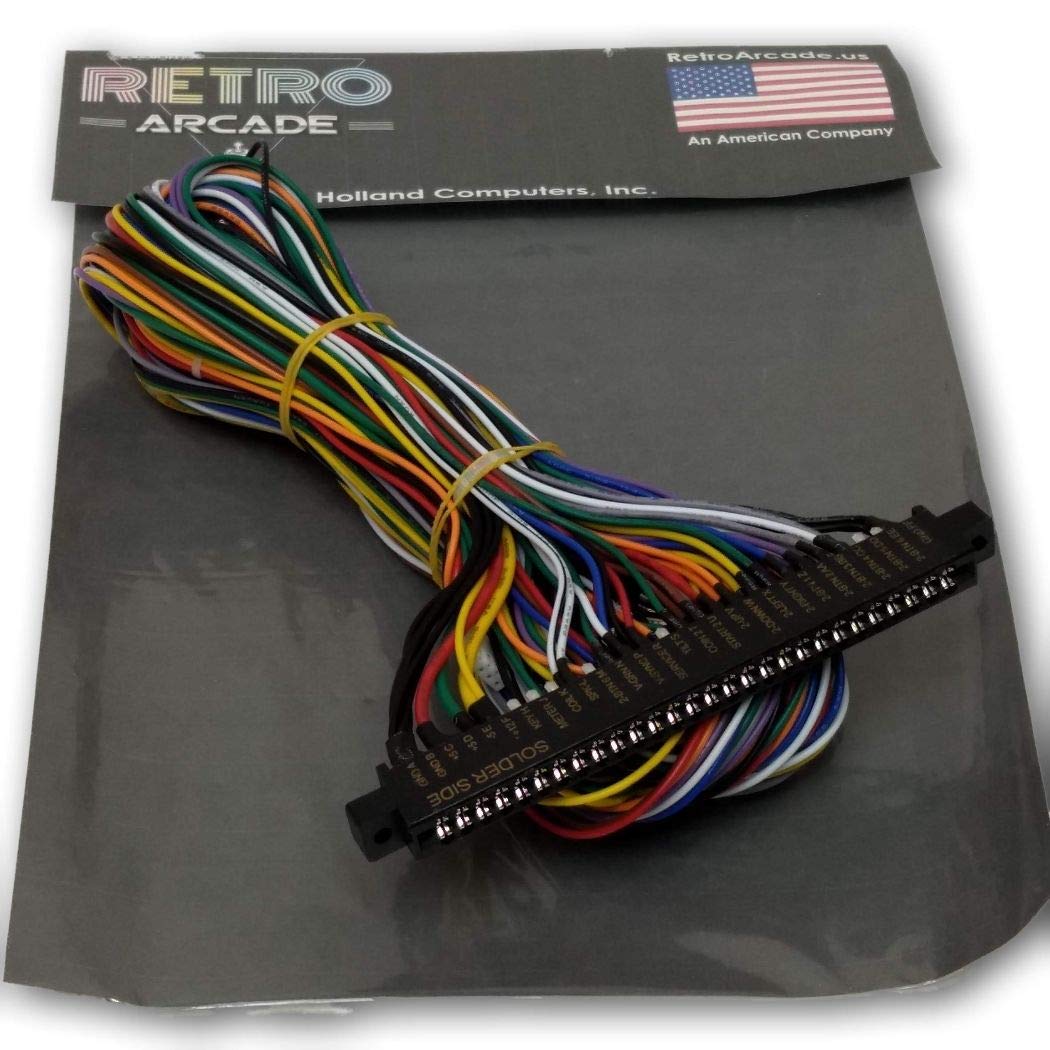

Jamma Board Standard Cabinet Wiring Harness Loom for Jamma 60-in-1 PCB Board

Key features

• Manufacturer Warranty

Product Information New Premium Standard 56 pin Jamma connector used on many arcade boards to simplify conversion of game cabinets with color coded connections for 2 players, power, coin doors, test, service, video, and sound. 28 pins on each side of the Jamma harness. It comes with edge connector, push button lugs, power leads, grounds, and RGB monitor output connection for hookup to older tube monitors.All leads have .187 quick disconnects for easy connecting of buttons and joysticks. Power lines have terminal forks for easy connection(+5VDC, +12VDC, GND) to game power supply, full grounding loop for all joysticks and buttons on your control panel. Product Features: Approximate lead length: 1.5M / 5 foot 18 gauge wire all other are 22 gauge wire. Edge connector includes -5Volts (as well as all other voltages) Button 4 is also connected into the harness Both ground connections are wired into the harness (pins 1+2+28) All pins on edge connector are protected by heat shrink All end connectors are designed for quick connection (no soldering) and protected by plastic sleeves Easy to follow plugs and connections for your monitor, speakers, power supply, and coin meter. Used for all gam

Free shipping included. 30-day hassle-free returns.
