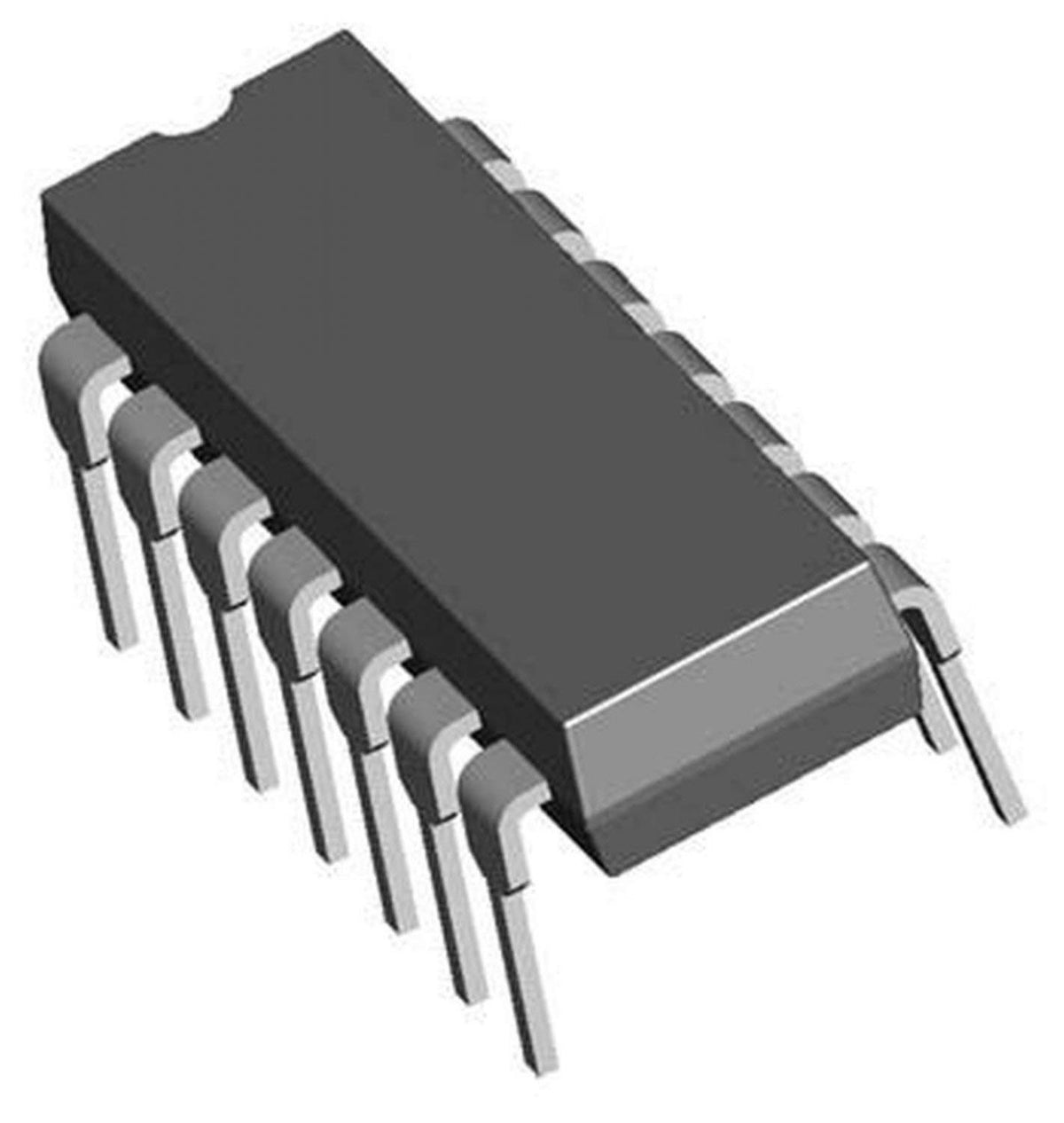

Juried Engineering SN74HC148N 74HC148 Encoder 8-to-3 Priority 16-Pin DIP Breadboard-Friendly (Pack of 10)

Key features

• Wide Operating Voltage Range of 2 V to 6 V
• Outputs Can Drive Up To 10 LSTTL Loads
• Low Power Consumption, 80-µA Max ICC
• Typical tpd = 16 ns
• ±4-mA Output Drive at 5 V

The ’HC148 devices feature priority decoding of the inputs to ensure that only the highest-order data line is encoded. These devices encode eight data lines to 3-line (4-2-1) binary (octal). Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. Data inputs and outputs are active at the low logic level.
